On 8/10/2022 at 3:17 AM, nraygun said:

Still looking for more support on this. Hope someone can help or steer me in the right direction.

I have just seen this on 6.11rc4 on one of my machines which no changes will see if I can findout what is the cause.



On 8/10/2022 at 3:17 AM, nraygun said:

Still looking for more support on this. Hope someone can help or steer me in the right direction.

Cat you provide the following cat /boot/syslinux/syslinux.cfg



I had pcie entries only on the gui section and not on the making the two the same fixed my issue.



root@computenode:~# cat /boot/syslinux/syslinux.cfg
default menu.c32
menu title Lime Technology, Inc.
prompt 0
timeout 50
label Unraid OS
  menu default
  kernel /bzimage
  append initrd=/bzroot isolcpus=2-11
label Unraid OS GUI Mode
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui isolcpus=2-11 acpi_enforce_resources=lax i915.force_probe=4680 pcie_acs_override=downstream,multifunction vfio-pci.enable_sriov=1
label Unraid OS Safe Mode (no plugins, no GUI)
  kernel /bzimage
  append initrd=/bzroot unraidsafemode
label Unraid OS GUI Safe Mode (no plugins)
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui unraidsafemode
label Memtest86+
  kernel /memtest

Edited August 27, 20223 yr by SimonF

default menu.c32
menu title Lime Technology, Inc.
prompt 0
timeout 50
label Unraid OS
  menu default
  kernel /bzimage
  append initrd=/bzroot pcie_acs_override=downstream,multifunction vfio_iommu_type1.allow_unsafe_interrupts=1
label Unraid OS GUI Mode
  kernel /bzimage
  append vfio_iommu_type1.allow_unsafe_interrupts=1 pcie_acs_override=downstream,multifunction initrd=/bzroot,/bzroot-gui
label Unraid OS Safe Mode (no plugins, no GUI)
  kernel /bzimage
  append initrd=/bzroot unraidsafemode
label Unraid OS GUI Safe Mode (no plugins)
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui unraidsafemode
label Memtest86+
  kernel /memtest



The default looks similar to the default except the default has commas and the parameters are in a different order.

Should I make the default parameters the same as the GUI mode?

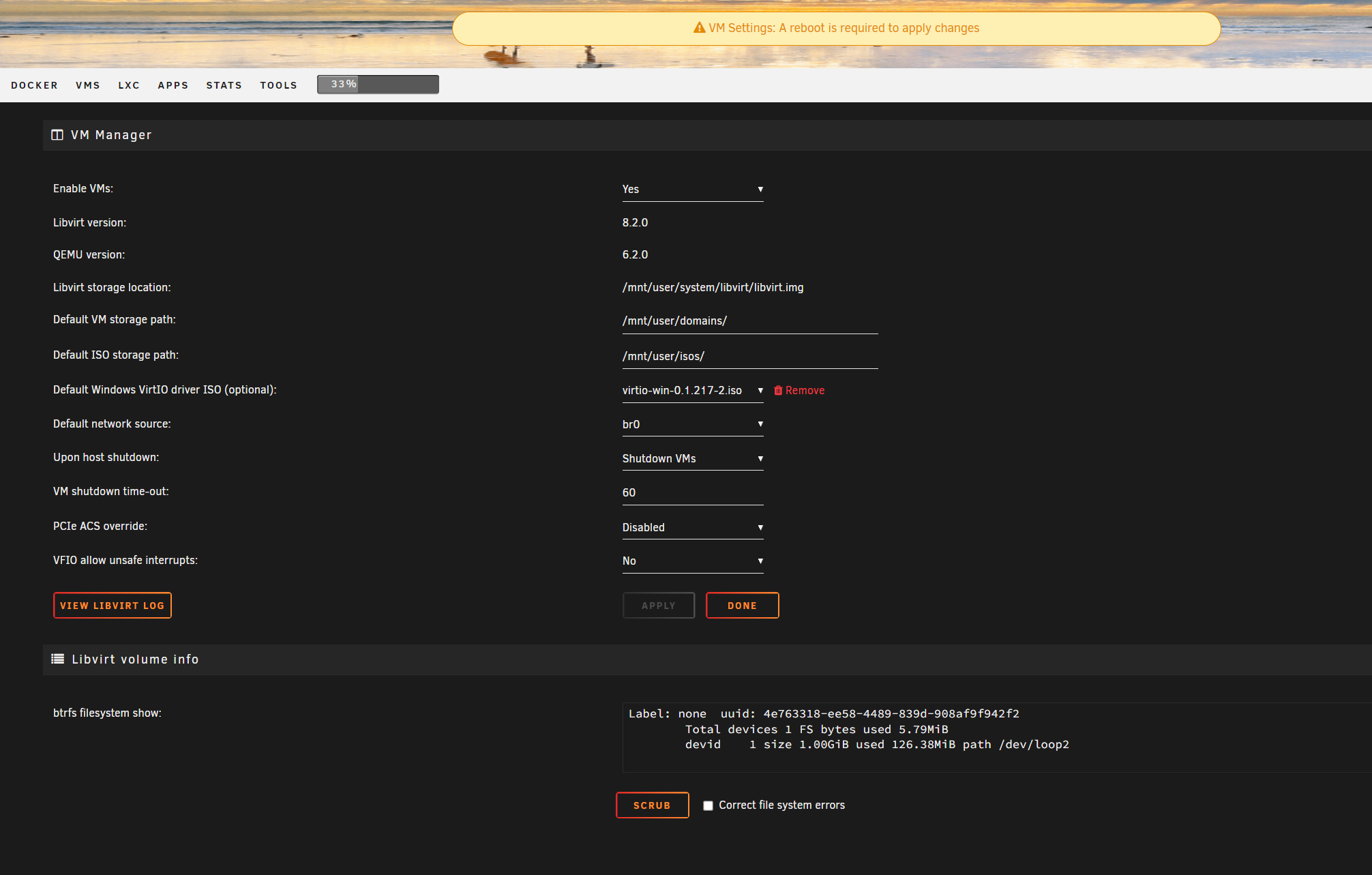

The setting in the GUI for PCI ACS override is "both", not "downstream". Maybe I need to change that? Is "both" the proper parameter name?

20 minutes ago, nraygun said:

The setting in the GUI for PCI ACS override is "both", not "downstream". Maybe I need to change that? Is "both" the proper parameter name?

The GUI is likely to be incorrect.



the current running can be found by



cat  /proc/cmdline



But this will be why you are seeing the reboot as GUI and Syslinux config dont match. Maybe you changed in syslinux and not via the GUI?

BINGO!
I changed them both to be the same (omitting the bzroot-gui for the default) and the problem is solved - no more prompt for a reboot when looking at the VM settings!!! Woohoo!

Thank you so much @SimonF!!!



Not sure, but maybe in the past I changed the syslinux file manually. But wouldn't changing it in the GUI write a new one? Oh well, it's fixed.



Thanks again!
