BTRFS error (device loop2): bdev /dev/loop2 errs: wr 39, rd 0, flush 0, corrupt 20124275, gen 0

[Simom]

Hey,

I have a BTRFS related problem and I am unsure what to do, so any help is appreciated!

I realized some of my dockers weren't running properly, so I took a look into the log and found these lines created about every five seconds

BTRFS error (device loop2): bdev /dev/loop2 errs: wr 39, rd 0, flush 0, corrupt 20124274, gen 0
Oct 26 03:10:23 Turing kernel: BTRFS warning (device loop2): csum hole found for disk bytenr range [412303360, 412307456)
Oct 26 03:10:23 Turing kernel: BTRFS warning (device loop2): csum failed root 1370 ino 1038 off 0 csum 0x42b31ff3 expected csum 0x00000000 mirror 1



Because my docker image is stored on a BTRFS RAID1 (2 1TB NVMEs) cache pool called "cache" I am guessing that this is somewhat of the root of the problem.

I also ran "btrfs dev stats /mnt/cache" resulting in the following:

root@Turing:~# btrfs dev stats /mnt/cache
[/dev/nvme1n1p1].write_io_errs    364810
[/dev/nvme1n1p1].read_io_errs     272
[/dev/nvme1n1p1].flush_io_errs    32498
[/dev/nvme1n1p1].corruption_errs  115
[/dev/nvme1n1p1].generation_errs  0
[/dev/nvme0n1p1].write_io_errs    0
[/dev/nvme0n1p1].read_io_errs     0
[/dev/nvme0n1p1].flush_io_errs    0
[/dev/nvme0n1p1].corruption_errs  0
[/dev/nvme0n1p1].generation_errs  0

I read in the FAQ that everything should be zero. As these are NVME drives I put cables out of the equation and just tried to start a scrub, which is directly aborted and the following lines can be seen in the log:

Oct 26 03:45:18 Turing ool www[20751]: /usr/local/emhttp/plugins/dynamix/scripts/btrfs_scrub 'start' '/mnt/cache' '-r'
Oct 26 03:45:18 Turing kernel: BTRFS info (device nvme1n1p1): scrub: started on devid 2
Oct 26 03:45:18 Turing kernel: BTRFS info (device nvme1n1p1): scrub: not finished on devid 2 with status: -30
Oct 26 03:45:18 Turing kernel: BTRFS info (device nvme1n1p1): scrub: started on devid 3
Oct 26 03:45:18 Turing kernel: BTRFS info (device nvme1n1p1): scrub: not finished on devid 3 with status: -30

Unfortunately, I am at a dead end with my ideas; if you have any: please let me know!



(I also have attached the diagnostics)

turing-diagnostics-20221026-0310.zip

[JorgeB]

The write errors suggests one of the cache devices dropped offline before, use the script in the FAQ to monitor the pool for the future, but there are other issues:



write time tree block corruption detected

This usually indicates a RAM problem or other kernel memory corruption, and you are running the RAM above the officially supported speeds and that is known to corrupt data, see here and adjust accordingly.



[Simom]

Thank you for the reply!
I rebooted and dropped down to the default DDR4 speeds and the scrub finished with some errors that were corrected.

I was thinking of switching to an Intel-based system, is there a similar list for supported RAM configurations or is it mainly a Ryzen issue?

[JorgeB]

11 minutes ago, Simom said:

I was thinking of switching to an Intel-based system, is there a similar list for supported RAM configurations or is it mainly a Ryzen issue?

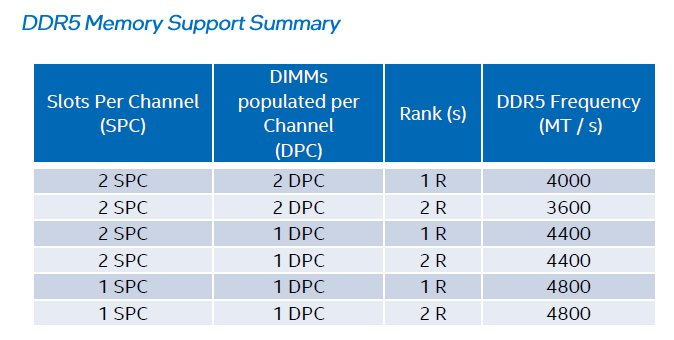

Intel usually specified the max speed with all sockets populated, so for example CPUs that support DDR4 3200 support it with 4 DIMMs, for Alder Lake with DDR5 this is no longer true:





Cannot find this table for Raptor Lake but I would assume there will also be limitations since max speed is now 5600 MT/s with DDR5

[Simom]

Thanks for the help, I really appreciate it!
