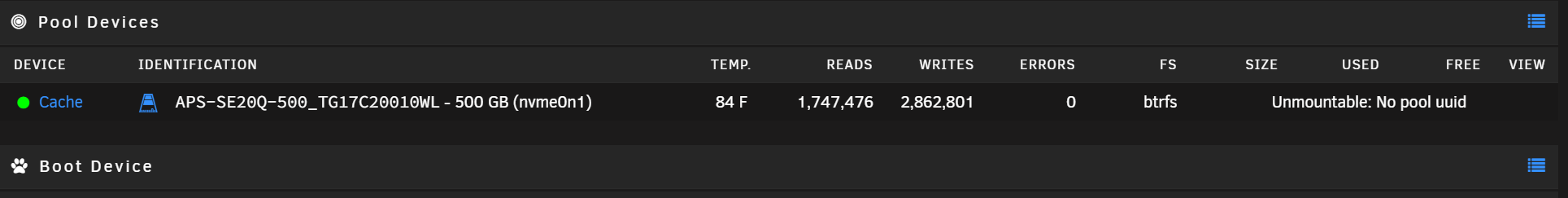

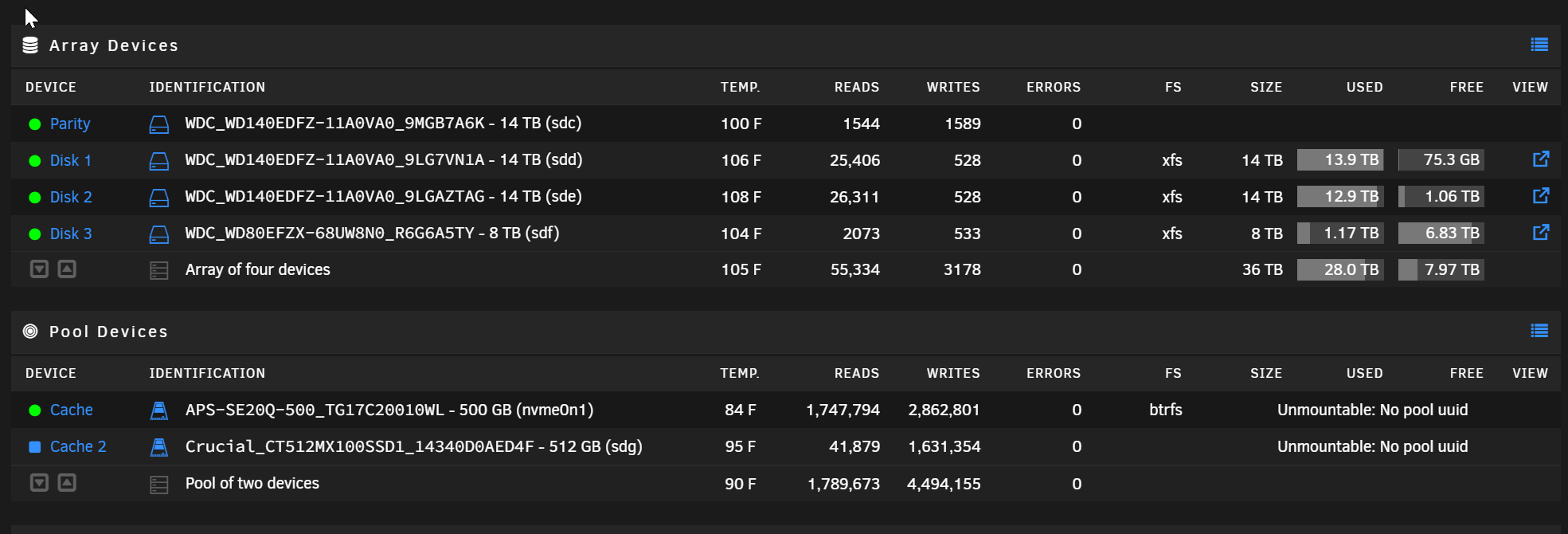

nathan909 Posted December 15, 2022 Share Posted December 15, 2022 (edited) OK so I needed to upgrade my cash drive so I created a raid 1 pool by added a SSD to mirror my nvme, after complete i pulled them off line and tried to start the pool back up with just the SSD online, but that didn't work so i pull the array offline and added the nvme, but now i get a Unmountable: No pool uuid. Haven't written to anything to either drive so both should be good with data How do i get one drive or the pool back up? nvme drive log: https://pastebin.com/rgRw7VG2 SSD drive log https://pastebin.com/Mn8SzXrT system: https://pastebin.com/62kj46Rb Edited December 16, 2022 by nathan909 Quote Link to comment
JorgeB Posted December 15, 2022 Share Posted December 15, 2022 Please post the diagnostics. 1 Quote Link to comment
nathan909 Posted December 15, 2022 Author Share Posted December 15, 2022 Sorry here it is nas-diagnostics-20221215-1052.zip Quote Link to comment
nathan909 Posted December 15, 2022 Author Share Posted December 15, 2022 (edited) That was with the array off line, here it is with it online, if that makes a difference nas-diagnostics-20221215-1055.zip Edited December 15, 2022 by nathan909 Quote Link to comment
nathan909 Posted December 15, 2022 Author Share Posted December 15, 2022 Also I meant to say it was a raid 1 Mirrored Pool (edited) Quote Link to comment
JorgeB Posted December 15, 2022 Share Posted December 15, 2022 At one point you add the pool correctly mirrored, but the removed the SSD instead of removing the NVMe, then you removed thee NVMe without first adding the SSD back, hence the problem, post the output of: btrfs-select-super -s 1 /dev/nvme0n1p1 Quote Link to comment
nathan909 Posted December 15, 2022 Author Share Posted December 15, 2022 (edited) 2 minutes ago, JorgeB said: At one point you add the pool correctly mirrored, but the removed the SSD instead of removing the NVMe, then you removed thee NVMe without first adding the SSD back, hence the problem, post the output of: btrfs-select-super -s 1 /dev/nvme0n1p1 Yes, I mistakenly started to pool with the NVMe instead of the mirrored SSD, that is when i tried to reverse it and bring up the pool with the mirrored SSD, but that is when things went south. root@NAS:~# btrfs-select-super -s 1 /dev/nvme0n1p1 warning, device 2 is missing using SB copy 1, bytenr 67108864 Edited December 15, 2022 by nathan909 Quote Link to comment
JorgeB Posted December 15, 2022 Share Posted December 15, 2022 4 minutes ago, nathan909 said: warning, device 2 is missing This is not good, post the output of: btrfs-select-super -s 1 /dev/sdg1 Quote Link to comment
JorgeB Posted December 15, 2022 Share Posted December 15, 2022 Then output of: btrfs fi show Quote Link to comment
JorgeB Posted December 15, 2022 Share Posted December 15, 2022 2 minutes ago, JorgeB said: This is not good, post the output of: btrfs-select-super -s 1 /dev/sdg1 Missed this one first, then the other again Quote Link to comment
JorgeB Posted December 15, 2022 Share Posted December 15, 2022 3 minutes ago, JorgeB said: Then output of: btrfs fi show Quote Link to comment
nathan909 Posted December 15, 2022 Author Share Posted December 15, 2022 1 minute ago, JorgeB said: root@NAS:~# btrfs-select-super -s 1 /dev/sdg1 using SB copy 1, bytenr 67108864 root@NAS:~# btrfs fi show Label: none uuid: 7a650073-3aaa-4476-ae27-7429a5b8c663 Total devices 1 FS bytes used 412.00KiB devid 1 size 1.00GiB used 126.38MiB path /dev/loop2 Label: none uuid: 3385c42f-7bc2-4191-ae99-8f03ddf305ab Total devices 2 FS bytes used 263.81GiB devid 1 size 465.76GiB used 430.03GiB path /dev/nvme0n1p1 devid 2 size 476.94GiB used 430.03GiB path /dev/sdg1 Quote Link to comment
nathan909 Posted December 15, 2022 Author Share Posted December 15, 2022 (edited) Thanks for your help Jorge, this is way above my head Edited December 15, 2022 by nathan909 Quote Link to comment

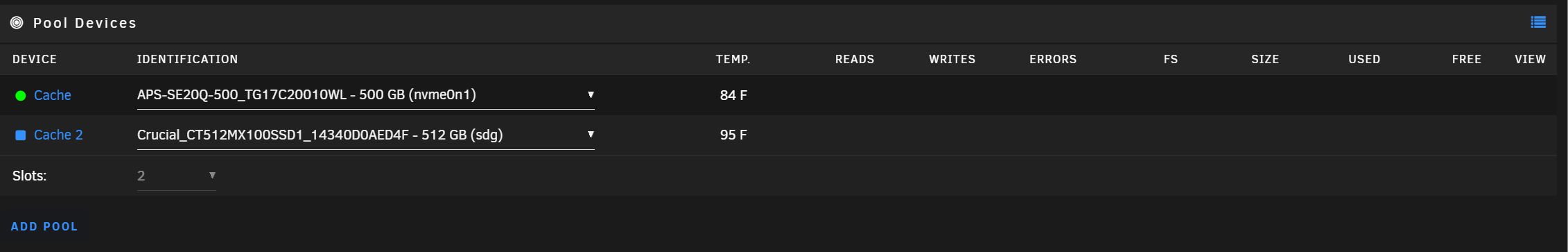

Solution JorgeB Posted December 15, 2022 Solution Share Posted December 15, 2022 Now stop array, unassign both cache devices, start array, stop array, re-assign both caches devices, start array, pool should mount, if yes run a balance to raid1, only after the balance finishes remove the drive you want, if it doesn't mount post new diags, but I'm about to go offline, so likely can only continue tomorrow if no one else helps before. Quote Link to comment

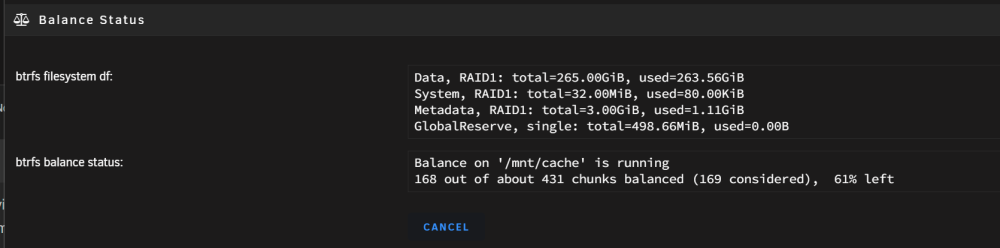

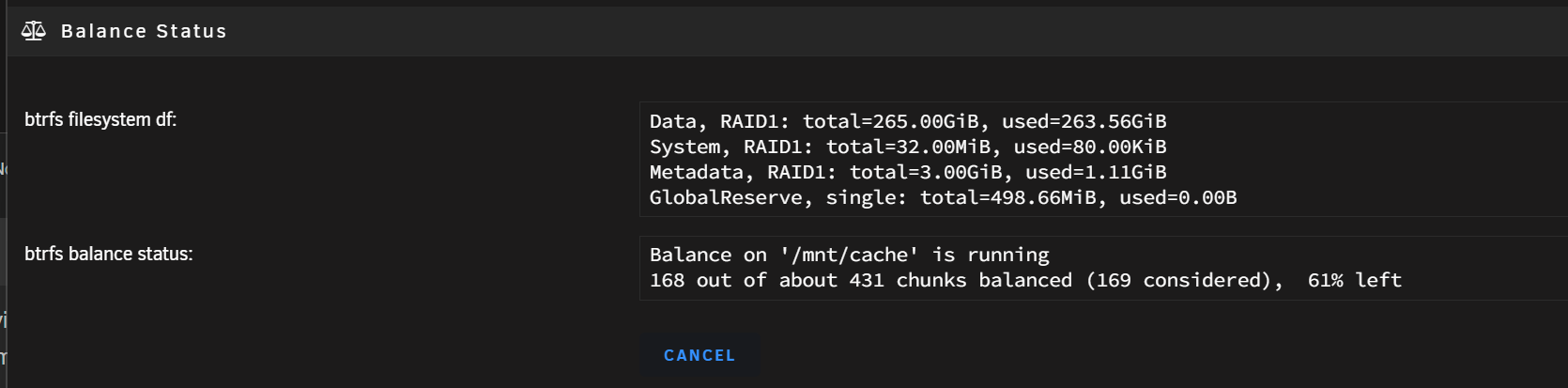

nathan909 Posted December 15, 2022 Author Share Posted December 15, 2022 OK perfect, THANKS! That did bring them both online and they are balancing So when complete, I am going about this the right way, or is there a better way? Stop Array, Shutdown PC Remove NVMe Install New NVMe boot unraid btrsf format new NVMe add new NVMe to pool with SSD start pool balance it remove SSD from pool balance it again now that I write this out there's gotta be a better way Quote Link to comment
JorgeB Posted December 16, 2022 Share Posted December 16, 2022 If you want to replace a device (for a raid1 multi device pool only, not for single pools) you can just unassign one and assign the other, if you can't have both connected at the same time, shutdown the server, replace the device, boot Unraid, assign new device to the place of the old one, start array to begin pool balance. Quote Link to comment
