Kuleinc Posted February 19, 2023 Share Posted February 19, 2023 (edited) I went to my server rack and found the server running and could login. So I asked unraid to restart which it did and I chose GUI mode during boot. The gui came up and opened a web browser, and could not display the webpage. During bootup I did see that the OS was looking for a file for ethernet config and could not find it. I suspect the HDD with that information died? Is that stored on the USB drive? Theres not much in the GUI... Any help on fixing this would be awesome. I do not see a network control panel anywhere like I'm used to in linux mint on my workstation. Edited February 19, 2023 by Kuleinc Quote Link to comment
apandey Posted February 20, 2023 Share Posted February 20, 2023 (edited) All config is stored on usb boot drive If you can open terminal, Post diagnostics so someone can see what is happening Edited February 20, 2023 by apandey Quote Link to comment
Kuleinc Posted February 20, 2023 Author Share Posted February 20, 2023 (edited) Is there an article somewhere on how to get the diagnostics from the terminal? I've tried searching here and with google with no luck. I even tried searching on how to use the linux diagnostics command with no luck... Edited February 20, 2023 by Kuleinc Quote Link to comment
apandey Posted February 20, 2023 Share Posted February 20, 2023 The linked article has details, but in summary, if you are able to login to unraid terminal, you just need to run "diagnostics" command which is part of unraid. Once it finishes running, you should find the zip file in logs directory on your USB boot drive Quote Link to comment
Kuleinc Posted February 24, 2023 Author Share Posted February 24, 2023 (edited) Sorry I did not understand from the article that you just type diagnostics at the command prompt, how wonderfully simple! nas-diagnostics-20230224-1407.zip The 10GB add in network card with MAC address 00:02:C9:28:7F:D0 should be getting an IP address of 192.168.0.5 from the DHCP server. I think something is wrong because that should be ETH0 and its not... I dont understand how that could have suddenly changed. I should probably disable the unused Ethernet ports built into the motherboard as they are only 1GB... Edited February 24, 2023 by Kuleinc Quote Link to comment
Kuleinc Posted February 24, 2023 Author Share Posted February 24, 2023 I tried disabling the unused onboard 1gb ports and the problem persists, no webpage... nas-diagnostics-20230224-1535.zip Quote Link to comment
Kuleinc Posted February 25, 2023 Author Share Posted February 25, 2023 (edited) I ended up editing the eth rules config file and renaming te interfaces to eth0 and eth1 and it booted and runs the webpage now... the array wont start because of a stale configuration though... not sure how to fix that. I don't understand how all of the disks can be offline but my docker containers are running... Edited February 25, 2023 by Kuleinc Quote Link to comment
JorgeB Posted February 25, 2023 Share Posted February 25, 2023 7 hours ago, Kuleinc said: the array wont start because of a stale configuration though If using Firefox reboot first then use a different browser. Quote Link to comment
Kuleinc Posted February 26, 2023 Author Share Posted February 26, 2023 Got the array started but my app-data cache seems to be missing or not mounted or mounted in read only for some reason? nas-diagnostics-20230226-1402.zip Quote Link to comment
JorgeB Posted February 27, 2023 Share Posted February 27, 2023 Issues with the 3TB WD assigned to a pool, run an extended SMART test and if it passes replace cables. Quote Link to comment
Kuleinc Posted March 1, 2023 Author Share Posted March 1, 2023 (edited) oh no! I did an extended smart test and it says: "Completed: read failure" I wonder what could have caused that? Is this something I can fix? I just bought a drive to double the capacity... ugh. The SMART log shows no errors... The history shows: Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed: read failure 90% 38767 18069872 # 2 Short offline Completed without error 00% 34871 - # 3 Short offline Completed without error 00% 34806 - # 4 Short offline Aborted by host 80% 31085 - Edited March 1, 2023 by Kuleinc Quote Link to comment
JorgeB Posted March 1, 2023 Share Posted March 1, 2023 5 hours ago, Kuleinc said: Is this something I can fix? Replace the disk. Quote Link to comment
itimpi Posted March 1, 2023 Share Posted March 1, 2023 7 hours ago, Kuleinc said: oh no! I did an extended smart test and it says: "Completed: read failure" I wonder what could have caused that? Is this something I can fix? I just bought a drive to double the capacity... ugh. Any drive that cannot complete the extended SMART test without a read failure should be replaced. That test is internal to the drive and not something the user can do anything about. Quote Link to comment
Kuleinc Posted March 2, 2023 Author Share Posted March 2, 2023 is there a way to image the new drive from the old one and replace it? Quote Link to comment

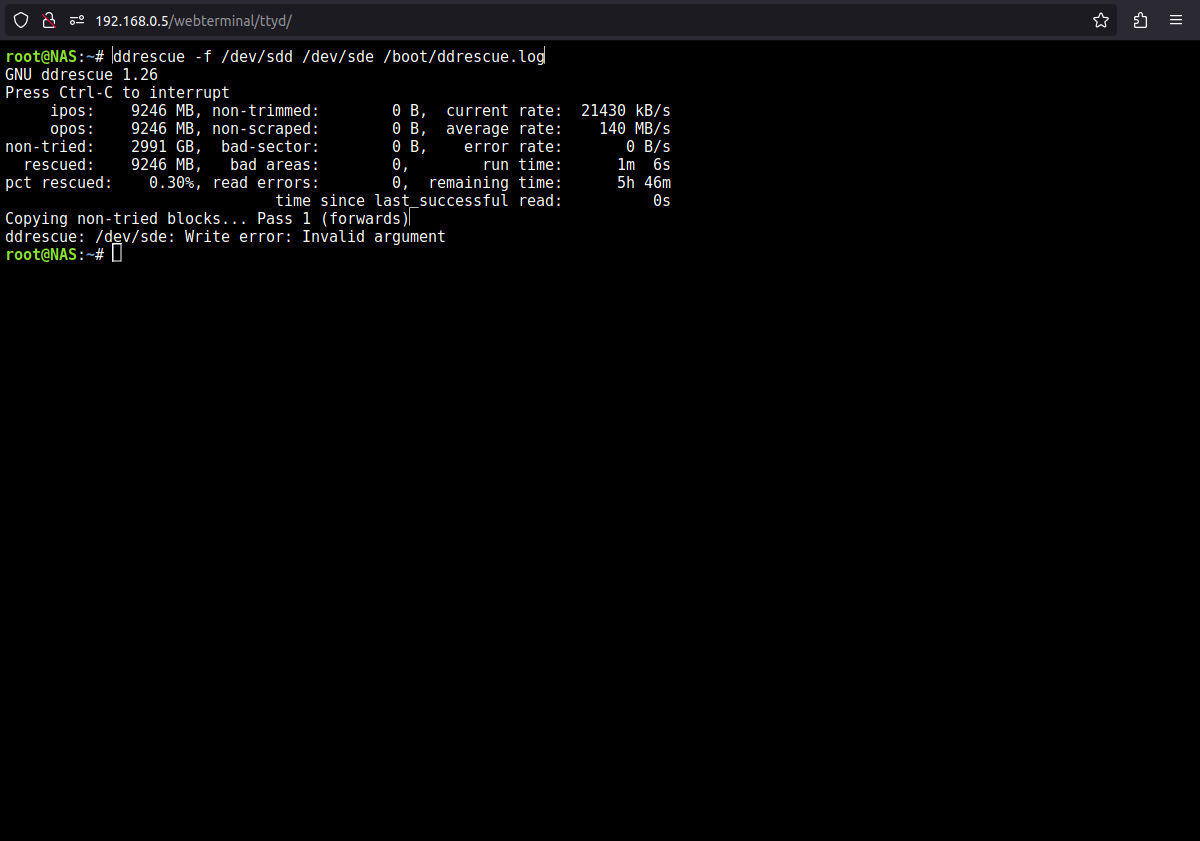

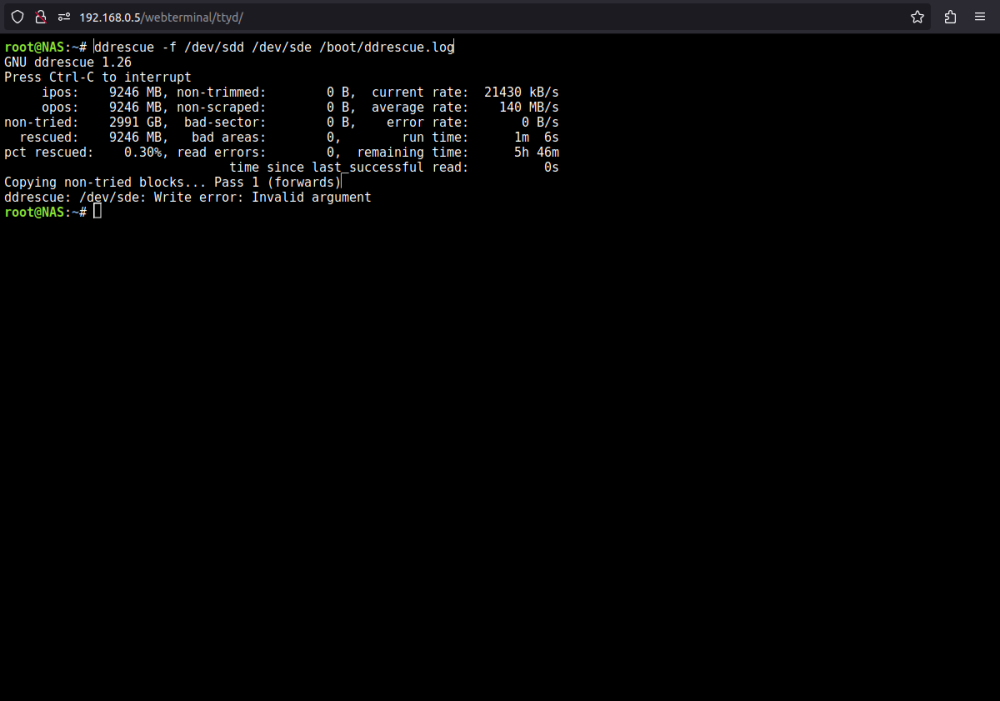

Kuleinc Posted March 4, 2023 Author Share Posted March 4, 2023 Ok so I got a cable for my other sata6 SAS conector on my add in card and hooked up the replacement hdd to it. I tried running DDrescue and got the attachment. I am currently running an extended self test on the disk, it was shipped to me in a bag, not box, no packing ugh. Quote Link to comment
Kuleinc Posted March 4, 2023 Author Share Posted March 4, 2023 The extended smart test completed with read failure on the new drive... Quote Link to comment
Kuleinc Posted March 4, 2023 Author Share Posted March 4, 2023 OK the original disc seems to be working for now. Can I split up the appdata share onto the array and just have the zoneminder docker run on the new 3TB drive somehow? Or do the appdata shares need to be on the same disc? I only want to do this for performance reasons and to not put unneeded wear and tear on the array? Quote Link to comment
Kuleinc Posted March 5, 2023 Author Share Posted March 5, 2023 (edited) Trying to just replace the failing drive now, but it doesn't show up on the main page... Where do I find it or how to get it to show up? nas-diagnostics-20230305-1003.zip Edited March 5, 2023 by Kuleinc Quote Link to comment
Kuleinc Posted March 5, 2023 Author Share Posted March 5, 2023 I pulled out the bad drive and put the new one in its place, hoping that works... Quote Link to comment
