Hello,



Last week, I explained that an ASM1061 controller was not working in UNRAID, for my configuration: https://forums.unraid.net/topic/102010-recommended-controllers-for-unraid/?do=findComment&comment=1267945

Unfortunately, I didn't keep the diagnosis.



I acquired this other controller, based on the ASM1062 with 4 ports: https://www.amazon.fr/dp/B07TD57RGZ

I made a mistake (in my opinion, with 4 ports, it multiplies the SATA ports, but on this trial, only one disk was connected).



I had the same problem:

- the disks on my HBA got nothing (my array -last time, disk1 was disable because connected to the motherboard, so i move it to the hba to avoid another reconstruct-)

- on the other hand, the disks connected to my motherboard (ASRock X570S PG Riptide) were duplicated (in this case, the cache pools).



I've ordered a third card (https://www.amazon.fr/dp/B0BNCHQBK8, 4 ports, ASM 1064) recommended by JorgeB (here: https://forums.unraid.net/topic/102010-recommended-controllers-for-unraid/) and I'm getting it tomorrow, so I'll see what happens (the aim being to plug in 3 SATA doisks for cold backup, so speed doesn't really matter to me). But in my opinion, the problem will be the same....



Would you have a good card that plugs into a PCIe 1x 3.0 port to recommend?



Thanks a lot!

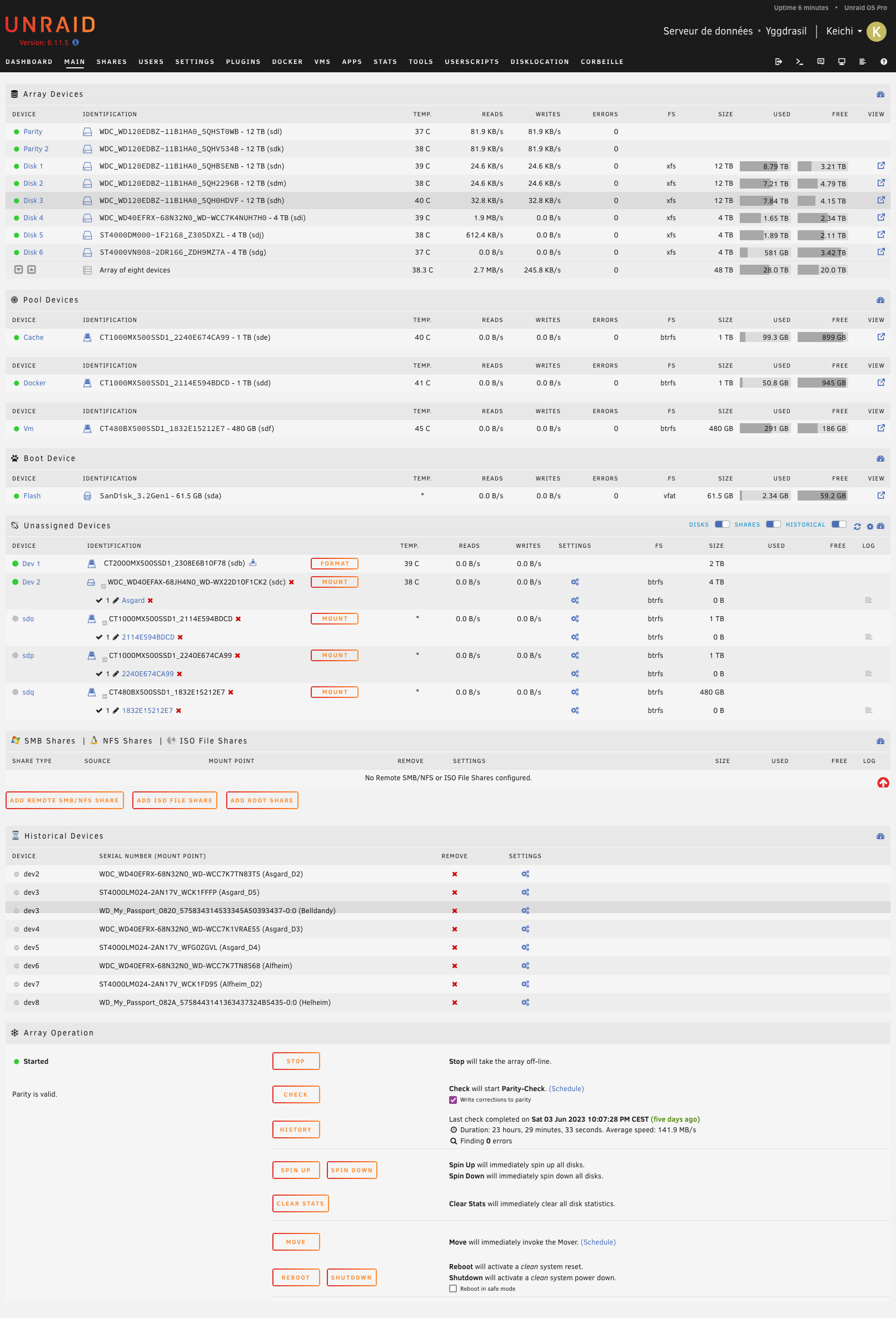

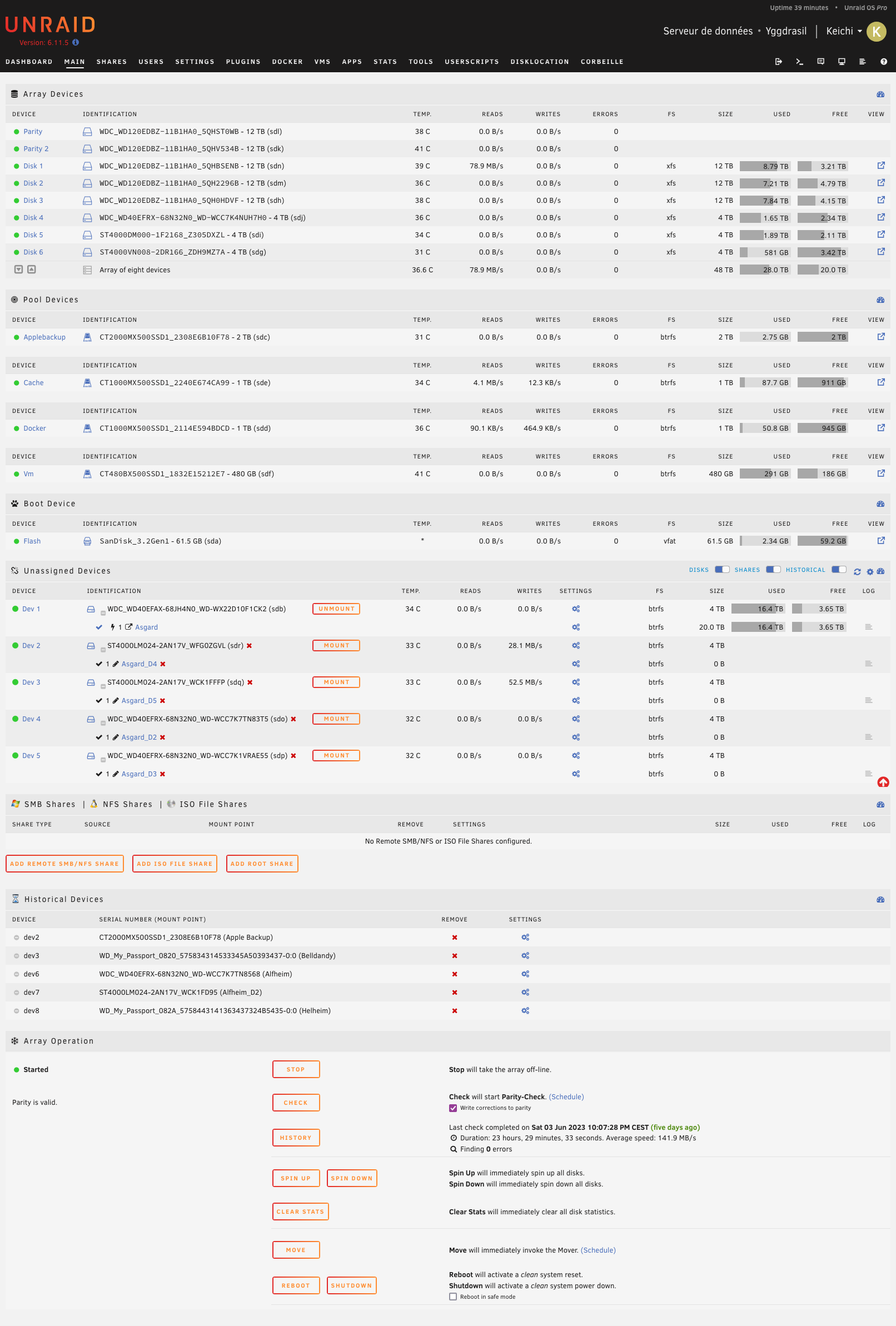

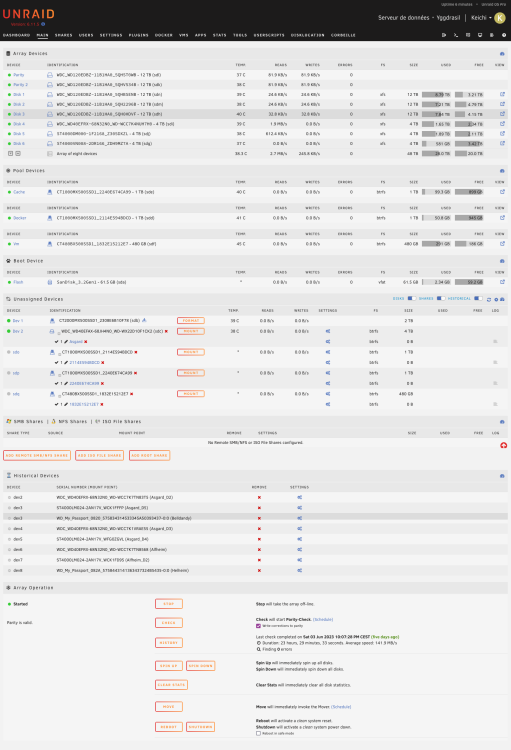

I add the diagnosis and a screenshot.



K.

ASM1062 - 4 ports - yggdrasil-diagnostics-20230605-1850.zip

Edited June 5, 20233 yr by Keichi
Precision about disk1 disable last week, and not this time (move it from motherboard to HBA)

12 hours ago, Keichi said:

Would you have a good card that plugs into a PCIe 1x 3.0 port to recommend?

I don't run expansion cards myself but from what I've seen it's been recommended to also look for the known quality card brands, in addition to the compatible chipsets.

The card brands like Syba, IOCrest and maybe StarTech.

You are having issues with the onboard SATA controller, not the Asmedia, devices are dropping and reconnecting, they are connected to this one:



09:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
    Subsystem: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901]
    Kernel driver in use: ahci
    Kernel modules: ahci



The installed Asmedia controller is a 1064, so it should work fine.

Hello,



Thanks for the reply.



This controller seems to be the one from AMD, so the 6 SATA ports on the motherboard.

Did you know what can i do to solve the issue ?



Thanks

Look for a BIOS update, if issues persist best to use only add-on controllers, it's not that uncommon for Ryzen boards to have issues with Linux and the onboard SATA controller.

Hello all,



Thanks for the replies.



Today, i try, same setup but after BIOS update ("test1") : same issue.

After BIOS update, but with IOCrest card ("test2") : same issue.



So... i think i should give up.



By any chance, JorgeB, do you know some add-on controller with PCIe 1x ?

I only see 4x, and there is no more 4x on my motherboard.



K.

yggdrasil-diagnostics-20230606-2009-test1.zip yggdrasil-diagnostics-20230606-2021 - test2.zip

11 hours ago, Keichi said:

do you know some add-on controller with PCIe 1x ?



Same onboard controller continues to have issues, you can get a 4 port Asmedia 1064 controller with an x1 link.

Hello JorgeB,



Sorry to disturb you again.

On last resort, i ordered https://www.amazon.fr/dp/B099ZJ8V7W

It is a ASM 1064, but still have the same issue...



Do you have any advice left for me ?



Thanks



K.

yggdrasil-diagnostics-20230608-1904.zip

The problem is with the onboard SATA controller, and I think now I see why, you have that controller bound to vfio-pci, remove the bind and the issue should stop.



When you add or remove hardware the PCI IDs will change, you need to correct the binds, I assume you were passing-through the Nvidia GPU, which was likely device 09:00.0 before you added the Asmedia controller, but after adding it the AMD SATA controller is now 09:00.0 and the GPU is 0a:00.0, so just correct that.

Good evening JorgeB,



Thank you very much, that was indeed the problem!

I've made the necessary changes, and everything works perfectly.



Thanks again for your time, I'd never have found it!



K.

On 6/8/2023 at 6:57 PM, JorgeB said:

The problem is with the onboard SATA controller, and I think now I see why, you have that controller bound to vfio-pci, remove the bind and the issue should stop.



When you add or remove hardware the PCI IDs will change, you need to correct the binds, I assume you were passing-through the Nvidia GPU, which was likely device 09:00.0 before you added the Asmedia controller, but after adding it the AMD SATA controller is now 09:00.0 and the GPU is 0a:00.0, so just correct that.

@JorgeB It's a coincidence that I came across this thread exactly two years after your post above! Is 'correcting' the issue you describe a case of deleting the vfio-pci.cfg and letting it be re-created on boot, or are you suggesting the file be edited to reflect the pci slots and physical cards?

15 hours ago, Bob_C said:

Is 'correcting' the issue you describe a case of deleting the vfio-pci.cfg and letting it be re-created on boot,

Deleting it will resolve this issue, but if you have other devices being passed through, you then need to do it again.
