radskin Posted March 10 Share Posted March 10 I recently bought an HP Elitedesk 800 G6 with an NVMe drive to use with Unraid. Since the drive has Windows 11 installed, I know that the computer and the drive are working. However, when I run Unraid, the NVMe drive doesn't appear, and I can't add it as a disk. Do I need to make any changes in the BIOS or somehow add the drive to Unraid via terminal? If I use some USB drives, I can use it as disks at unraid. Quote Link to comment
itimpi Posted March 10 Share Posted March 10 You should post your system's diagnostics zip file in your next post in this thread to get more informed feedback. It is always a good idea to post this if your question might involve us seeing how you have things set up or to look at recent logs. Quote Link to comment
JorgeB Posted March 10 Share Posted March 10 1 hour ago, radskin said: Do I need to make any changes in the BIOS Most likely, diagnostics will confirm.. Quote Link to comment
radskin Posted March 10 Author Share Posted March 10 Hi, here is my diagnostics file. thanks for the help. tower-diagnostics-20240310-1402.zip Quote Link to comment
JorgeB Posted March 10 Share Posted March 10 There's a lot of stuff, including the RAID controller bound to vfio-pci, delete /boot/config/vfio-pci.cfg and reboot, then post new diags because probably you will still need to change the RAID controller to AHCI in the BIOS. Quote Link to comment
radskin Posted March 10 Author Share Posted March 10 2 hours ago, JorgeB said: There's a lot of stuff, including the RAID controller bound to vfio-pci, delete /boot/config/vfio-pci.cfg and reboot, then post new diags because probably you will still need to change the RAID controller to AHCI in the BIOS. I have deleted the vfio-pci.cfg, but I don't have that option in BIOS (RAID controller to AHCI). Quote Link to comment
radskin Posted March 11 Author Share Posted March 11 Hi, here is my new diagnostics file. tower-diagnostics-20240311-1044.zip Quote Link to comment
Solution JorgeB Posted March 11 Solution Share Posted March 11 Mar 11 03:33:13 Tower kernel: ahci 0000:00:17.0: Found 1 remapped NVMe devices. Mar 11 03:33:13 Tower kernel: ahci 0000:00:17.0: Switch your BIOS from RAID to AHCI mode to use them. Quote Link to comment

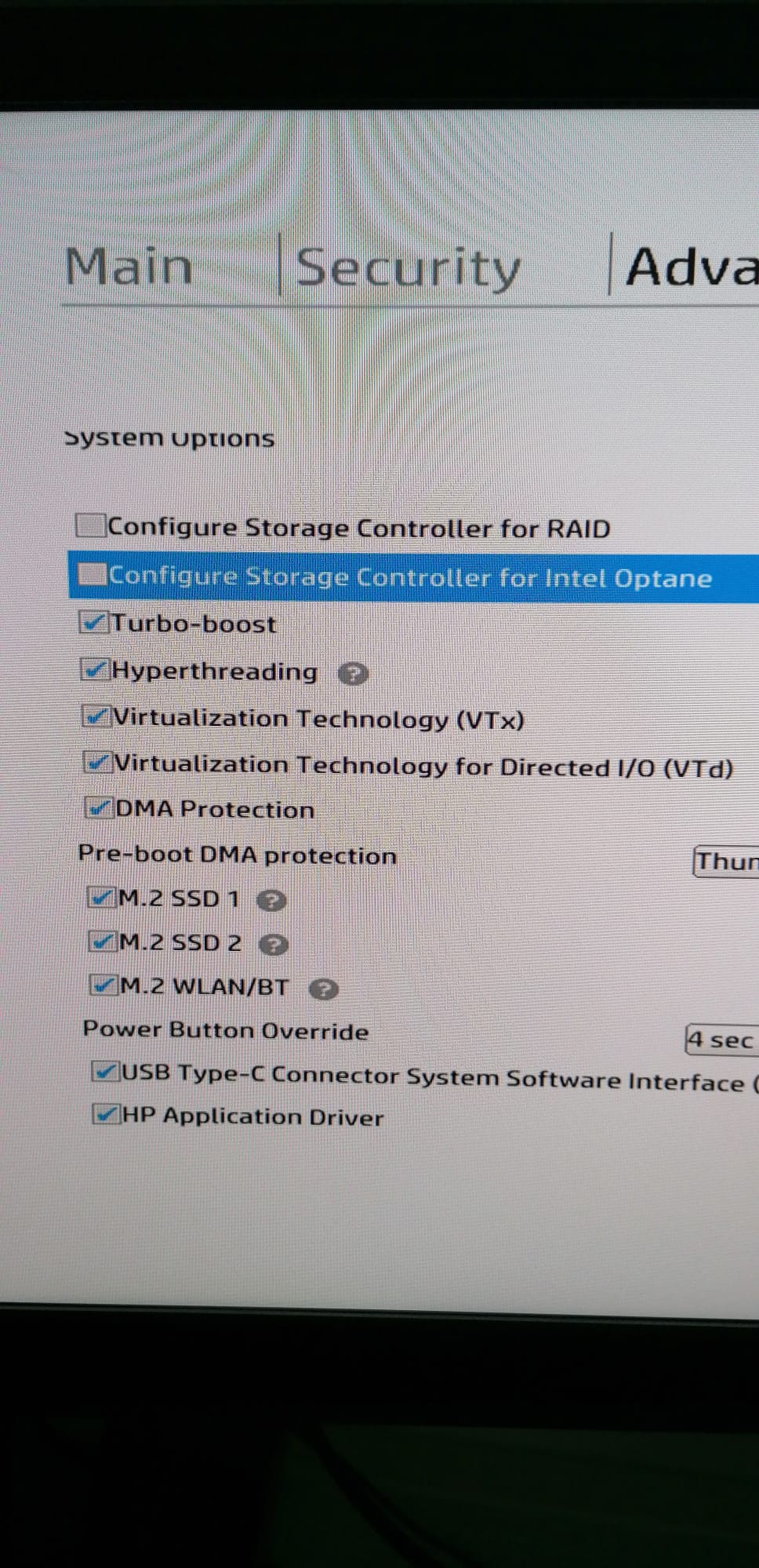

radskin Posted March 13 Author Share Posted March 13 I only have this option in BIOS. I think AHCI is a standard configuration, then I have Raid configuration. Quote Link to comment
JorgeB Posted March 13 Share Posted March 13 Try the other options, Unraid (or any Linux) cannot use remapped NVMe devices Quote Link to comment
radskin Posted March 13 Author Share Posted March 13 My last configuration in BIOS solve the problem. Now I can see the NVMe Disk. Quote Link to comment

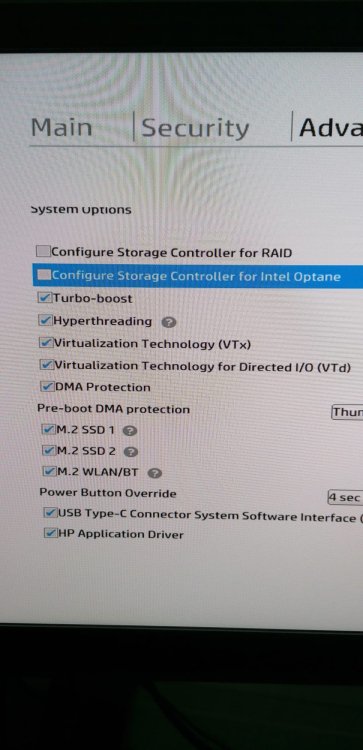

JorgeB Posted March 13 Share Posted March 13 21 minutes ago, radskin said: My last configuration in BIOS solve the problem Do you mean the one from the last photo? Quote Link to comment
radskin Posted March 13 Author Share Posted March 13 11 minutes ago, JorgeB said: Do you mean the one from the last photo? Yes. 1 Quote Link to comment
