E-ManN Posted April 12 Share Posted April 12 (edited) Hi All, I have been searching for days now and have not found a solution yet. I'm trying to use a Linux mint VM and VSI OpenVMS on x86 VM, both on the same UNRAID server and have them share a serial connection using the Linux mint VM as the serial console connection for the VMS server VM. Yes I know nostalgia here ... but when I first started working after University my 1st job was a VAX Operator. Much appreciated if someone knows how to set this up. I've tried suggestion I googled and can't get it working. I have this working on my VMWare Pro Workstation host with the serial connection for both VMs a named pipe. I want to get this working on my UNRAID server in hopes to set up another VAX and get a VAX cluster going between the two systems. thanks, E Edited April 12 by E-ManN typo Quote Link to comment
SimonF Posted April 12 Share Posted April 12 12 hours ago, E-ManN said: Hi All, I have been searching for days now and have not found a solution yet. I'm trying to use a Linux mint VM and VSI OpenVMS on x86 VM, both on the same UNRAID server and have them share a serial connection using the Linux mint VM as the serial console connection for the VMS server VM. Yes I know nostalgia here ... but when I first started working after University my 1st job was a VAX Operator. Much appreciated if someone knows how to set this up. I've tried suggestion I googled and can't get it working. I have this working on my VMWare Pro Workstation host with the serial connection for both VMs a named pipe. I want to get this working on my UNRAID server in hopes to set up another VAX and get a VAX cluster going between the two systems. thanks, E Looks like it should be possible. https://forum.proxmox.com/threads/serial-port-between-two-vms.63833/ I dont have the XML to enable as yet, also socatis not install within Unraid so would need to get a package for that also. Quote Link to comment

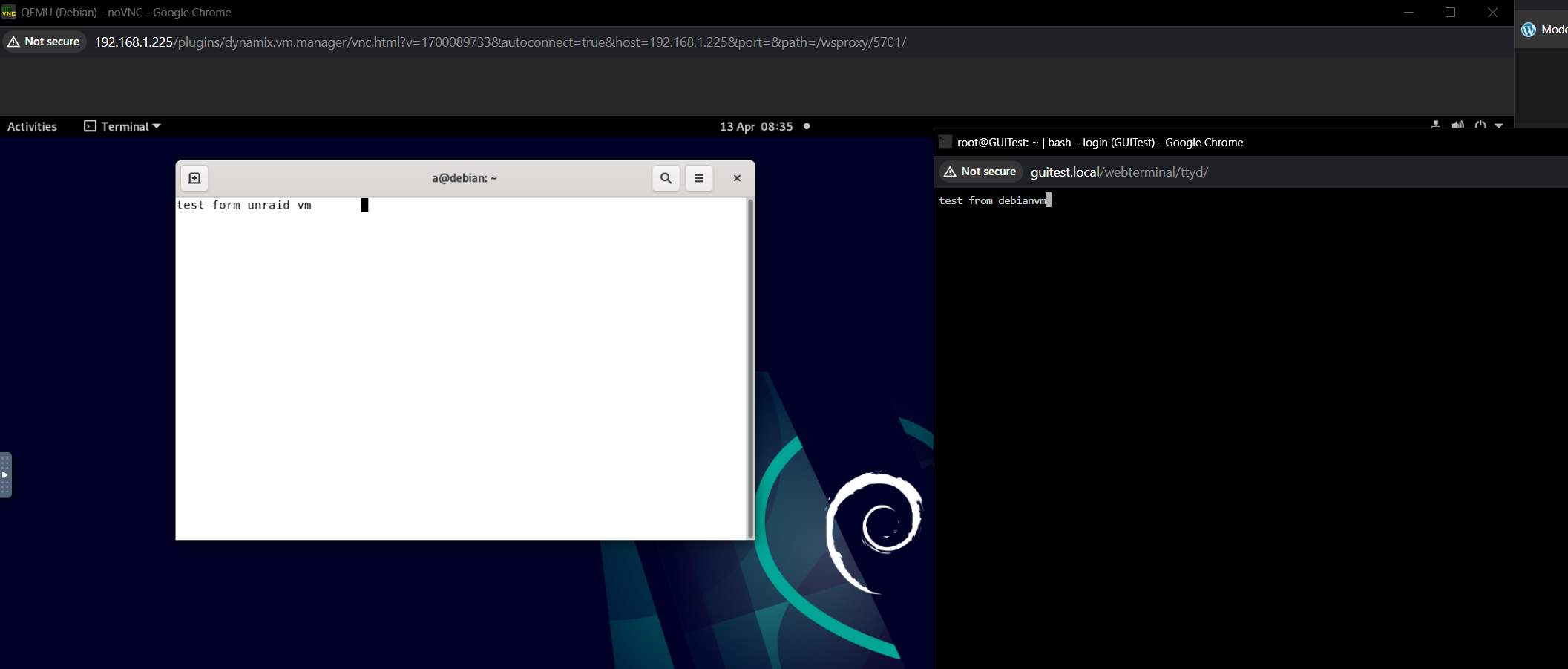

Solution SimonF Posted April 13 Solution Share Posted April 13 I have been able to get this to work. To get socat for 6.12 do, if extra does not exist mkdir /boot/extra cd /boot/extra wget https://slackware.uk/slackware/slackware64-15.0/slackware64/n/socat-1.7.4.3-x86_64-1.txz installpkg socat-1.7.4.3-x86_64-1.txz For next release will need to be 1.8 this version is not compatible with 6.12. wget https://mirrors.slackware.com/slackware/slackware64-current/slackware64/n/socat-1.8.0.0-x86_64-1.txz You only need to install once downloaded. Packages in extra get loaded at boot. This is the XML added to each VM. Debian <serial type='unix'> <source mode='bind' path='/tmp/foo'/> <target type='isa-serial' port='1'> <model name='isa-serial'/> </target> <alias name='serial1'/> </serial> Unraid-VM <serial type='unix'> <source mode='bind' path='/tmp/foo2'/> <target type='isa-serial' port='1'> <model name='isa-serial'/> </target> <alias name='serial1'/> </serial> Then run -dd is only to give debug data. root@computenode:/usr# socat -dd UNIX-CLIENT:/tmp/foo UNIX-CLIENT:/tmp/foo2 2024/04/13 08:22:30 socat[17649] N successfully connected from local address AF=1 "\0\0\xEE\0\0\xEE\0\0" 2024/04/13 08:22:30 socat[17649] N successfully connected from local address AF=1 "\0\0\xEE\0\0\xEE\0\0\xEE" 2024/04/13 08:22:30 socat[17649] N starting data transfer loop with FDs [5,5] and [6,6] Quote Link to comment
E-ManN Posted April 13 Author Share Posted April 13 (edited) 21 hours ago, SimonF said: Looks like it should be possible. https://forum.proxmox.com/threads/serial-port-between-two-vms.63833/ I dont have the XML to enable as yet, also socatis not install within Unraid so would need to get a package for that also. Thanks a lot SimonF for the speedy reply. I will work on it this weekend to see if I can get it working. Awesome ! 🙂 forgot to mention that I am on UNRAID 6.12.10 Pro version .... yikes how stupid of me that I forgot to mention this ! so if I am understanding your setup I should use the socat-1.7.4.3-x86_64-1.txz version but for the next release of UNRAID I will need to install the socat-1.8.0.0-x86_64-1.txz version. Not sure if you can tell me this but, will I have to keep installing the latest version of socat each time UNRAID OS is upgraded ... or after each upgrade I should check it it still works and if not search for latest version of socat? anyhow thanks again ... will go to my lab later and try this out. 🙂 thanks, E Edited April 13 by E-ManN more info Quote Link to comment
SimonF Posted April 13 Share Posted April 13 1 hour ago, E-ManN said: Not sure if you can tell me this but, will I have to keep installing the latest version of socat each time UNRAID OS is upgraded ... or after each upgrade I should check it it still works and if not search for latest version of socat? I think 1.8 should be fine for future upgrades there is a change to ssl libs between 6.12 and 6.13 hence the package change. Quote Link to comment
E-ManN Posted April 13 Author Share Posted April 13 (edited) 4 hours ago, SimonF said: I think 1.8 should be fine for future upgrades there is a change to ssl libs between 6.12 and 6.13 hence the package change. Kool ... thanks for the info. I expected as much. update ... Ok. So playing around in the lab this am. As per the instructions 1) I installed socat-1.7.4.3 on my UNRAID 6.12-.10 Pro server 2) I configured the serial connection in the XML file for my OpenVMS VM as outlined in the steps 3) I configured the serial connection in the XML file for my Linux mint VM (Serial console machine) VM – on the same UNRAID server as OpenVMS VM. 4) Powered up both VMs and then from command prompt on UNRAID server ran a. socat -dd UNIX-CLIENT:/tmp/foo UNIX-CLIENT:/tmp/foo2 b. got the desired connection results 5) Went back to my linux mint console VM and checked the tty ports 6) Then tried a screen connect to get a console session on my OpenVMS VM from my Linux Mint VM … screen failed to open – used à sudo screen /dev/ttyS0 115200 Should I be using another command on my Linux mint machine to get console display from the OpenVMS VM ? This is what the UNRAID console session for the OPenVMS VM looks like in UNRAID VM Console (VNC) … and this is what I am trying to get on my Linux Mint VM with the serial console connect. I feel like this a brain freeze on my part … so close but missing something. I’m reading up on socat whitepapers. I’m not a Guru Linux guy but learning. J Thanks, E Edited April 13 by E-ManN typo Quote Link to comment
E-ManN Posted April 13 Author Share Posted April 13 (edited) brain fart on me .. i got it working. Had to change the port=1 to port=0 on both vms in the XML file as the tty connect I was using was to port0 .. ah duh !. I now have console session on Linux mint VM. Thanks A million SimonF .. you are a Rockstar ! Edited April 13 by E-ManN typo 1 Quote Link to comment
