Hi All,

Hope you are going well.

I am juste wondering why i can transfer files at less than 100 MB/S while both my Unraid server and my pc have 2.5 GB/S network card and also i have a 2.5 GB/S switch.

For now i transfer my files directly to the array and not the cache since this is a new server and am transferring all my files on it. My disks are 7200 RPM.



Thanks for your insights.

Start by running a single stream iperf test in both directions.

how do i do that please ?



i am not able to get iperf for windows 64 bits

https://github.com/ar51an/iperf3-win-builds/releases/tag/3.17.1

Hi,

Sorry for the late response but i still encounter the issue.

Il can confirme the server is detecting 1GBS instead of 2.5GBS:



How to change this please ?

You are likely to get better informed feedback if you attach your system’s diagnostics zip file to your next post in this thread. It is always a good idea when asking questions to supply your diagnostics so we can see details of your system, how you have things configured, and the current syslog.

ok thanks fomediacenter-diagnostics-20241212-1318.zipr the advice. Here is the diagnostics file.

5 minutes ago, Punisher said:

ok thanks fomediacenter-diagnostics-20241212-1318.zipr the advice



The NIC is gigabit, why do you expect 2.5GbE?

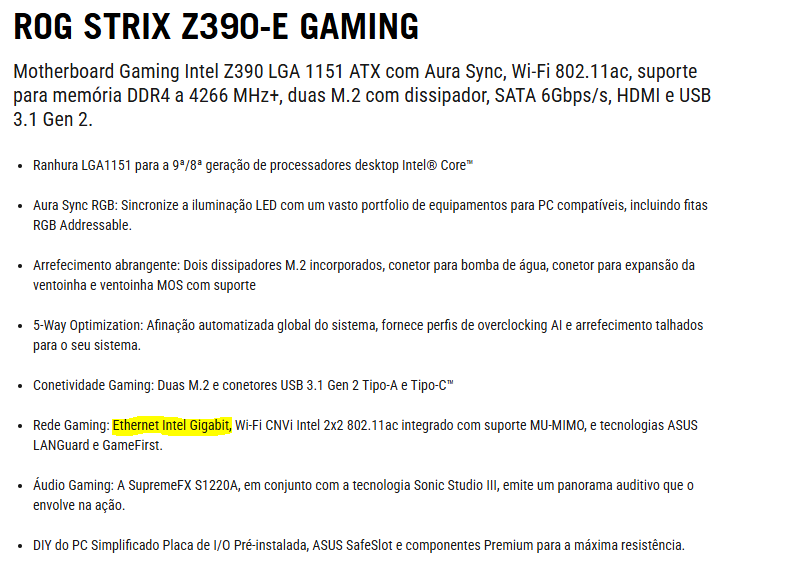

the motherboard has a 2.5 GBS ethernet port. I also bought a 2.5GBS switch and my computer also has one. I was expecting more speed.

2 hours ago, Punisher said:

the motherboard has a 2.5 GBS ethernet port

Then you posted the wrong diags:



00:1f.6 Ethernet controller [0200]: Intel Corporation Ethernet Connection (7) I219-V [8086:15bc] (rev 10)
    DeviceName: Onboard - Ethernet
    Subsystem: ASUSTeK Computer Inc. Ethernet Connection (7) I219-V [1043:8672]
    Kernel driver in use: e1000e
    Kernel modules: e1000e









Thank you for your reply. I got my facts wrong regarding my ethernet port. sorry about that.

In the futur is it possible for me to add a 2.5GB ethernet card ?

Sure.

2 hours ago, JorgeB said:

Sure.

is there a particular card you would recommend that works well with unraid ?



Intel usually works better, but also have a Realtek 8125 working without issues

i have bought a 2.5 GB/s Network card and transfers have gone to 110 MB/S to 280 MB/S.

Many thanks for your help.

Edited December 20, 20241 yr by Punisher
