I am running Unraid 6.12.13



I have (2) 20TB, (2) 16tB hdds in a 72TB array (27.7TB used, 44.3TB free). I purchased another 20TB hdd and precleared it. Today I stopped the array and assigned the new precleared 20TB hdd, and then started up the array  and the parity started. After 1 hour and 43 minutes it say 0.3% complete with a 8.9 MB/s estimated speed and a completion time of 26 days, 13 hours. Is this normal? When I replace 1 of the 16TB hdds witha 20TB hdd will it take this long again for parity? I had Unraid running a few years ago and I used to have (2) 16TB Parity hdds with a array of 8 hdds (all smaller than the parity), and I do not recall it taking this long.



Should my shares be unmounted?

All hdds in the array are green

Parity has a orange triangle

Array has 1 device warning...parity which is syncing.

All drives have a healthy SMART



Log..



.

Nov 26 16:00:55 Tower kernel: BTRFS info (device loop3): first mount of filesystem e1bf2477-47d0-4f91-8d1e-b8defeb45d58
Nov 26 16:00:55 Tower kernel: BTRFS info (device loop3): using crc32c (crc32c-intel) checksum algorithm
Nov 26 16:00:55 Tower kernel: BTRFS info (device loop3): using free space tree
Nov 26 16:00:55 Tower root: Resize device id 1 (/dev/loop3) from 1.00GiB to max
Nov 26 16:00:55 Tower emhttpd: shcmd (393): /etc/rc.d/rc.libvirt start
Nov 26 16:00:55 Tower root: Starting virtlockd...
Nov 26 16:00:55 Tower root: Starting virtlogd...
Nov 26 16:00:55 Tower root: Starting libvirtd...
Nov 26 16:00:55 Tower kernel: tun: Universal TUN/TAP device driver, 1.6
Nov 26 16:00:55 Tower dnsmasq[6454]: started, version 2.89 cachesize 150
Nov 26 16:00:55 Tower dnsmasq[6454]: compile time options: IPv6 GNU-getopt DBus no-UBus i18n IDN2 DHCP DHCPv6 no-Lua TFTP conntrack ipset no-nftset auth cryptohash DNSSEC loop-detect inotify dumpfile
Nov 26 16:00:55 Tower dnsmasq-dhcp[6454]: DHCP, IP range 192.168.122.2 -- 192.168.122.254, lease time 1h
Nov 26 16:00:55 Tower dnsmasq-dhcp[6454]: DHCP, sockets bound exclusively to interface virbr0
Nov 26 16:00:55 Tower dnsmasq[6454]: reading /etc/resolv.conf
Nov 26 16:00:55 Tower dnsmasq[6454]: using nameserver 192.168.1.254#53
Nov 26 16:00:55 Tower dnsmasq[6454]: read /etc/hosts - 2 names
Nov 26 16:00:55 Tower dnsmasq[6454]: read /var/lib/libvirt/dnsmasq/default.addnhosts - 0 names
Nov 26 16:00:55 Tower dnsmasq-dhcp[6454]: read /var/lib/libvirt/dnsmasq/default.hostsfile
Nov 26 16:00:55 Tower usb_manager: Info: rc.usb_manager Reset Connected Status
Nov 26 16:00:55 Tower emhttpd: writing GPT on disk (sdf), with partition 1 byte offset 32KiB, erased: 0
Nov 26 16:00:55 Tower emhttpd: shcmd (395): sgdisk -Z /dev/sdf
Nov 26 16:00:57 Tower rc.docker: zappiti-server: started succesfully!
Nov 26 16:00:58 Tower root: Creating new GPT entries in memory.
Nov 26 16:00:58 Tower root: GPT data structures destroyed! You may now partition the disk using fdisk or
Nov 26 16:00:58 Tower root: other utilities.
Nov 26 16:00:58 Tower emhttpd: shcmd (396): sgdisk -o -a 8 -n 1:32K:0 /dev/sdf
Nov 26 16:00:59 Tower root: Creating new GPT entries in memory.
Nov 26 16:00:59 Tower root: The operation has completed successfully.
Nov 26 16:00:59 Tower kernel: sdf: sdf1
Nov 26 16:01:00 Tower emhttpd: re-reading (sdf) partition table
Nov 26 16:01:00 Tower emhttpd: shcmd (397): udevadm settle
Nov 26 16:01:00 Tower kernel: sdf: sdf1
Nov 26 16:01:03 Tower kernel: mdcmd (37): check
Nov 26 16:01:03 Tower kernel: md: recovery thread: recon P ...
Nov 26 16:01:05 Tower autotweak: Appply balanced profile
Nov 26 16:01:05 Tower autotweak: Set scaling governor to powersave for CPU 0
Nov 26 16:01:05 Tower autotweak: Set scaling governor to powersave for CPU 1
Nov 26 16:01:05 Tower autotweak: Set scaling governor to powersave for CPU 2
Nov 26 16:01:05 Tower autotweak: Set scaling governor to powersave for CPU 3
Nov 26 16:01:05 Tower autotweak: Set performance preference to balance_performance for CPU 0
Nov 26 16:01:05 Tower autotweak: Set performance preference to balance_performance for CPU 1
Nov 26 16:01:05 Tower autotweak: Set performance preference to balance_performance for CPU 2
Nov 26 16:01:05 Tower autotweak: Set performance preference to balance_performance for CPU 3
Nov 26 16:01:05 Tower autotweak: Set HWP Dynamic Boost to 1
Nov 26 16:01:05 Tower autotweak: Set no_turbo to 0
Nov 26 16:01:05 Tower autotweak: Failed to set ASPM policy
Nov 26 16:01:05 Tower autotweak: Set SATA link power management to max_performance for host12
Nov 26 16:01:05 Tower autotweak: Set SATA link power management to max_performance for host13
Nov 26 16:01:05 Tower autotweak: Banned CPUs for network interface interrupt affinity: 0,2-3
Nov 26 16:01:05 Tower autotweak: Usable CPUs for eth0: 1
Nov 26 16:01:05 Tower autotweak: Set CPU affinity of interrupt 128 and tx queue 0 of eth0 to CPU 1
Nov 26 16:01:05 Tower autotweak: Usable CPUs for eth1: 1
Nov 26 16:01:05 Tower autotweak: Set CPU affinity of interrupt 129 and tx queue 0 of eth1 to CPU 1
Nov 26 16:01:05 Tower autotweak: Maximum interface speed: 1000 Mb/s
Nov 26 16:01:05 Tower autotweak: TCP parameters optimized
Nov 26 16:01:06 Tower Parity Check Tuning: No restart information present
Nov 26 16:01:36 Tower tips.and.tweaks: Tweaks Applied
Nov 26 16:01:36 Tower unassigned.devices: Mounting 'Auto Mount' Remote Shares...
Nov 26 16:01:36 Tower usb_manager: Starting usbip config check...
Nov 26 16:01:36 Tower unassigned.devices: Using Gateway '192.168.1.254' for Remote Shares.
Nov 26 16:01:36 Tower unassigned.devices: Waiting 5 secs before mounting Remote Shares...
Nov 26 16:01:42 Tower unassigned.devices: Mounting Remote Share '//SERVER.DOMAIN.NAME/movies'...
Nov 26 16:01:42 Tower unassigned.devices: Mount SMB share '//SERVER.DOMAIN.NAME/movies' using SMB default protocol.
Nov 26 16:01:42 Tower unassigned.devices: Mount SMB command: /sbin/mount -t 'cifs' -o rw,hard,relatime,noserverino,nounix,iocharset=utf8,file_mode=0777,dir_mode=0777,uid=99,gid=100,actimeo=10,closetimeo=30,credentials='/tmp/unassigned.devices/credentials_SERVER.DOMAIN.NAME_movies' '//SERVER.DOMAIN.NAME/movies' '/mnt/remotes/SERVER.DOMAIN.NAME_movies'
Nov 26 16:01:42 Tower kernel: CIFS: enabling forceuid mount option implicitly because uid= option is specified
Nov 26 16:01:42 Tower kernel: CIFS: enabling forcegid mount option implicitly because gid= option is specified
Nov 26 16:01:42 Tower kernel: CIFS: Attempting to mount \\SERVER.DOMAIN.NAME\movies
Nov 26 16:01:42 Tower unassigned.devices: Successfully mounted '//SERVER.DOMAIN.NAME/movies' on '/mnt/remotes/SERVER.DOMAIN.NAME_movies'.
Nov 26 16:01:42 Tower unassigned.devices: Adding SMB share 'SERVER.DOMAIN.NAME_movies'.
Nov 26 16:01:42 Tower unassigned.devices: Adding NFS share '/mnt/remotes/SERVER.DOMAIN.NAME_movies'.
Nov 26 16:01:42 Tower unassigned.devices: Mounting Remote Share '//SERVER.DOMAIN.NAME/tvshows'...
Nov 26 16:01:42 Tower unassigned.devices: Mount SMB share '//SERVER.DOMAIN.NAME/tvshows' using SMB default protocol.
Nov 26 16:01:42 Tower unassigned.devices: Mount SMB command: /sbin/mount -t 'cifs' -o rw,hard,relatime,noserverino,nounix,iocharset=utf8,file_mode=0777,dir_mode=0777,uid=99,gid=100,actimeo=10,closetimeo=30,credentials='/tmp/unassigned.devices/credentials_SERVER.DOMAIN.NAME_tvshows' '//SERVER.DOMAIN.NAME/tvshows' '/mnt/remotes/SERVER.DOMAIN.NAME_tvshows'
Nov 26 16:01:42 Tower kernel: CIFS: enabling forceuid mount option implicitly because uid= option is specified
Nov 26 16:01:42 Tower kernel: CIFS: enabling forcegid mount option implicitly because gid= option is specified
Nov 26 16:01:42 Tower kernel: CIFS: Attempting to mount \\SERVER.DOMAIN.NAME\tvshows
Nov 26 16:01:42 Tower unassigned.devices: Successfully mounted '//SERVER.DOMAIN.NAME/tvshows' on '/mnt/remotes/SERVER.DOMAIN.NAME_tvshows'.
Nov 26 16:01:42 Tower unassigned.devices: Adding SMB share 'SERVER.DOMAIN.NAME_tvshows'.
Nov 26 16:01:42 Tower unassigned.devices: Adding NFS share '/mnt/remotes/SERVER.DOMAIN.NAME_tvshows'.
Nov 26 16:01:42 Tower unassigned.devices: Mounting Remote Share 'TOWER:/mnt/user/movies'...
Nov 26 16:01:42 Tower unassigned.devices: Mount NFS command: /sbin/mount -t 'nfs4' -o rw,hard,relatime 'TOWER:/mnt/user/movies' '/mnt/remotes/TOWER_movies'
Nov 26 16:01:44 Tower nfsrahead[10006]: setting /mnt/remotes/TOWER_movies readahead to 128
Nov 26 16:01:44 Tower unassigned.devices: Successfully mounted 'TOWER:/mnt/user/movies' on '/mnt/remotes/TOWER_movies'.
Nov 26 16:01:44 Tower unassigned.devices: Adding SMB share 'TOWER_movies'.
Nov 26 16:01:44 Tower unassigned.devices: Adding NFS share '/mnt/remotes/TOWER_movies'.
Nov 26 16:06:30 Tower Parity Check Tuning: Parity Sync/Data Rebuild detected
Nov 26 16:10:00 Tower root: Fix Common Problems Version 2024.11.12
Nov 26 16:10:07 Tower root: Fix Common Problems: Warning: Share appdata set to cache-only, but files / folders exist on the array
Nov 26 16:10:09 Tower root: Fix Common Problems: Warning: Email selected as a notification destination, but not properly configured
Nov 26 16:12:23 Tower root: Fix Common Problems: Warning: Share downloads set to use pool cache, but files / folders exist on the read pool

Edited November 27, 20241 yr by Ron

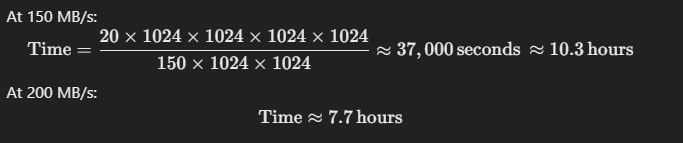

The time it takes to build a parity drive on a 20TB HDD for the first time depends on several factors, including the speed of the drive, the controller, and the CPU performance. Here are some key considerations... Typical Speed: Modern drives average between 150 MB/s to 200 MB/s during sequential writes (parity calculation is sequential)

min of 7 hours...



example:



Plan for 10–12 hours: For most systems with average modern drives, expect the process to take about 8–12 hours.

Monitor Progress:

In Unraid, navigate to Main > Array Operation to view progress and estimated completion time.

Minimize System Load: Avoid heavy tasks during the parity build to ensure consistent speeds.

Based on your description and logs, the extremely slow parity build speed (8.9 MB/s) and estimated time to completion (26+ days) are not normal. Here's a detailed breakdown and suggestions to address the issue:



looks like autotwaek plugin doing somehting...



Possible Causes of Slow Parity Build

Power-Saving CPU Settings:

Your logs indicate the powersave governor is active:

autotweak: Set scaling governor to powersave for CPU

The CPU may not be operating at its full potential during the parity sync.

Disk or Controller Bottleneck:

Parity build relies heavily on sequential reads and writes. Any bottleneck in:

A specific disk in the array causing slow reads.

The SATA controller or a shared connection (e.g., port multipliers).

Slow or failing disks (despite "healthy" SMART status).

Unnecessary System Load:

Running Docker containers, VMs, or active shares (e.g., file transfers) during parity sync can reduce performance.

Share Conflicts:

Cache-only shares with files on the array: As indicated by the "Fix Common Problems" plugin, improperly configured shares might cause the system to unnecessarily access multiple drives during parity sync.

Drive Format and Partitioning:

The system log shows partitioning activity for sdf. Ensure the new 20TB drive is properly formatted and aligned.



Recomendations:
Optimize CPU Performance

Change the CPU governor to performance

echo performance | tee /sys/devices/system/cpu/cpu*/cpufreq/scaling_governor

Alternatively, use the Tips and Tweaks Plugin to adjust this setting via the GUI.



Check Disk Throughput

Use the following command to monitor disk speeds

dd if=/dev/sdX of=/dev/null bs=1M count=10000

Replace /dev/sdX with each drive’s identifier. Compare results to identify potential bottlenecks.

?looks like sdf?



Reduce System Load

Stop all Docker containers and VMs during the parity sync:

Navigate to Docker > Stop All Containers.

Disable VMs via Settings > VM Manager > Enable VMs > No.

Unmount unnecessary remote shares.



Check Drive Configurations

Verify the new drive (sdf) is properly aligned

fdisk -l /dev/sdf

Ensure the partition starts at sector 64 or 2048 (aligned for modern drives).



Address Share Warnings

Resolve the cache-only share issue:

Navigate to Shares > appdata > Settings and ensure it’s configured correctly to avoid accessing the array during sync.



Test Array Drives

Run read speed tests on all array drives using the DiskSpeed Docker to identify underperforming disks.

Review SMART data for hidden issues.



When Replacing a 16TB with a 20TB HDD

Parity rebuild times are proportional to drive size, not the amount of data stored. If your system performs optimally:

*Expect 18–22 hours for a 20TB parity rebuild, assuming speeds of 150–200 MB/s.



Should Shares Be Unmounted?

No, shares do not need to be unmounted, but ensure they are not actively accessed during the sync.



Next Steps

Apply the above optimizations.

Monitor parity progress via Main > Array Operation.

If the issue persists, provide the results of:

Disk throughput tests.

SMART attributes for all drives.

Thank you, I will try your suggestions and report back.

8,9Mb/s is much too slow.

My Box needs 25hrs each month to check the 72Tb Array (max 18Tb Drive). Starts at 240Mb/s, ends at 140MB/s (inner tracks are slower, thats normal). Average 199Mb/s.



But SOMETIMES it catches a bad day and slows down like yours. Stop the check, and restart it. Normally it will jump up in speed again. Dunno what drags him down, but once slow, it wont recover by itself as I have noticed.



BTW, if the new drive really was precleared, there is no need for parity to be recalculated. There is a hook "parity is valid" available when adding the drive. It skips the check then. (the choice is only available in the gui if the disk is really precleared and has not been tampered with in between). As pointed out by @itimpi, this happens automatically. So if it did not, you have done something "evil" to the precleared disk in between...



Edited November 27, 20241 yr by MAM59

43 minutes ago, MAM59 said:

TW, if the new drive really was precleared, there is no need for parity to be recalculated. There is a hook "parity is valid" available when adding the drive. It skips the check then. (the choice is only available in the gui if the disk is really precleared and has not been tampered with in between).

This is incorrect - there is no such checkbox when adding a new drive to the array (this is only an option in the New Config tool which is not used in a standard Add sequence).  However if a drive has been precleared and then nothing else done to the drive then Unraid will automatically recognise this and add the drive without redoing parity.



As was mentioned the speed for building parity is far too slow.  The elapsed time is normally something like 1.5 to 2 hours per TB of the parity drive.  Are you sure there is nothing else reading or writing to the array drives as this would dramatically slow down the parity build speed while it is gong on.



You are likely to get more informed feedback if you attach your system's diagnostics zip file to your next post in this thread.
It is always a good idea to do this to allow us to see the current state of your system and so we can see logs.
