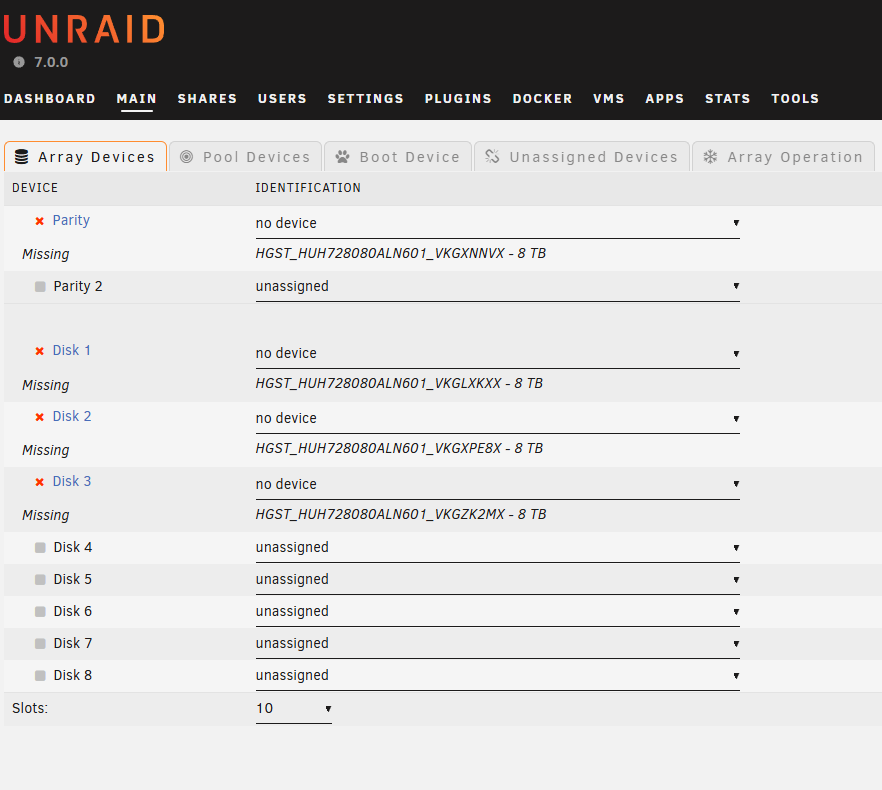

I have an unraid box I installed in 2019. Bought a surplus 3U server and it has been running flawless. I have performed updates in the past and today I tried to apply update 7.0.0. When the update completed all my array devices show "no device" for my drives.



Searching I found other posts with similar issues. My setup works on 6.12.8 so I am not sure the problem is hardware related. There is a BIOS update for the motherboard but the fixes appear to not be related to my 7.0.0 update issues.





Any assistance is appreciated.



Billy



EDIT.



Looking through the syslog I found this.



Feb 18 17:04:43 hotsyok-aspen kernel: mpt2sas_cm0: failure at drivers/scsi/mpt3sas/mpt3sas_scsih.c:12347/_scsih_probe()!
Feb 18 17:04:43 hotsyok-aspen kernel: mpt2sas_cm0: pci_request_selected_regions: failed

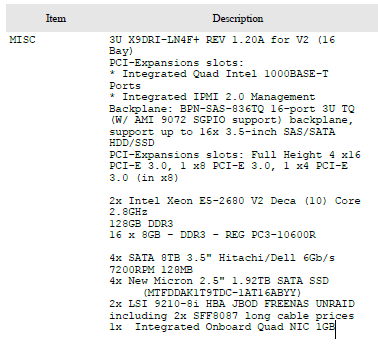

Below are the server specs.



Supermicro X9DRI-LN4F+ REV 1.20A for V2
Integrated Quad Intel 1000BASE-T Ports
Integrated IPMI 2.0 Management Backplane: BPN-SAS-836TQ 16-port 3U TQ (W/ AMI 9072 SGPIO support) backplane, support up to 16x 3.5-inch AS/SATA HDD/SSD PCI-Expansions slots: Full Height 4 x16
PCI-E 3.0, 1 x8 PCI-E 3.0, 1 x4 PCI-E 3.0 (in x8)
2x Intel Xeon E5-2680 V2 Deca (10) Core 2.8GHz
128GB DDR3
16 x 8GB - DDR3 - REG PC3-10600R
4x SATA 8TB 3.5" Hitachi/Dell 6Gb/s 7200RPM 128MB
4x New Micron 2.5" 1.92TB SATA SSD ()
2x LSI 9210-8i HBA JBOD FREENAS UNRAID including 2x SFF8087 long cable prices
1x Integrated Onboard Quad NIC 1GB

hotsyok-aspen-diagnostics-20250218-1707 pos 7 update.zip hotsyok-aspen-diagnostics-20250218-1519 pre 7 update.zip P-X9DR3-LN4F__X9DRI-LN4F__BIOS_3_4_release_notes.pdf

Edited February 19, 20251 yr by menasco

older version of unraid didn't write a correct config file and didn't properly check.

Noted in announcements:



The HBA is failing to initialize, look for a BIOS/firmware update, you can also try a different PCIe slot to see if it helps.

6 hours ago, JorgeB said:

The HBA is failing to initialize, look for a BIOS/firmware update, you can also try a different PCIe slot to see if it helps.

Thank you for the reply.



When I roll back to 6.12.8 everything works.



Billy

12 hours ago, bmartino1 said:

older version of unraid didn't write a correct config file and didn't properly check.

Thanks,



I will look into that when I can shutdown tonight.





1 hour ago, menasco said:

When I roll back to 6.12.8 everything works.

Because it uses an older kernel/driver

36 minutes ago, JorgeB said:

it uses an older kernel/driver

Suggestions as to where to find a solution?



Billy

9 hours ago, JorgeB said:

look for a BIOS/firmware update, you can also try a different PCIe slot to see if it helps.



Another thing worth trying, click on the flash drive, then scroll down to the syslinux configuration section, and add this to the default boot option after /bzroot:



pci=realloc=off



9 minutes ago, JorgeB said:

Another thing worth trying

I will try it when I can shutdown the system Friday evening.



Thanks

From what I've found on other sites, the last option alone has a good chance of resolving the issue.

On 2/19/2025 at 12:23 PM, JorgeB said:

Another thing worth trying, click on the flash drive, then scroll down to the syslinux configuration section, and add this to the default boot option after /bzroot:

I will try this tonight. Is this where the line needs to be added?



Billy



default menu.c32
menu title Lime Technology, Inc.
prompt 0
timeout 50
label Unraid OS
  menu default
  kernel /bzimage
  append initrd=/bzroot
  pci=realloc=off
label Unraid OS GUI Mode
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui
label Unraid OS Safe Mode (no plugins, no GUI)
  kernel /bzimage
  append initrd=/bzroot unraidsafemode
label Unraid OS GUI Safe Mode (no plugins)
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui unraidsafemode
label Memtest86+
  kernel /memtest

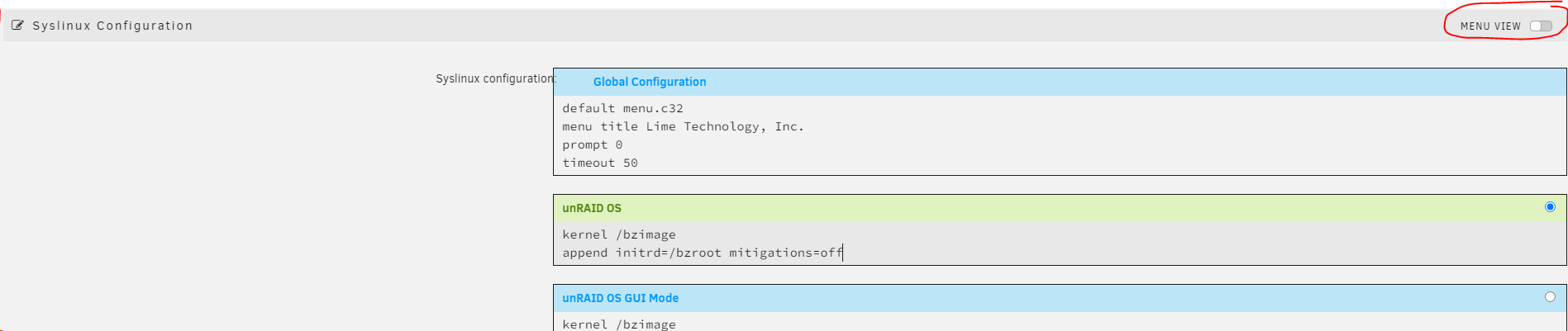

Yes missed that you add it below, it may be easier if you switch to menu view, then add to the default boot option, the one in green, after /bzroot like the mitigations option I have.





If it works, you can also add it to other boot options you may want to use in the future, like safe mode

Not quite - it needs to be added to the end of the append line rather than on a new line    You need to do this for each of the boot options you might want to use.

Ok, got it now. Thank you.



Billy



That worked. Thanks.
