Periodically (currently every day for the past week) my server GUI will stop working and I get a refused to connect error when I try to log in via web GUI.

When this happens, I am able to ping the server through cmd from my windows desktop.

I also tried "telnet MyServerIP 445" but this resulted in an error. I don't remember the exact wording of the error.

I believed this might be a networking issue but I don't really believe this is the issue because 1. the GUI and Unraid server work fine for about a day before it stops working, and 2. When I viewed the server terminal with a KVM, I get a repeated error:

"crond[2096]: exit status 135 from user root /usr/local/emhttp/plugins/dynamix/scritps/monitor &> /dev/null" that is repeated about every 30seconds-1minute

Attempts to type in my username and password on terminal to sign into the machine without the network and GUI would just display:

"-bash: /usr/share/bash-completion/bash_completion: Input/output error

Unraid server OS version 7.1.3

IPv4 address: MyServerIP

IPv6 address: not set"

After displaying this message it would bring me back to the login prompt.

I eventually decided I had to reboot the server when this happens. powerdown and shutdown commands do nothing. I've also attempted to do a short press of the power button for a slightly more graceful shutdown and then gave the server ~15 minutes to try to shut itself down, but the server doesn't seem to respond to this either.

I eventually have to long press power button when this happens.

I'm currently running Unraid 7.1.3 but this has been happening periodically since I was on unraid 6.x.x.

I have an asus prim z370-a motherboard. I mention this because I've replaced a few usb sticks by now, and I'm not sure if it's a flash drive problem, or possibly something with the motherboard/BIOS.

This same error has happened about 10 times in the past couple weeks and is now happening at least once a day.

I found this line in the diagnostics -> logs -> syslog-previous.txt file after one of my reboots and the error seems to have happened right before it wen't offline...

"Jun 17 07:34:00 JebsNAS kernel: BTRFS info (device sdf1): bdev /dev/sdf1 errs: wr 1792460, rd 783, flush 17277, corrupt 20433, gen 0"

This makes me think it was a problem with the flash drive? Is "/dev/sdf1" the flash drive? In some of my old diagnostics I also had lots of errors from the NUT Community Applications program and my Cyberpower UPS is the only other thing connected to the server via USB (besides keyboard and mouse) so I eventually uninstalled that program to see if this changed anything, but it still did this error last night. As far as NUT program diagnosing went, I was seeing a repeated error in my logs about a pollonly flag. I remembered I got this once before a long time ago, and I added the pollonly flag to the .conf file, but it disappeared at some point. After adding this flag again, it disappeared by the next time the server was turned on so I got rid of NUT altogether to see if that would help.

I should also mention here if it is the usb drive that's failing, it's a brand new flash drive which replaced my old one less than a week ago when I was trying to diagnose this and believed the old one was having issues. I've tried switching the OS flash drive to a different usb port when I still had the old drive, and I've switched with the new one too. I've been using Unraid now for about 3 years, and although I love what I'm able to do with it as far as a home NAS goes, and the unraid forum community has been a really great and helpful place to get information since most of my issues have been asked and answered before, but I also feel like I've had nothing but bad usb drive problems since I've set this machine up. This must be my 4th or 5th time replacing the flash drive in only 3 years!

Attached should be my last few diagnostics files which I've been keeping every time I have to restart the server for about the past week.

If anyone has any information that may help me keep this server running, please let me know.

Thank you all for your time and effort throughout the years.

jebsnas-diagnostics-20250608-1829.zip jebsnas-diagnostics-20250609-1917.zip jebsnas-diagnostics-20250614-1623.zip jebsnas-diagnostics-20250617-1149.zip jebsnas-diagnostics-20250617-1951.zip jebsnas-diagnostics-20250617-1954.zip jebsnas-diagnostics-20250618-0907.zip jebsnas-diagnostics-20250618-1828.zip jebsnas-diagnostics-20250619-0833.zip

Let's start with the pool, looks like one of the devices dropped offline in the past, scrub the pool and post the results from the GUI.

Hi, JorgeB!

None of the drives technically dropped offline. I was going to add a second parity drive which I decided would be a good idea to order when this issue became frequent. I installed the drive in the computer a few days ago when I believed I solved the issue, but every time I've tried to build the 2nd parity in the past week, the server stops working before the rebuild can complete. I did get a parity check to complete on the original drives once last week before I added the new drive, so I don't believe this is what's causing the issue. I believe what you might be seeing is the new drive, not a bad one which it might look like from the diags.

I forgot to mention in my original post, but I did do a smart test on all the drives last week when this issue first started becoming a common occurrence, and also a memtest. Everything passed. This, along with the fact that I was able to complete a full parity check last week after the issue began, makes me think it's not a bad drive issue. If you see anything else that makes you believe a bad drive is the culprit, please feel free to let me know and I will then try to identify the bad drive and replace it since I already have a new one. I'd need another way to diagnose/identify this though since the smart tests seem to have passed. I have 2 drives currently connected which are "unassigned". One of them is the new parity drive, and the other is a purple HDD that I use for a Windows VM running Blue Iris from this server.

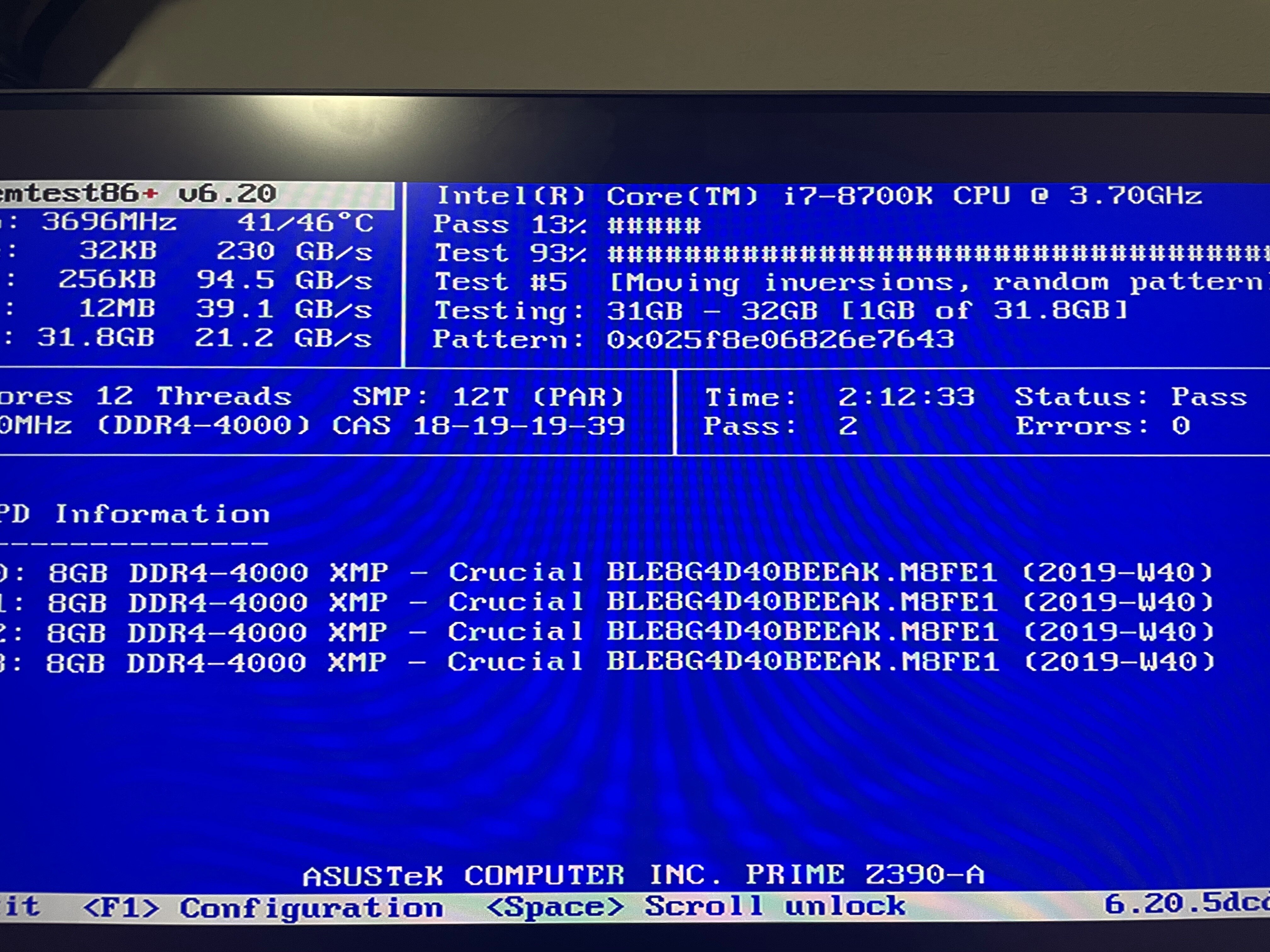

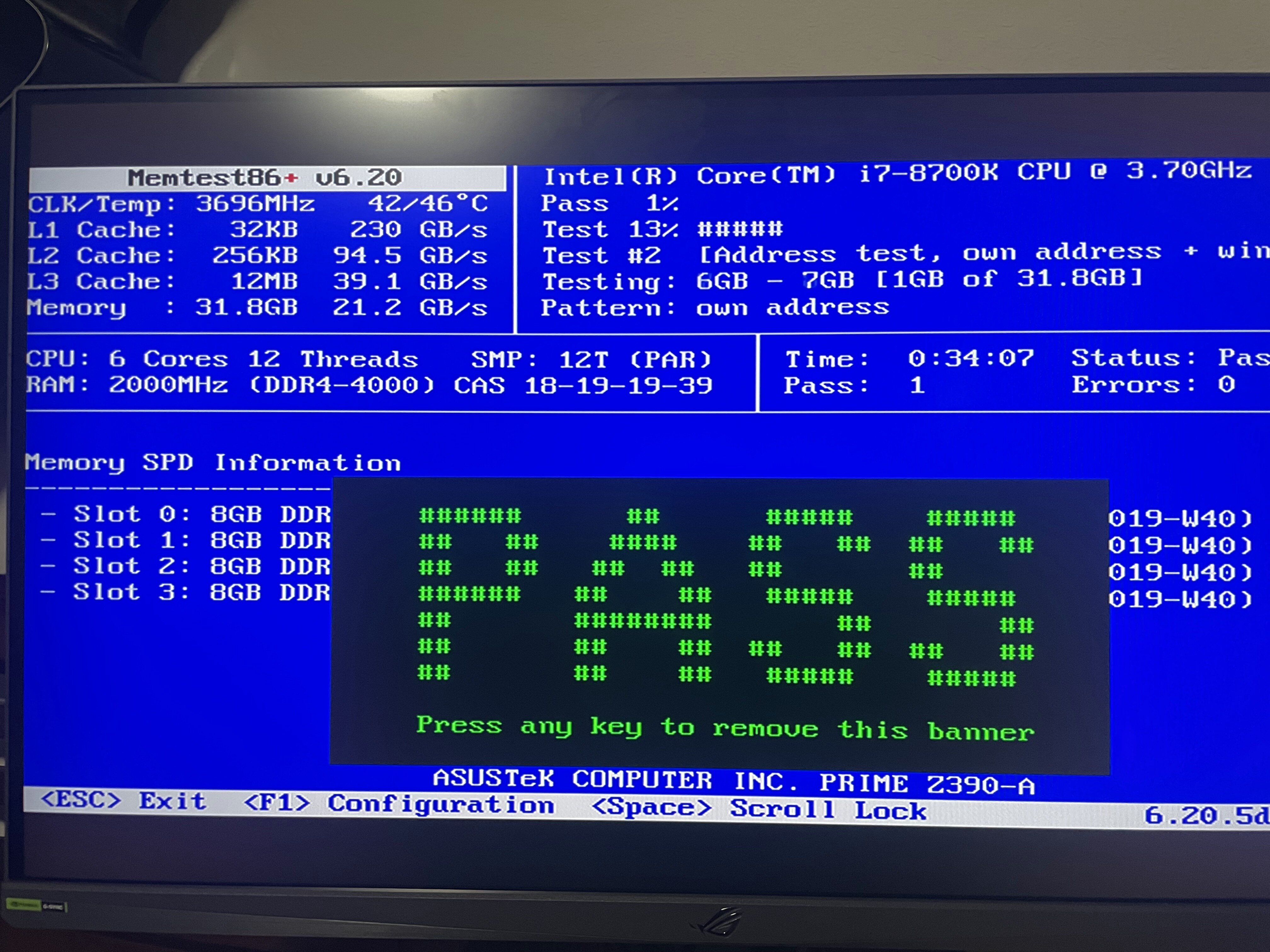

I do have a picture of my monitor showing the memtest. I let it run through 3 times. The second 2 times took a very long time to complete.

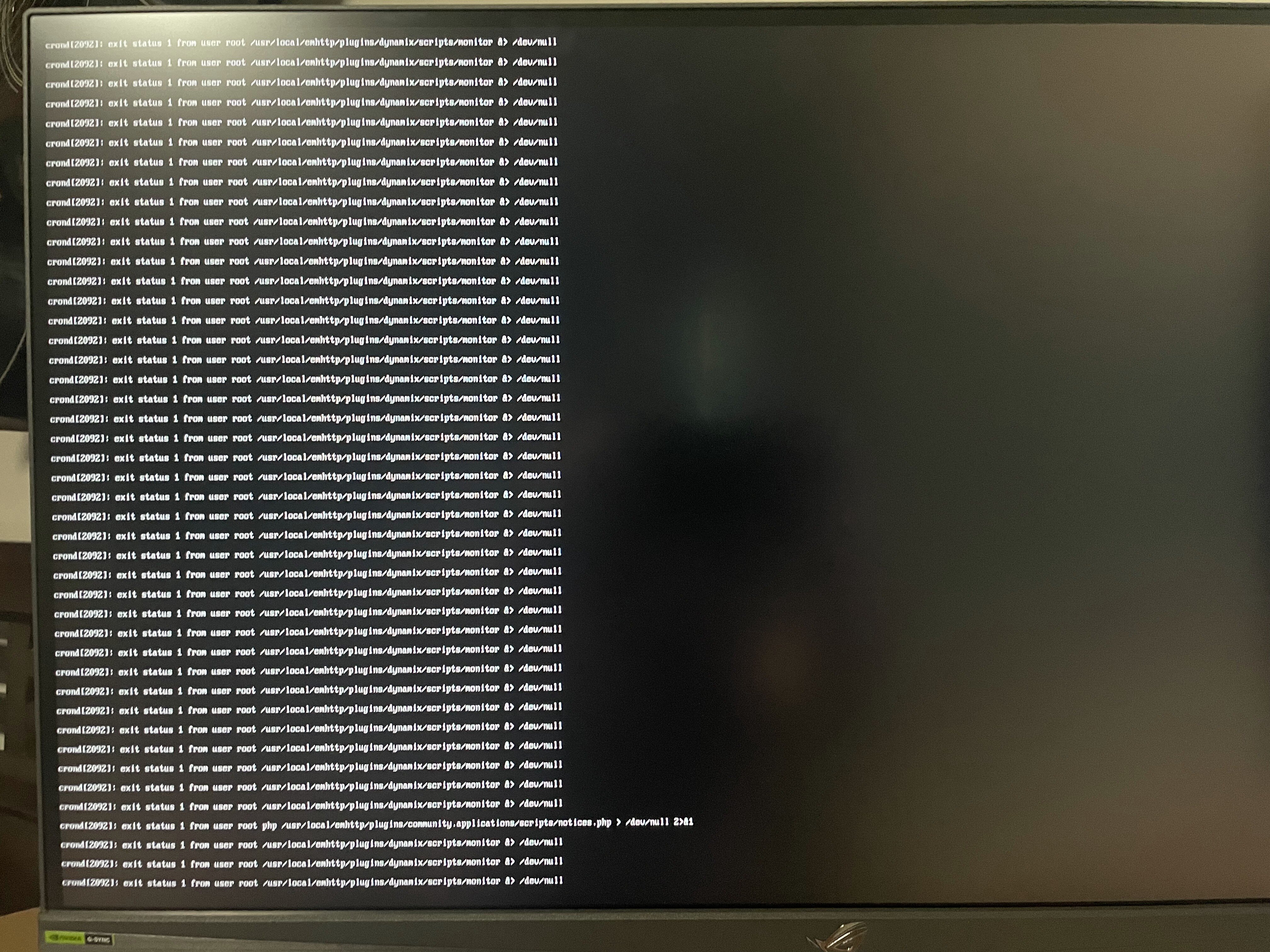

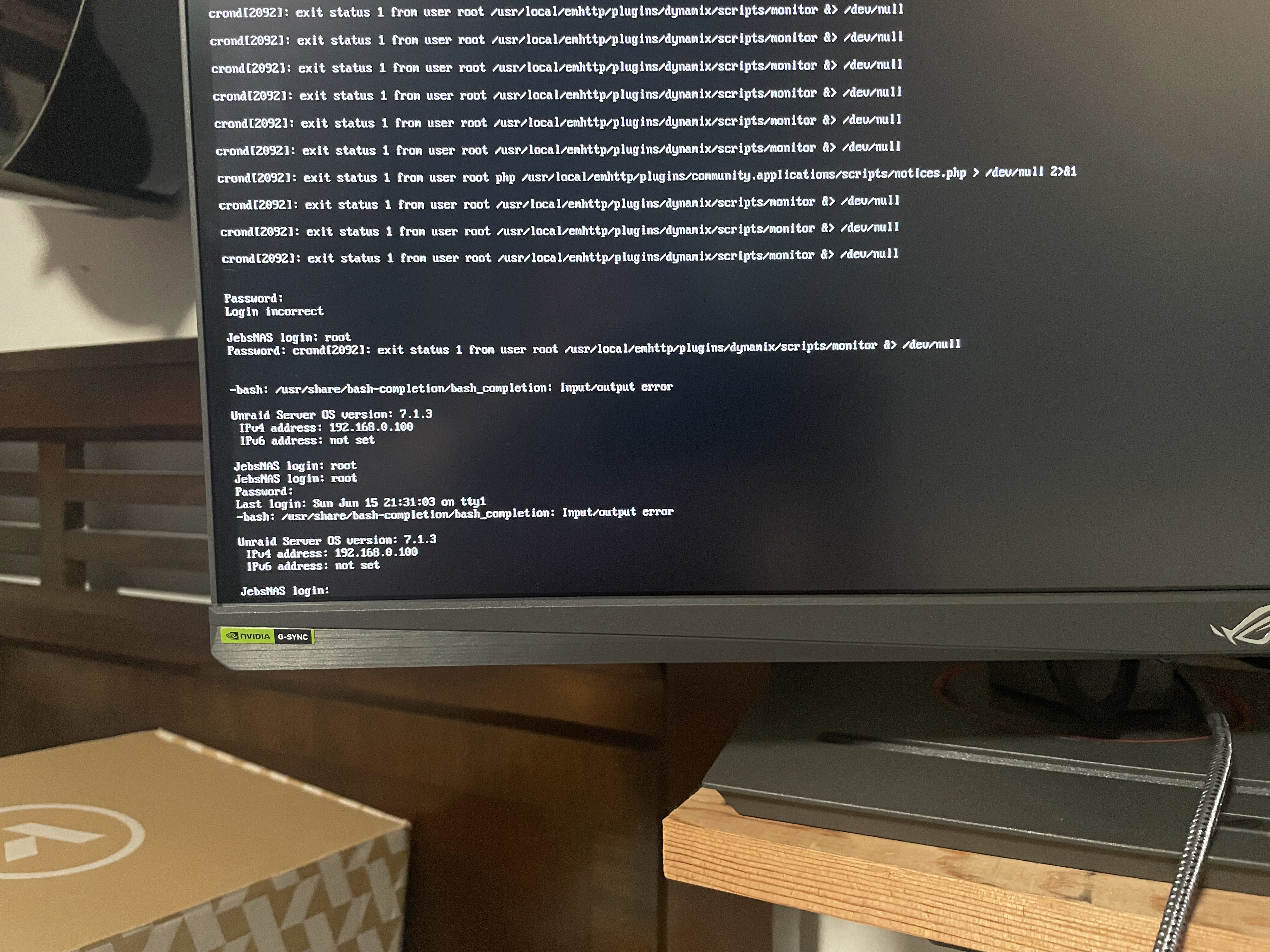

I also have pictures of the unraid terminal after attaching my monitor directly to the server. In the first you can see the "crond" error that keeps repeating. In the second you can see what happens when I try to login to the server when kvm is attached directly.

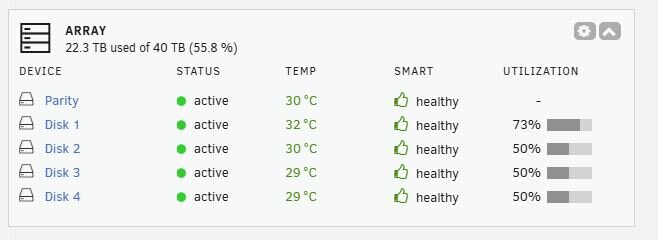

The final pictures I have attached here show all the drives currently part of the array and their smart passing, and also the 2 unassigned drives which have passed smart tests.

Edited June 19, 20251 yr by Jebberino84
Grammar and two new pics showing HDD smart passes.

12 hours ago, JorgeB said:

scrub the pool and post the results from the GUI.

Hi, JorgeB!

I apologize for my misunderstanding. Please help me clear this up and hopefully we can find where my logic is flawed. I respect your opinion and efforts and I see you post on here all the time helping people so I know you know what you're talking about. I believe this to be a flaw in my own understanding that I'm trying to get help with. I want to do what you're asking and I promise I am trying to do it.

I believe by "scrub the pool and post the results from GUI" you are asking me to perform a parity check, and to then grab results of this parity check from the GUI and post them here. I believe that when Unraid performs and completes a parity check, it will say something like "completed with no errors" or something similar at the bottom of the "Main" tab where it gives information on the parity check, and this is what you want me to post? Please let me know if this is correct and I will attempt to post a picture or screen capture of this if I can get a parity check to complete. If this is not what you are looking for, please let me know exactly where in the GUI I should be able to find the information you are looking for.

I promise, I am not just lazy and trying to not perform a parity check. I am just trying to explain why it hasn't been possible or easy for me to do so with the server going down all the time.

The system started another parity check this morning when I had to restart the server again. In fact, I believe the parity check has been started on it's own almost every time my server has rebooted in the past couple of weeks because it's not being shut down gracefully. I will admit that many of the times the server was rebooted, I did stop the parity check because I didn't feel like it would do anything different than all of the other times it ran, but at least a few of the times it has rebooted (likely much more than a few) I let it continue to run the parity check until the server went down again.

Because I have all 10TB drives in my server, it takes a long time to perform the parity check. I had to reboot my server again this morning because of the error described above caused it to stop working again last night before the parity check finished. The parity check has currently started again, and I will let all future parity checks continue and attempt to gather the result if it finishes before the server goes down again.

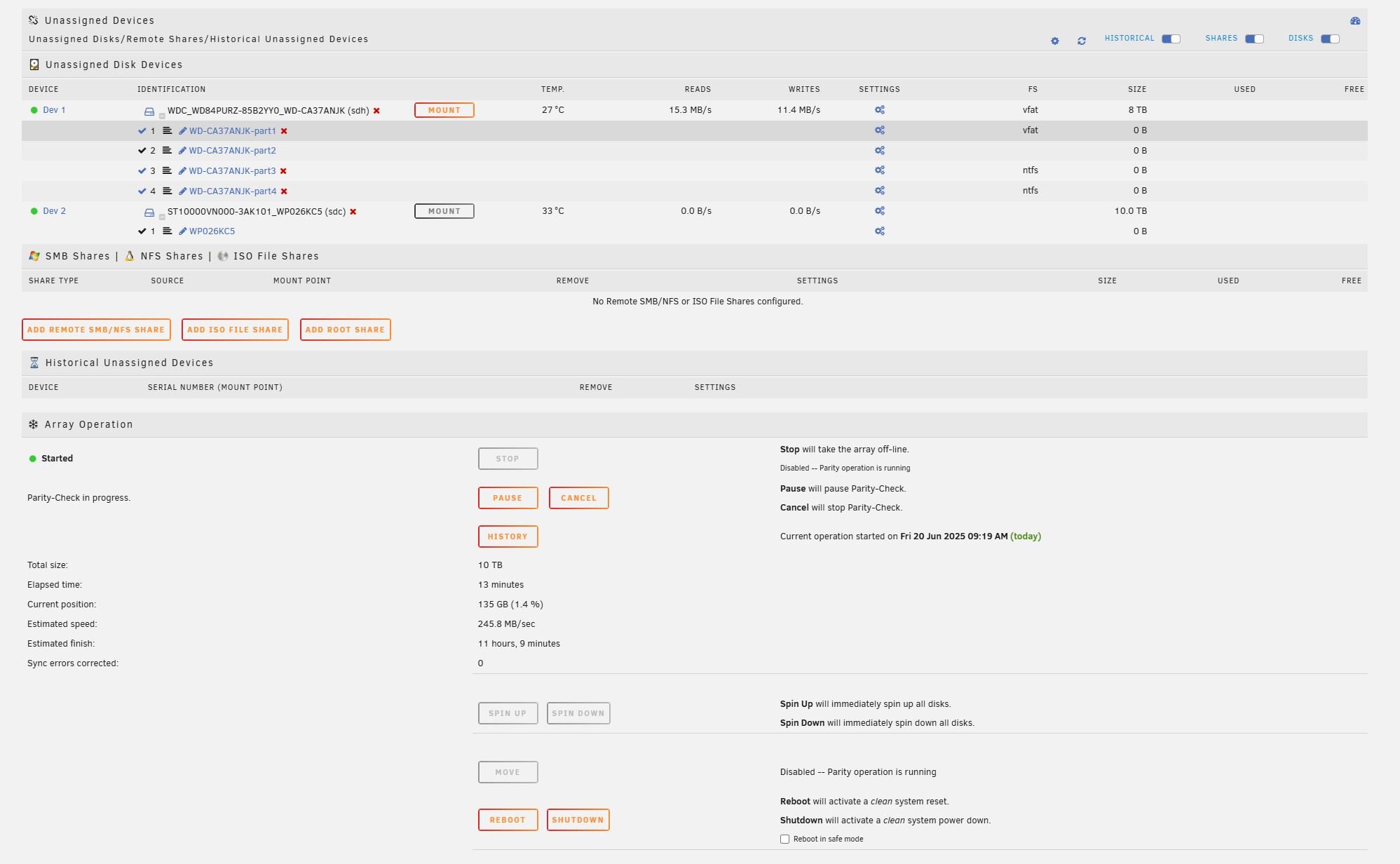

In order to help in the meantime, I've also included a current screen capture of bottom of the main tab. As you can see from the picture attached, it currently says it will take ~11 hours to complete the parity check but my past experience tells me that it will likely take a bit longer. I believe the last times I saw it complete, it took closer to 13-16 hours. The issue I'm having with the parity checks in the past couple weeks, is they take so long to complete that many of the times it runs, my server stops working before the check completes. For instance, In the diagnostics I included below, you can see in the syslog-previous.txt log file that my server was rebooted yesterday at ~2:20 PM, and seemingly around 10:30 PM it went down again because that's where the log stops. I didn't reboot it again until this morning. I also want to note, that the parity-checks.log file does not include any line items from this instance (2:20PM - 10:30PM yesterday) when I rebooted the machine and let the check run. If I stop the parity check, it logs what it was able to do, but if it runs until the server goes down, nothing is logged about the parity check in the parity-checks.log file. This has been my experience so far, that the server can't complete the parity checks because they take longer to complete than the server stays online. The server also doesn't log when I do let the check run because it goes offline before the check finishes.

I have also attached a copy of my parity-checks.log file found in /boot/config. In this file I believe there are a couple instances the parity check was able to complete in the past week before the server stopped working or I stopped the check. I believe the log for June 16 at 09:50:40 and the log for June 13 at 00:10:12 are times when the check was able to complete. I believe the "check P" log indicates they passed? If this is true, I'm hoping that this can serve as an indication that the parity check did complete after I began seeing this issue, and we can continue diagnosis and troubleshooting to figure out what is causing my server to stop working and send the crond errors described above.

I want to re-iterate, please understand that I am not saying that I will not complete the parity check, I will still attempt to complete the parity check that is currently running after my reboot this morning, and I will try to capture the result before the server goes down again. I will also continue to let the parity checks run after all reboots from now on and see if I can capture one for you that completes. My last post was not an attempt to tell anyone that I refuse to do as you ask, it was only an attempt to explain the troubles I've been having and why I wasn't confident that it would be possible to complete the check and for me to capture the results in the GUI with the server going down all the time and the GUI being unresponsive. I also wanted to give as much other information that I believe might help in the meantime so that we cold continue troubleshooting while we waited for a successful parity check to complete, especially since I believe it may not be possible to get a successful parity check with the server going down all the time.

Thank you again for your time!

Please let me know if I am correct about the GUI results you're looking for, and if there is anything else we can do in the meantime while we wait for a parity check to complete that might rule out other possible issues.

JorgeB, I really do appreciate everything you do for the community in these forums. Every time I have an Unraid issue and look things up myself I see threads littered with you're responses. Thank you for all that you do for this community.

parity-checks.log jebsnas-diagnostics-20250620-0955.zip

Edited June 20, 20251 yr by Jebberino84
Grammar.

26 minutes ago, Jebberino84 said:

believe by "scrub the pool and post the results from GUI" you are asking me to perform a parity check

No, click on the first cache pool device, scroll down to the Scrub Status section and click the SCRUB button, then post a screenshot showing the results.

29 minutes ago, Jebberino84 said:

believe by "scrub the pool and post the results from GUI" you are asking me to perform a parity check, and to then grab results of this parity check from the GUI and post them here.

No. You should click on the pool on the Main tab and select the Scrub option.

Parity checks only involve the main array anyway - pools are not involved.

Hi, JorgeB!

Ahhh. This is where I misunderstood.

21 hours ago, JorgeB said:

scrub the pool and post the results from the GUI.

Totally my fault. I thought by the term "pool" we were talking about the group of array devices since that is usually what I think of when I think of Unraid. I should have known we were talking about the "cache" pool since that's the only thing in Unraid referred to as a pool. Thank you for clearing this up for me. I really hate the way my brain works sometimes.

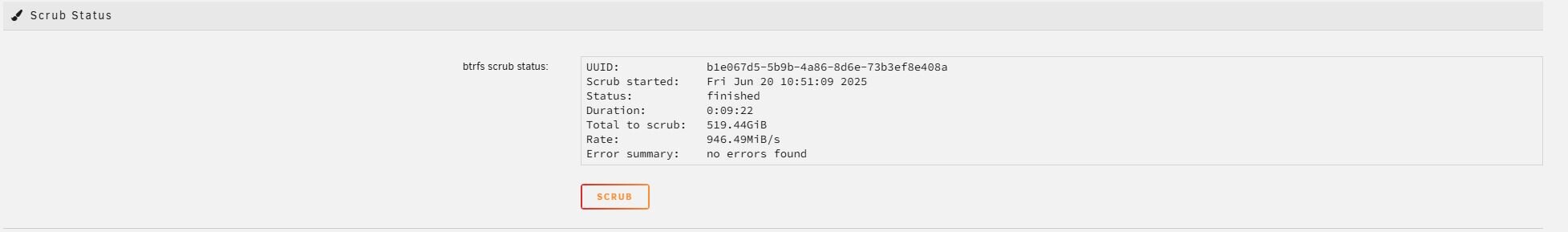

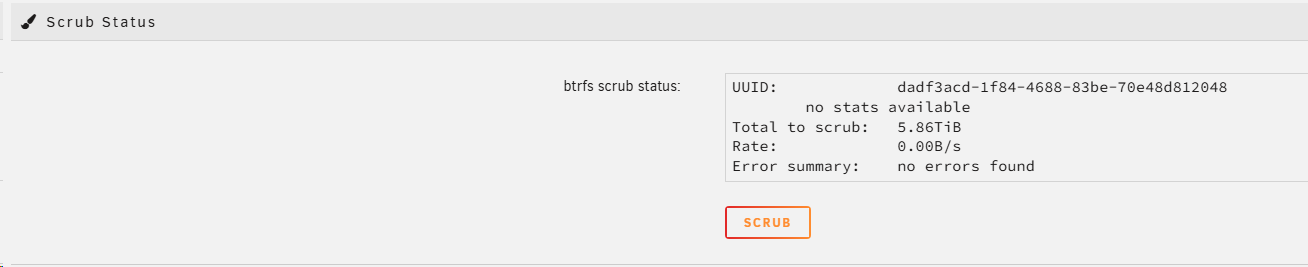

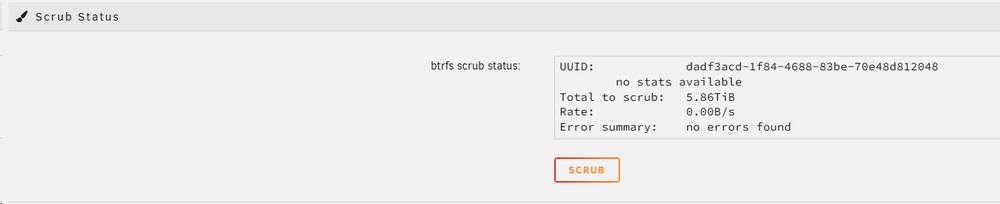

Below is my result from scrubbing the cache pool.

Thanks again for your help!

Edited June 20, 20251 yr by Jebberino84
Grammar.

Since no errors were found, click the "reset" button on the stats section, above the scrub, then reboot and post new diags after array start.

2 hours ago, Jebberino84 said:

I should have known we were talking about the "cache" pool since that's the only thing in Unraid referred to as a pool

We have had pools in Unraid for some time! In fact using pools for purposes other than acting as a cache is very common.

Hello again!

Attached are my diags after clicking "reset" button in the stats section and then rebooting after that finished.

Thanks again for your time!

Please let me know if there is anything else I can do to help track down this issue.

jebsnas-diagnostics-20250620-1511.zip

Pools looks OK, enable the syslog server and post that after you lose the GUI.

Sorry it's taken me so long to respond here.

My server is now doing something somewhat new. It stopped allowing me to connect via the web GUI early this morning, probably 4-5 hours ago. But at that time I was able to login via a KVM connected directly to the server. I was even able to display results for ifconfig. However, I let the server continue to run in this state, and my wife even watched a Plex movie which I run in Docker from this server. I also have a Blue Iris program running from a Windows 10 VM I have in this server, but I am unable to connect to the VM. I logged out of the server a few hours ago when the GUI went down, and I just tried logging in again but now that didn't work either. Since I am unable to log in, it also won't let me use powerdown, or shutdown commands so it seems I had to reboot the server manually again with a hard press of the power button.

This is a similar issue to the one I originally reported because I am unable to connect via web GUI interface, I am able to ping the machine, and I am also unable to login or powerdown the machine, but it is different because I am not getting the repeating crond error I originally described, and I am also still able to use at least one of the docker containers.

I figured I'd mention this in case the diags do show what's going on.

Attached should be the diags after a reboot after losing GUI as requested above. Please let me know if there is anything else I can give or do to help track down this issue.

Thanks again for your time and help!

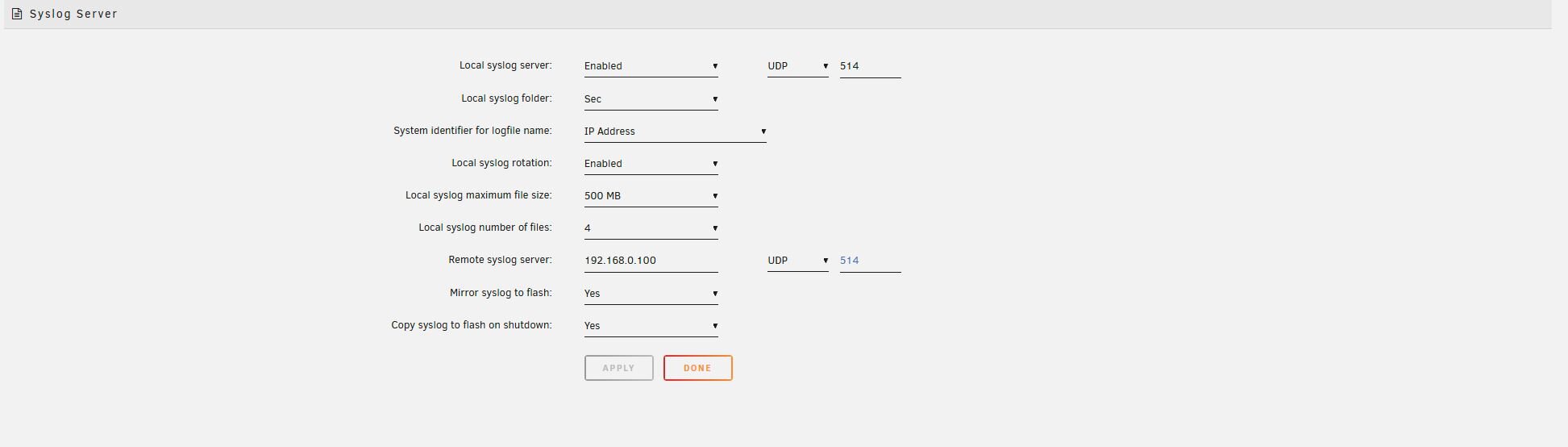

And finally as kind of a side note, I thought I already had the Syslog server settings enabled and setup correctly in my previous diags. I attached a photo here of my current settings, if this is incorrect, please let me know.

jebsnas-diagnostics-20250621-1254.zip

14 hours ago, Jebberino84 said:

I thought I already had the Syslog server

Looks OK, the persistent syslog should be in the "Sec" share, post that.

Got it. The Syslog should be attached below.

I should first mention that this is the first morning in a long time where I woke up and didn't have to reboot the server because it stopped working. I will continue to monitor and troubleshoot as I don't believe the problem just fixed itself, but this is a refreshing change of pace.

Regarding the Syslog,

Something I did see on the Syslog server that seemed interesting, is that there are a lot of logs for:
JebsNAS kernel: br-336f8d0e3be0: port 1(veth6d2d15e) entered blocking state

JebsNAS kernel: br-336f8d0e3be0: port 1(veth6d2d15e) entered disabled state

This doesn't entirely make sense to me, and it doesn't really explain the issues I've been having. I believe this to be a completely unrelated issue to the original issue I've been having. I'll explain my logic below. Please let me know if (or more likely where) my logic is flawed. If there is a fix for this issue which I'm not seeing, please let me know as I'd still like to stop those errors. However, I'm not entirely convinced fixing these blocking/disabled networking errors will fix my original issue.

I do have a PCIe network card installed on my machine, and I have 2 ethernet cords attached to my server from my L3 switch/router. I have one cable attached to the motherboard and another attached to the network card. I see how these could originally cause STP errors, however, I set these up so the motherboard (and thus my Unraid server) is on my 192.168.0.0/24 network, and the PCIe NIC is attached to a 192.168.5.0/24 network. The network card connection I use to passthrough traffic to my Windows VM running Blue Iris.

I see how these could have had some issues with Spanning Tree Protocol when I first connected them, but now that they are on different networks, I don't believe this would be what's causing my issue.

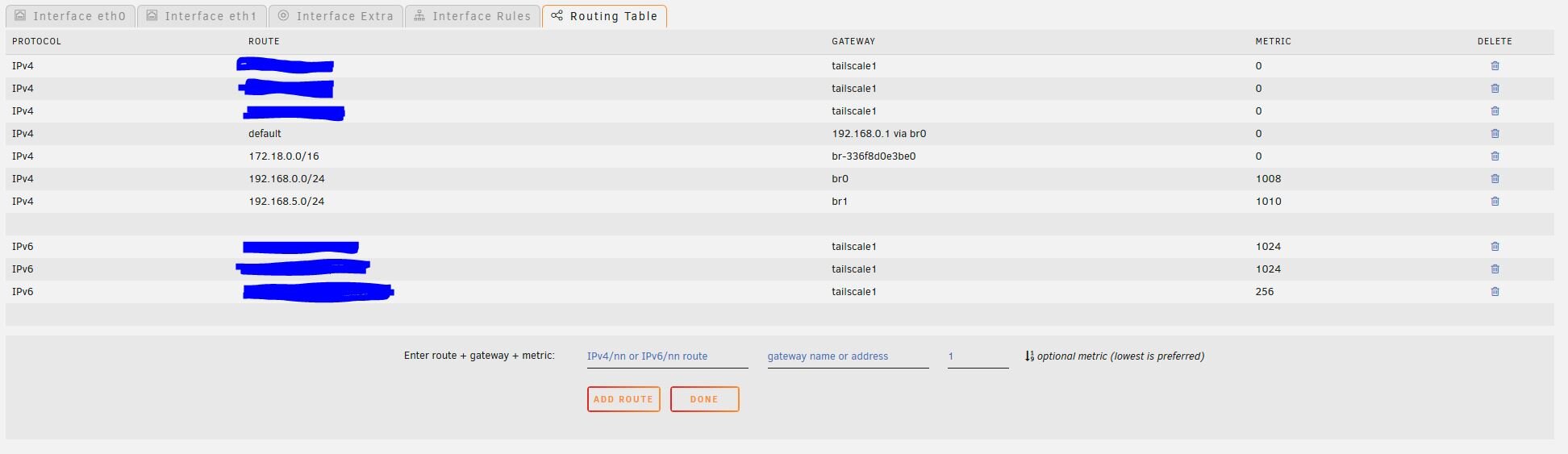

Furthermore when I look at the Network Settings, I can see that the (blocking/disabled state) issue doesn't seem to be about the two cords, it seems to be with the internal loopback address. The logs mention br-336f8d0e3be0, which network settings says is related to the 172.18.0.0/16 route.

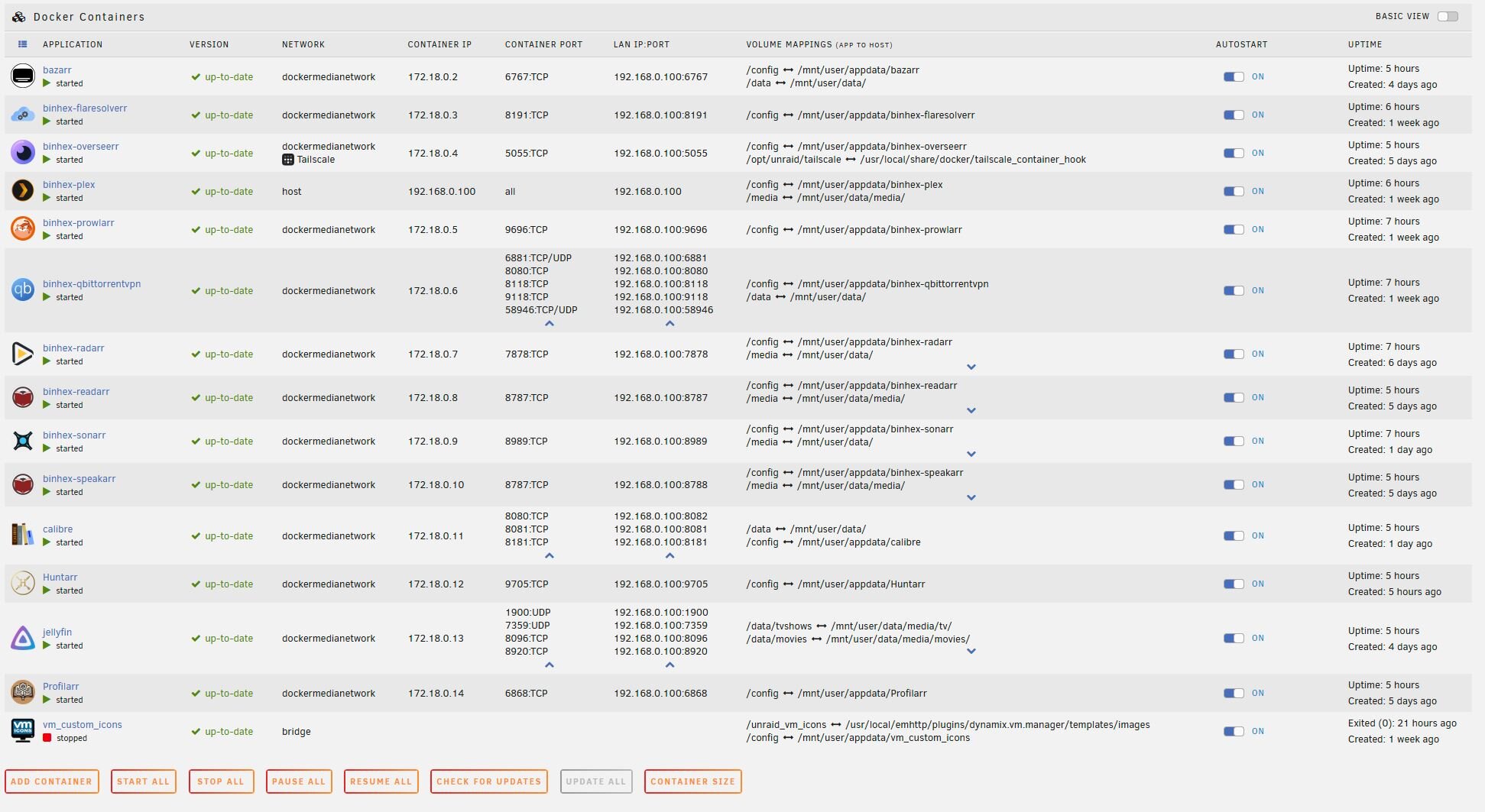

Knowing the loopback address was a possible issue, this made me think about my docker containers since they are all on a network I created for them and would constantly speak to each other. Most of the logs here seem to be related to the docker containers anyway. I've also posted a picture of my docker tab after expanding all of the container and IP port columns. In it you can see that the dockers all have separate port numbers and are on their own "dockermedianetwork" network so they can speak to each other. The only one that wasn't setup this way was the Plex docker. I left Plex with this original configuration when I added all the other docker apps a while back, but just in case, after posting this I will be changing Plex to also use the dockermedianetwork network too. I'll see if this causes any other issues with Plex access and/or with fixing the blocking/disabled state errors on my next reboot.

As mentioned above, I'm not convinced my original issue would be fixed by stopping whatever is causing the blocking/disabled state issue. This is because the error I was getting in my original post for this thread did not only affect the network, but the error also was affecting the server itself. When I plug in via KVM, I am not able to log in and also unable to perform shutdown or powerdown or any other commands since I can't log in. I don't see how a network issue could do this if I was bypassing the network with KVM?

Thanks again for looking. If you see anything else that might require my attention, please let me know!

Also, I will post another Syslog and Diags when the server goes down again.

syslog-192.168.0.100.log

17 hours ago, Jebberino84 said:

JebsNAS kernel: br-336f8d0e3be0: port 1(veth6d2d15e) entered blocking state

JebsNAS kernel: br-336f8d0e3be0: port 1(veth6d2d15e) entered disabled state

These are normal, unless you get them 24/7, mover logging is spamming the log, disable that, start a new syslog and post that after an event.

It figures that now I have someone else's attention looking at this, nothing is happening. I'm now on day 2 of not having to reboot the server when I wake up in the morning. It had been happening every night and even sometimes during the day too for the past ~2 weeks, and now all the sudden it's working fine. Sheesh!

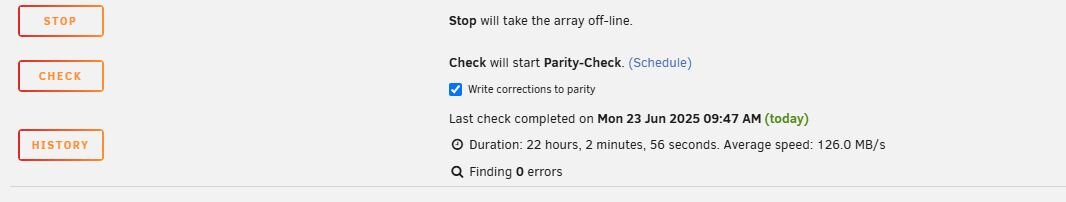

Just for the record, attached below is a pic of the parity check which finally completed. 0 errors and it took more than 22 hours!

I'll make sure to update here the next time the server goes offline as long as it happens within the next 1-2 weeks.

As a separate question, I'm not sure about the etiquette of this, but if it takes longer than 1-2 weeks for the server to drop offline by itself again, should I start a new thread or just continue commenting on this thread again?

14 minutes ago, Jebberino84 said:

As a separate question, I'm not sure about the etiquette of this, but if it takes longer than 1-2 weeks for the server to drop offline by itself again, should I start a new thread or just continue commenting on this thread again?

Continue here.

Hi, JorgeB!

I did have the crond error happen again today.

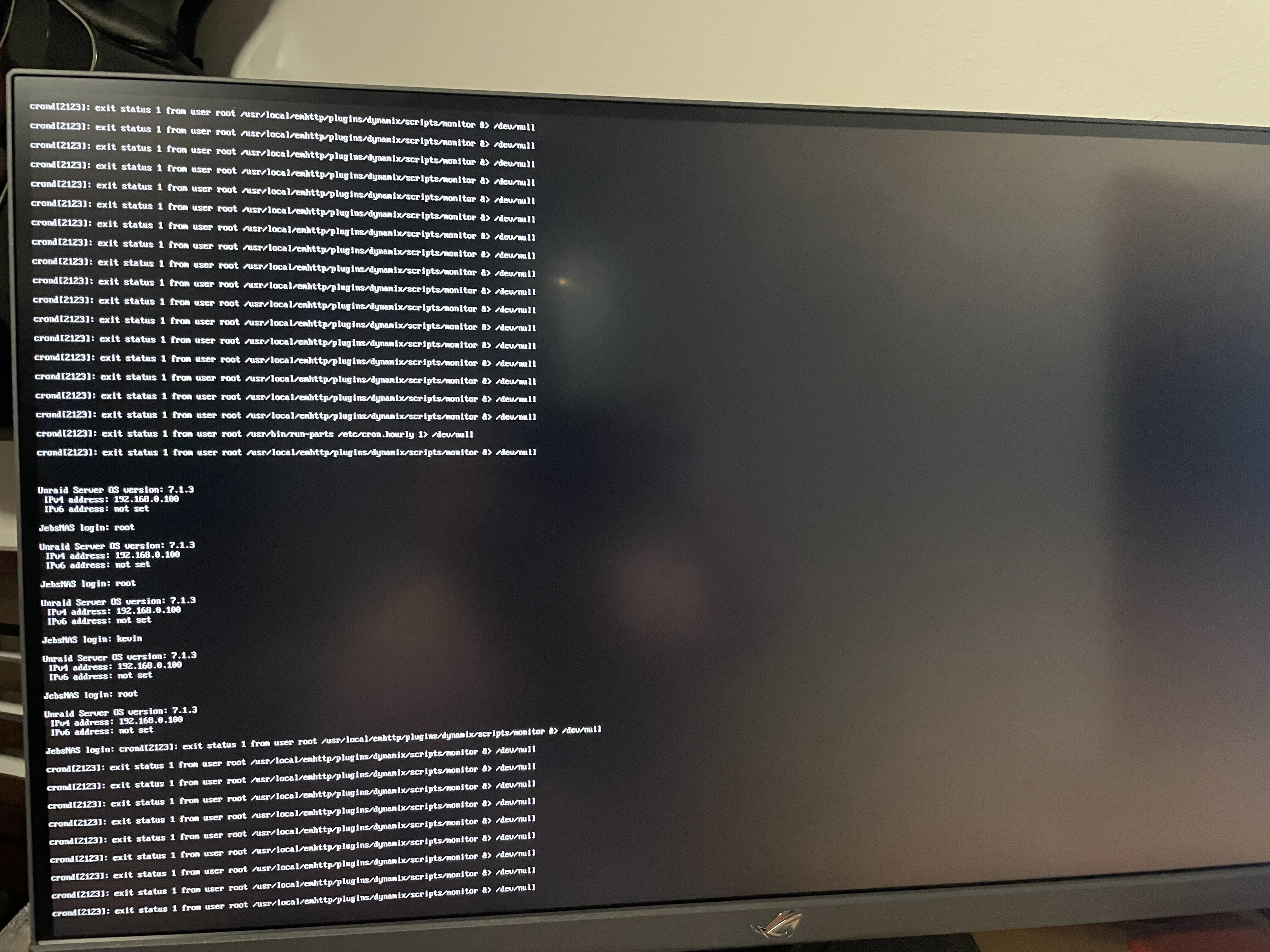

Attached below should be my Syslog, my diags, and a pic of the login screen showing that I am again unable to log into the server, even when physically attached via KVM.

Looks like the logs stopped last night around 5:09 PM after some sort of nginx alert that caused an "abort". This seems to point as to why I am unable to reach the web GUI, but it doesn't tell me why I am then unable to log into the server, even via a direct KVM connection. The nginx error wouldn't bother me so much if it didn't cause my whole server to go down.

Yesterday, the server had been up for a few days, so I felt confident starting to build the parity for a second parity disk. (disk WP026KC5) I figured that since the server was seemingly running fine again, and was able to complete it's own parity check, that this would be possible.

I noticed that I was having the original "crond" error again this morning, and although I was unable to access the server to see shares or to login via Putty or KVM, I could see that the physical lights I have on my server that blink to show when disks were being accessed were blinking. I also noticed that I was able to access media via my plex server which runs on a docker container. I figured I'd let the computer keep running until I didn't see the lights blinking anymore, which would hopefully signify that the parity for the new drive was finally complete.

The lights stopped blinking today a little after noon. I waited even longer and rebooted the server around 1:15 PM but unfortunately, the parity didn't take so I put the new disk back into unassigned devices.

Please let me know if you guys can find what exactly is causing the issues with my server, and why it doesn't allow me to log in.

Thanks once again for your time!

jebsnas-diagnostics-20250625-1342.zip syslog-192.168.0.100.log

Unfortunately, there's nothing relevant logged, this can also be a hardware issue, one thing you can try is to boot the server in safe mode with all docker containers/VMs disabled, let it run as a basic NAS for a few days, if it still crashes it's likely a hardware problem, if it doesn't start turning on the other services one by one, including the individual docker containers.

Another thing that may be wroth doing, and since you have multiple RAM sticks, try using the server with just one pair, if the same try with the other one, that will basically rule out bad RAM.

Hi all,

I waited a while to re-post here because I did not want to bump an old thread without substance. Over the past 4–5 months I moved my data to a temporary NAS, which is now serving as my backup NAS in case I run into future issues, and I completely restored my Unraid server from scratch. I rebuilt the machine about 3–3.5 months ago and have since moved the data back.

Since that time I have seen the same issue recur: the Web GUI and the directly connected CLI become unresponsive. This has happened about 3–4 times, so roughly once per month. Each time, just like before, I perform a hard reboot and the server acts like nothing was wrong until about a month later when the same issue returns. This morning it happened again, and I finally turned to AI to comb through my diagnostics and logs to help me find an issue. To my surprise, it found something that makes me hopeful.

According to ChatGPT, “Docker is creating a macvlan network on br0. Intermittent GUI lockups and total network loss on Unraid are very commonly caused by macvlan call traces when containers have their own IPs on the same LAN as the host. The system can stay up for days or weeks, then suddenly drop the web GUI and SSH. Reboot fixes it until the next trace.” It believes this because Nginx logged “open socket #... left in connection ... aborting” and, according to AI, “Given your symptoms and the macvlan line, the most likely root cause is macvlan call traces.”

Based on that, I changed the Docker setting “Docker custom network type” from “macvlan” to “ipvlan.” So far this has not caused any issues with my Docker containers or other applications running on this Unraid server.

Thanks again to JorgeB for your help a few months ago. I was completely lost myself, so even if we did not find the issue at the time, you gave me direction and made me feel like I was doing something to attempt to fix it and you may have kept me from going completely bald pulling my hair out! I see your posts on this forum often and I appreciate your help.

Hopefully I will go another few months and recognize that it is not happening anymore, and then remember to post here again to let everyone know whether this fix did or did not work. If you do not see another post on this thread, it is likely because this VLAN change for Docker services did finally fix the issue and I just forgot to repost. If anyone else has a similar issue, feel free to try this out.

MacVLAN should not be an issue since 6.12.11, but make sure you have the syslog server running and post that after the next crash.

Syslog server is running, but I'm not too confident anything will be shown in it since I included it in my past replies on this post, and it seems to quit logging when the system stops responding. I also included an extra script in my user scripts that will log the status of the networks to see if they are a contributing factor. I'll attach script below. I really am at a loss here since nothing seems to be logged or working when the server does this. I don't know what else to do that I haven't already tried. I've done drive tests, mem tests, changed out the LSI SAS HBA with a brand new one, etc. Nothing seems to log or provide a clue as to what the real underlying issue is. I've also updated BIOS so just about every piece of hardware has also been either tested, updated or replaced. For now, I guess I'll just wait until it crashes again and then I'll post Diags, Syslogs and anything else I can think of here to start over again.

#!/bin/bash

TS=$(date +"%Y%m%d-%H%M%S")

OUT="/boot/logs/health-$TS.log"

{

echo "=== $TS ==="

uptime

date

df -h

df -i

free -m

ip -br addr

# show docker network mode and running containers

docker network ls

docker ps --format "table {{.Names}}\t{{.Status}}\t{{.Networks}}"

# recent kernel and syslog lines

dmesg | tail -n 100

tail -n 200 /var/log/syslog

} >> "$OUT" 2>&1

Unfortunately, you were right! This time it didn't even last a day and a half before the server started acting up again.

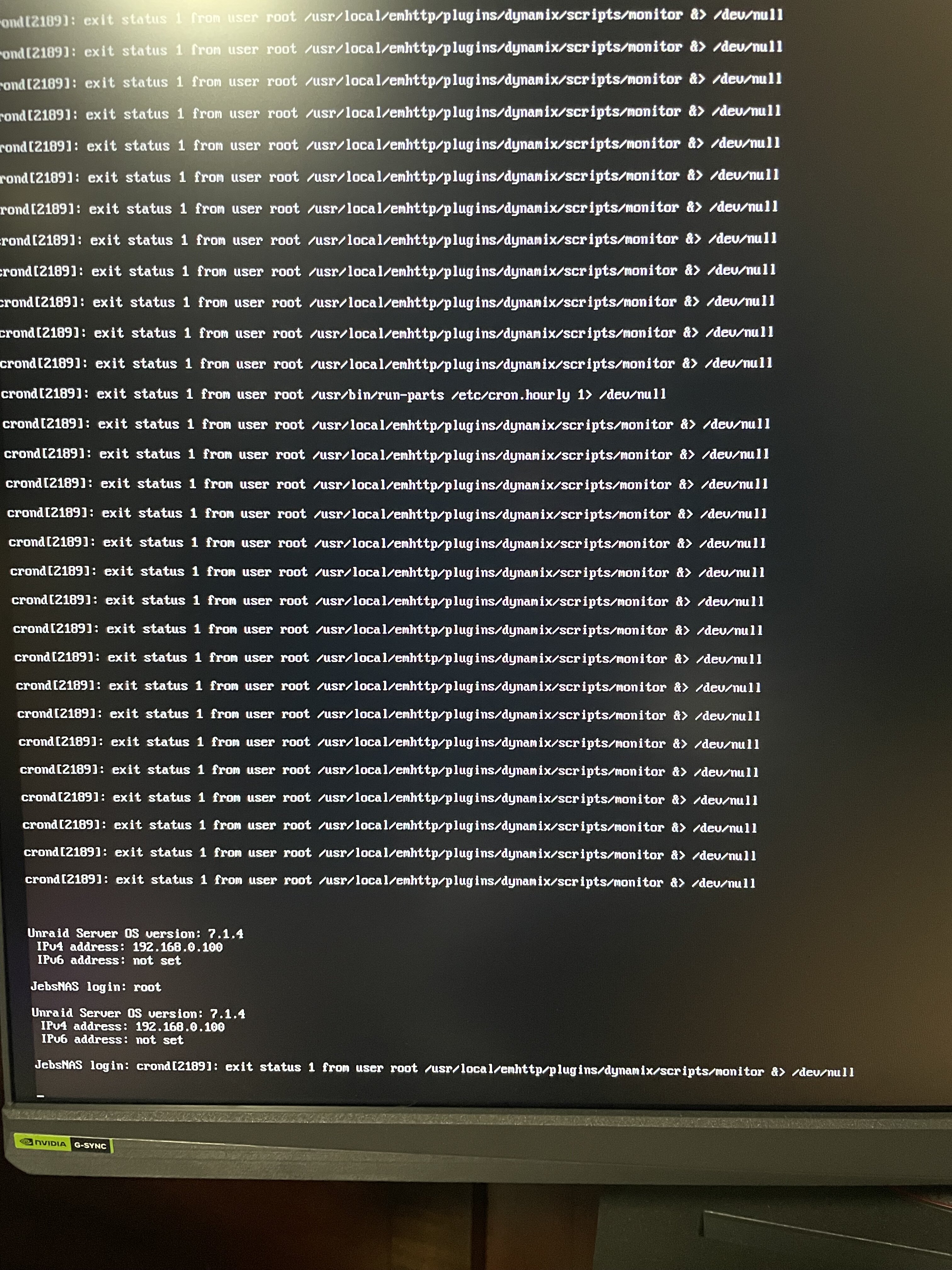

Attached are the latest diags, syslogs, and a pic of what I'm seeing when connected directly to the Unraid server. Trying to log in does nothing but cause the login message to repeat and ask for credentials again. The Crond error is the same one I've been seeing since I first started posting here. Any help or guidance would be appreciated. To recap, I've replaced RAM, I've replaced the HBA, I've done smart tests, I've done mem tests, I've taken out the GPU and then put it back in, I've completely restored my NAS back to a fresh install of Unraid.
Please let me know if you are able to find anything that might give a clue as to what is causing this. I'm in way over my head here.

health-20251107-104301.log health-20251107-104413.log health-20251108-212322.log syslog_2025-11-08-2129 syslog-previous_2025-11-08-0157 jebsnas-diagnostics-20251108-2125.zip

Which one is the persistent syslog that covers the crash?
