I've recently started having trouble with my Windows 11 VM with passing through an AMD 9070XT. It was running fine for a few months and I was gaming with zero issues. Now, I can only get the VM to boot if I use VNC graphics. I can have the GPU attached and have it boot, but if I go with just the GPU I get a black screen on my monitors. Here are the things I have tried. Currently running 7.2.2.

1. Booted into the VM and run DDU and then reinstalled the graphics drivers.

2. Recreated the but using the same passthrough NVME drive and I get the same issues.

3. Tried both binding and un-binding the GPU in system devices

4. Switched machine types, currently on Q35-9.2

Not sure where to go next so any help would be awesome. Thanks in advance!

Anyone have any thoughts on where to go next?

20 hours ago, Elembemedia said:

Anyone have any thoughts on where to go next?

as you are on 7.2.2. try setting this to 39bits.

I changed to 39 bits and no luck sadly. Here are some more things I have done.

1. Disabled the host frame buffer on the boot settings.

2. Bound the GPU so Unraid isn’t using it (I confirmed this worked as I no longer see the boot process for Unraid on the display)

3. Verified I was adding the video and audio and had it set as multi-function.

Still no display from the GPU at that point.

4. I built a PopOS Linux VM and the GPU and monitor worked perfect in it.

5. Formatted my NVME drive and reinstalled fresh Windows 11 but still no video.

6. I added a dummy HDMI to the GPU but still nothing.

Still no luck sadly.

is this a pcie g card and on what motherbaord? amd/intel?

You said AMD 9070XT but I need ot know if its gpu on the CPU or its own pcie card.
second do you have proper IOMMU bios settings to pass cards lik this into VM.
third is the devce VFIO ZPCI bound?

what are your vm settings?
windwos 11 is stricter with wdm drivers and you may need a adational qemu device option to pass to assit with gpu passing via softmod amdgpu in a modprobe and making sure the amd g card is reset for a VM as the amd reset bug still afects this model of cpu/gpu...

Idealy you want:



can be found via the info tab:

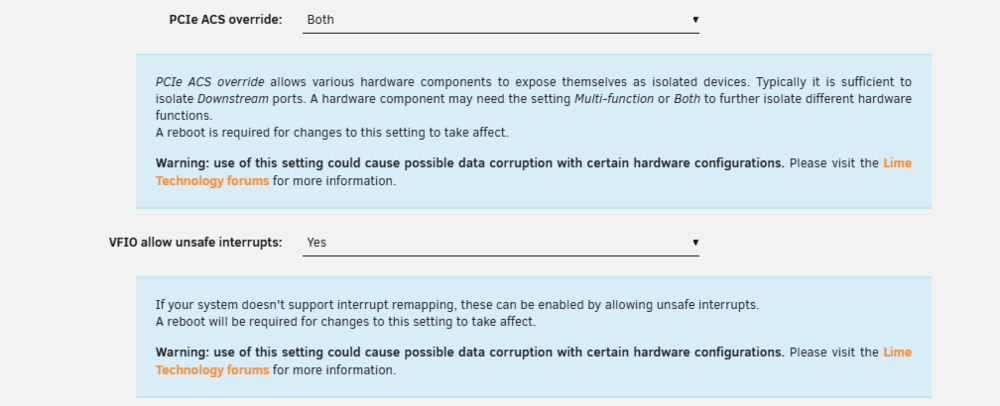

with adational VM settings:

then you want the g card vfio bound IT MUST BE BOUND AND NOT TOUCHED BY THE HOST to be corectly passed into a windwo VM

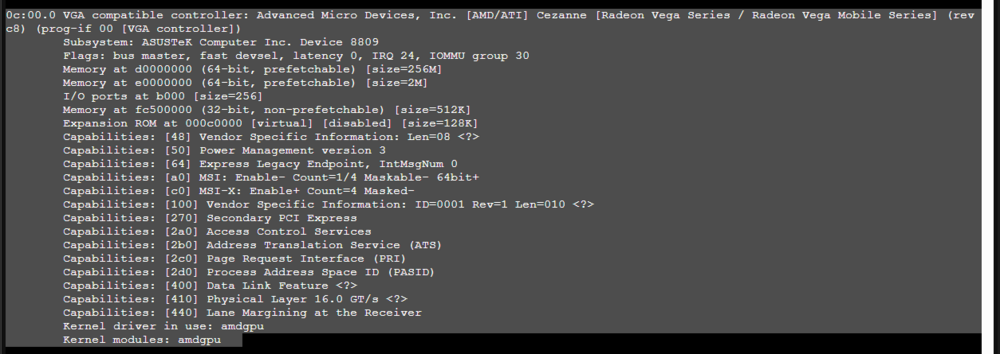

example this card is not bound to vfio (example only)

*Not the kerneal driver in use... this needs to be vfio-pci!

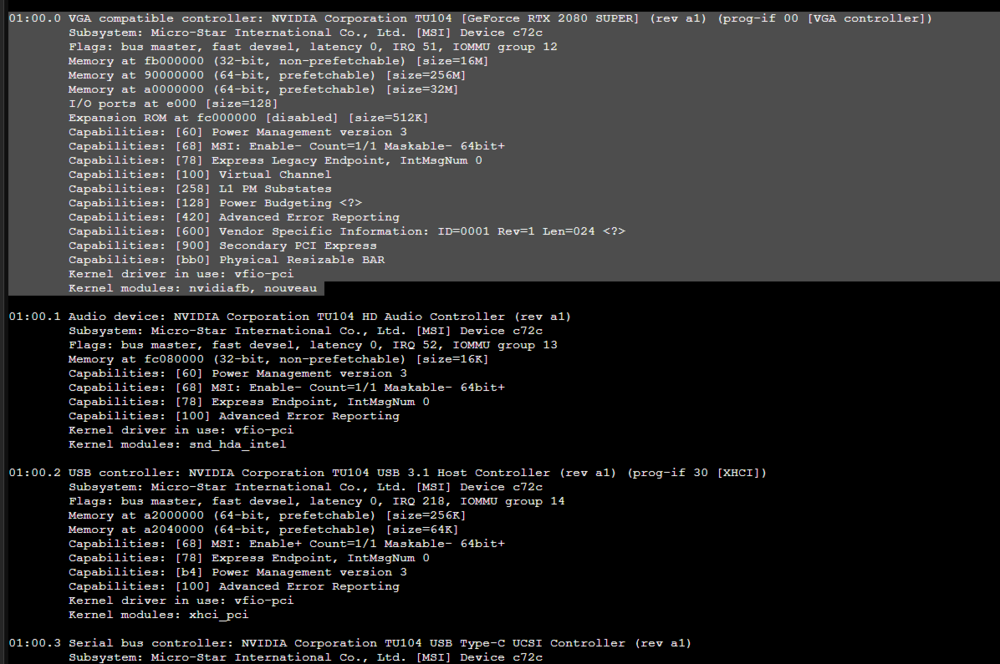

Example with nvidia... note all parts are vfio-pci (EXAMPLE ONLY!)

so make sure your device is selected and vfio bound / stubed

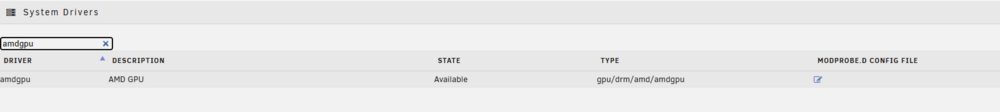

then me may want to assit the drive at boot to move into vfio

softdep amdgpu pre: vfio vfio_pci

in my example for my amd vega Since lspci -v says that my driver in use is amdgpu I would need to softdep a modprobe option to help devices enter vfio-pci.

Other known gpu modprobe stuff:
# AMD GPU

#blacklist amdgpu

#blacklist radeon

#blacklist rivafb

#blacklist rivatv

so I would add:

save and rebuild modules:


then reboot..

THEN AND ONLY THEN ARE WE ready for xml VM code to add the device into a VM

See as there are still some gotcha with unraid vms and asigning a pci device to a VM for passthorugh...
https://www.youtube.com/watch?v=QlTVANDndpM

1. GPU is a standalone PCIE card on a ASUSTeK COMPUTER INC. TUF GAMING X570 motherboard with a AMD Ryzen 9 5900X.

2. I had it working in the past and haven't updated my BIOS so I think everything is good there.

3. Ive tried it both bound and not bound with no difference.

4. I just adjusted the additional VM settings as I didn't have those the same as you so Im rebooting now to see.

Alright, I've followed all of that and still not working all the way. I do at least get something on the display now but not actual video.

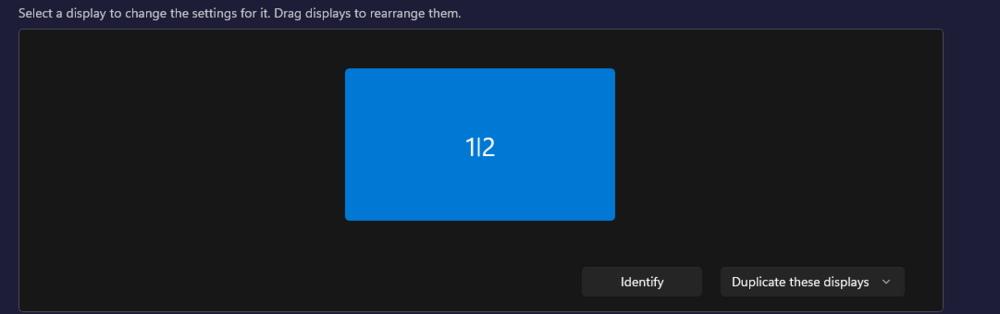

I also get this when I remotely connect into the VM for the displays.

you have not configrmed tnor shared any data to reflect or go of of...

Please post a diag file...

whats the output of lspci -v for the amd card and its other comnents (hdmi audio)

whatst the status of bound.

then we can look at vm xml code then the widnwos enviroment as upstream is not correct I cna't help anything downstream.

jsut becasue linux pop dets and use and see the gpu doen't mean its working. 2d vs 3d aceleration...

Here is my diagnostic file and the output from lspci -v

00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Root Complex
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: fast devsel

00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Starship/Matisse IOMMU
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 26
        Capabilities: [40] Secure device <?>
        Capabilities: [64] MSI: Enable+ Count=1/4 Maskable- 64bit+
        Capabilities: [74] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [c8] Vendor Specific Information: Len=18 <?>

00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
        Flags: fast devsel, IOMMU group 0

00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 27, IOMMU group 1
        Bus: primary=00, secondary=01, subordinate=08, sec-latency=0
        I/O behind bridge: f000-ffff [size=4K] [16-bit]
        Memory behind bridge: fc400000-fcafffff [size=7M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Root Port (Slot+), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] L1 PM Substates
        Capabilities: [3c4] Designated Vendor-Specific: Vendor=1022 ID=0001 Rev=1 Len=44 <?>
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
        DeviceName:  Onboard IGD
        Flags: fast devsel, IOMMU group 2

00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
        Flags: fast devsel, IOMMU group 3

00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 28, IOMMU group 4
        Bus: primary=00, secondary=09, subordinate=0b, sec-latency=0
        I/O behind bridge: e000-efff [size=4K] [16-bit]
        Memory behind bridge: fce00000-fcffffff [size=2M] [32-bit]
        Prefetchable memory behind bridge: d0000000-e01fffff [size=258M] [32-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Root Port (Slot+), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] L1 PM Substates
        Capabilities: [3c4] Designated Vendor-Specific: Vendor=1022 ID=0001 Rev=1 Len=44 <?>
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
        Flags: fast devsel, IOMMU group 5

00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
        Flags: fast devsel, IOMMU group 6

00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
        Flags: fast devsel, IOMMU group 7

00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 30, IOMMU group 8
        Bus: primary=00, secondary=0c, subordinate=0c, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: [disabled] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Root Port (Slot-), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge
        Flags: fast devsel, IOMMU group 9

00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 31, IOMMU group 10
        Bus: primary=00, secondary=0d, subordinate=0d, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: fcb00000-fcdfffff [size=3M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Root Port (Slot-), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)
        Subsystem: ASUSTeK Computer Inc. Device 87c0
        Flags: 66MHz, medium devsel, IOMMU group 11
        Kernel driver in use: piix4_smbus
        Kernel modules: i2c_piix4

00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
        Subsystem: ASUSTeK Computer Inc. Device 87c0
        Flags: bus master, 66MHz, medium devsel, latency 0, IOMMU group 11

00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 0
        Flags: fast devsel, IOMMU group 12

00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 1
        Flags: fast devsel, IOMMU group 12

00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 2
        Flags: fast devsel, IOMMU group 12

00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 3
        Flags: fast devsel, IOMMU group 12
        Kernel driver in use: k10temp
        Kernel modules: k10temp

00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 4
        Flags: fast devsel, IOMMU group 12

00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 5
        Flags: fast devsel, IOMMU group 12

00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 6
        Flags: fast devsel, IOMMU group 12

00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse/Vermeer Data Fabric: Device 18h; Function 7
        Flags: fast devsel, IOMMU group 12

01:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream (prog-if 00 [Normal decode])
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 13
        Bus: primary=01, secondary=02, subordinate=08, sec-latency=0
        I/O behind bridge: f000-ffff [size=4K] [16-bit]
        Memory behind bridge: fc400000-fcafffff [size=7M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Upstream Port, IntMsgNum 0
        Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [370] L1 PM Substates
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 32, IOMMU group 14
        Bus: primary=02, secondary=03, subordinate=03, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: fca00000-fcafffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Downstream Port (Slot+), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] L1 PM Substates
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 33, IOMMU group 15
        Bus: primary=02, secondary=04, subordinate=04, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: fc900000-fc9fffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Downstream Port (Slot+), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] L1 PM Substates
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

02:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 34, IOMMU group 16
        Bus: primary=02, secondary=05, subordinate=05, sec-latency=0
        I/O behind bridge: f000-ffff [size=4K] [16-bit]
        Memory behind bridge: fc800000-fc8fffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Downstream Port (Slot+), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] L1 PM Substates
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

02:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 35, IOMMU group 17
        Bus: primary=02, secondary=06, subordinate=06, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: fc400000-fc5fffff [size=2M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Downstream Port (Slot-), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 37, IOMMU group 18
        Bus: primary=02, secondary=07, subordinate=07, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: fc700000-fc7fffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Downstream Port (Slot-), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

02:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 39, IOMMU group 19
        Bus: primary=02, secondary=08, subordinate=08, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: fc600000-fc6fffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Downstream Port (Slot-), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 8808
        Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: pcieport

03:00.0 Non-Volatile memory controller: Sandisk Corp SanDisk Extreme Pro / WD Black SN750 / PC SN730 / Red SN700 NVMe SSD (prog-if 02 [NVM Express])
        Subsystem: Sandisk Corp SanDisk Extreme Pro / WD Black SN750 / PC SN730 / Red SN700 NVMe SSD
        Flags: bus master, fast devsel, latency 0, IRQ 36, IOMMU group 20
        Memory at fca00000 (64-bit, non-prefetchable) [size=16K]
        Memory at fca04000 (64-bit, non-prefetchable) [size=256]
        Capabilities: [80] Power Management version 3
        Capabilities: [90] MSI: Enable- Count=1/32 Maskable- 64bit+
        Capabilities: [b0] MSI-X: Enable+ Count=65 Masked-
        Capabilities: [c0] Express Endpoint, IntMsgNum 0
        Capabilities: [100] Advanced Error Reporting
        Capabilities: [150] Device Serial Number 00-00-00-00-00-00-00-00
        Capabilities: [1b8] Latency Tolerance Reporting
        Capabilities: [300] Secondary PCI Express
        Capabilities: [900] L1 PM Substates
        Kernel driver in use: vfio-pci
        Kernel modules: nvme

04:00.0 SATA controller: ASMedia Technology Inc. ASM1166 Serial ATA Controller (rev 02) (prog-if 01 [AHCI 1.0])
        Subsystem: ZyDAS Technology Corp. Device 2116
        Flags: bus master, fast devsel, latency 0, IRQ 60, IOMMU group 21
        Memory at fc982000 (32-bit, non-prefetchable) [size=8K]
        Memory at fc980000 (32-bit, non-prefetchable) [size=8K]
        Expansion ROM at fc900000 [disabled] [size=512K]
        Capabilities: [40] Power Management version 3
        Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [80] Express Endpoint, IntMsgNum 0
        Capabilities: [100] Advanced Error Reporting
        Capabilities: [130] Secondary PCI Express
        Kernel driver in use: ahci
        Kernel modules: ahci

05:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet Controller (rev 26)
        Subsystem: ASUSTeK Computer Inc. Device 87c3
        Flags: bus master, fast devsel, latency 0, IRQ 36, IOMMU group 22
        I/O ports at f000 [size=256]
        Memory at fc804000 (64-bit, non-prefetchable) [size=4K]
        Memory at fc800000 (64-bit, non-prefetchable) [size=16K]
        Capabilities: [40] Power Management version 3
        Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
        Capabilities: [70] Express Endpoint, IntMsgNum 1
        Capabilities: [b0] MSI-X: Enable+ Count=4 Masked-
        Capabilities: [100] Advanced Error Reporting
        Capabilities: [140] Virtual Channel
        Capabilities: [160] Device Serial Number 01-00-00-00-68-4c-e0-00
        Capabilities: [170] Latency Tolerance Reporting
        Capabilities: [178] L1 PM Substates
        Kernel driver in use: r8169
        Kernel modules: r8169

06:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IOMMU group 17
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver

06:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller (prog-if 30 [XHCI])
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 42, IOMMU group 17
        Memory at fc500000 (64-bit, non-prefetchable) [size=1M]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Kernel driver in use: xhci_hcd

06:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller (prog-if 30 [XHCI])
        Subsystem: Advanced Micro Devices, Inc. [AMD] Device 148c
        Flags: bus master, fast devsel, latency 0, IRQ 38, IOMMU group 17
        Memory at fc400000 (64-bit, non-prefetchable) [size=1M]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable- Count=1/8 Maskable- 64bit+
        Capabilities: [c0] MSI-X: Enable+ Count=8 Masked-
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Kernel driver in use: xhci_hcd

07:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) (prog-if 01 [AHCI 1.0])
        Subsystem: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode]
        Flags: bus master, fast devsel, latency 0, IRQ 65, IOMMU group 18
        Memory at fc700000 (32-bit, non-prefetchable) [size=2K]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=16/16 Maskable- 64bit+
        Capabilities: [d0] SATA HBA v1.0
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: ahci
        Kernel modules: ahci

08:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) (prog-if 01 [AHCI 1.0])
        Subsystem: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode]
        Flags: bus master, fast devsel, latency 0, IRQ 81, IOMMU group 19
        Memory at fc600000 (32-bit, non-prefetchable) [size=2K]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=16/16 Maskable- 64bit+
        Capabilities: [d0] SATA HBA v1.0
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Kernel driver in use: ahci
        Kernel modules: ahci

09:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch (rev 24) (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 1478
        Flags: bus master, fast devsel, latency 0, IRQ 40, IOMMU group 23
        Memory at fcf00000 (32-bit, non-prefetchable) [size=16K]
        Bus: primary=09, secondary=0a, subordinate=0b, sec-latency=0
        I/O behind bridge: e000-efff [size=4K] [16-bit]
        Memory behind bridge: fce00000-fcefffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: d0000000-e01fffff [size=258M] [32-bit]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Upstream Port, IntMsgNum 0
        Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: ASUSTeK Computer Inc. Device 1478
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [320] Latency Tolerance Reporting
        Capabilities: [370] L1 PM Substates
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver
        Capabilities: [500] Physical Layer 32.0 GT/s <?>
        Kernel driver in use: pcieport

0a:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch (rev 24) (prog-if 00 [Normal decode])
        Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch
        Flags: bus master, fast devsel, latency 0, IRQ 41, IOMMU group 24
        Bus: primary=0a, secondary=0b, subordinate=0b, sec-latency=0
        I/O behind bridge: e000-efff [size=4K] [16-bit]
        Memory behind bridge: fce00000-fcefffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: d0000000-e01fffff [size=258M] [32-bit]
        Capabilities: [50] Power Management version 3
        Capabilities: [58] Express Downstream Port (Slot-), IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [450] Lane Margining at the Receiver
        Capabilities: [500] Physical Layer 32.0 GT/s <?>
        Kernel driver in use: pcieport

0b:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Navi 48 [RX 9070/9070 XT] (rev c0) (prog-if 00 [VGA controller])
        Subsystem: ASUSTeK Computer Inc. Device 061a
        Flags: bus master, fast devsel, latency 0, IRQ 163, IOMMU group 25
        Memory at d0000000 (64-bit, prefetchable) [size=256M]
        Memory at e0000000 (64-bit, prefetchable) [size=2M]
        I/O ports at e000 [size=256]
        Memory at fce00000 (32-bit, non-prefetchable) [size=512K]
        Expansion ROM at 000c0000 [disabled] [size=128K]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Legacy Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [200] Physical Resizable BAR
        Capabilities: [240] Power Budgeting <?>
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [2d0] Process Address Space ID (PASID)
        Capabilities: [320] Latency Tolerance Reporting
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [450] Lane Margining at the Receiver
        Capabilities: [500] Physical Layer 32.0 GT/s <?>
        Kernel driver in use: vfio-pci
        Kernel modules: amdgpu

0b:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Navi 48 HDMI/DP Audio Controller
        Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Navi 48 HDMI/DP Audio Controller
        Flags: bus master, fast devsel, latency 0, IRQ 97, IOMMU group 26
        Memory at fcea0000 (32-bit, non-prefetchable) [size=16K]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Legacy Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [2a0] Access Control Services
        Kernel driver in use: vfio-pci

0c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IOMMU group 27
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver

0d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IOMMU group 28
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [270] Secondary PCI Express
        Capabilities: [2a0] Access Control Services
        Capabilities: [400] Data Link Feature <?>
        Capabilities: [410] Physical Layer 16.0 GT/s <?>
        Capabilities: [440] Lane Margining at the Receiver

0d:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP
        Subsystem: ASUSTeK Computer Inc. Device 8808
        Flags: bus master, fast devsel, latency 0, IRQ 61, IOMMU group 29
        Memory at fcc00000 (32-bit, non-prefetchable) [size=1M]
        Memory at fcd08000 (32-bit, non-prefetchable) [size=8K]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
        Capabilities: [c0] MSI-X: Enable+ Count=2 Masked-
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] Transaction Processing Hints
        Kernel driver in use: ccp
        Kernel modules: ccp

0d:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller (prog-if 30 [XHCI])
        Subsystem: ASUSTeK Computer Inc. Device 87c0
        Flags: bus master, fast devsel, latency 0, IRQ 51, IOMMU group 30
        Memory at fcb00000 (64-bit, non-prefetchable) [size=1M]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable- Count=1/8 Maskable- 64bit+
        Capabilities: [c0] MSI-X: Enable+ Count=8 Masked-
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] Transaction Processing Hints
        Kernel driver in use: xhci_hcd

0d:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller
        Subsystem: ASUSTeK Computer Inc. Device 8797
        Flags: bus master, fast devsel, latency 0, IRQ 11, IOMMU group 31
        Memory at fcd00000 (32-bit, non-prefetchable) [size=32K]
        Capabilities: [48] Vendor Specific Information: Len=08 <?>
        Capabilities: [50] Power Management version 3
        Capabilities: [64] Express Endpoint, IntMsgNum 0
        Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
        Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
        Capabilities: [150] Advanced Error Reporting
        Capabilities: [2a0] Access Control Services
        Capabilities: [370] Transaction Processing Hints

GPU is currently bound and the WebUI reflects that properly. Thanks so much!

lmb-ur01-diagnostics-20251218-1636.zip

thank you review now.

0b:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Navi 48 [RX 9070/9070 XT] (rev c0) (prog-if 00 [VGA controller]) Subsystem: ASUSTeK Computer Inc. Device 061a Flags: bus master, fast devsel, latency 0, IRQ 163, IOMMU group 25 Memory at d0000000 (64-bit, prefetchable) [size=256M] Memory at e0000000 (64-bit, prefetchable) [size=2M] I/O ports at e000 [size=256] Memory at fce00000 (32-bit, non-prefetchable) [size=512K] Expansion ROM at 000c0000 [disabled] [size=128K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Legacy Endpoint, IntMsgNum 0 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [200] Physical Resizable BAR Capabilities: [240] Power Budgeting <?> Capabilities: [270] Secondary PCI Express Capabilities: [2a0] Access Control Services Capabilities: [2d0] Process Address Space ID (PASID) Capabilities: [320] Latency Tolerance Reporting Capabilities: [410] Physical Layer 16.0 GT/s <?> Capabilities: [450] Lane Margining at the Receiver Capabilities: [500] Physical Layer 32.0 GT/s <?> Kernel driver in use: vfio-pci Kernel modules: amdgpu 0b:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Navi 48 HDMI/DP Audio Controller Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Navi 48 HDMI/DP Audio Controller Flags: bus master, fast devsel, latency 0, IRQ 97, IOMMU group 26 Memory at fcea0000 (32-bit, non-prefetchable) [size=16K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Legacy Endpoint, IntMsgNum 0 Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [2a0] Access Control Services Kernel driver in use: vfio-pci

This is good as this tells me the device is correctly setup for VM passthorugh.
I will need the VMs XML file as well to see where things may be going wrong.

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='2'>
  <name>LMB-PC01</name>
  <uuid>8c8d2cf8-a2c1-8615-cfb2-a48a2c7dae6b</uuid>
  <metadata>
    <vmtemplate xmlns="http://unraid" name="Windows 11" iconold="windows11.png" icon="windows11.png" os="windowstpm" webui="" storage="default"/>
  </metadata>
  <memory unit='KiB'>33554432</memory>
  <currentMemory unit='KiB'>33554432</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>12</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='6'/>
    <vcpupin vcpu='1' cpuset='18'/>
    <vcpupin vcpu='2' cpuset='7'/>
    <vcpupin vcpu='3' cpuset='19'/>
    <vcpupin vcpu='4' cpuset='8'/>
    <vcpupin vcpu='5' cpuset='20'/>
    <vcpupin vcpu='6' cpuset='9'/>
    <vcpupin vcpu='7' cpuset='21'/>
    <vcpupin vcpu='8' cpuset='10'/>
    <vcpupin vcpu='9' cpuset='22'/>
    <vcpupin vcpu='10' cpuset='11'/>
    <vcpupin vcpu='11' cpuset='23'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-9.2'>hvm</type>
    <loader readonly='yes' type='pflash' format='raw'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader>
    <nvram format='raw'>/etc/libvirt/qemu/nvram/8c8d2cf8-a2c1-8615-cfb2-a48a2c7dae6b_VARS-pure-efi-tpm.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' clusters='1' cores='6' threads='2'/>
    <cache mode='passthrough'/>
    <feature policy='require' name='topoext'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hpet' present='no'/>
    <timer name='hypervclock' present='yes'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-to-pci-bridge'>
      <model name='pcie-pci-bridge'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x9'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0xa'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0xb'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0xc'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/>
    </controller>
    <controller type='pci' index='7' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='7' port='0xd'/>
      <alias name='pci.7'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='usb' index='0' model='qemu-xhci' ports='15'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:5a:26:15'/>
      <source bridge='br0'/>
      <target dev='vnet1'/>
      <model type='e1000'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/1'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/1'>
      <source path='/dev/pts/1'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/run/libvirt/qemu/channel/2-LMB-PC01/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='connected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'>
      <alias name='input0'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input1'/>
    </input>
    <tpm model='tpm-tis'>
      <backend type='emulator' version='2.0' persistent_state='yes'/>
      <alias name='tpm0'/>
    </tpm>
    <audio id='1' type='none'/>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/user/domains/LMB-PC01/Asus.RX9070XT.16384.241204_1.rom'/>
      <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x1'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
      </source>
      <boot order='1'/>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x046d'/>
        <product id='0x0ac4'/>
        <address bus='5' device='2'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x2357'/>
        <product id='0x0604'/>
        <address bus='5' device='3'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <watchdog model='itco' action='reset'>
      <alias name='watchdog0'/>
    </watchdog>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>

There is my XML, thanks again!!!!

Thank you for post a diag I was able to confim that vfio adn device binding is correct upstream thert are a few small edits I can recomend to the xml code.

1 we can remove cputune and let unraid load balcne use 6 cores 2 threads. using cpu host mode.
2. we need to test without the g-card bios rom (while recomend I have never needed one ) while usefull, it hurts testing to windows.
3. lets use a lower version of q35 lets use 7.2 not lattest v9

Here is a xml file for you to test.

as unraid is using libvirt via domain xml: https://libvirt.org/formatdomain.html

we want to add some qemu options:
<qemu:commandline>

<qemu:arg value='-cpu'/>

<qemu:arg value='host,+kvm_pv_unhalt,+kvm_pv_eoi,hv_vendor_id=NV43FIX,kvm=off'/>

<qemu:arg value='-device'/>

<qemu:arg value='amd-iommu'/>

<qemu:arg value='-global'/>

<qemu:arg value='pcie-root-port.hotplug=off'/>

</qemu:commandline>

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='2'
        xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>

  <name>LMB-PC01</name>
  <uuid>8c8d2cf8-a2c1-8615-cfb2-a48a2c7dae6b</uuid>

  <metadata>
    <vmtemplate xmlns="http://unraid"
      name="Windows 11"
      iconold="windows11.png"
      icon="windows11.png"
      os="windowstpm"
      webui=""
      storage="default"/>
  </metadata>

  <memory unit='KiB'>33554432</memory>
  <currentMemory unit='KiB'>33554432</currentMemory>

  <memoryBacking>
    <nosharepages/>
  </memoryBacking>

  <vcpu placement='static'>12</vcpu>

  <resource>
    <partition>/machine</partition>
  </resource>

  <os>
    <type arch='x86_64' machine='pc-q35-7.2'>hvm</type>
    <loader readonly='yes' type='pflash' format='raw'>
      /usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd
    </loader>
    <nvram format='raw'>
      /etc/libvirt/qemu/nvram/8c8d2cf8-a2c1-8615-cfb2-a48a2c7dae6b_VARS-pure-efi-tpm.fd
    </nvram>
  </os>

  <features>
    <acpi/>
    <apic/>
    <kvm>
      <hidden state='on'/>
    </kvm>
  </features>

  <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='1' clusters='1'
              cores='6' threads='2'/>
    <cache mode='passthrough'/>

    <!-- Explicit feature policy (non-conflicting, defensive) -->
    <feature policy='disable' name='hypervisor'/>
    <feature policy='require' name='pcid'/>
    <feature policy='require' name='pdpe1gb'/>
    <feature policy='require' name='aes'/>
    <feature policy='require' name='topoext'/>
  </cpu>

  <clock offset='localtime'>
    <timer name='hpet' present='no'/>
    <timer name='hypervclock' present='yes'/>
  </clock>

  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>

   <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-to-pci-bridge'>
      <model name='pcie-pci-bridge'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x9'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0xa'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0xb'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0xc'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/>
    </controller>
    <controller type='pci' index='7' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='7' port='0xd'/>
      <alias name='pci.7'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='usb' index='0' model='qemu-xhci' ports='15'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:5a:26:15'/>
      <source bridge='br0'/>
      <target dev='vnet1'/>
      <model type='e1000'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/1'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/1'>
      <source path='/dev/pts/1'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/run/libvirt/qemu/channel/2-LMB-PC01/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='connected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'>
      <alias name='input0'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input1'/>
    </input>
    <tpm model='tpm-tis'>
      <backend type='emulator' version='2.0' persistent_state='yes'/>
      <alias name='tpm0'/>
    </tpm>
    <audio id='1' type='none'/>

    <!-- AMD GPU (reset-stable layout, no ROM) -->
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000'
                 bus='0x0b'
                 slot='0x00'
                 function='0x0'/>
      </source>
      <address type='pci'
               domain='0x0000'
               bus='0x07'
               slot='0x00'
               function='0x0'
               multifunction='on'/>
    </hostdev>

    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000'
                 bus='0x0b'
                 slot='0x00'
                 function='0x1'/>
      </source>
      <address type='pci'
               domain='0x0000'
               bus='0x07'
               slot='0x00'
               function='0x1'/>
    </hostdev>

    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
      </source>
      <boot order='1'/>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x046d'/>
        <product id='0x0ac4'/>
        <address bus='5' device='2'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x2357'/>
        <product id='0x0604'/>
        <address bus='5' device='3'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <watchdog model='itco' action='reset'>
      <alias name='watchdog0'/>
    </watchdog>
    <memballoon model='none'/>
  </devices>

  <!-- ============================= -->
  <!-- QEMU CUSTOM COMMAND-LINE ARGS -->
  <!-- ============================= -->

  <qemu:commandline>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='host,hidden=1,+pcid,+pdpe1gb,+aes,+kvm_pv_unhalt,+kvm_pv_eoi,hv_vendor_id=NV43FIX,kvm=off'/>

    <qemu:arg value='-device'/>
    <qemu:arg value='amd-iommu'/>

    <qemu:arg value='-global'/>
    <qemu:arg value='pcie-root-port.hotplug=off'/>
  </qemu:commandline>

</domain>

Please test with above xml for your VM

Edited December 19, 2025Dec 19 by bmartino1
Doble check - panoria devices...

Sadly I am getting the same issue after those changes.

So what's the error exactly.

As I have no issues on my end but ami also know the inner working or vfio/unraid and proxmox to get VM/qemu working....

Is it displayed out scratchy?

You clearly have some RDP that made a vdisply on card....

What does device manger say? Is there a hard code? Or yellow !.

What error?

No error at all, either a black screen on the display or distorted like the photo above.

RDP works totally fine that's how I get into the VM right now.

Device manager shows the GPU totally fine.

if you open windows display setting does it see another display? if yes then this is unraid spice/default vnc dispaly issues and teh amd gpu need to be marked the primary gpu...

I'm usig prox vm example and use parsec to rdp adn instaleld a virtual display so I would see 2 and duplaict to assit rdp conection back to my passthrough device:

I am only ever able to get it to show the VNC connection and a AMD VDisplay. I attempted to dump the VBIOS using the SpaceInvader script but it fails every time when it tries to wake the server back up from sleep.

It sounds like you are having the same issue I was just having, or at least very similar. I recently removed a GPU so now I have only one GPU. Then it started acting up. I was able to get the VM to boot properly once. Either it would be on but never boot or boot with no video, as I could still hear it. I have an Nvidia card and it was showing Code 43 in device manager. So this may not work for you. I have my GPU passed through so the VM can use it directly. Eventually, I found the Linux framebuffer is touching the GPU before vfio binds it so the GPU no longer resets cleanly. I have not yet tried this but the permanent fix is to add to this to the append line in your syslinux:

video=efifb:off video=simpledrm:off video=vesafb:off

In the Unraid webui, go to the main tab and click on your flash drive. At the bottom is your syslinux config. Again, I have not tried this yet myself because I have not found the time to restart my server. What worked for me without rebooting was to force the video card to reset. I made this script but you can just use the individual commands. Make sure and change the bus appropriately to match your system:

#!/bin/bash

GPU="0000:21:00.0"
AUDIO="0000:21:00.1"

# Always force FLR
echo flr > /sys/bus/pci/devices/$GPU/reset_method 2>/dev/null

# Unbind GPU + audio
echo "$GPU"   > /sys/bus/pci/devices/$GPU/driver/unbind
echo "$AUDIO" > /sys/bus/pci/devices/$AUDIO/driver/unbind

# Perform FLR
echo 1 > /sys/bus/pci/devices/$GPU/reset

# Rebind to vfio
echo "$GPU"   > /sys/bus/pci/drivers/vfio-pci/bind
echo "$AUDIO" > /sys/bus/pci/drivers/vfio-pci/bind

echo "GPU reset (FLR) complete."

It looks like you may be somewhat familiar with it already from the previous troubleshooting but I'll explain a bit what it does. If you look at the output from lspci -vv for your GPU (include your bus like below), you will see what reset methods your GPU supports. It's a mess but it's in there somewhere under DevCap and DevCtl. Here is what mine looks like:

root@Tower:~# lspci -vv -s 21:00.0
21:00.0 VGA compatible controller: NVIDIA Corporation AD104 [GeForce RTX 4070] (rev a1) (prog-if 00 [VGA controller])
        Subsystem: Gigabyte Technology Co., Ltd Device 40ee
        Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
        Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
        Latency: 0, Cache Line Size: 64 bytes
        Interrupt: pin A routed to IRQ 305
        IOMMU group: 49
        Region 0: Memory at c2000000 (32-bit, non-prefetchable) [size=16M]
        Region 1: Memory at a400000000 (64-bit, prefetchable) [size=16G]
        Region 3: Memory at a800000000 (64-bit, prefetchable) [size=32M]
        Region 5: I/O ports at 3000 [size=128]
        Expansion ROM at c3000000 [disabled] [size=512K]
        Capabilities: [60] Power Management version 3
                Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold-)
                Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
        Capabilities: [68] MSI: Enable+ Count=1/1 Maskable- 64bit+
                Address: 00000000fee00000  Data: 0000
        Capabilities: [78] Express (v2) Legacy Endpoint, IntMsgNum 0
                DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s unlimited, L1 <64us
                        ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ TEE-IO-
                DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
                        RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop- FLReset-
                        MaxPayload 256 bytes, MaxReadReq 512 bytes
                DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend+
                LnkCap: Port #0, Speed 16GT/s, Width x16, ASPM L1, Exit Latency L1 <4us
                        ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
                LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+
                        ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt- FltModeDis-
                LnkSta: Speed 16GT/s, Width x16
                        TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
                DevCap2: Completion Timeout: Range AB, TimeoutDis+ NROPrPrP- LTR-
                         10BitTagComp+ 10BitTagReq+ OBFF Via message, ExtFmt- EETLPPrefix-
                         EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
                         FRS-
                         AtomicOpsCap: 32bit- 64bit- 128bitCAS-
                DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-
                         AtomicOpsCtl: ReqEn-
                         IDOReq- IDOCompl- LTR- EmergencyPowerReductionReq-
                         10BitTagReq- OBFF Disabled, EETLPPrefixBlk-
                LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-
                LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-
                         Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
                         Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
                LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+
                         EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
                         Retimer- 2Retimers- CrosslinkRes: unsupported, FltMode-
        Capabilities: [b4] Vendor Specific Information: Len=14 <?>
        Capabilities: [100 v1] Virtual Channel
                Caps:   LPEVC=0 RefClk=100ns PATEntryBits=1
                Arb:    Fixed- WRR32- WRR64- WRR128-
                Ctrl:   ArbSelect=Fixed
                Status: InProgress-
                VC0:    Caps:   PATOffset=00 MaxTimeSlots=1 RejSnoopTrans-
                        Arb:    Fixed- WRR32- WRR64- WRR128- TWRR128- WRR256-
                        Ctrl:   Enable+ ID=0 ArbSelect=Fixed TC/VC=01
                        Status: NegoPending- InProgress-
        Capabilities: [258 v1] L1 PM Substates
                L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2- ASPM_L1.1+ L1_PM_Substates+
                          PortCommonModeRestoreTime=255us PortTPowerOnTime=10us
                L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
                           T_CommonMode=0us
                L1SubCtl2: T_PwrOn=10us
        Capabilities: [128 v1] Power Budgeting <?>
        Capabilities: [420 v2] Advanced Error Reporting
                UESta:  DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP-
                        ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
                        PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
                UEMsk:  DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP-
                        ECRC- UnsupReq- ACSViol- UncorrIntErr- BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
                        PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
                UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+
                        ECRC- UnsupReq- ACSViol- UncorrIntErr+ BlockedTLP- AtomicOpBlocked- TLPBlockedErr-
                        PoisonTLPBlocked- DMWrReqBlocked- IDECheck- MisIDETLP- PCRC_CHECK- TLPXlatBlocked-
                CESta:  RxErr+ BadTLP+ BadDLLP+ Rollover- Timeout+ AdvNonFatalErr- CorrIntErr- HeaderOF-
                CEMsk:  RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+ CorrIntErr- HeaderOF+
                AERCap: First Error Pointer: 00, ECRCGenCap- ECRCGenEn- ECRCChkCap- ECRCChkEn-
                        MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
                HeaderLog: 00000000 00000000 00000000 00000000
        Capabilities: [600 v1] Vendor Specific Information: ID=0001 Rev=1 Len=024 <?>
        Capabilities: [900 v1] Secondary PCI Express
                LnkCtl3: LnkEquIntrruptEn- PerformEqu-
                LaneErrStat: LaneErr at lane: 14
        Capabilities: [bb0 v1] Physical Resizable BAR
                BAR 0: current size: 16MB, supported: 16MB
                BAR 1: current size: 16GB, supported: 64MB 128MB 256MB 512MB 1GB 2GB 4GB 8GB 16GB
                BAR 3: current size: 32MB, supported: 32MB
        Capabilities: [c1c v1] Physical Layer 16.0 GT/s
                Phy16Sta: EquComplete+ EquPhase1+ EquPhase2+ EquPhase3+ LinkEquRequest-
        Capabilities: [d00 v1] Lane Margining at the Receiver
                PortCap: Uses Driver+
                PortSta: MargReady- MargSoftReady-
        Capabilities: [e00 v1] Data Link Feature <?>
        Kernel driver in use: vfio-pci
        Kernel modules: nouveau

Mine only supports FLR. If you run cat /sys/bus/pci/devices/$GPU/reset_method (make sure to sub the $GPU variable) it will show you what the current reset method it set to. Mine was set to flr bus, meaning it tries FLR, then falls back to bus (which mine doesn't support). So this script will set the reset method to just FLR, then unbind the GPU, reset it, and then rebind to VFIO without having to reboot. You might want to comment out the "Always force FLR" line first and just try the default method. Since your GPU is AMD, it might support other methods you can try as well. You just need to replace the flr after the echo in the "Always force FLR" command with another method that your card supports. I don't know what those would be but you can look it up if you need to. You don't need to worry about putting an invalid option and breaking things because if it doesn't support it or you put in an invalid option, it just will say it is an invalid option. For me, it didn't work the first time with the default method but it did when forcing FLR. Make sure the VM is off before you try this, then turn it on after and see if it worked.

Another note that may make things easier. Instead of setting the GPU to VNC, use remote desktop. I find it makes things easier and you don't have to change your VM config back and forth while troubleshooting. Log into Windows, mount the virtio CD and install the virtio tools. Then when you start your VM, in the same menu where you start and stop it, there will be an option for remote desktop. The VM has to fully boot first so if you get an error just wait a bit, reload the page, and try again.

One last note. In regards to the vBIOS, the extraction script can be tricky and painful. If you don't have an issue getting it online, go to https://www.techpowerup.com/vgabios/ and enter your GPU details to download it. Techpowerup is pretty trustworthy but I get that some people don't want to risk it. If you don't know your info, you can install GPU-z and click on "Lookup". I think GPU-z used to have a way to take you directly to the vBIOS page for your card but if it did, it doesn't now. You can also try saving the vBIOS using GPU-z but I'm pretty sure it won't work in a VM.

The hook script would be what I would recommend as I'm fairly sure it's a issue with the cards and reset but don't have good data to explain and share how to do a hook script to reset the card.

There are other things that can be added to syslonux grub boot but the baod, CPU and gcard didn't warrant the need of they used the mod probe...

The qumeu extra arguments fixe nvdia and other code 43. Turns off windows force ejection and set up windows to be ready forvieturaled passed hardware.

Sometimes a reinstall is needed after these edits due to how Windows boot kere al sees devices.

I would definitely recommend the hook script. Unless the CPU doesn't have onboard gpu the the syslonux stuff is not needed.

And again the bios dump of a gcard is not needed to pass. That help emulate parts for some interaction. Not required for what they are trying to do.

The issue still stems from the GPU not being marked as primary due to the default vnc/spice.

As the concern is that the gcard is picking up that a virtual display is made and thus the full card is acting as if the full hardware is not passed...

Not enough info to assist either way.

I attempted to run the reset script and it can't seem to run it. Here are my GPU devices and the logs from the script.

I also used all three of the Vbios from techpowerup for my card and none of them helped.

2 hours ago, Elembemedia said:

I attempted to run the reset script and it can't seem to run it. Here are my GPU devices and the logs from the script.

I had to double check to make sure I was using the correct terms but you have the wrong values for GPU and AUDIO in your script so it isn't finding them. It looks like you put 1002:7550 and 1002:ab40 which are the vendorID:deviceID I believe. You need the ones just to the right of that, with the leading zeros as in the example. For your setup, this is what you need:

GPU="0000:0c:00.0"
AUDIO="0000:0c:00.1"

2 hours ago, Elembemedia said:

I also used all three of the Vbios from techpowerup for my card and none of them helped.

It may not be needed for this but it's good to know for future reference. Also, in line with what bmartino1 said, the VNC could further complicate things. It's best to remove it and only have the real GPU in your VM config.

Edited December 25, 2025Dec 25 by bobbintb
