Hey all

First of all, thanks for all the help so far

I have a disk, now that I am back from holidays, thats made an error, or more.

I have the smart and dia here:
ST20000NM007D-3DJ103_ZVT5ZA0F-20260713-1127.txttdk-diagnostics-20260713-1121.zip

I hope they will help.

I have swapped the cable, and from what I see, the disk is fine? :) I am NOT the best at this, so I am very sorry if I have missed something or can seam a bit slow.

Could I just run a new config and see how it goes?

Thanks agian guys :)

Edited July 13Jul 13 by Cololate

Disk dropped offline; this is typically a power connection issue. SMART also looks OK, my suggestion would be to check/replace cables and rebuild, this assuming the emulated disk is still mounting as in the diags, and the contents look correct.

6 minutes ago, Cololate said:

Could I just run a new config and see how it goes?

The fact that the disk is emulated means that a write to it failed for some reason so New Config is probably the best way to proceed ad you would lose any data written since it was disabled. Instead since the emulated disk seems to have mounted fine you should ne rebuilding it. If you think the disk is healthy then follow these instructions to do the rebuild.

In terms of checking disk health, the best way is to run the Extended SMART test (which the diagnostics show has not been done). If that completes without error the dtive is normally OK and the write failed due to an external factor.

Just now, JorgeB said:

Disk dropped offline; this is typically a power connection issue. SMART also looks OK, my suggestion would be to check/replace cables and rebuild, this assuming the emulated disk is still mounting as in the diags, and the contents look correct.

Perfect.
All I have done is swap the cable, nothing else. I can swap the power aswell, if that might make a difference aswell.

Thanks so much :)

3 minutes ago, itimpi said:

The fact that the disk is emulated means that a write to it failed for some reason so New Config is probably the best way to proceed ad you would lose any data written since it was disabled. Instead since the emulated disk seems to have mounted fine you should ne rebuilding it. If you think the disk is healthy then follow these instructions to do the rebuild.

In terms of checking disk health, the best way is to run the Extended SMART test (which the diagnostics show has not been done). If that completes without error the dtive is normally OK and the write failed due to an external factor.

Hi

I will run the test right away! :)

1 hour ago, Cololate said:

I will run the test right away! :)

It does take some time. Around 1.5 hours per TB is quite typical, and progress only gets updated in 10% intervals.

1 minute ago, itimpi said:

It does take some time. Around 1.5 hours per TB is quite typical, and progress only gets updated in 10% intervals.

Yes, can see its 'slow' :D Its all good - rather a good reason to do the right thing here, then a quickfix thats not the right one.
I will let it run, and get back here when its done :)

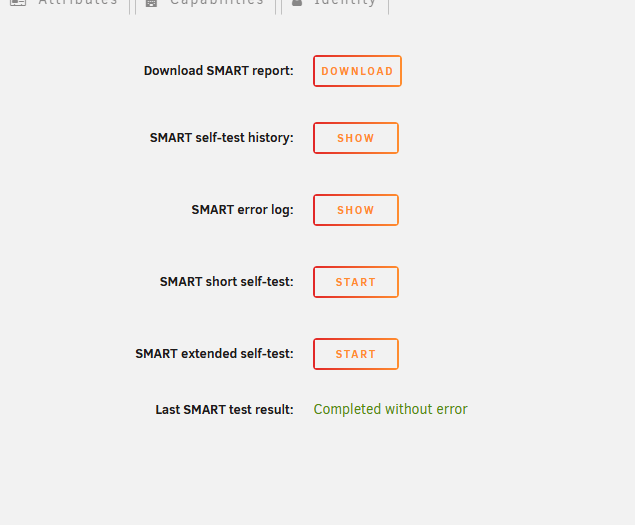

So, we are done, and this is the status update
ST20000NM007D-3DJ103_ZVT5ZA0F-20260714-1519.txt

From what I can tell, its all good?
I have NOT changed the power to the disk yet, but I will if needed for sure! :) The sata cable for the drive was changed before the test was made.

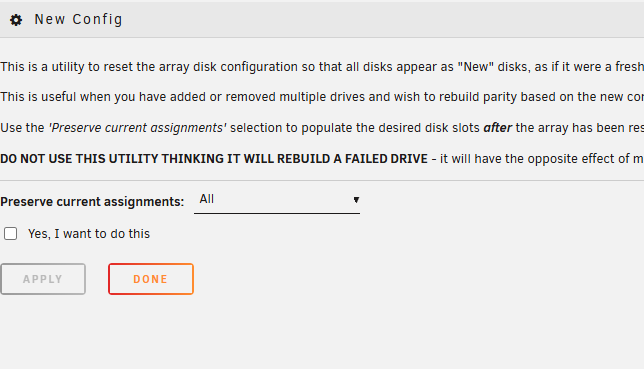

If I can do a rebuild, can I just click this:

Just figure since I am not changing anything, that I can choose to preserve the current assignments?
Thanks agian guys for all the help <3

5 minutes ago, Cololate said:

So, we are done, and this is the status update
ST20000NM007D-3DJ103_ZVT5ZA0F-20260714-1519.txt

From what I can tell, its all good?
I have NOT changed the power to the disk yet, but I will if needed for sure! :) The sata cable for the drive was changed before the test was made.

If I can do a rebuild, can I just click this:

Just figure since I am not changing anything, that I can choose to preserve the current assignments?
Thanks agian guys for all the help <3

No. If you use New Config then you can no longer do a rebuild.

5 minutes ago, itimpi said:

No. If you use New Config then you can no longer do a rebuild.

Damn, that was my only thought to be honest
How do I get it to act normal agian ?

Use the instructions here as mentioned earlier.

15 minutes ago, itimpi said:

Use the instructions here as mentioned earlier.

Right - overlooked that agian - so sorry. I will look into that right away!

Follow the guide - and now this is what I got

Edited July 14Jul 14 by Cololate

That shows errors on parity; new diags please. (and cancel the rebuild if it didn't abort by itself)

1 hour ago, JorgeB said:

That shows errors on parity; new diags please. (and cancel the rebuild if it didn't abort by itself)

Damn
I stopped it, and here is the smart:

ST20000NM007D-3DJ103_ZVT5Y5ZN-20260715-1047.txt wich says nothing

I cant seem to get that parity to spin up, no matter what I press, nothing happens.

EDIT: I made a restart, and here is a SMART of the parity drive now:
ST20000NM007D-3DJ103_ZVT5Y5ZN-20260715-1100.txt

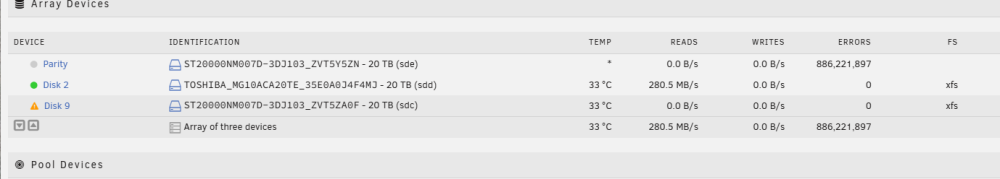

And how the dashbord looks: ( where disk 9 is the one that was emulated 'still is')

Edited July 15Jul 15 by Cololate

3 hours ago, Cololate said:

and here is the smart:

Full diagnostics please

2 hours ago, JorgeB said:

Full diagnostics please

Sure thing!

tdk-diagnostics-20260715-1600.zip

Diags are after rebooting, so we can't see what happened. Start the array and post new diags to see if the emulated disk is still mounting.

2 hours ago, JorgeB said:

Diags are after rebooting, so we can't see what happened. Start the array and post new diags to see if the emulated disk is still mounting.

Sure thing - my bad.

tdk-diagnostics-20260715-2155.zip
When I started the array, it started the rebuild agian, from 0. I canceled that, and then made the diag. Hope thats ok.

From what I can see, all the data that I had before, is still there to see. Cant see that something should be missing.

Emulated disk9 is not mounting; check filesystem and post new diags after array start.

2 hours ago, JorgeB said:

Emulated disk9 is not mounting; check filesystem and post new diags after array start.

Alright! I have done that, and here it is:
tdk-diagnostics-20260716-1128.zip

This is where I am at now:

I have not pressed the FIX botton, just an FYI
And agian, thank you so much for all you time and help here! <3

1 hour ago, Cololate said:

I have not pressed the FIX botton

You need to do that first to repair the fileystem

19 minutes ago, JorgeB said:

You need to do that first to repair the fileystem

That is a quite normal result. Now you need to Zero Log

45 minutes ago, itimpi said:

That is a quite normal result. Now you need to Zero Log

Alright
Then I am getting this, no matter how many times I press it:
