March 19, 201610 yr Is SMB transfer speed from windows on to the NAS is limited by your network maximum speed or it is limited by the harware maximum speed
March 19, 201610 yr Community Expert Is SMB transfer speed from windows on to the NAS is limited by your network maximum speed or it is limited by the harware maximum speed Writing to the array (assuming you have parity) will run at around 30-40 MB/sec at best due to disk speed limitations. A gigabit network can reach a bit over 100MB/sec so in that scenario the disks are the limiting factor. When reading the converse is true - the network is the limiting factor and you should get 100+ MB/sec.. If reading or writing to the cache drive then the network is typically the limiting factor for both reading and writing. The above assumes you have reasonably modern hardware. With older hardware then either the CPU or the disk controllers can have limitations that mean reads and writes speeds are lower than the network speed.
March 20, 201610 yr With my old hardware (Asrock Wolfdale Board with Intel E8500 cpu and a cheap gigabit network adapter) i had a maximum of 75 MB/s. With the new MSI Bord with Core i3 4170 and on board gigabit lan i have 113Mb/s transfer speed and the network is the limit. Thought about ssd cache drives but I think there is no advantage to my Hitachi HDDs because of the "slow" network...
March 20, 201610 yr Author The problem is i cant go higner then 10MB/s with wd red. If i use ssd as a cache would it help.
March 20, 201610 yr I think your network is the problem. Is everything Gigabit capable? The WD Reds in my WD NAS tranfer large Files easily over 100 MB/s
March 20, 201610 yr Community Expert The problem is i cant go higner then 10MB/s with wd red. If i use ssd as a cache would it help. Definitely sounds like network. You can see the speed of the unRAID connection in the lower left of the Dashboard.
March 20, 201610 yr Author Just look in to dashboard it say 10/100/1000 i use gigabit cable and gigabit port on router but i guess the buttleneck is the old vostro 230 mini tower.
March 20, 201610 yr Community Expert Just look in to dashboard it say 10/100/1000 i use gigabit cable and gigabit port on router but i guess the buttleneck is the old vostro 230 mini tower. Post diagnostics, or go to command line and post results ofethtool eth0
March 20, 201610 yr Just look in to dashboard it say 10/100/1000 i use gigabit cable and gigabit port on router but i guess the buttleneck is the old vostro 230 mini tower. You can check what speed the Vostro is connecting at by looking at it's Network Adapter status in control panel
March 20, 201610 yr Author Just look in to dashboard it say 10/100/1000 i use gigabit cable and gigabit port on router but i guess the buttleneck is the old vostro 230 mini tower. Post diagnostics, or go to command line and post results ofethtool eth0 Il post my diagnostics when i come back from work in 6 hours.

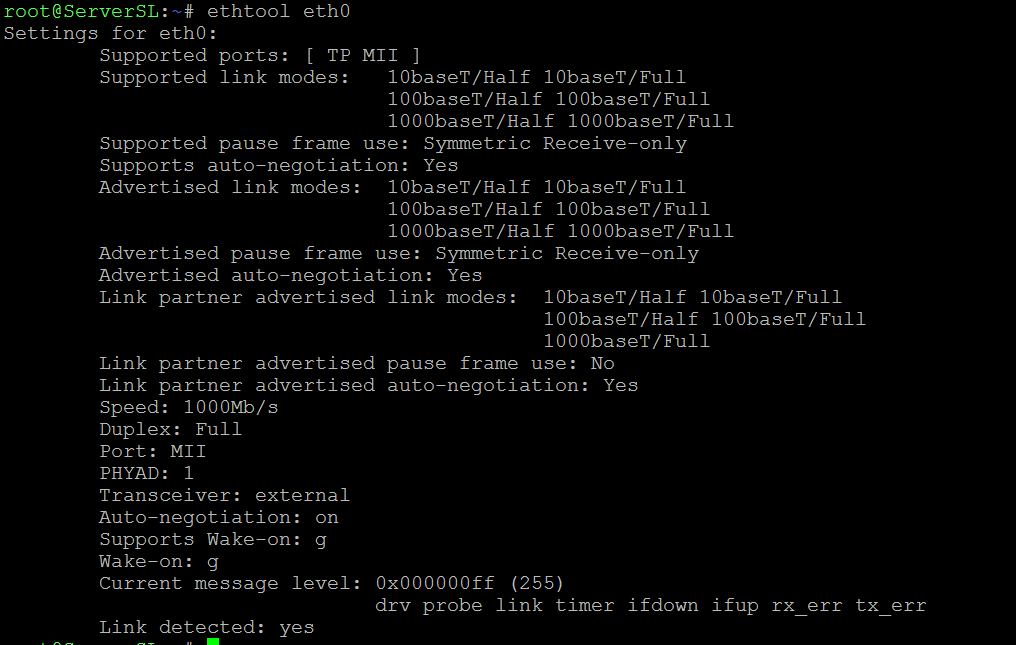

March 21, 201610 yr Author Just look in to dashboard it say 10/100/1000 i use gigabit cable and gigabit port on router but i guess the buttleneck is the old vostro 230 mini tower. Post diagnostics, or go to command line and post results ofethtool eth0 Ther it is
March 21, 201610 yr Just look in to dashboard it say 10/100/1000 i use gigabit cable and gigabit port on router but i guess the buttleneck is the old vostro 230 mini tower. You can check what speed the Vostro is connecting at by looking at it's Network Adapter status in control panel
March 22, 201610 yr Author solved my problem. I was so noob. My network card was set for a maximum of 10MB/S.
