Cant flash my H310

[In0cenT]

Hello

I bought two H310 and wanted to flash one by one using this tutorial: https://techmattr.wordpress.com/2016/04/11/updated-sas-hba-crossflashing-or-flashing-to-it-mode-dell-perc-h200-and-h310/



I managed to get the SAS address, but shortly after got the "Failed to initialize PAL. Exiting program." Error. I then tried to get it done via the efi shell but then I get this error: "No LSI SAS adapters found!"



Things I've done:

megacli.exe -AdpAllInfo -aAll -page 20 -> got my SAS address

megarec.exe -writesbr 0 sbrempty.bin -> got the needed error

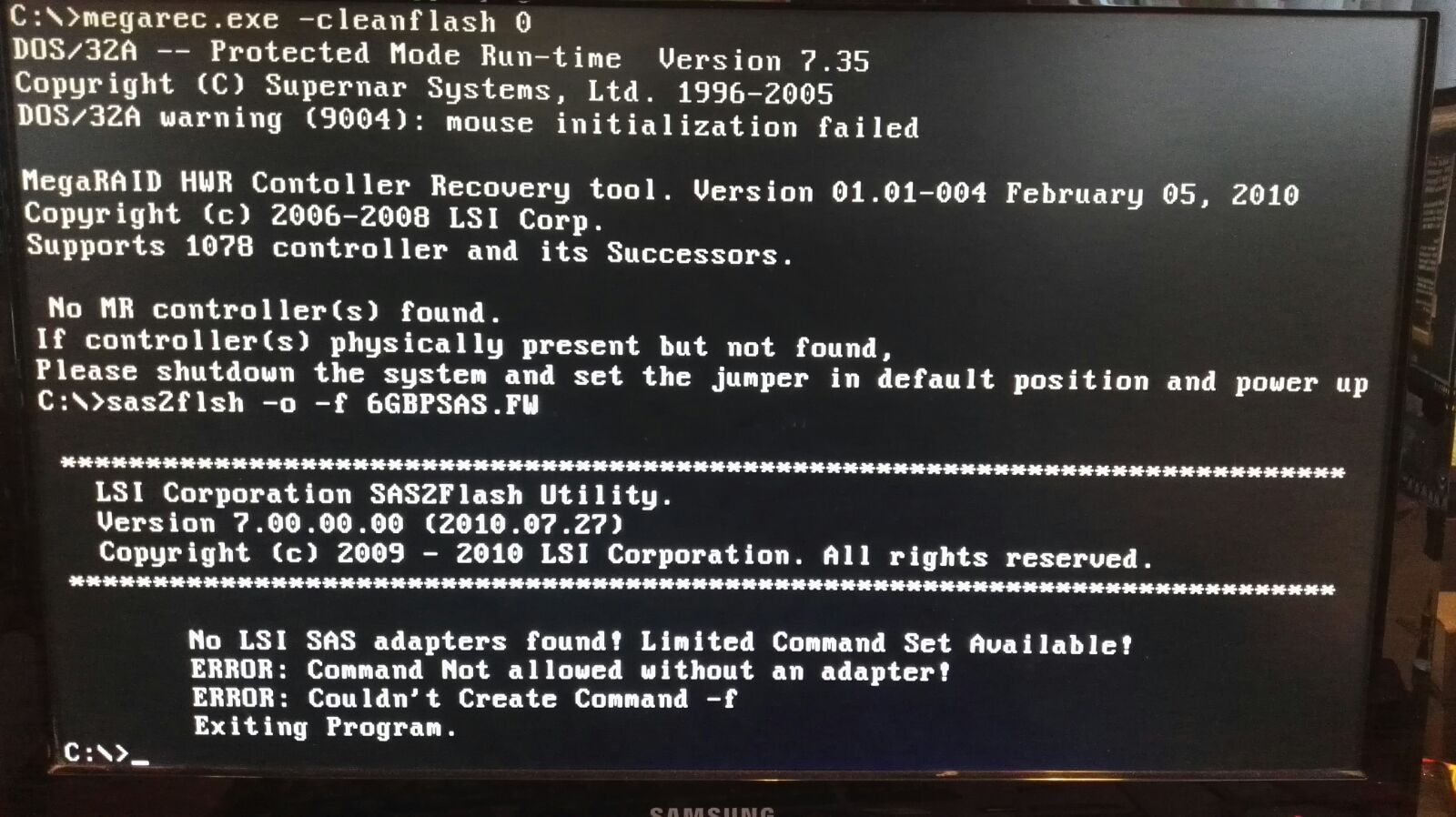

megarec.exe -cleanflash 0 -> rebooted after

sas2flsh.exe -o -f 6GBPSAS.fw -> PAL error



sas2flash.efi -o -f 6GBPSAS.FW -> NO LSI SAS...



What should I try now?

Edited March 4, 2017 by In0cenT

[landS]

Gosh it is hard to cross quote in this new forum....





https://www.mediafire.com/?0op114fpim9xwwf



EASIEST flash process ever on this Ebay Dell PERC H310!  THANK YOU @Fireball3

Followed the READMEFIRST... and after unziping the contents into the bootable usb (per rufus)...

Everything was self guided!  (Though some steps take a LONG time)

• 1.bat  (used camera to take a picture of sas address)
• 2.bat
• 3.bat
• 5ITDELL.bat
• 5ITP7.bat
• 5ITP20.bat
• 6.bat (auto pulled sas address perfectly matches what was shown in 1.bat)

Now I have an LSI SAS2008(B2) with no silly boot spinups

[ashman70]

I used this method to flash my H310 as well and it was easy peasy.

[In0cenT]

I cant carry on with that route, as my H310 dont get recognized anymore...

Any idea how to get them back?



Fond this solution in an other forum:

Quote

You didn't brick anything.
You need to get a hold of an old sas2flash.efi and flash the 6gbpsas.fw file to the card.
Then write the sas address back to the card.
After that you'll be able to use another old sas2flash.efi to flash IT over IR. Note newer flasher won't let you do this. if i remember correctly I used P15 flasher to do this step and flashed the card to FW 19.
Then flash it to latest 20.00.07 IT FW (I use P20 flasher for this).

Can could anyone help me doing the right stuff?

Edited March 5, 2017 by In0cenT

[rxnelson]

Hmmm....I am not sure. I've done 4 of these without major issues. Did you use an old version of sas2flash.efi as your quote suggests?


Sent from my iPhone using Tapatalk

[Fireball3]

I have no experience with the EFI way so I can only refer to other peoples findings.

I have been asking for a brief report and @Maglin wrote this up.



On Samstag, 4. März 2017 at 3:05 PM, In0cenT said:

megarec.exe -writesbr 0 sbrempty.bin -> got the needed error

megarec.exe -cleanflash 0 -> rebooted after

I wonder why the first megarec command failed and why the subsequent one completed !?!?

Is the file sbrempty.bin the right one? Is it present?

What is the exact fault message? Can you try running it once again?



According to Maglin, only sas2flsh should quit with the PAL error!

That is the point where you switch to EFI shell and do the rest with the sas2flash.efi. (note, spelling is not sas2flsh)



Edit:

From you second post I get,

neither megarec nor sas2flsh recognize your card anymore.

Is this the same after rebooting? If you issue the commands straight after the megarec -cleanflash, then it's normal.

After a reboot the adapter should be back though.

Did you apply the tape mod?





Edited March 6, 2017 by Fireball3

[rxnelson]

Saw this other thread. Guy was able to get his working near the end. LSI Controller FW updates IR/IT modes





https://forums.lime-technology.com/topic/12114-lsi-controller-fw-updates-irit-modes/?do=findComment&comment=541151



Sent from my iPhone using Tapatalk







[Fireball3]

link is not working properly
