Quantumleapr Posted August 8, 2017 Share Posted August 8, 2017 Hi! Sorry if this has been resolved a million times before. I rebooted my router/modem combo (Arris TG3482G), and when it came back up I was no longer able to access my server. http://tower.local wasn't working, I receive this message: Quote tower.local’s server DNS address could not be found. I couldn't access it from CLI, either. Verified on the modems admin page that is in in fact shown as connected from the "Connected Device" list. I rebooted the server and logged into GUI Mode, and from there was able to access the webUI when you launch the browser (localhost). I checked my ip-address and dhcp settings, and then rebooted. Now, I can't even access the localhost WebUI from the GUI Mode, it sits and hangs indefinitely trying to bring up the WebUI. Pinging the servers IP returns this: PING 10.0.0.131 (10.0.0.131): 56 data bytes Request timeout for icmp_seq 0 Request timeout for icmp_seq 1 Request timeout for icmp_seq 2 Request timeout for icmp_seq 3 Network config file looks like this: USE_DHCP=no IPADDR=10.0.0.131 NETMASK=255.255.255.0 GATEWAY=10.0.0.1 DNS_SERVER1=10.0.0.1 DNS_SERVER2= DNS_SERVER3= However, there is a few more lines uptop the file with BOND information, are these necessary? IPv4 Route Table =========================================================================== Active Routes: Network Destination Netmask Gateway Interface Metric 0.0.0.0 0.0.0.0 10.0.0.1 10.0.0.220 266 10.0.0.0 255.255.255.0 On-link 10.0.0.220 266 10.0.0.220 255.255.255.255 On-link 10.0.0.220 266 10.0.0.255 255.255.255.255 On-link 10.0.0.220 266 127.0.0.0 255.0.0.0 On-link 127.0.0.1 306 127.0.0.1 255.255.255.255 On-link 127.0.0.1 306 127.255.255.255 255.255.255.255 On-link 127.0.0.1 306 224.0.0.0 240.0.0.0 On-link 127.0.0.1 306 224.0.0.0 240.0.0.0 On-link 10.0.0.220 266 255.255.255.255 255.255.255.255 On-link 127.0.0.1 306 255.255.255.255 255.255.255.255 On-link 10.0.0.220 266 =========================================================================== Persistent Routes: Network Address Netmask Gateway Address Metric 0.0.0.0 0.0.0.0 10.0.0.1 Default =========================================================================== IPv6 Route Table =========================================================================== Active Routes: If Metric Network Destination Gateway 10 266 ::/0 fe80::1256:11ff:fe88:9474 1 306 ::1/128 On-link 11 58 2001::/32 On-link 11 306 2001:0:9d38:953c:10fe:b93:e7eb:6c0c/128 On-link 10 18 2601:1c2:1302:4536::/64 On-link 10 266 2601:1c2:1302:4536::b09a/128 On-link 10 266 2601:1c2:1302:4536:40a3:cf73:27b8:37bf/128 On-link 10 266 2601:1c2:1302:4536:c484:36de:43e9:e6fa/128 On-link 10 266 fe80::/64 On-link 11 306 fe80::/64 On-link 11 306 fe80::10fe:b93:e7eb:6c0c/128 On-link 10 266 fe80::c484:36de:43e9:e6fa/128 On-link 1 306 ff00::/8 On-link 11 306 ff00::/8 On-link 10 266 ff00::/8 On-link =========================================================================== Persistent Routes: None NSLookup for tower 10.0.0.131 returns "DNS request timed-out". ifconfig eth0 shows the address as 10.0.0.131 with submask 255.255.255.0, and gateway of 10.0.0.1 At this point I don't really know where to go. I'm not really sure how rebooting my modem could have caused this much of a mess. Link to comment
Frank1940 Posted August 9, 2017 Share Posted August 9, 2017 Several things to try: First, check all of the components (modem, router and switches) in your physical network to make sure you didn't accidentally unplug power or a cat5 cable. Second, Reboot all of these components again. Reboot the server by shutting it down completely. (You can do this with a quick (one second) push of the power button.) Then plug the power plug for about one minute. This will assure that the network connection is completely re-initialized. When you get access to the server via the console GUI or the command line, get a diagnostics file. 'Tools' >>> 'Diagnostics' From the command line, diagnostics This will write the file in the logs folder of your flash drive. Question: Does everything else on the network seem to work? Refer to the GUI on teh console in the GUI boot mode as the "console GUI". Refer the GUI that you are attempting to connect to via your LAN as the WebGUI. Your terminology is confusing (at least to me). Link to comment
Quantumleapr Posted August 9, 2017 Author Share Posted August 9, 2017 2 hours ago, Frank1940 said: Several things to try: First, check all of the components (modem, router and switches) in your physical network to make sure you didn't accidentally unplug power or a cat5 cable. Second, Reboot all of these components again. Reboot the server by shutting it down completely. (You can do this with a quick (one second) push of the power button.) Then plug the power plug for about one minute. This will assure that the network connection is completely re-initialized. When you get access to the server via the console GUI or the command line, get a diagnostics file. 'Tools' >>> 'Diagnostics' From the command line, diagnostics This will write the file in the logs folder of your flash drive. Question: Does everything else on the network seem to work? Refer to the GUI on teh console in the GUI boot mode as the "console GUI". Refer the GUI that you are attempting to connect to via your LAN as the WebGUI. Your terminology is confusing (at least to me). Rebooted everything. I can ping every device on my network except for the server. I attached a monitor to the server and rebooted, and was able to pull a diagnostics. I've attached it to post. I've also booted into 'Unraid GUI Mode' and launched the webGUI from there. I believe from within the server the address bar reads 'LocalHost'. Strangely enough, it works, but takes on anywhere between 5-20 minutes to load each page. tower-diagnostics-20170808-2238.zip Link to comment
Frank1940 Posted August 9, 2017 Share Posted August 9, 2017 Looking at your syslog, you have two ethernet ports on your MB. The log is showing that one one is connected (eth0) and it has an MAC address of d0:50:99:c2:8b:cb (Your second interface has an MAC address of d0:50:99:c2:8b:cc ) Look at your router and see if that is the MAC address that is associated with the IP address of 10.0.0.131 Outside of these checks I am not seeing any type of obvious problem in the syslog. Since the problem started after the router reboot, you might want to change the cat5 cable between the server and the switch. You could also try switching the cable to a different port on the switch. (Doing these types of things eliminates things that are seldom problems but can be very difficult to detect otherwise if they do occur!) If one of these does not show anything unusual (or fix the problem), please post up your motherboard manufacturer and model number, CPU used and amount of memory. I am also puzzled that the console GUI is taking 5-20 minutes to load a page. I would not think this is normal but I have never tried to use the console GUI. Does anyone else have experience with it? Link to comment
Meodato Posted August 9, 2017 Share Posted August 9, 2017 I use the console webgui and it usually is quite responsive. Link to comment
Frank1940 Posted August 9, 2017 Share Posted August 9, 2017 21 minutes ago, Meodato said: I use the console webgui and it usually is quite responsive. Interesting. @Quantumleapr, open up the console GUI and then goto the Dashboard page and see what the CPU stat's are looking like under the System Status section. You can also have a look at the Network section and look at the "General", "Counters" and "Errors" with the downdown boxes. Link to comment
Frank1940 Posted August 9, 2017 Share Posted August 9, 2017 One more thing to try. From the console GUI, type www.google.com onto the URL box on the toolbar. You should get the standard google search engine home page. IF not, report back the error message. (You can return to the unRAID GUI with the 'back-arrow' icon to the left of the URL box.) A note of caution: You should not use this console web browser to do general browsing of the Internet!!! There is zero protection from virus and Malware with this console browser and can leave your server completely exposed! It was implemented solely to permit access to the unRAID GUI. (That is why it is NOT the default boot option.) Link to comment

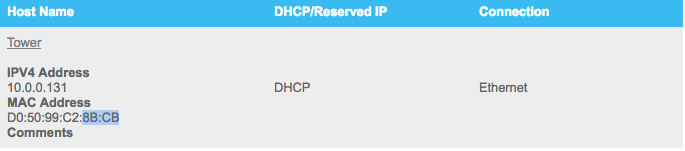

Quantumleapr Posted August 9, 2017 Author Share Posted August 9, 2017 Thanks for the replies! I checked the Modems remembered devices and the MAC address of the port associated with 10.0.0.131 is d0:50:99:c2:8b:cb. Inside the Modems WebUI, under connected devices, there is the option to edit to the device to have it assigned a DHCP address, or give it a reserved address. I've tried both of these options, though, to no avail. I attached a screencap. Outside of that, I'll have to check the rest when I get home from work. Would it be worth swapping to eth1 and trying that? As for components, this machine is less than a month old ( I still have 10 days on my trial license), parts you requested are: ASRock C236 WSI Mini ITX Server Motherboard LGA 1151 Intel C236 Intel Xeon E3-1245 V5 SkyLake 3.5 GHz 8MB L3 Cache LGA 1151 80W BX80662E31245V5 Server Processor Kingston ValueRAM 8GB 288-Pin DDR4 SDRAM ECC Unbuffered DDR4 2133 (PC4 17000) Server Memory Model KVR21E15D8/8 Link to comment
Frank1940 Posted August 9, 2017 Share Posted August 9, 2017 You can try eth1 port but the diagnostics file says that eth0 is connected to something at 1000Gb/s so things should be working as is. (eth1 was not connected at that point.) UNLESS, one of the two ports (computer or switch) or the cable connecting them is defective in some manner. (PS--- I have had bad ports on switches before...) The reason for the request for the MB and CPU specs is for other folks who are reading this thread who might have some experience with these and could shed some insight into what is happening. Link to comment
Quantumleapr Posted August 10, 2017 Author Share Posted August 10, 2017 Alright. I swapped the cat5e cable between the switch and server. I changed the switch port it was flowing into. I swapped from eth0 to eth1 and assigned it a static ip of 10.0.0.132. The ConsoleGUI is slightly more responsive. However, from I cannot go to even google.com from the ConsoleGUI. Under Main tab, I cannot start the array..." Cannot contact key-server". Dashboard shows Avg. CPU load at 0-1% memory usage: 16% Network: eth1 connected 1000Mb/s, full duplex, mtu 1500 11 hours ago, Frank1940 said: You can also have a look at the Network section and look at the "General", "Counters" and "Errors" with the downdown boxes. I'm not sure where this tab is. I STILL cannot connect to tower.local from my mac or pc. Another note: If I plug the ethernet cable back into eth0 on the server, the ConsoleUI no long responds, it just sits at 'Waiting for localhost...' I'm really not sure what else to try here.. Link to comment
Tuftuf Posted August 10, 2017 Share Posted August 10, 2017 On the unraid system, can you bring up terminal and try ping 10.0.0.1 >-- If this does not work then you won't be able to access the internet. ping 8.8.8.8 >-- If this works then you have internet access. ping google.com >-- If this does NOT work but ping 8.8.8.8 does work, then you have a problem with DNS. "Under Main tab, I cannot start the array..." Cannot contact key-server"." This would imply that test 2 and 3 will fail as the error messaging is stating it cannot reach out to Lime Tech to validate your trial. You could try connecting your mac directly to the Unraid server and manually set an IP of 10.0.0.50 for example and then try accessing 10.0.0.131. FYI (ping google.com or ping 10.0.0.1) will not work when your cable is directly attached. Does your router give out IP's using DHCP? What happens if you tell Unraid to automatically get an IP address? Link to comment
Quantumleapr Posted August 11, 2017 Author Share Posted August 11, 2017 After 24 hours of complete frustration, I shut the whole thing down for a day and didn't touch it. When I booted it back up, I moved from eth0 to eth1, and let DHCP assign it an address. It's been working since. I'm still not sure exactly where the issue was, but it could always happen again. Fingers crossed it won't. Thanks to all who offered advice! Link to comment
