Ubuntu 14.04 VM not booting


Recommended Posts

I tried setting up a Ubuntu 14.04 Server VM (need it for my work) on my unRAID 6.4.0-rc7a server. I did the usual stuff I've also done for my Windows Server and Linux Mint VMs, downloaded the images, put them in the isos share, created a new VM with everything configured accordingly. I booted up the VM, was greeted with the installer and went through the usual process of installing Ubuntu, which seems to have been successful. So the VM reboots and I get greeted with the install screen again, so I force stop the VM and try to unmount the installation disk via the unRAID gui, to no avail.


Hitting the icon next to "detach" for the server ISOshows me a confirmation dialogue if I really want to detach it, I click ok and nothing happens.

So I edited the VM XML directly and removed the <disk> entry for the ISO. When I do that and boot up the VM I get to this screen


Hitting ESC or any key doesn't do anything, it always goes right to the shell. Typing "exit" brings me to the boot menu, in the boot manager this is all I see


Here's the original unmodified XML:

<domain type='kvm'>
  <name>KMDS Ephesoft</name>
  <uuid>3f8920cc-681f-937d-c2fd-39c1898547d1</uuid>
  <description>KMDS Ephesoft VM</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Linux" icon="linux.png" os="linux"/>
  </metadata>
  <memory unit='KiB'>6291456</memory>
  <currentMemory unit='KiB'>6291456</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='5'/>
    <vcpupin vcpu='1' cpuset='6'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-2.9'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/3f8920cc-681f-937d-c2fd-39c1898547d1_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='2' threads='1'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/vdisks/KMDS Ephesoft/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/ubuntu-14.04.5-server-amd64.iso'/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x10'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x11'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0x12'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0x14'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0x15'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x5'/>
    </controller>
    <filesystem type='mount' accessmode='passthrough'>
      <source dir='/mnt/user/library/work/'/>
      <target dir='work'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </filesystem>
    <interface type='bridge'>
      <mac address='52:54:00:96:24:ad'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target port='0'/>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='de'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
    </memballoon>
  </devices>
</domain>



I'm at a loss as to what's wrong, so any help would be much appreciated since I really need that VM to be up and running soon.



Link to comment
19 minutes ago, vin said:

Hi I'm new the unRAID and I have this very same issue with looping through the installation, again and again

Can you tell me where I could change to seabios instead of ovmf

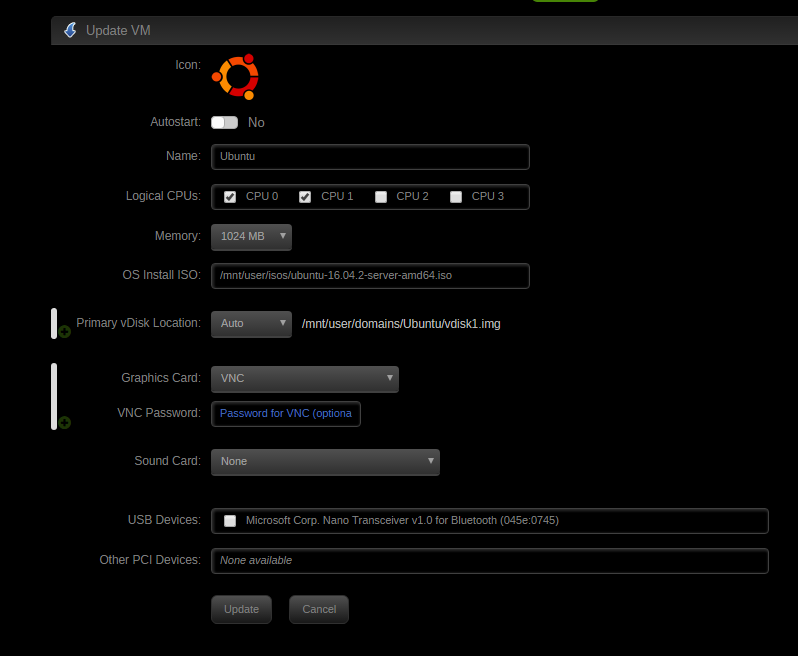

You can't on the update screen, you have to change it on initial creation. Make sure you toggle advanced view.

Link to comment
6 hours ago, daze said:

 Shouldn't sane defaults be set them for templates for various supported OSes?

Yes, but mistakes happen, and this isn't the end of the world, just irritating. The developers do the best they can, but with literally thousands of possible OS and VM configuration options, it's not easy to get them all right every time, especially when they are chasing moving targets with both the virtualization platform and the randomly updated OS's.

Link to comment

You could also try and use an newer version of the ovmf bios:

  • Download from here https://www.kraxel.org/repos/jenkins/edk2/ - edk2.git-ovmf-x64-xxxxxx.noarch.rpm
  • extract with 7zip and pull out the OVMF_CODE-pure-efi.fd and OVMF_VARS-pure-efi.fd files, put them in a share somewhere like /mnt/user/VMData/KMDS_Ephesoft/
  • assign them in the XML manually (replacing the existing values):
      <os>
        <type arch='x86_64' machine='pc-q35-2.9'>hvm</type>
        <loader readonly='yes' type='pflash'>/mnt/user/VMData/KMDS_Ephesoft/OVMF_CODE-pure-efi.fd</loader>
        <nvram>/mnt/user/VMData/KMDS_Ephesoft/OVMF_VARS-pure-efi.fd</nvram>
      </os>



  • Upvote 1
Link to comment
12 hours ago, billington.mark said:

You could also try and use an newer version of the ovmf bios:

  • Download from here https://www.kraxel.org/repos/jenkins/edk2/ - edk2.git-ovmf-x64-xxxxxx.noarch.rpm
  • extract with 7zip and pull out the OVMF_CODE-pure-efi.fd and OVMF_VARS-pure-efi.fd files, put them in a share somewhere like /mnt/user/VMData/KMDS_Ephesoft/
  • assign them in the XML manually (replacing the existing values):

      <os>
        <type arch='x86_64' machine='pc-q35-2.9'>hvm</type>
        <loader readonly='yes' type='pflash'>/mnt/user/VMData/KMDS_Ephesoft/OVMF_CODE-pure-efi.fd</loader>
        <nvram>/mnt/user/VMData/KMDS_Ephesoft/OVMF_VARS-pure-efi.fd</nvram>
      </os>





I just get the EFI shell which goes nowhere. Any ideas?



Files:

7693854 Sep  2 23:57 edk2.git-ovmf-x64-0-20170827.b2931.gdb52890926.noarch.rpm
1966080 Sep  1 06:07 ./usr/share/edk2.git/ovmf-x64/OVMF_CODE-pure-efi.fd
131072 Sep  1 06:07 ./usr/share/edk2.git/ovmf-x64/OVMF_VARS-pure-efi.fd

XML:

https://pastebin.com/PGbf3s38

Edited by daze
Link to comment
