Hey guys, I found some info on the subject on the forum but not quite what I was looking for.



I had a single cache drive formatted as XFS. I tried adding a second cache drive in slot 2, but now I get "Unmountable: No pool uuid", even after removing the second cache drive.



I read that the default file system for cache drives is BTFRS. Could it be why I can't mount it anymore?



Not sure what to do at this point. I don't want to lose the data I have on the cache drive (because I have more than cache data).



Thanks!


You need to change cache slots back to 1, then click on cache and check that filesystem is set to auto or xfs.

Ah! That was easy! I had just removed the second drive from the cache pool, but did not set the cache slots back to 1.



Thanks so much!

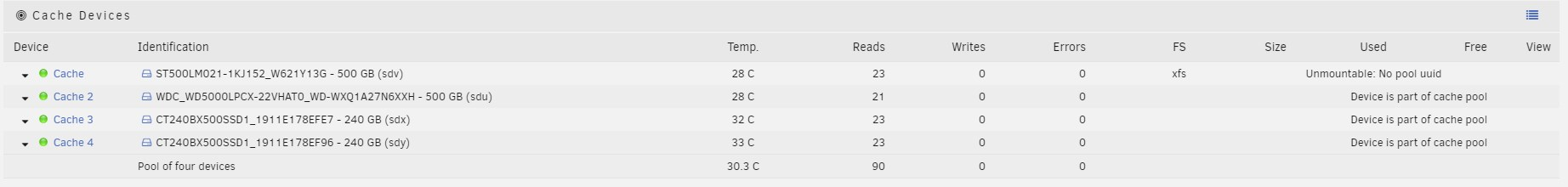

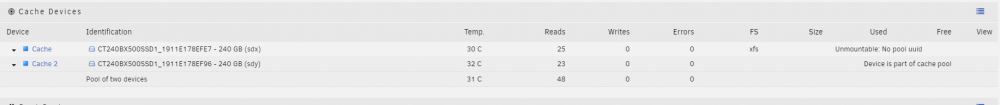

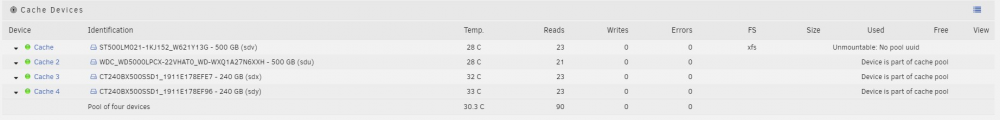

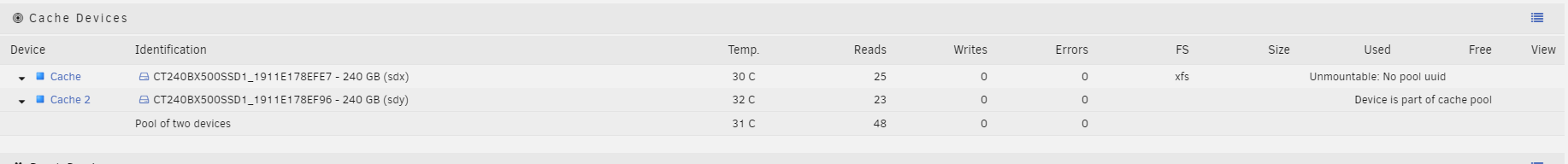

hey all i'm adding extra disks to my cache and i'm getting this error. i have tried to set the single drive to either auto or xfs but as soon as i add more the 1st one i get the uuid error. no matter what config and with what disks i get this problem.. i can even go back to a single drive and it will be fine no more uuid error

Please post the diagnostics: Tools -> Diagnostics

sry here you go fatjoe-diagnostics-20190531-2301.zip

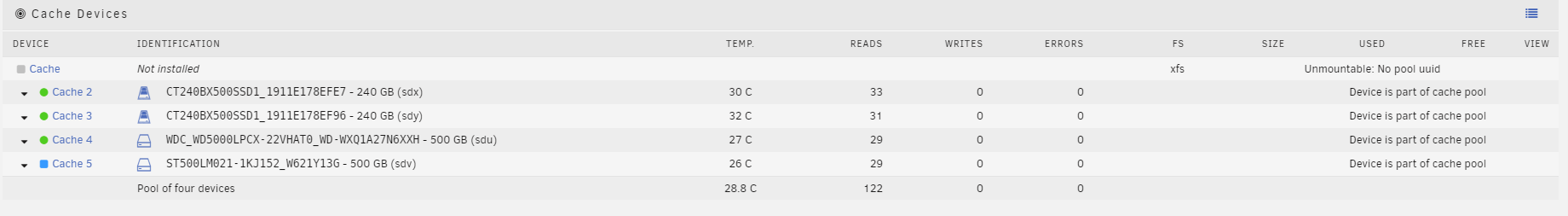

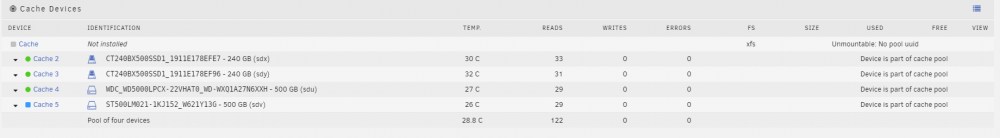

if i choose 5 and leave the 1st slot empty i get this

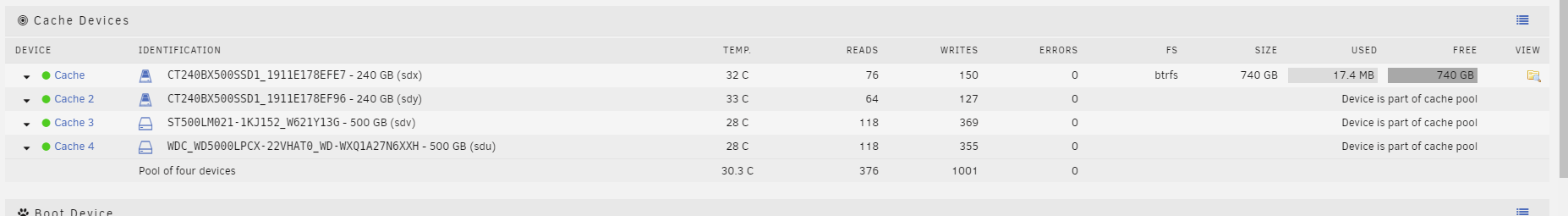

got it to work... had to use btrfs but sucks that i cant separate the 500gb disks into their own pool.

6 hours ago, ToXIc said:

had to use btrfs but sucks that i cant separate the 500gb disks into their own pool.

Any pool requires btrfs, you can have multiple pools with some limitations and the help of UD, until Unraid supports them.

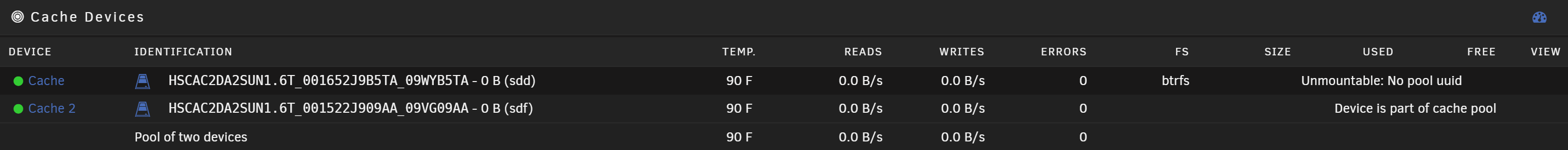

Hello, I am having the same issue with Cache drive unmountable: No pool uuid. This is a new server with 2 cache drives. I have tried going down to 1 cache drive and making sure it is on auto for the file system.



jupiter-diagnostics-20191230-1156.zip

Constant issues with both cache devices:



Dec 30 10:58:35 Jupiter kernel: sd 9:0:3:0: [sdf] tag#8755 Sense Key : 0x1 [current]
Dec 30 10:58:35 Jupiter kernel: sd 9:0:3:0: [sdf] tag#8755 ASC=0x1c ASCQ=0x2
Dec 30 10:58:35 Jupiter kernel: sd 9:0:1:0: [sdd] tag#9481 Sense Key : 0x1 [current]
Dec 30 10:58:35 Jupiter kernel: sd 9:0:1:0: [sdd] tag#9481 ASC=0x1c ASCQ=0x2
Dec 30 10:58:36 Jupiter emhttpd: Starting services...
Dec 30 10:58:36 Jupiter emhttpd: shcmd (12): /etc/rc.d/rc.samba restart
Dec 30 10:58:36 Jupiter kernel: sd 9:0:1:0: [sdd] tag#440 Sense Key : 0x1 [current]
Dec 30 10:58:36 Jupiter kernel: sd 9:0:1:0: [sdd] tag#440 ASC=0x1c ASCQ=0x2
Dec 30 10:58:36 Jupiter kernel: sd 9:0:1:0: [sdd] tag#2735 Sense Key : 0x1 [current]
Dec 30 10:58:36 Jupiter kernel: sd 9:0:1:0: [sdd] tag#2735 ASC=0x1c ASCQ=0x2
Dec 30 10:58:36 Jupiter kernel: sd 9:0:1:0: [sdd] tag#9881 Sense Key : 0x1 [current]
Dec 30 10:58:36 Jupiter kernel: sd 9:0:1:0: [sdd] tag#9881 ASC=0x1c ASCQ=0x2
Dec 30 10:58:37 Jupiter kernel: sd 9:0:1:0: [sdd] tag#681 Sense Key : 0x1 [current]
Dec 30 10:58:37 Jupiter kernel: sd 9:0:1:0: [sdd] tag#681 ASC=0x1c ASCQ=0x2
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#2356 Sense Key : 0x1 [current]
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#2356 ASC=0x1c ASCQ=0x2
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#5899 Sense Key : 0x1 [current]
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#5899 ASC=0x1c ASCQ=0x2
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#8823 Sense Key : 0x1 [current]
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#8823 ASC=0x1c ASCQ=0x2
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#1173 Sense Key : 0x1 [current]
Dec 30 10:58:37 Jupiter kernel: sd 9:0:3:0: [sdf] tag#1173 ASC=0x1c ASCQ=0x2



Likely because of this:

Physical block size:  4096 bytes
Formatted with type 1 protection

I believe this protection can be removed, but you'll need to Google it, unless someone else here has experience with this.

I can't find much on removing the type 1 protection. I'll continue to look into that this afternoon. Thanks for pointing me in that direction.

I formatted both sdd in the chache pool. It doesn't sat "Formatted with type 1 protection" anymore but still no changes. Are the drives failing? They pass the test with no errors.



root@Jupiter:~# smartctl -a /dev/sdd
smartctl 7.0 2018-12-30 r4883 [x86_64-linux-4.19.88-Unraid] (local build)
Copyright (C) 2002-18, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               HGST
Product:              HSCAC2DA2SUN1.6T
Revision:             A29A
Compliance:           SPC-4
User Capacity:        1,600,321,314,816 bytes [1.60 TB]
Logical block size:   512 bytes
Physical block size:  4096 bytes
LU is resource provisioned, LBPRZ=1
Rotation Rate:        Solid State Device
Form Factor:          2.5 inches
Logical Unit id:      0x5000cca0536dc108
Serial number:        001652J9B5TA        09WYB5TA
Device type:          disk
Transport protocol:   SAS (SPL-3)
Local Time is:        Mon Dec 30 19:42:36 2019 MST
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Enabled

=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Percentage used endurance indicator: 0%
Current Drive Temperature:     28 C
Drive Trip Temperature:        70 C

Manufactured in week 52 of year 2016
Specified cycle count over device lifetime:  0
Accumulated start-stop cycles:  0
Specified load-unload count over device lifetime:  0
Accumulated load-unload cycles:  0
Vendor (Seagate Cache) information
  Blocks sent to initiator = 459653909583871

Error counter log:
           Errors Corrected by           Total   Correction     Gigabytes    Total
               ECC          rereads/    errors   algorithm      processed    uncorrected
           fast | delayed   rewrites  corrected  invocations   [10^9 bytes]  errors
read:          0        0         0         0          0       1654.682           0
write:         0        0         0         0          0       4871.432           0

Non-medium error count:        0

SMART Self-test log
Num  Test              Status                 segment  LifeTime  LBA_first_err [SK ASC ASQ]
     Description                              number   (hours)
# 1  Background long   Completed                   -    7188                 - [-   -    -]
# 2  Background long   Aborted (device reset ?)    9    7184                 - [-   -    -]
# 3  Background short  Completed                   -    7182                 - [-   -    -]
# 4  Background short  Completed                   -    7182                 - [-   -    -]
# 5  Background short  Completed                   -    7182                 - [-   -    -]

Long (extended) Self-test duration: 11096 seconds [184.9 minutes]

I was able to figure it out. Turns out that I needed to move one of the ssd to a different slot. Thanks for the help

Same "Cache drive unmountable: No pool uuid" issue when I tried to add a second cache disk.  Original was formatted XFS.  Error occurred when I started the array after choosing two slots and added the second drive.

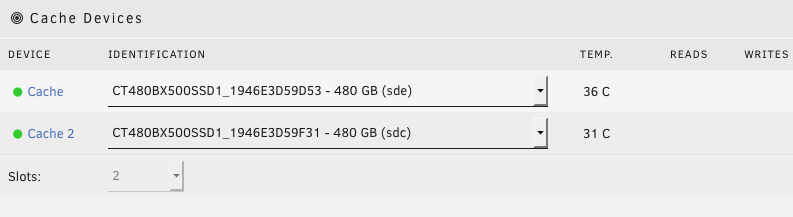

Now I notice the option to format as XFS is gone and only BTRFS is available.  Also I can't change slots back to 1 and just go back to the old configuration.  Is there a way to revert back?



Does this mean I cannot have XFS formatted cache drives and must have BTRFS if I want cache protection?



While googling I saw others had mentioned issues with BTRFS and recommended XFS.  Looks like that's where my screwup was?

tower-diagnostics-20200111-0937.zip

Yes, if you have more than 1 drive in the cache the only supported format is BTRFS.

Thanks! Guess I have to do funky business to get my data off the drive and format.

Hello everyone;

I have an issue here and i am really hoping someone will be able to help.



Background:

I following the video from space invaders on how to encrpt an unassigned drive by stopping the array - remove the cache drive (pool of 2) and add the UD into the cache slot then select XFS Encrypt and start the array, etc..



I placed the 2 cache drives back in their spots and changed the file system back to btrfs and when i started i array i now get an error

Unmountable: No pool uuid

Device is part of a cache pool



I have also attached my diag logs.



Thank you!





Edited March 11, 20206 yr by iptvcld
Remove zio

I can't tell you what happened because whatever it was it happened before this boot but no btrfs filesystem are being detected which suggest cache devices were wiped.

And this is the case for both cache drives? This is not good at all.

Yes, they both should have the same filesystem, and neither has one, like the superblock was wiped.

hmm; and the whole goal here was just to format one of my UD as XFS-Encrypt (which i did). Too bad there is not an easier way to format a drive that is not in the array as encrypted.  This resorted me to swapping the cache and format my UD drive and now - 2 wiped cache drives..

23 minutes ago, iptvcld said:

Too bad there is not an easier way to format a drive that is not in the array as encrypted.

You can now use the UD plugin for that.

So for that; my array is not encrypted and i was told that i would not be able to use the UD pluigin if atleast one of my drives were not encrypted.

I had tried that first and marked it as format - XFS Ebcrypt and said failed.
