francrouge Posted November 27, 2018 Share Posted November 27, 2018 Hi all I got a question for you. I have a cache pool option in my setup. I have 3 ssd 1 x240gb 1x240gb 1x256gb My probleme is that the total is 368gb in unraid. How could this be right ? unraid-diagnostics-20181127-0456.zip Link to comment

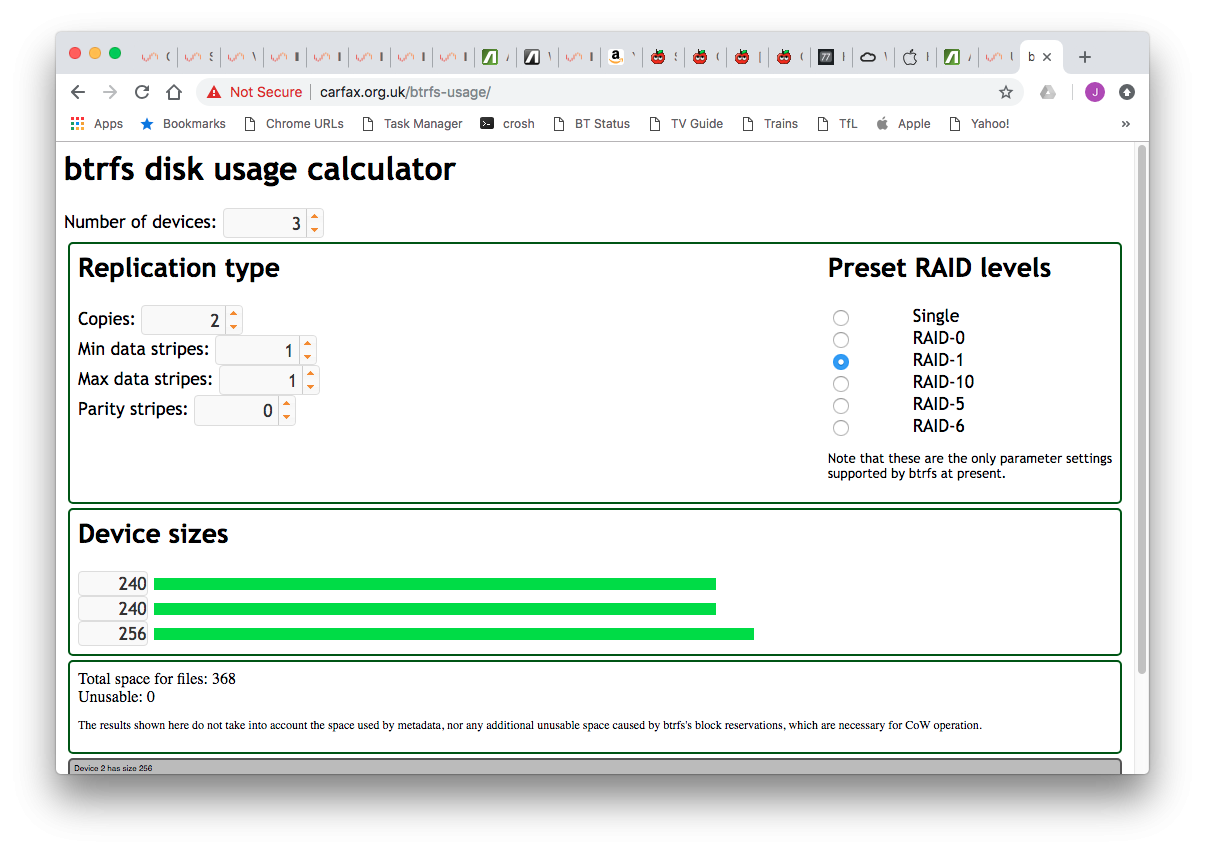

John_M Posted November 27, 2018 Share Posted November 27, 2018 That is exactly correct. See here: Link to comment
John_M Posted November 27, 2018 Share Posted November 27, 2018 I'm not sure what capacity you were expecting to see but BTRFS RAID 1 is a little different from traditional RAID 1. With three devices you don't end up with a triple mirror. Instead you get exactly two copies of any block. I believe the blocks are allocated to the three devices in a round robin fashion. The fact that the three disks aren't of equal capacity makes it complicated to visualise but think of it like this: half of the 256 GB device is mirrored on each of the two 240 GB devices, leaving 240 - 128 = 112 GB that's mirrored between the two 240 GB devices. 256 + 112 = 368 GB. Link to comment
francrouge Posted November 27, 2018 Author Share Posted November 27, 2018 O okay thx for the info I'm not sure what capacity you were expecting to see but BTRFS RAID 1 is a little different from traditional RAID 1. With three devices you don't end up with a triple mirror. Instead you get exactly two copies of any block. I believe the blocks are allocated to the three devices in a round robin fashion. The fact that the three disks aren't of equal capacity makes it complicated to visualise but think of it like this: half of the 256 GB device is mirrored on each of the two 240 GB devices, leaving 240 - 128 = 112 GB that's mirrored between the two 240 GB devices. 256 + 112 = 368 GB.Envoyé de mon Pixel 2 XL en utilisant Tapatalk Link to comment
