gareth_iowc

ultimarc aimtrak usb passthrough

6 posts in this topic Last Reply

Recommended Posts

Hi all,



So i have my windows 10 vm up and running great. I've passed through various usb devices including my xbox 360 wireless receiver successfully.



i have a ultimarc aimtrak lightgun i'm trying to passthrough but it's not fully working.

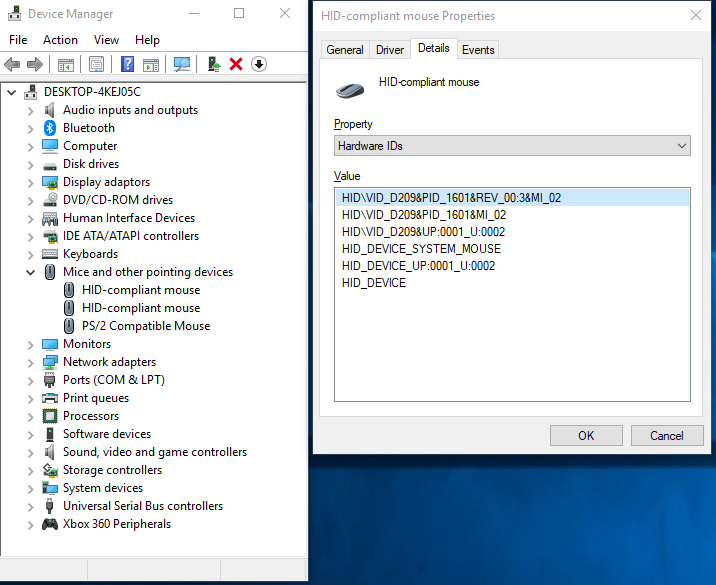

Under system devices i see it -



Bus 001 Device 009:ID d209:1601 Ultimarc



I am also able to pass it under the vm tab.



Windows does recognise and says it's ready to use.






i can also see it under the device tab but the gun fails to work.



The gun works as a mouse so when you move it around the cursor moves and if you shoot it registers as a click.

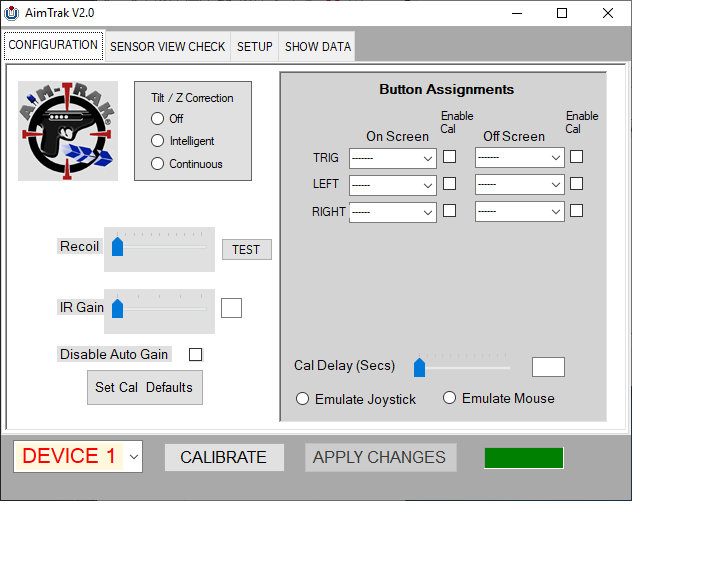

When i open the software the green box that usually shows the firmware version shows as blank. if i remove the gun from the usb port the box turns red so it kinda knows it's attached.

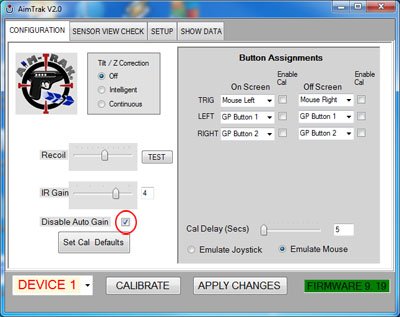

This is how it should look -






The gun works fine as i've tested it on my laptop.



Any suggestions would be great



Share this post


Link to post

For something like this you might have to pass through a usb controller.

Share this post


Link to post

Its pretty weird because I had it working using another KVM hypervisor using same passthrough USB port...going to keep playing around with the settings before I pull the trigger on a new usb controller. Thanks!

Share this post


Link to post

yep, I tried that one as well however ran into an issue as I had several devices on same IOMMU group. I then followed this guide and separated them using the syslinux


https://youtu.be/qQiMMeVNw-o?t=632



All is well now on my side. Thanks!!

Edited by 188pilas

Share this post


Link to post
