gareth_iowc

Internal error: unknown pci source type 'vendor'

6 posts in this topic Last Reply

Recommended Posts

Hi all,



I'm trying to passthrough a usb controller but having some trouble.



 I have edited the system file and rebooted  "append vfio-pci.ids=1b21:1242 initrd=/bzroot"



After the reboot under vm config and pci i can see - ASMedia Technology Inc. ASM1142 USB 3.1 Host Controller | USB controller (05:00.0)

But when i select this and click update i get - Internal error: unknown pci source type 'vendor'





Any ideas?





IOMMU group 16

[RESET] 05:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM1142 USB 3.1 Host Controller [1b21:1242]





IOMMU group 7
[RESET]	00:1b.2 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #19 [8086:a169] (rev f1)
IOMMU group 15
[RESET]	03:00.0 Ethernet controller [0200]: Qualcomm Atheros Killer E2400 Gigabit Ethernet Controller [1969:e0a1] (rev 10)
IOMMU group 5
	00:17.0 SATA controller [0106]: Intel Corporation Q170/Q150/B150/H170/H110/Z170/CM236 Chipset SATA Controller [AHCI Mode] [8086:a102] (rev 31)
IOMMU group 13
[RESET]	00:1d.0 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #9 [8086:a118] (rev f1)
IOMMU group 3
	00:14.0 USB controller [0c03]: Intel Corporation 100 Series/C230 Series Chipset Family USB 3.0 xHCI Controller [8086:a12f] (rev 31)
IOMMU group 11
[RESET]	00:1c.3 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #4 [8086:a113] (rev f1)
IOMMU group 1
	00:01.0 PCI bridge [0604]: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x16) [8086:1901] (rev 07)
[RESET]	01:00.0 VGA compatible controller [0300]: NVIDIA Corporation GM204 [GeForce GTX 970] [10de:13c2] (rev a1)
	01:00.1 Audio device [0403]: NVIDIA Corporation GM204 High Definition Audio Controller [10de:0fbb] (rev a1)
IOMMU group 8
[RESET]	00:1b.3 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #20 [8086:a16a] (rev f1)
IOMMU group 16
[RESET]	05:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM1142 USB 3.1 Host Controller [1b21:1242]
IOMMU group 6
[RESET]	00:1b.0 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #17 [8086:a167] (rev f1)
IOMMU group 14
	00:1f.0 ISA bridge [0601]: Intel Corporation Z170 Chipset LPC/eSPI Controller [8086:a145] (rev 31)
	00:1f.2 Memory controller [0580]: Intel Corporation 100 Series/C230 Series Chipset Family Power Management Controller [8086:a121] (rev 31)
	00:1f.3 Audio device [0403]: Intel Corporation 100 Series/C230 Series Chipset Family HD Audio Controller [8086:a170] (rev 31)
	00:1f.4 SMBus [0c05]: Intel Corporation 100 Series/C230 Series Chipset Family SMBus [8086:a123] (rev 31)
IOMMU group 4
	00:16.0 Communication controller [0780]: Intel Corporation 100 Series/C230 Series Chipset Family MEI Controller #1 [8086:a13a] (rev 31)
IOMMU group 12
[RESET]	00:1c.4 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #5 [8086:a114] (rev f1)
IOMMU group 2
[RESET]	00:02.0 VGA compatible controller [0300]: Intel Corporation HD Graphics 530 [8086:1912] (rev 06)
IOMMU group 10
[RESET]	00:1c.2 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #3 [8086:a112] (rev f1)
IOMMU group 0
	00:00.0 Host bridge [0600]: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor Host Bridge/DRAM Registers [8086:191f] (rev 07)
IOMMU group 9
[RESET]	00:1c.0 PCI bridge [0604]: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #1 [8086:a110] (rev f1)



Share this post


Link to post
On 1/30/2019 at 9:16 PM, gareth_iowc said:

Sorry It's resolved.



It was looking for a usb device that i had removed. was still in the xml config

Hey! Could you tell me how you got this resolved exactly? I am also facing an issue with this controller.

Share this post


Link to post

I've gotten past it in the past by manually editing the XML file to remove the passed through devices at the end, or by recreating the VM, or by plugging the USB device back in and removing it via the GUI.

Share this post


Link to post

Posting this just incase anybody else comes here looking for a solution to this.



I ran into this issue this evening when trying to pass through a pcie usb card. The reason this happened was that I had the items plugged into the usb hub previously passed through, but when you reboot the server after altering your system file, they are still in the xml.



I fixed this by doing the following:

1. Remove the usb items from the card and place them into another slot.

2. Reload the vm template.

3. Uncheck the previously loaded items.

4. Save the template.

5. Re-enable your newly configured card

6. Save the template again.



Share this post


Link to post

Hi, I'm having same problem with my Data/Fax modem below, was all along working fine in 6.7 until I upgraded to latest version 6.8.x, not really certain which exact version started the problem. The modem is supposed to be passed through to windows 10 which was receiving & recording all analog calls & faxes. We still use faxes in South Africa.



IOMMU group 9:

[8086:244e] 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev 90)

[11c1:0620] 06:04.0 Communication controller: LSI Corporation Lucent V.92 Data/Fax Modem

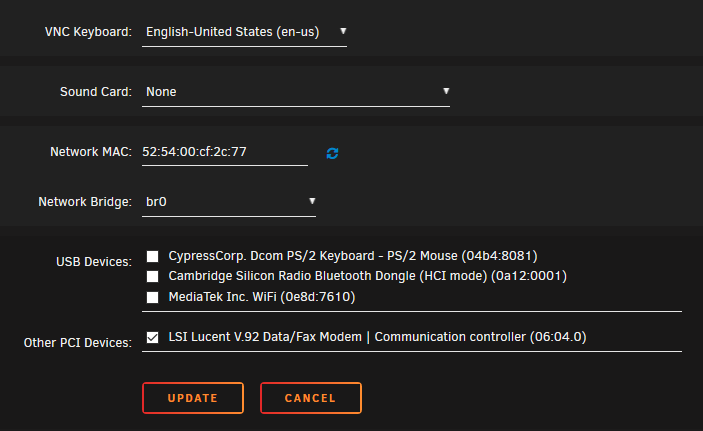

LSI Lucent.PNG

Share this post


Link to post
