socbuter Posted May 8, 2019 Share Posted May 8, 2019 (edited) When running a parity check the server crashes about 65% into its process. The following diagnostics files are before a running parity check and after a reboot. My Server M/B: Supermicro X8SIL Version 0123456789 - s/n: VM15S70045 BIOS: American Megatrends Inc. Version 1.2a. Dated: 06/27/2012 CPU: Intel® Xeon® CPU X3470 @ 2.93GHz HVM: Enabled IOMMU: Enabled Cache: 256 KiB, 1024 KiB, 8192 KiB Memory: 16 GiB DDR3 Single-bit ECC (max. installable capacity 16 GiB) Network: eth0: 1000 Mbps, full duplex, mtu 1500 eth1: interface down Kernel: Linux 4.19.30-Unraid x86_64 OpenSSL: 1.1.1b Plugins Installed CA Auto Update Applications CA Backup / Restore Appdata CA Config Editor Dynamix Day Night Dynamix File Integrity Dynamix S3 Sleep Dynamix SCSI Devices Dynamix SSD TRIM Dynamix System Buttons Dynamix System Information Dynamix System Statistics Dynamix System Temperature Fix Common Problems Nerd Tools Preclear Disks Tips and Tweaks Unassigned Devices Docker Containers binhex-delugevpn binhex-emby binhex-krusader binhex-radarr binhex-sabnzbd binhex-sonarr pihole any help you could offer will be appreciated. Carlos tower-diagnostics-20190507-1630.zip tower-diagnostics-20190508-1511.zip Edited May 17, 2019 by socbuter added plugins dockers containers solved Quote Link to comment
JorgeB Posted May 8, 2019 Share Posted May 8, 2019 1 hour ago, socbuter said: The following diagnostics files are before a running parity check and after a reboot. So they won't be much help, since you are on v6.7 you can enable the syslog server and see if something is captured there. Quote Link to comment

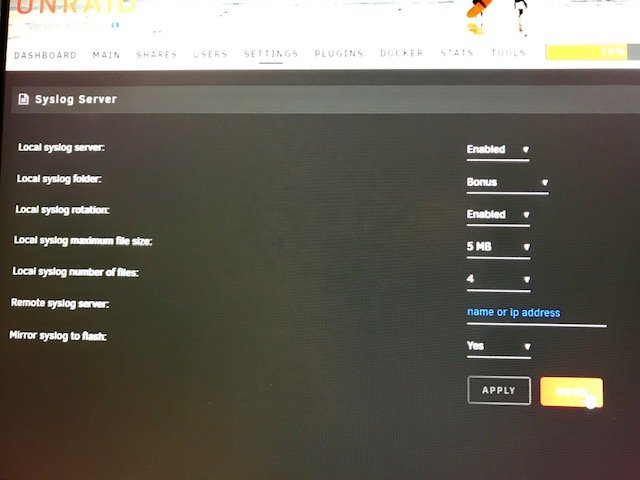

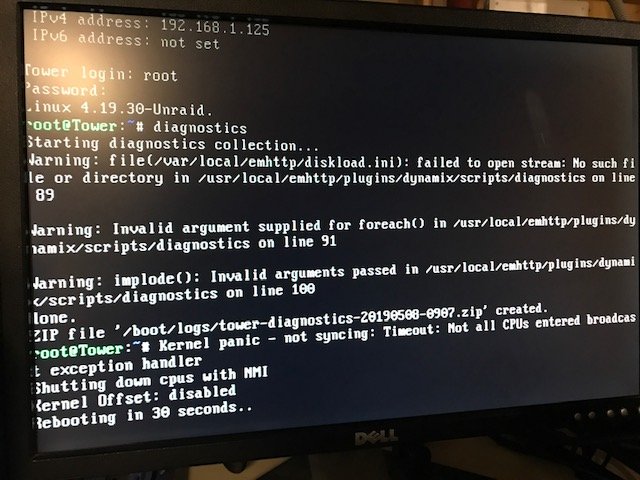

socbuter Posted May 8, 2019 Author Share Posted May 8, 2019 (edited) I've enabled SYSLOG SERVER. The first picture is the latest error before enabling SYSLOG SERVER The second is my input to SYSLOG SERVER. the zip file depict in the first picture tower-diagnostics-20190508-0907.zip Edited May 9, 2019 by socbuter Quote Link to comment
johnnyicesae Posted May 17, 2019 Share Posted May 17, 2019 I am having the same issue. Although i haven’t been able to grab any logs. Quote Link to comment
socbuter Posted May 17, 2019 Author Share Posted May 17, 2019 (edited) I found the suggestion in this link to resolved my crashes. Thank you! 14 hours ago, johnnyicesae said: I am having the same issue. Although i haven’t been able to grab any logs. Enable Syslog Server in SettIngs. I've resolved the parity fails by connecting all Toshiba drives to the motherboard's sata ports. The Toshiba drives I think maybe incompatible with the Syba PCI Express SATA II 4 x Ports RAID Controller Card SY-PEX40008. Hope that helps. Can you recommend a controller card? Edited May 17, 2019 by socbuter Quote Link to comment
JorgeB Posted May 17, 2019 Share Posted May 17, 2019 3 hours ago, socbuter said: Can you recommend a controller card? Any LSI with a SAS2008/2308/3008 chipset in IT mode, e.g., 9201-8i, 9211-8i, 9207-8i, 9300-8i, etc and clones, like the Dell H200/H310 and IBM M1015, these latter ones need to be crossflashed. Quote Link to comment
socbuter Posted May 17, 2019 Author Share Posted May 17, 2019 1 6 hours ago, johnnie.black said: Any LSI with a SAS2008/2308/3008 chipset in IT mode, e.g., 9201-8i, 9211-8i, 9207-8i, 9300-8i, etc and clones, like the Dell H200/H310 and IBM M1015, these latter ones need to be crossflashed. Thank you! Bought LSI 9201-8i on e-bay. Quote Link to comment
johnnyicesae Posted May 19, 2019 Share Posted May 19, 2019 I have 1 toshiba drive and it’s only connected via unassign devices. I’ve been meaning to disconnect but maybe this will be the motivation i need. Quote Link to comment
Deryg Posted May 27, 2019 Share Posted May 27, 2019 So I have the same issue since upgrading to 6.7 . Only difference is that my system crashes when parity check reaches 75%. Controller i a flashed Dell H30 so I doubt taht's the issue. Unfortunately for me , I've been spoiled with Unraid jsut working so I haven't had to go too deep under the hood yet. Would appreciate any guidance in where to look, what logs to turn on to get to the bottom of this and knowing if anyone else has had this issue. Seems new since upgrading to 6.7 is all I can say for no. Quote Link to comment
JorgeB Posted May 27, 2019 Share Posted May 27, 2019 4 hours ago, Deryg said: what logs to turn on to get to the bottom of this If you can't get the diagnostics after it happens try enabling syslog mirror to flash and post that. Quote Link to comment
Deryg Posted May 28, 2019 Share Posted May 28, 2019 Stupid question 2. Where the heck is that option hidden in 6.7? I've jsut spent about 40 minutes combing through the new GUI and can't find it Quote Link to comment
itimpi Posted May 28, 2019 Share Posted May 28, 2019 4 minutes ago, Deryg said: Stupid question 2. Where the heck is that option hidden in 6.7? I've jsut spent about 40 minutes combing through the new GUI and can't find it Under Settings->Syslog. Quote Link to comment
