Virtualizing unRAID on Proxmox 6.0.4

27 posts in this topic Last Reply

Recommended Posts

Having issues, I have following the post from Brnson, but I think I am missing something.



here are the steps I followed



On 7/30/2019 at 12:51 PM, Benson said:



Step almost the same, but I think best should be prepare unraid USB stick first then unplug it before prepare Proxmox.



Below are some detail



1. Unplug well prepare Unraid USB, best ( not must ) confirm it can boot in UEFI mode.

2. Install Proxmox to harddisk, make IOMMU enable.

3. Replug Unraid USB

4. Create VM






4a. Tweak ( Some step may not necessary )

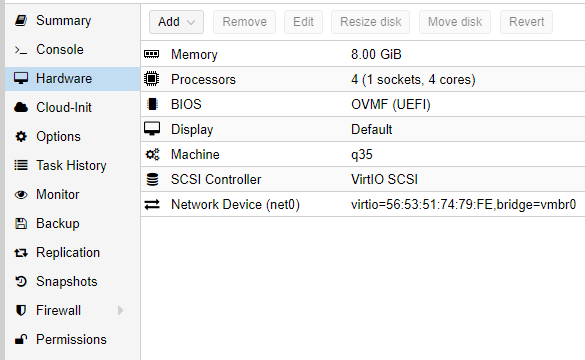

- Click CD/DVD drive, remove it

- Click Hard Disk, detach and remove it






- Add phyical disk controller and physical Unraid USB stick










4b. Tweak

- Edit boot order, only retain CD-ROM  in boot device_1






That's all.



so the steps I have takes.  I have created a Test UNRAID USB pen drive. - all works with no issues with a 4TB Hard Drive for storage.

I then installed Proxmox onto a 1TB HD.

so far so good.

then I followed Bensons steps and here is where the fun starts. I will post each step. in the hope someone will see my mistake.



First I check the I have IOMMU Groups

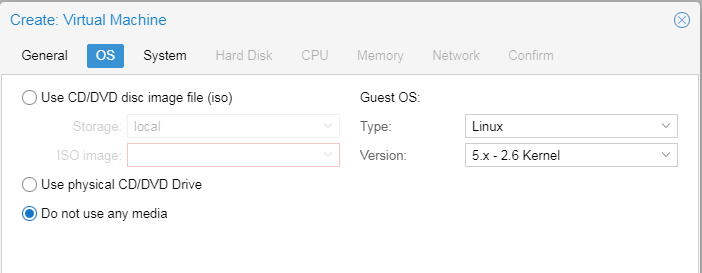

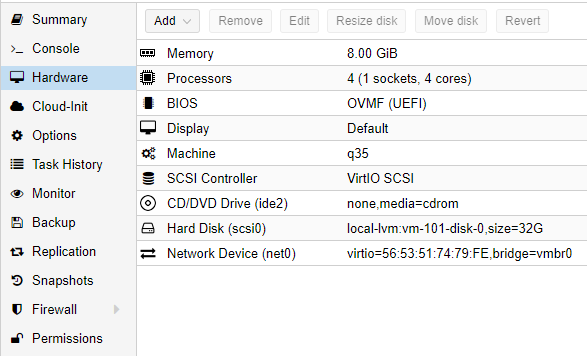

then I created the VM






I did't choose of OS as I was thinking that as I am passthrough my Unraid Pen drive, I will not need to set this up




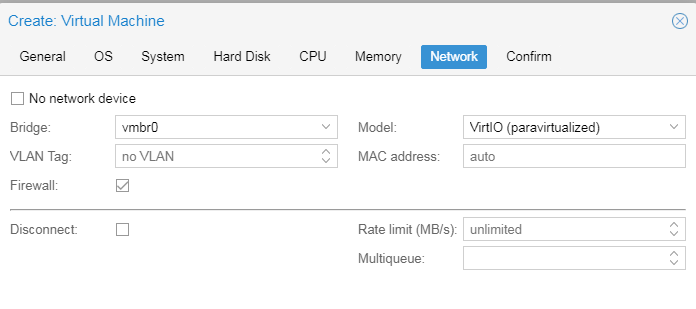

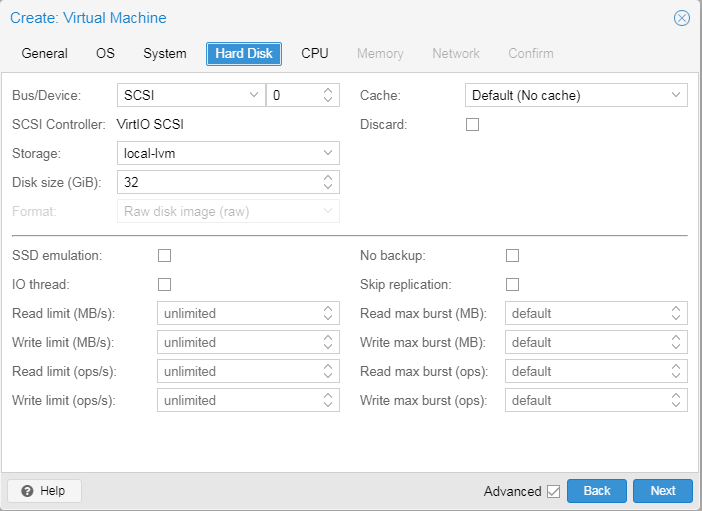

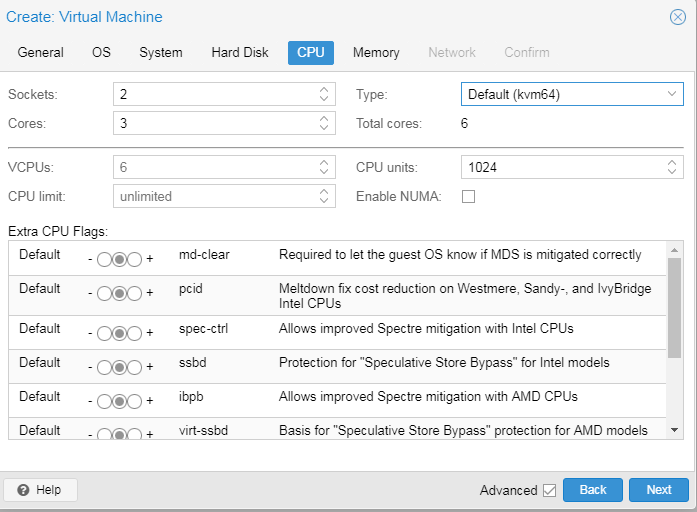

working my way through
















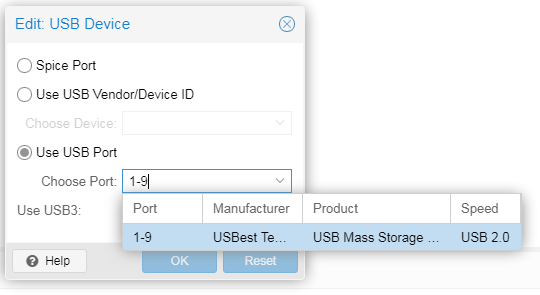

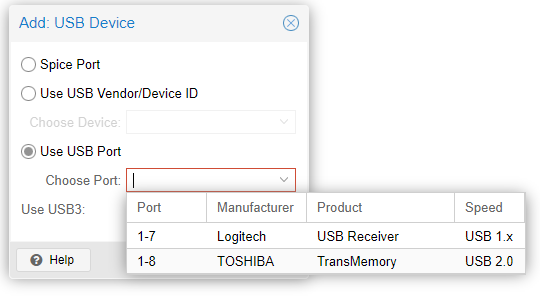

and it build OK then I when through and remvoe the CDROM and Added the Unraid Pen Drive.

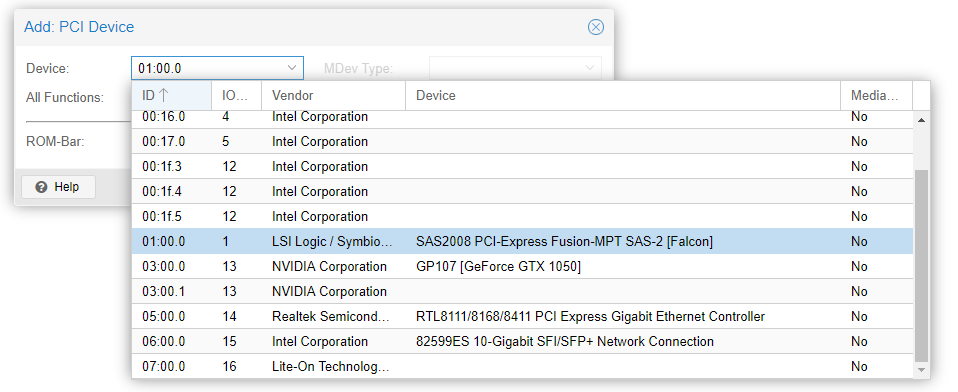

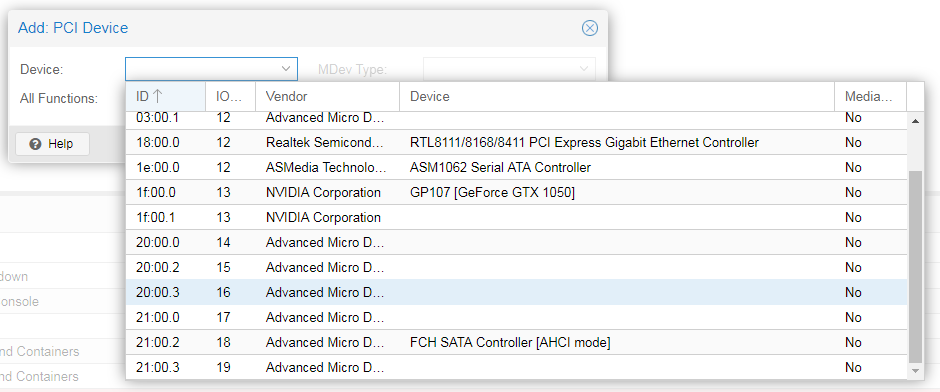

when adding the PCI Controllor I am getting the following --  No Ideal How to resovlve this at the moment

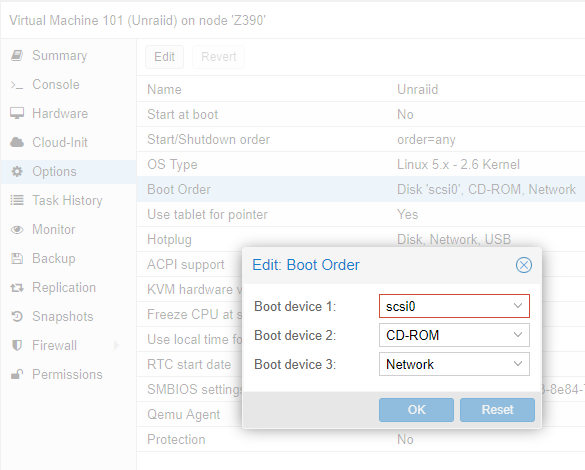

then I confirm my boot order




but when I start my VM, then I am getting this



TASK ERROR: KVM virtualisation configured, but not available. Either disable in VM configuration or enable in BIOS.



and here is my Hard Spec




Share this post


Link to post

You try in new B450 platform



1st don't add PCIe device 18:00.0 it is groups 12 with other devices ( SATA controller ? If it is a controller which connect PVE harddisk then you can't passthrough it )

2nd don't add PCIe device 1f:00.0, it is groups 13, ( GPU ? )

3rd boot order change to CD-ROM as device_1, 2 & 3 set to none

4th you haven't show you add Unraid USB or not



Then check Unraid USB boot or not, if negative, screen dump VNC ( console ) and final VM profile and IOMMU device name.

Edited by Benson

Share this post


Link to post

I know I did something silly.



thanks benson,

I have gone through and completed steps 1, 2 and 3.



I have also recheck my USB




and now when I run the VM, I am getting this error

()

Task viewer: VM/CT 100 - Console

OutputStatus

Stop

VM 100 not running
TASK ERROR: Failed to run vncproxy.



my VM Set up.




bit confused, what do you mean by IOMMU device name

Edited by chris_netsmart

Share this post


Link to post

** Pls reboot physical machine first, because you have passthrough the GPU **

After start the VM, click "hardware" tab then back to "console" tab again and check.



Pls also double check in BIOS, virtualisation already enable.





And, not relate the vncproxy error, pls remove EFI disk, and disable Network device's firewall .



3 hours ago, chris_netsmart said:

bit confused, what do you mean by IOMMU device name

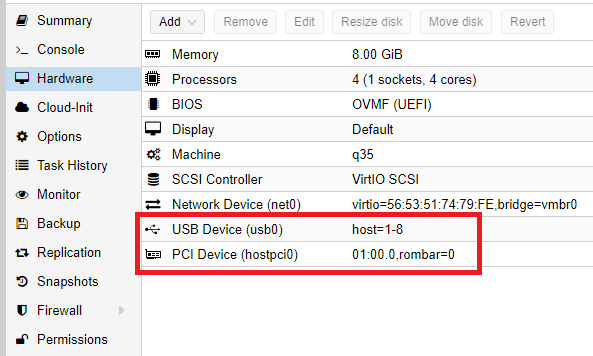

Pls screen capture as below for ref. too


Edited by Benson

Share this post


Link to post

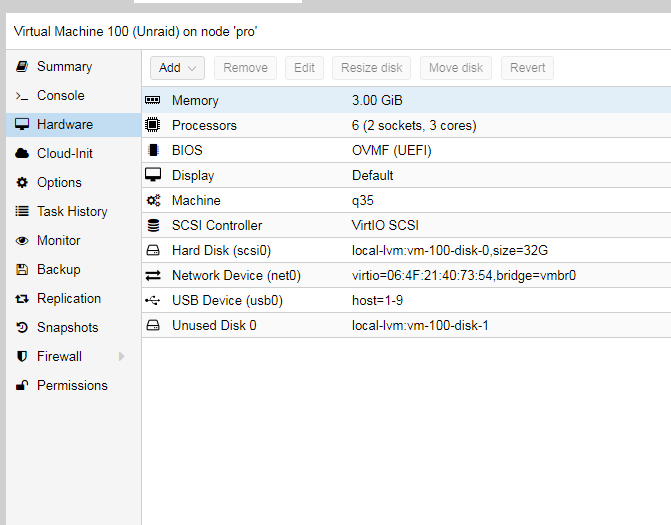

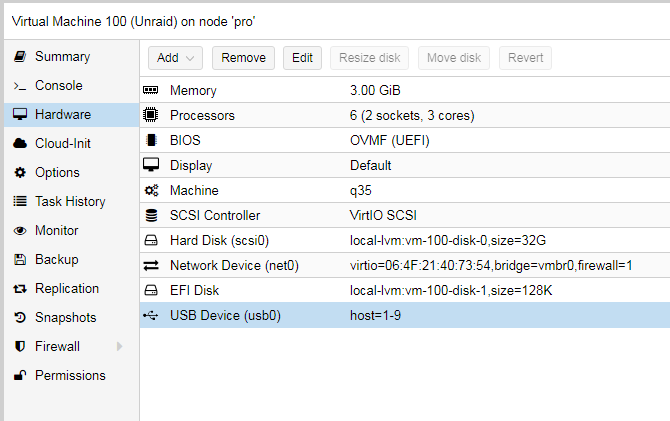

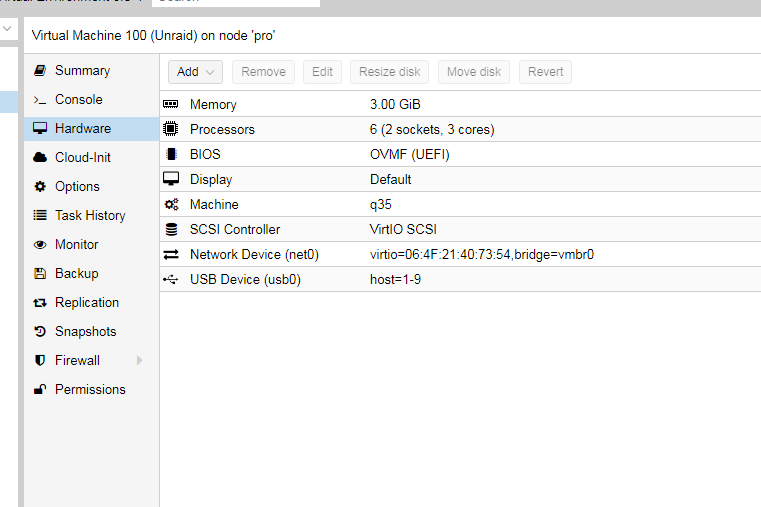

ok I done as request and here is a snip shot of my VM

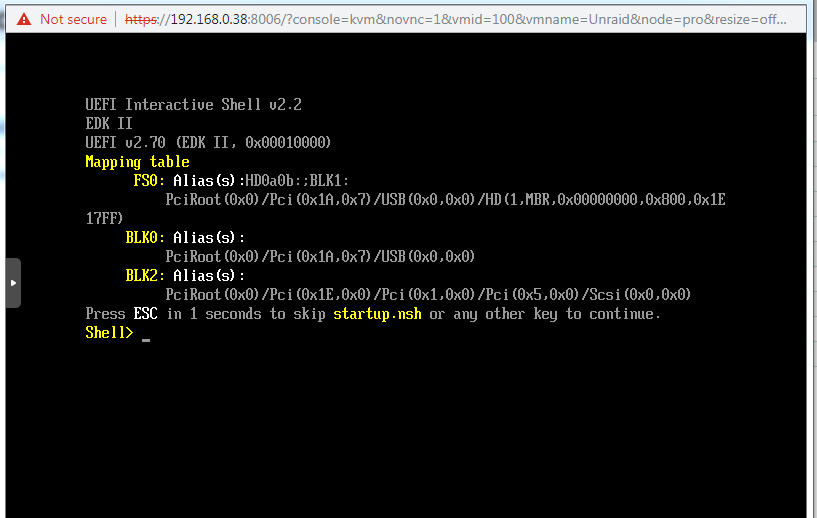

I have then powerup up my VM and I got the following screenshots







and lastly can you confirm which IOMMU  I should choose


Share this post


Link to post

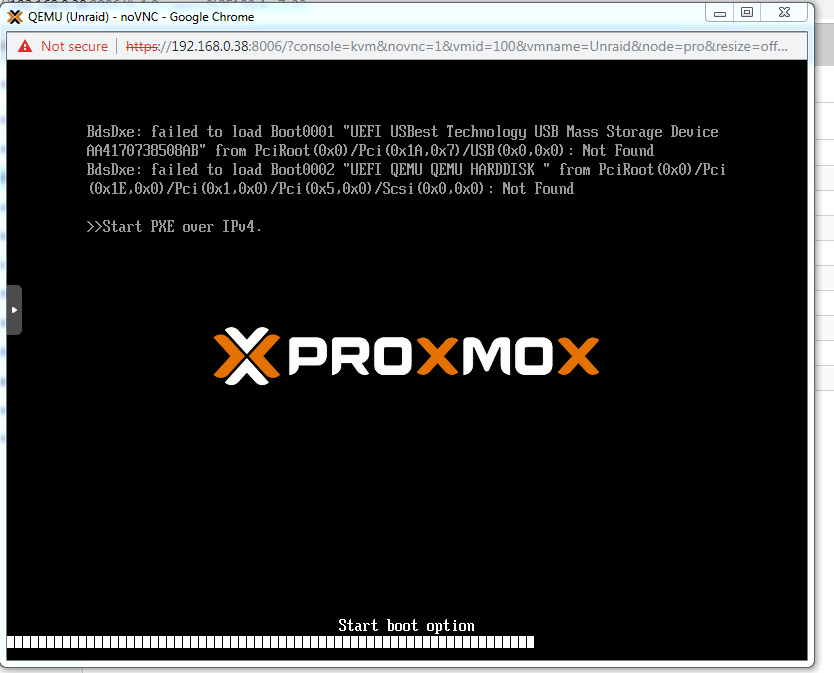

VM can start, then remain booting issue, why "Unuses disk" & "Hard disk" still there ??



And don't know why showing  "USBest Technology ......" ( Unraid USB ? ) not found,  pls reconfirm the USB port haven't change.





Edited by Benson

Share this post


Link to post

my mistake




still getting the same issue, as above.

it looks like it can't see the USB Device "Unraid Pen Drive"

Edited by chris_netsmart

Share this post


Link to post



17 minutes ago, chris_netsmart said:

and lastly can you confirm which IOMMU  I should choose

This will be last, you shoud success bootup Unraid USB first.

Edited by Benson

Share this post


Link to post

confused ?

3 minutes ago, Benson said:



This will be last, you shoud success bootup Unraid USB first.

would it be easier if I give you access to my workstation, via Team Viewer ?

Share this post


Link to post
1 minute ago, chris_netsmart said:

confused ?

would it be easier if I give you access to my workstation, via Team Viewer ?

Sorry, not suitable and I haven't Team Viewer.

Unraid booting success ??

Share this post


Link to post

OK, let me think.



Unraid USB stick UEFI boot mode enable ? or your may set VM to SeaBIOS/i440fx and try.


Edited by Benson

Share this post


Link to post

changed to SeaBios, and it looks like it is booting into Unraid ;-)



ok we have Booted into Unraid with no issues, but there are no hard drivers or M.2 SSD

Edited by chris_netsmart

Share this post


Link to post
9 minutes ago, chris_netsmart said:

ok tried setting the machine to I440FX - the same

when to BIOS to change to above suggestion, and saw this


If Unraid already config UEFI boot enable, that's it. You won't found my VM config need add EFI disk too.

Edited by Benson

Share this post


Link to post
6 minutes ago, chris_netsmart said:

changed to SeaBios, and it looks like it is booting into Unraid ;-)

OK good, anyway you should take more care on all mention step, many uncessary fault.



Last, you just need passthrough the disk controller ( Unarid disk which connect, not include PVE disk ), but the controller must in standalone groups.

i.e. FCH SATA controller, it is standalone in group18 ( But I never try that succes or not )






Edited by Benson

Share this post


Link to post
3 minutes ago, chris_netsmart said:

ok, so for example I will need to get my GeForce GTX into it's only group.

and also for any SATA controllors, like the on board ports



Yes, otherwise need tweak the iommu parameter as your URL link provide, GPU passthrough usually not easy.

Edited by Benson

Share this post


Link to post

ok thanks.



I will play around with this evening. and see how far I get.



thanks for your help

Edited by chris_netsmart

Share this post


Link to post

How did you mange to force Proxmox to usb boot at first?



The only workaround for me to boot Unraid at the moment is, hit esc during boot and manually select usb boot.

Share this post


Link to post

You can edit VM XML and add "boot order" line under the USB





Share this post


Link to post
46 minutes ago, jaddel said:

How did you mange to force Proxmox to usb boot at first?



The only workaround for me to boot Unraid at the moment is, hit esc during boot and manually select usb boot.

Found a solution:



Download Plop Boot loader: https://www.plop.at/en/plopkexec/download.html

Extract the .iso from the package.

Upload it to Proxmox isos : https://sumguy.com/proxmox-iso-upload-method/



Add IDE CDROM to your VM with the iso.





Share this post


Link to post
4 minutes ago, Benson said:

You can edit VM XML and add "boot order" line under the USB





how does that apply for Proxmox?

Share this post
