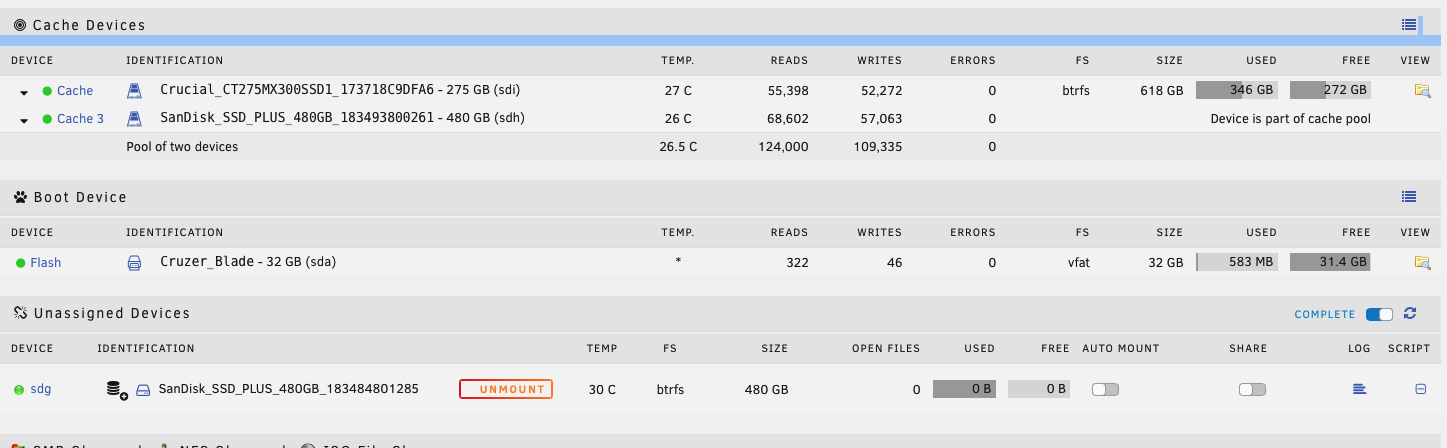

dsmith44 Posted September 30, 2019 Share Posted September 30, 2019 (edited) Hello, I had an issue with an SSD that is part of my three drive cache, I think due to cabling, lots of CRC errors Reseating all the cables and booting back into rescue mode I ran Btrfs scrub on the device and it corrected some 1,000,000 errors correctly, no failed repairs. Rebooted into unraid full and it for some reason then ran a resize for two hours then settled down again. Finally I have a situation where the actual Btrfs seems fine although in need of a balance, but unraid thinks only two of the three disks are actually in the cache. Smarctl -t on affected SSD is showing nothing. Not quite sure how to progress, any ideas? Thanks root@unraid:~# btrfs fi show /mnt/cache Label: none uuid: 80776be4-065e-404e-a103-acb4b5026956 Total devices 3 FS bytes used 322.01GiB devid 1 size 256.17GiB used 256.17GiB path /dev/sdi1 devid 2 size 447.14GiB used 70.00GiB path /dev/sdg1 devid 3 size 447.14GiB used 322.17GiB path /dev/sdh1 root@unraid:~# btrfs fi usage /mnt/cache Overall: Device size: 1.12TiB Device allocated: 648.34GiB Device unallocated: 502.11GiB Device missing: 0.00B Used: 644.03GiB Free (estimated): 251.72GiB (min: 251.72GiB) Data ratio: 2.00 Metadata ratio: 2.00 Global reserve: 240.80MiB (used: 0.00B) Data,RAID1: Size:322.14GiB, Used:321.47GiB /dev/sdg1 69.00GiB /dev/sdh1 320.14GiB /dev/sdi1 255.14GiB Metadata,RAID1: Size:2.00GiB, Used:553.47MiB /dev/sdg1 1.00GiB /dev/sdh1 2.00GiB /dev/sdi1 1.00GiB System,RAID1: Size:32.00MiB, Used:96.00KiB /dev/sdh1 32.00MiB /dev/sdi1 32.00MiB Unallocated: /dev/sdg1 377.14GiB /dev/sdh1 124.97GiB /dev/sdi1 1.01MiB root@unraid:~# unraid-diagnostics-20190930-2242.zip Edited October 1, 2019 by dsmith44 Quote Link to comment
JorgeB Posted October 5, 2019 Share Posted October 5, 2019 Stop the array, if Docker/VM services are using the cache pool disable them, unassign all cache devices, start array to make Unraid "forget" current cache config, stop array, reassign the 3 cache devices, re-enable Docker/VMs if needed, start array. Quote Link to comment
