VLAN causing errors in docker settings menu and well, it is a mess!

[tknx]

I had another thread going, but it was a bit confused, so I am trying to repost this in a more organized manner (and I deleted the old thread). @bonienl , you were tagged in the previous thread, so tagging you here.



When I enable a VLAN, I get two visible problems:

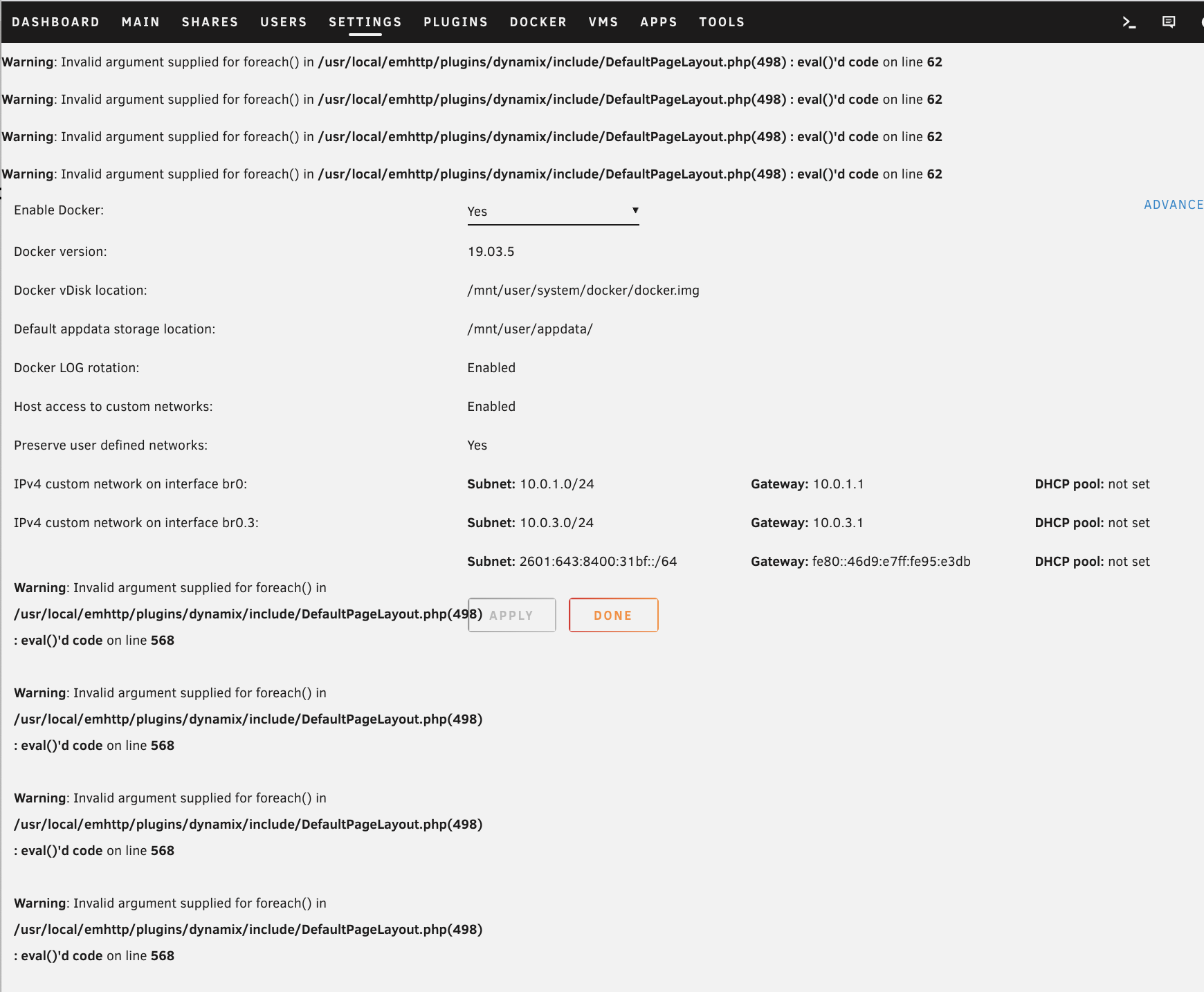

1) I get weird errors on my Docker Settings page:

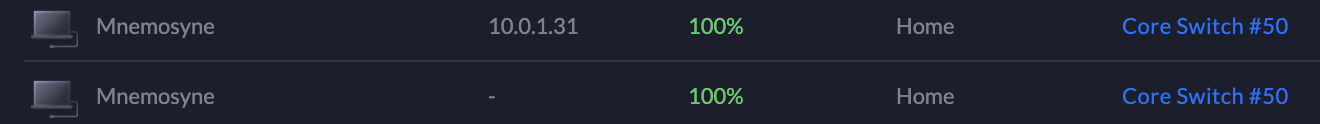

2) My Unifi Controller will show both instances on either the Home or IOT VLAN, but not split. If I turn on IPv4 address assignment for the VLAN, it will get an IP in that range, but the untagged number disappears and it shows both entries on IOT).



Settings and diagnostics follow:

mnemosyne-diagnostics-20200227-1431.zip

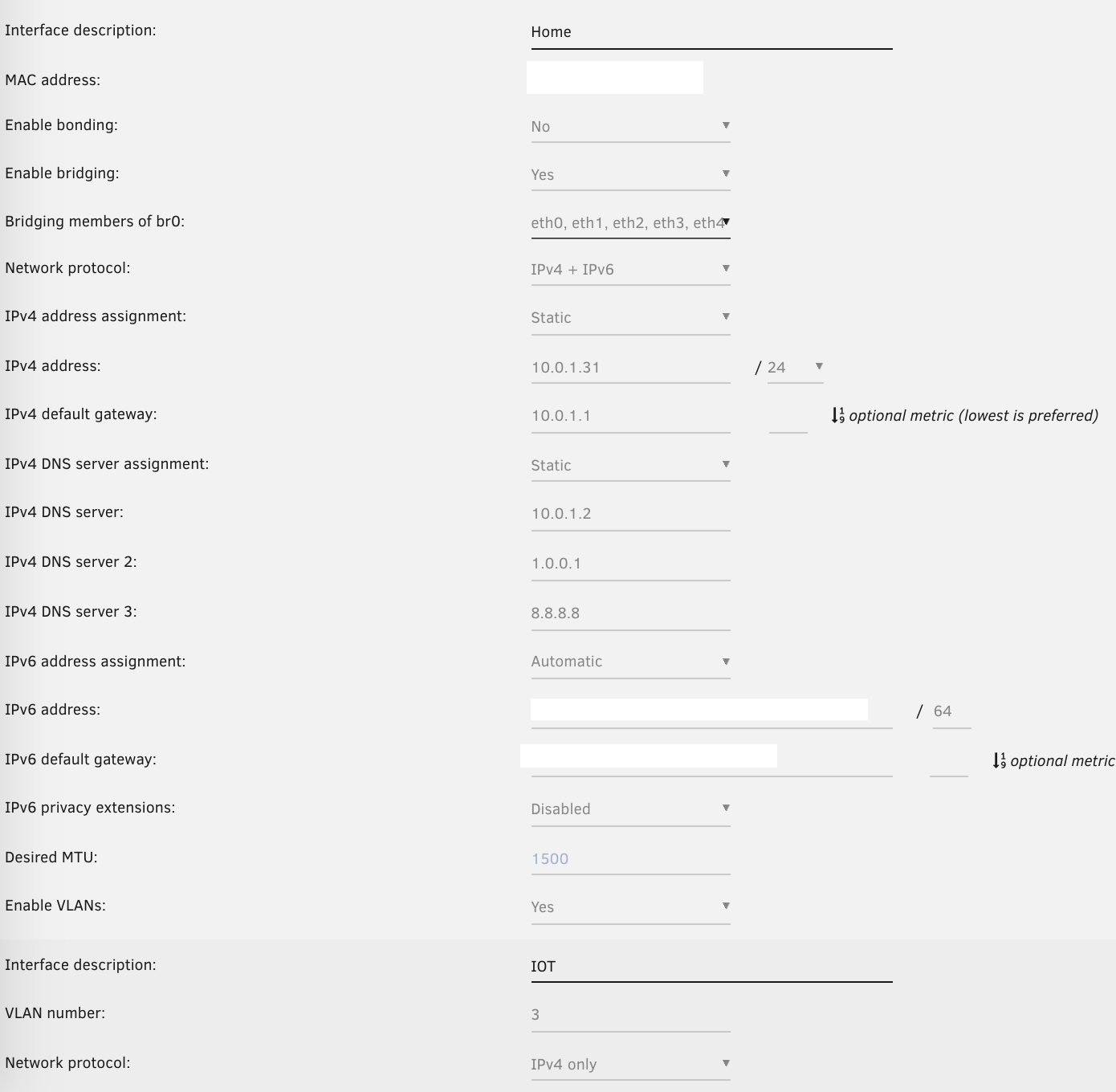

I have my untagged LAN and a VLAN (tagged as 3) for IOT type devices. I added the VLAN to Network Settings as shown:

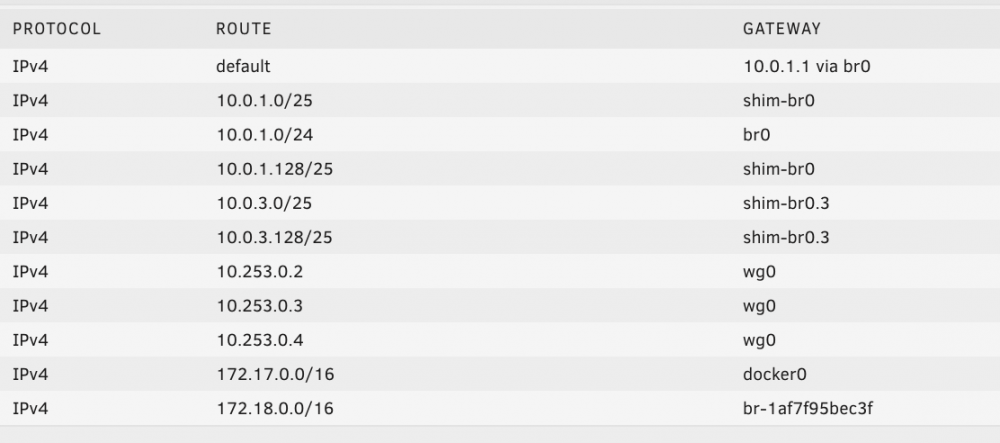

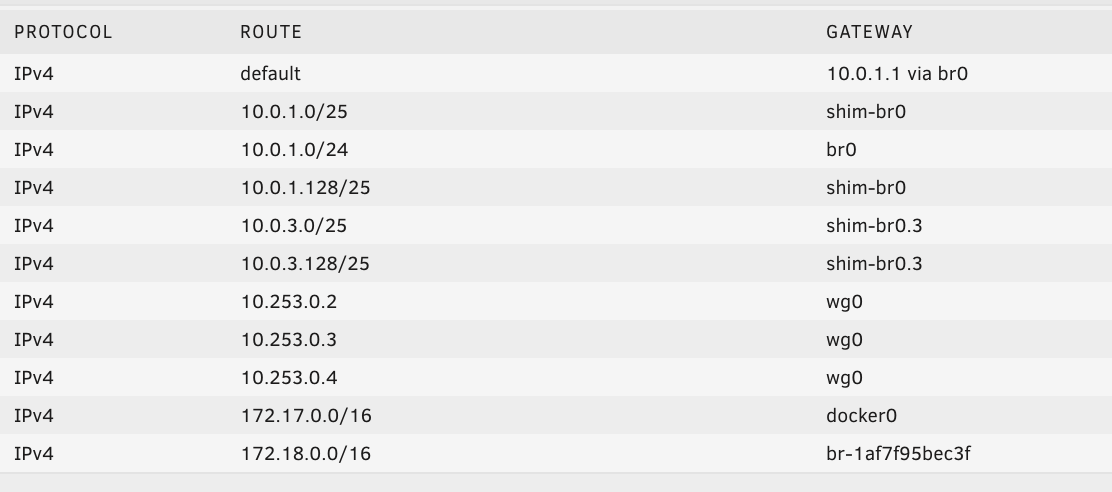

My routing table:





[tknx]

@bonienlfor some reason, my tagging didn't take (sorry)!
