Hello,



this is my setup:

CPU

Core i9-9900K 3.6GHz 8-Core Processor

Motherboard

Gigabyte - Z390 AORUS PRO ATX LGA1151 Motherboard

Graphics card

Sapphire Radeon PULSE RX 5700 XT 8G, 8GB GDDR6

Memory

HyperX Fury Black 32GB (2x16GB)



I am currently running bare metal Hackintosh with dual boot to Windows 10. I would like to migrate to unRaid and setup windows 10 VM and Mac OS X VM with GPU passthrough. Windows 10 would be mostly for graphic work like photoshop, video editing and 3D software. Mac OS X VM woudl be for general work and mostly as backup for my Macbook pro.



I've manage to setup Catalina VM with Macinabox from SpaceinvaderOne (That guy is genius) which works fine with VNC graphic, but I am unable to pass RX 5700 XT. I've manage to start VM with passed HW, but I am unable to see anything at my monitor.



Was anyone successful with this graphic card?





ok so I've manage to solve passthrough, but I am unable to start Catalina. Did anyone have working EFI for 5700XT?

dump your own. its not hard. there's even a video walkthrough







I have my own, but I struggle with this kind of behaviour

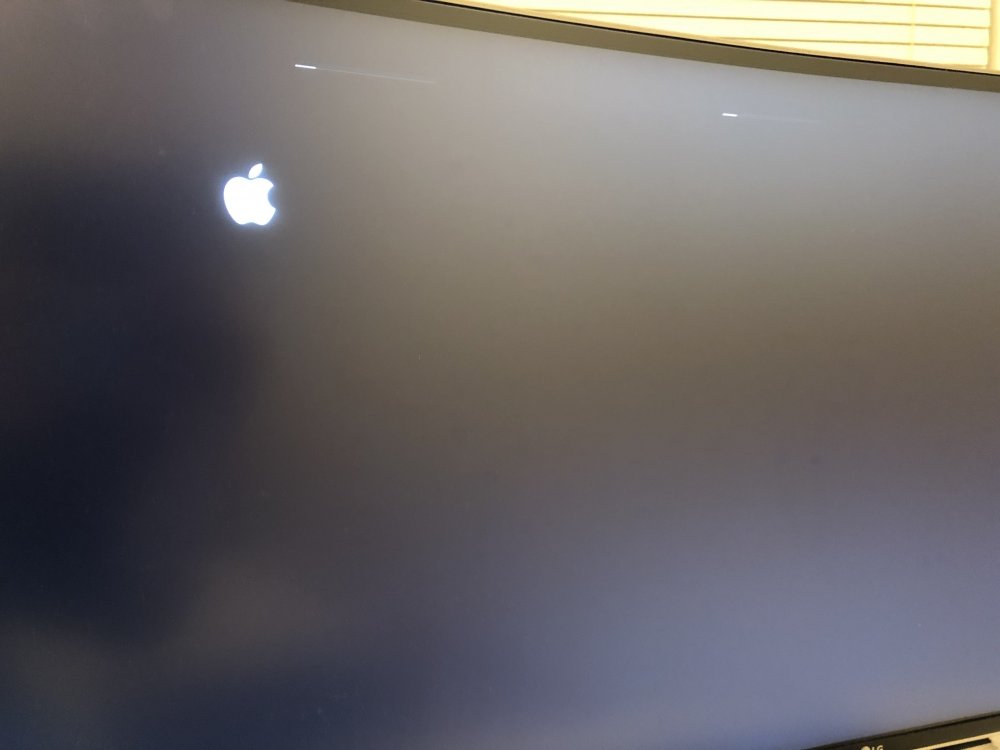

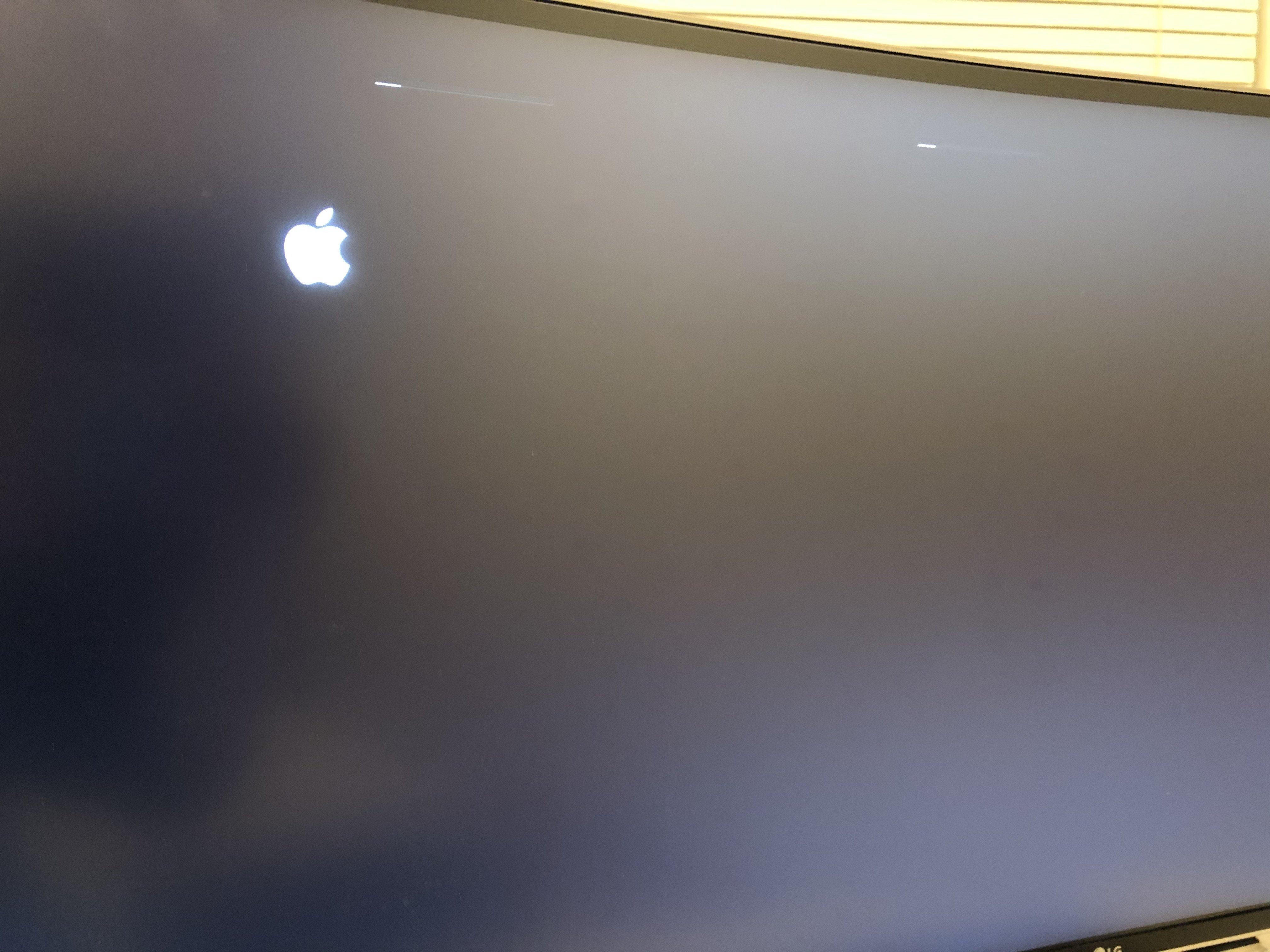

everythink is in upper part of the screen - like in upper 10 centimeters



VNC did this when I had wrong paths in <os>...</os> but I have correct paths now

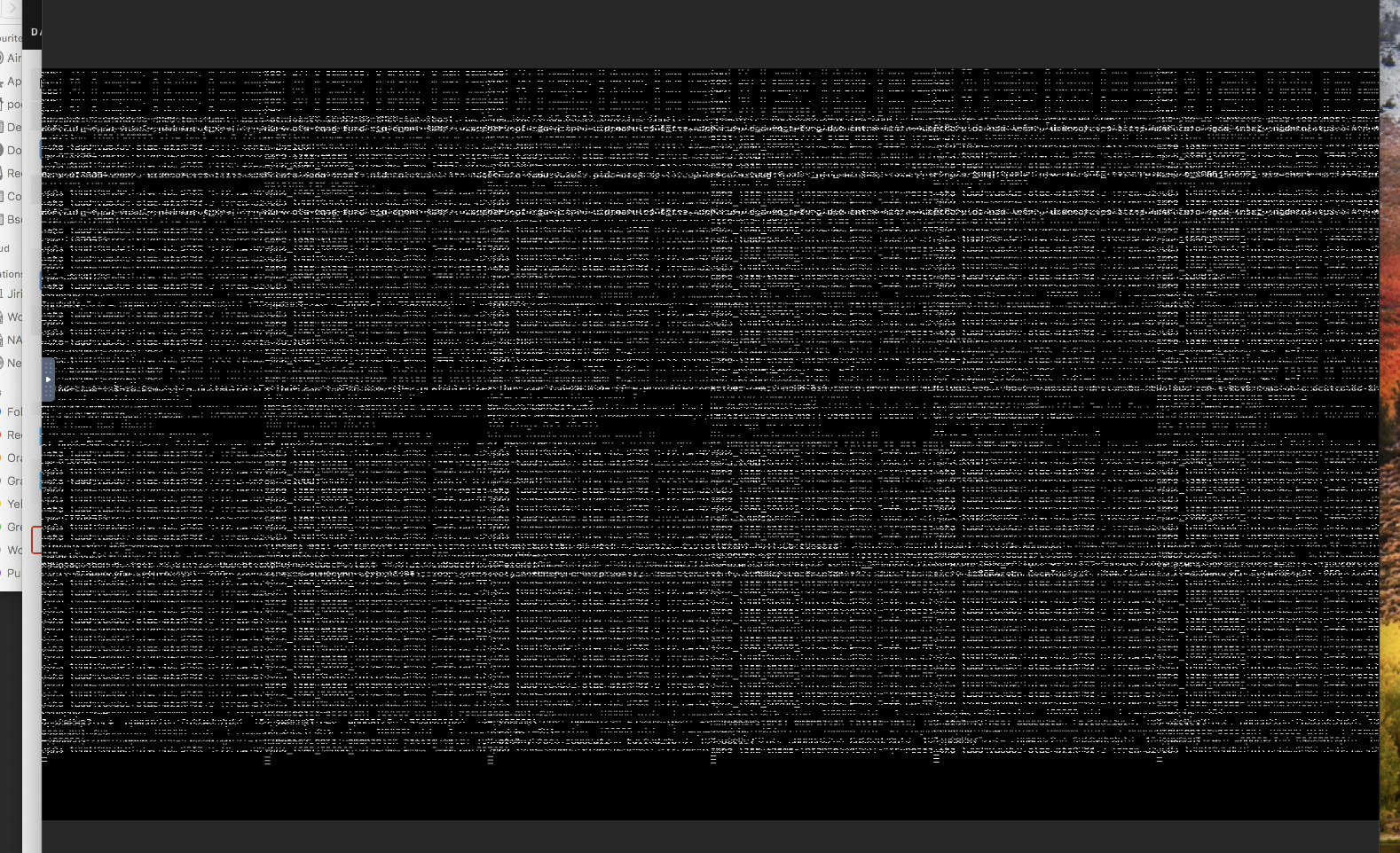

ok so this is maybe better example - when I add boot flag -v to clover VM starts like this in VNC

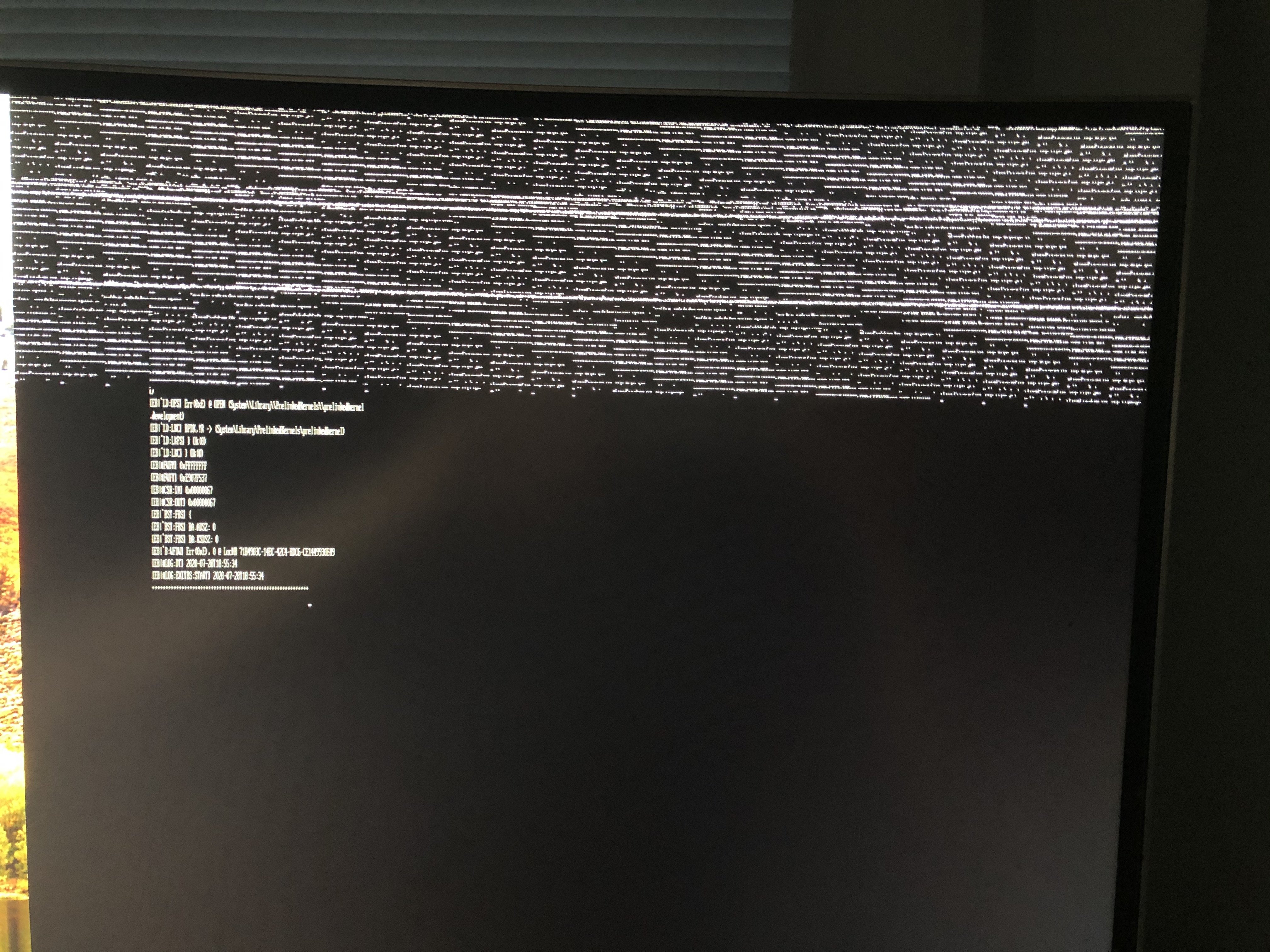

same goes for GPU passtrough (desktop on left is my LG 34 split into 2 sourceD DP and HDMI)



I've tried to change resolution during boot but nothing really works



<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>MacinaboxCatalina</name>
  <uuid>ed39bb50-c438-4272-a33c-587b44ff961c</uuid>
  <description>MacOS Catalina</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="default.png" os="Catalina"/>
  </metadata>
  <memory unit='KiB'>25165824</memory>
  <currentMemory unit='KiB'>25165824</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
    <vcpupin vcpu='2' cpuset='2'/>
    <vcpupin vcpu='3' cpuset='3'/>
    <vcpupin vcpu='4' cpuset='4'/>
    <vcpupin vcpu='5' cpuset='5'/>
    <vcpupin vcpu='6' cpuset='6'/>
    <vcpupin vcpu='7' cpuset='7'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-3.1'>hvm</type>
    <loader readonly='no' type='pflash'>/mnt/user/domains/MacinaboxCatalina/ovmf-hw/OVMF_CODE.fd</loader>
    <nvram>/mnt/user/domains/MacinaboxCatalina/ovmf-hw/OVMF_VARS.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='4' threads='2'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='qcow2' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxCatalina/Clover.qcow2'/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/disk1/domains/MacinaboxCatalina/macos_disk.img'/>
      <target dev='hdd' bus='sata'/>
      <address type='drive' controller='0' bus='0' target='0' unit='3'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'/>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x9'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0xa'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:8b:96:39'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
      </source>
      <rom file='/mnt/disk1/isos/Sapphire.RX5700XT.8192.190616.rom'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x03' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x046d'/>
        <product id='0xc52b'/>
      </source>
      <address type='usb' bus='0' port='3'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x05ac'/>
        <product id='0x026c'/>
      </source>
      <address type='usb' bus='0' port='4'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x0951'/>
        <product id='0x1666'/>
      </source>
      <address type='usb' bus='0' port='5'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x0a12'/>
        <product id='0x0001'/>
      </source>
      <address type='usb' bus='0' port='6'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x0bda'/>
        <product id='0x8153'/>
      </source>
      <address type='usb' bus='0' port='2.1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x2109'/>
        <product id='0x0101'/>
      </source>
      <address type='usb' bus='0' port='2.2'/>
    </hostdev>
    <hub type='usb'>
      <address type='usb' bus='0' port='2'/>
    </hub>
    <memballoon model='none'/>
  </devices>
  <qemu:commandline>
    <qemu:arg value='-usb'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-kbd,bus=usb-bus.0'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='************************'/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check'/>
  </qemu:commandline>
</domain>



Edited July 28, 20205 yr by podlipny

so I've manage to solve this by recreation of VM with VNC and for VM with GPU passthrough I still have this problem whatever resolution I choose.



Plus I am unable to boot to Catalina with my RX 5700 XT. This is clover specific problem, but I constantly getting gIOLockScreenState error.

Hello, could you passthrow the card? I am stuck with the same issues as you, I have Even added the pikera boot arg and nothing, still getting the upper apple logo with several progress bars and no boot

Edited September 15, 20205 yr by mSedek
