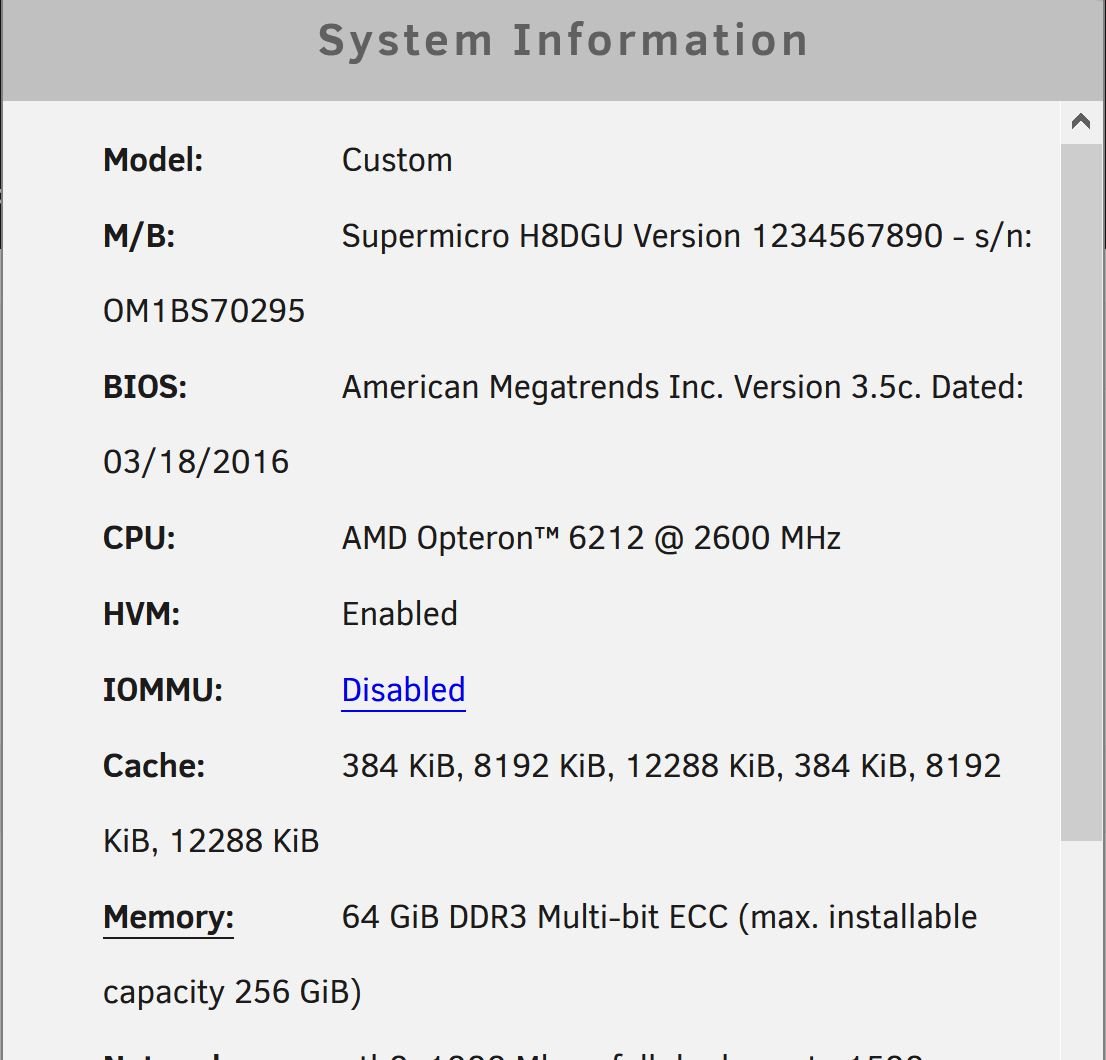

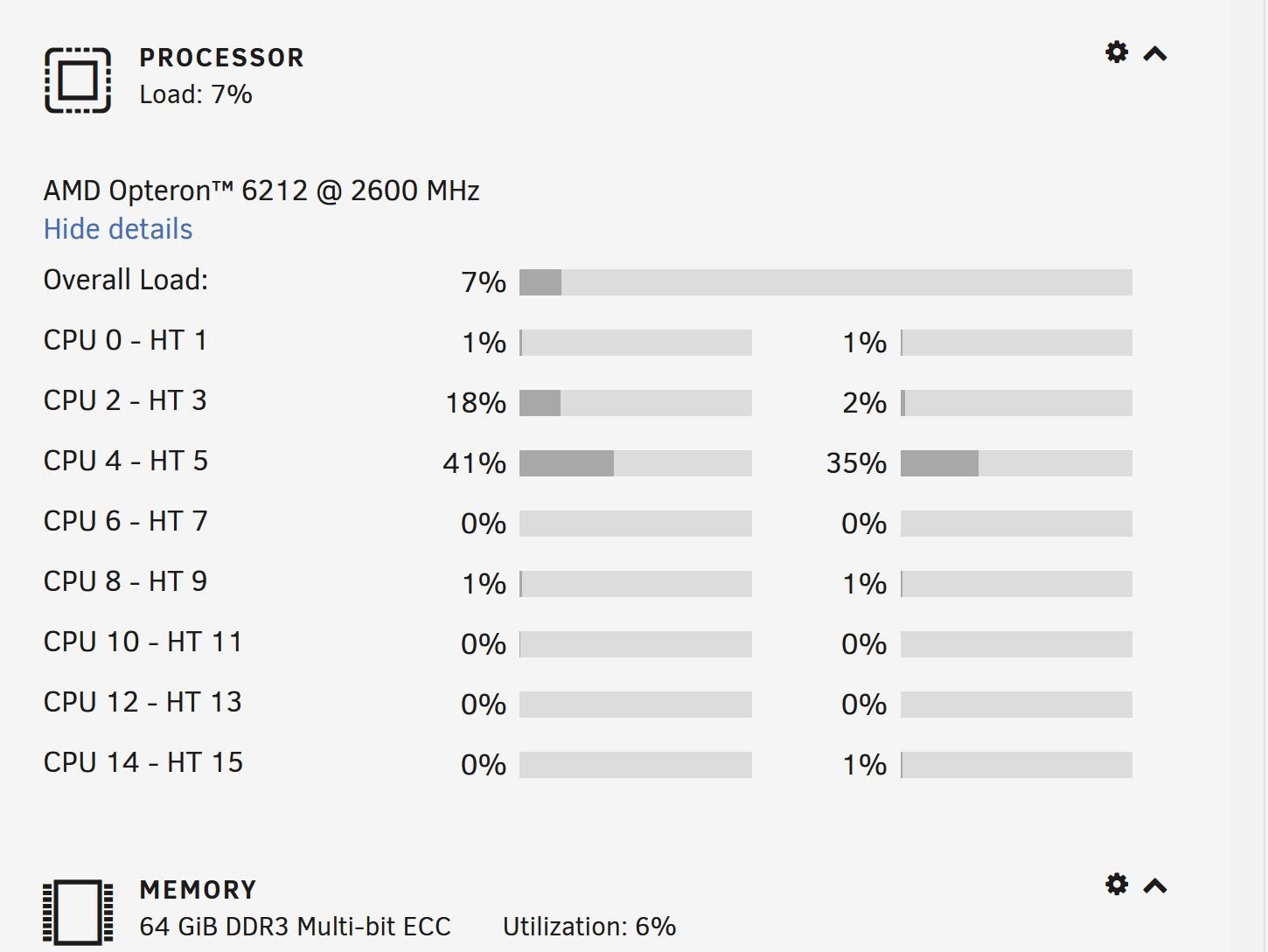

December 3, 20205 yr So I'm wondering how I can tell if unRAID is "seeing" my second processor? I'm running 2 x AMD 6212. On the Dashboard under Processor it just shows one. The Hardware Profile file appears to show two independent CPUs provided I'm reading it correctly. Hardware Profile.xml Edited December 3, 20205 yr by Spyderturbo007
December 3, 20205 yr The AMD 6212 only has 8 Cores and 8 Threads total since it does not support HyperThreading. The Dashboard is showing you 16 Cores, 0 through 15, which is CPU #0 and CPU #1. Reference: https://www.amd.com/en/products/cpu/6212

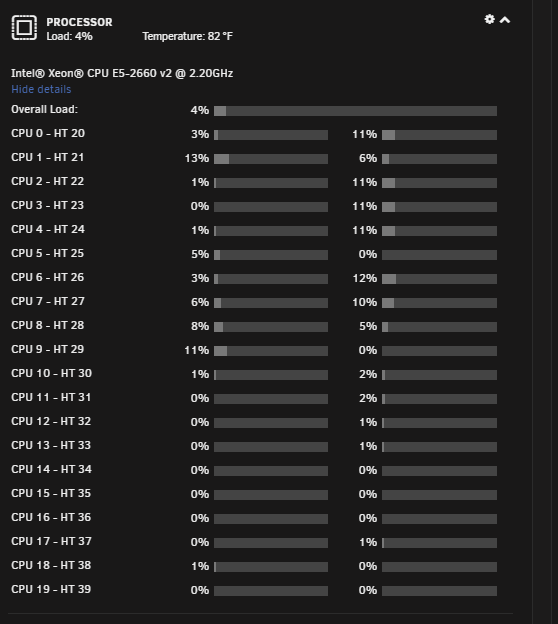

December 3, 20205 yr what about my xenons - i have 2 cpus but dashboard is only showing one Processor Information Socket Designation: SOCKET 0 Type: Central Family: Xeon Manufacturer: Intel ID: E4 06 03 00 FF FB EB BF Signature: Type 0, Family 6, Model 62, Stepping 4 Flags: FPU (Floating-point unit on-chip) VME (Virtual mode extension) DE (Debugging extension) PSE (Page size extension) TSC (Time stamp counter) MSR (Model specific registers) PAE (Physical address extension) MCE (Machine check exception) CX8 (CMPXCHG8 instruction supported) APIC (On-chip APIC hardware supported) SEP (Fast system call) MTRR (Memory type range registers) PGE (Page global enable) MCA (Machine check architecture) CMOV (Conditional move instruction supported) PAT (Page attribute table) PSE-36 (36-bit page size extension) CLFSH (CLFLUSH instruction supported) DS (Debug store) ACPI (ACPI supported) MMX (MMX technology supported) FXSR (FXSAVE and FXSTOR instructions supported) SSE (Streaming SIMD extensions) SSE2 (Streaming SIMD extensions 2) SS (Self-snoop) HTT (Multi-threading) TM (Thermal monitor supported) PBE (Pending break enabled) Version: Intel® Xeon® CPU E5-2660 v2 @ 2.20GHz Voltage: 0.0 V External Clock: 100 MHz Max Speed: 4000 MHz Current Speed: 2200 MHz Status: Populated, Enabled Upgrade: Socket LGA2011 Serial Number: Not Specified Asset Tag: Not Specified Part Number: Not Specified Core Count: 10 Core Enabled: 10 Thread Count: 20 Characteristics: 64-bit capable Multi-Core Hardware Thread Execute Protection Enhanced Virtualization Power/Performance Control Processor Information Socket Designation: SOCKET 1 Type: Central Family: Xeon Manufacturer: Intel ID: E4 06 03 00 FF FB EB BF Signature: Type 0, Family 6, Model 62, Stepping 4 Flags: FPU (Floating-point unit on-chip) VME (Virtual mode extension) DE (Debugging extension) PSE (Page size extension) TSC (Time stamp counter) MSR (Model specific registers) PAE (Physical address extension) MCE (Machine check exception) CX8 (CMPXCHG8 instruction supported) APIC (On-chip APIC hardware supported) SEP (Fast system call) MTRR (Memory type range registers) PGE (Page global enable) MCA (Machine check architecture) CMOV (Conditional move instruction supported) PAT (Page attribute table) PSE-36 (36-bit page size extension) CLFSH (CLFLUSH instruction supported) DS (Debug store) ACPI (ACPI supported) MMX (MMX technology supported) FXSR (FXSAVE and FXSTOR instructions supported) SSE (Streaming SIMD extensions) SSE2 (Streaming SIMD extensions 2) SS (Self-snoop) HTT (Multi-threading) TM (Thermal monitor supported) PBE (Pending break enabled) Version: Intel® Xeon® CPU E5-2660 v2 @ 2.20GHz Voltage: 0.0 V External Clock: 100 MHz Max Speed: 4000 MHz Current Speed: 2200 MHz Status: Populated, Enabled Upgrade: Socket LGA2011 Serial Number: Not Specified Asset Tag: Not Specified Part Number: Not Specified Core Count: 10 Core Enabled: 10 Thread Count: 20 Characteristics: 64-bit capable Multi-Core Hardware Thread Execute Protection Enhanced Virtualization Power/Performance Control
December 3, 20205 yr Author 26 minutes ago, BRiT said: The AMD 6212 only has 8 Cores and 8 Threads total since it does not support HyperThreading. The Dashboard is showing you 16 Cores, 0 through 15, which is CPU #0 and CPU #1. Reference: https://www.amd.com/en/products/cpu/6212 I guess I'm a little confused with how it's displaying things. From what I see, it looks like there is a single chip, with 8 physical cores and hyperthreading. CPU 0 - HT 1 would make me think: Physical Core 0 - HyperThreading (Logical Core) 1 So the way it is displayed, I'd think that I have a single CPU, with 8 physical cores + HT (16 logical cores).
December 3, 20205 yr 42 minutes ago, MyKroFt said: what about my xenons - i have 2 cpus but dashboard is only showing one Processor Information Socket Designation: SOCKET 0 Type: Central Family: Xeon Manufacturer: Intel ID: E4 06 03 00 FF FB EB BF Signature: Type 0, Family 6, Model 62, Stepping 4 Flags: FPU (Floating-point unit on-chip) VME (Virtual mode extension) DE (Debugging extension) PSE (Page size extension) TSC (Time stamp counter) MSR (Model specific registers) PAE (Physical address extension) MCE (Machine check exception) CX8 (CMPXCHG8 instruction supported) APIC (On-chip APIC hardware supported) SEP (Fast system call) MTRR (Memory type range registers) PGE (Page global enable) MCA (Machine check architecture) CMOV (Conditional move instruction supported) PAT (Page attribute table) PSE-36 (36-bit page size extension) CLFSH (CLFLUSH instruction supported) DS (Debug store) ACPI (ACPI supported) MMX (MMX technology supported) FXSR (FXSAVE and FXSTOR instructions supported) SSE (Streaming SIMD extensions) SSE2 (Streaming SIMD extensions 2) SS (Self-snoop) HTT (Multi-threading) TM (Thermal monitor supported) PBE (Pending break enabled) Version: Intel® Xeon® CPU E5-2660 v2 @ 2.20GHz Voltage: 0.0 V External Clock: 100 MHz Max Speed: 4000 MHz Current Speed: 2200 MHz Status: Populated, Enabled Upgrade: Socket LGA2011 Serial Number: Not Specified Asset Tag: Not Specified Part Number: Not Specified Core Count: 10 Core Enabled: 10 Thread Count: 20 Characteristics: 64-bit capable Multi-Core Hardware Thread Execute Protection Enhanced Virtualization Power/Performance Control Processor Information Socket Designation: SOCKET 1 Type: Central Family: Xeon Manufacturer: Intel ID: E4 06 03 00 FF FB EB BF Signature: Type 0, Family 6, Model 62, Stepping 4 Flags: FPU (Floating-point unit on-chip) VME (Virtual mode extension) DE (Debugging extension) PSE (Page size extension) TSC (Time stamp counter) MSR (Model specific registers) PAE (Physical address extension) MCE (Machine check exception) CX8 (CMPXCHG8 instruction supported) APIC (On-chip APIC hardware supported) SEP (Fast system call) MTRR (Memory type range registers) PGE (Page global enable) MCA (Machine check architecture) CMOV (Conditional move instruction supported) PAT (Page attribute table) PSE-36 (36-bit page size extension) CLFSH (CLFLUSH instruction supported) DS (Debug store) ACPI (ACPI supported) MMX (MMX technology supported) FXSR (FXSAVE and FXSTOR instructions supported) SSE (Streaming SIMD extensions) SSE2 (Streaming SIMD extensions 2) SS (Self-snoop) HTT (Multi-threading) TM (Thermal monitor supported) PBE (Pending break enabled) Version: Intel® Xeon® CPU E5-2660 v2 @ 2.20GHz Voltage: 0.0 V External Clock: 100 MHz Max Speed: 4000 MHz Current Speed: 2200 MHz Status: Populated, Enabled Upgrade: Socket LGA2011 Serial Number: Not Specified Asset Tag: Not Specified Part Number: Not Specified Core Count: 10 Core Enabled: 10 Thread Count: 20 Characteristics: 64-bit capable Multi-Core Hardware Thread Execute Protection Enhanced Virtualization Power/Performance Control Each of those Xeon CPU only has 20 threads, dashboard shows 40 total. CPU 0 is 0-9 with HT 20-29, CPU 1 is 10-19 with HT 30-39. Edited December 3, 20205 yr by BRiT
December 11, 20205 yr 22 minutes ago, MyKroFt said: Correct, but its only showing the temp for the 1st cpu i what i was getting at Temp display isn't part of the stock unraid, so this would be an issue for the temperature plugin.
