经排查 BIOS中将第一个插槽中的PCIE 模式设置成了X8/X8,改为自动后恢复正常

服务器配置： ASUS Pro Art Z790 Intel 13900K ASUS Pro Art 4070 Ti Super 问题出现过程： 4070 Ti Super 原来位于主板的第二个PCIE插槽，第一个PCIE插槽空着，由于最近要新上一张5090，所以想把4070TIS移至第一槽，移动后出现 直通4070TIS的Win11虚拟机无法启动，重启物理机后首次启动虚拟机 启动极其缓慢，但是可以启动成功，进入Windows后发现没有4070TIS，强制关闭虚拟机也很缓慢，并提示：Failed to terminate process 38790 with SIGKILL: Device or resource busy 关闭虚拟机后再次启动则报错：internal error: Unknown PCI header type '127' for device '0000:02:00.0' 0000:02:00.0为4070 Ti Super 以前讲4070 Ti Super由主板第一槽换至第二槽时也出现过此问题，但莫名其妙的好了，具体怎么好的记不清了 目前已尝试： 1.更新主板 BIOS 无效 2.重新拔插显卡 无效 3.重新安装UNRAID 最新版 无效 4.删除虚拟机配置文件 重建虚拟机 无效 5.删除VFIO配置文件 无效 红框里这两个设备会报错，提示Unknown header type 7f unraid-syslog-20250831-0708.zip

我使用这个插件安装了一些补丁后，我现在显卡直通出现了问题 启动虚拟机时提示：internal error: Unknown PCI header type '127' for device '0000:02:00.0' 系统日志中提示：Feb 13 17:31:00 UNRAID kernel: vfio-pci 0000:02:00.0: Unable to change power state from D3cold to D0, device inaccessible 显卡是ASUS PRO ART 4070ti Super unraid-diagnostics-20250213-1756.zip

你是不更新了WIN11 24H2

HDMI连接后恢复正常

感谢 我确实前两天拔掉了主板的HDMI线之后才出现上述问题的，我稍后会尝试恢复HDMI链接看看，核显能不能正常工作

unraid-diagnostics-20250108-2005.zip

CPU 13900K 主板 AUSU Pro Art z790 在一次常规关机后突然发现使用虚拟核显的群晖没有自启动，一排查发现核显没了。 貌似核显变成Host bridge: Intel Corporation Device a700，看驱动貌似有i915这一项，系统设备里就是找不到核显。

我核显突然消失了，请问是什么原因？CPU 13900K 主板 pro art z790 貌似核显变成Host bridge: Intel Corporation Device a700 看驱动貌似有i915这一项，系统设备里就是找不到核显，在一次常规关机后突然发现使用虚拟核显的群晖没有自启动，一排查发现核显没了

990 EVO PLUS兼容性有问题，990 PRO可以正常识别

主板 华硕 Pro Art Z790 CPU 13900K 新买了一块三星 990 EVO PLUS 2TB 直通给Windows 11 虚拟机 卡启动界面，偶尔可以进到虚拟机的BIOS 看到BIOS无法识别硬盘（没有检测到）。 再尝试了各种方法（U盘重新安装UNRAID，并格式化UNRAID硬盘,更换UNRAID版本）之后，又买了两块2T硬盘，一块同型号的 990 EVO PLUS 2TB，一块990 PRO ,均卡启动界面。把原来的三星 PM9A1 1TB 插入后可以顺利进入BIOS，BIOS也可以正确识别。难道是虚拟机不支持2T硬盘？ 2T硬盘 物理机使用正常。

创建虚拟机时 有时会报这个错误： VM creation error internal error: qemu unexpectedly closed the monitor: qxl_send_events: spice-server bug: guest stopped, ignoring qemu-system-x86_64: ../hw/pci/pci.c:1562: pci_irq_handler: Assertion `0 <= irq_num && irq_num < PCI_NUM_PINS' failed.

ht20-diagnostics-20241221-1848.zip

因空间不足，将之前一块1t ssd更换为2t ssd。 更换之后移除了原来的虚拟机配置文件，重新建立新的虚拟机 硬盘已安装Windows11 在非虚拟环境下可以正常启动，在Unraid 把新的SSD直通给虚拟机，卡Unraid启动界面，无法进入系统。重建虚拟机配置文件无效，删除Unraid硬盘中的虚拟机配置文件无效，重置Unraid设置无效。 虚拟机日志如下： -boot strict=on \ -device '{"driver":"pcie-root-port","port":8,"chassis":1,"id":"pci.1","bus":"pcie.0","multifunction":true,"addr":"0x1"}' \ -device '{"driver":"pcie-root-port","port":9,"chassis":2,"id":"pci.2","bus":"pcie.0","addr":"0x1.0x1"}' \ -device '{"driver":"pcie-root-port","port":10,"chassis":3,"id":"pci.3","bus":"pcie.0","addr":"0x1.0x2"}' \ -device '{"driver":"pcie-root-port","port":11,"chassis":4,"id":"pci.4","bus":"pcie.0","addr":"0x1.0x3"}' \ -device '{"driver":"qemu-xhci","p2":15,"p3":15,"id":"usb","bus":"pcie.0","addr":"0x7"}' \ -device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.2","addr":"0x0"}' \ -netdev '{"type":"tap","fd":"43","id":"hostnet0"}' \ -device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:d4:ad:f1","bus":"pci.1","addr":"0x0"}' \ -chardev pty,id=charserial0 \ -device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \ -chardev socket,id=charchannel0,fd=40,server=on,wait=off \ -device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \ -chardev 'socket,id=chrtpm,path=/run/libvirt/qemu/swtpm/3-Windows 11-swtpm.sock' \ -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device '{"driver":"tpm-tis","tpmdev":"tpm-tpm0","id":"tpm0"}' \ -device '{"driver":"usb-tablet","id":"input0","bus":"usb.0","port":"1"}' \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:1,websocket=5701,share=ignore,audiodev=audio1 \ -device '{"driver":"qxl-vga","id":"video0","max_outputs":1,"ram_size":67108864,"vram_size":67108864,"vram64_size_mb":0,"vgamem_mb":16,"bus":"pcie.0","addr":"0x1e"}' \ -global ICH9-LPC.noreboot=off \ -watchdog-action reset \ -device '{"driver":"vfio-pci","host":"0000:03:00.0","id":"hostdev0","bootindex":1,"bus":"pci.3","addr":"0x0"}' \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on 2024-12-21 08:47:42.727+0000: Domain id=3 is tainted: high-privileges char device redirected to /dev/pts/1 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring 2024-12-21T08:48:11.542397Z qemu-system-x86_64: terminating on signal 15 from pid 7364 (libvirtd) 2024-12-21 08:48:13.143+0000: shutting down, reason=destroyed 2024-12-21 08:51:18.801+0000: Starting external device: TPM Emulator /usr/bin/swtpm socket --ctrl 'type=unixio,path=/run/libvirt/qemu/swtpm/1-Windows 11-swtpm.sock,mode=0600' --tpmstate dir=/var/lib/libvirt/swtpm/7e7f2a9d-1a65-ebca-748d-37cb81d8b382/tpm2,mode=0600 --log 'file=/var/log/swtpm/libvirt/qemu/Windows 11-swtpm.log' --terminate --tpm2 2024-12-21 08:51:18.823+0000: starting up libvirt version: 10.7.0, qemu version: 9.1.0, kernel: 6.6.66-Unraid, hostname: Tower LC_ALL=C \ PATH=/bin:/sbin:/usr/bin:/usr/sbin \ HOME='/var/lib/libvirt/qemu/domain-1-Windows 11' \ XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-1-Windows 11/.local/share' \ XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-1-Windows 11/.cache' \ XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-1-Windows 11/.config' \ /usr/local/sbin/qemu \ -name 'guest=Windows 11,debug-threads=on' \ -S \ -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-1-Windows 11/master-key.aes"}' \ -blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \ -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/7e7f2a9d-1a65-ebca-748d-37cb81d8b382_VARS-pure-efi-tpm.fd","node-name":"libvirt-pflash1-storage","read-only":false}' \ -machine pc-q35-9.1,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-storage,hpet=off,acpi=on \ -accel kvm \ -cpu host,migratable=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vpindex=on,hv-synic=on,hv-stimer=on,hv-vendor-id=none,host-cache-info=on,l3-cache=off \ -m size=33554432k \ -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":34359738368}' \ -overcommit mem-lock=off \ -smp 20,sockets=1,dies=1,clusters=1,cores=10,threads=2 \ -uuid 7e7f2a9d-1a65-ebca-748d-37cb81d8b382 \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=36,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime \ -no-shutdown \ -boot strict=on \ -device '{"driver":"pcie-root-port","port":8,"chassis":1,"id":"pci.1","bus":"pcie.0","multifunction":true,"addr":"0x1"}' \ -device '{"driver":"pcie-root-port","port":9,"chassis":2,"id":"pci.2","bus":"pcie.0","addr":"0x1.0x1"}' \ -device '{"driver":"pcie-root-port","port":10,"chassis":3,"id":"pci.3","bus":"pcie.0","addr":"0x1.0x2"}' \ -device '{"driver":"pcie-root-port","port":11,"chassis":4,"id":"pci.4","bus":"pcie.0","addr":"0x1.0x3"}' \ -device '{"driver":"pcie-root-port","port":12,"chassis":5,"id":"pci.5","bus":"pcie.0","addr":"0x1.0x4"}' \ -device '{"driver":"qemu-xhci","p2":15,"p3":15,"id":"usb","bus":"pcie.0","addr":"0x7"}' \ -device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.2","addr":"0x0"}' \ -netdev '{"type":"tap","fd":"37","id":"hostnet0"}' \ -device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:5e:38:f7","bus":"pci.1","addr":"0x0"}' \ -chardev pty,id=charserial0 \ -device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \ -chardev socket,id=charchannel0,fd=35,server=on,wait=off \ -device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \ -chardev 'socket,id=chrtpm,path=/run/libvirt/qemu/swtpm/1-Windows 11-swtpm.sock' \ -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device '{"driver":"tpm-tis","tpmdev":"tpm-tpm0","id":"tpm0"}' \ -device '{"driver":"usb-tablet","id":"input0","bus":"usb.0","port":"1"}' \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:0,websocket=5700,share=ignore,audiodev=audio1 \ -device '{"driver":"qxl-vga","id":"video0","max_outputs":1,"ram_size":67108864,"vram_size":67108864,"vram64_size_mb":0,"vgamem_mb":16,"bus":"pcie.0","addr":"0x1e"}' \ -global ICH9-LPC.noreboot=off \ -watchdog-action reset \ -device '{"driver":"vfio-pci","host":"0000:03:00.0","id":"hostdev0","bootindex":1,"bus":"pci.3","addr":"0x0"}' \ -device '{"driver":"vfio-pci","host":"0000:07:00.0","id":"hostdev1","bus":"pci.4","addr":"0x0"}' \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on 2024-12-21 08:51:18.823+0000: Domain id=1 is tainted: high-privileges char device redirected to /dev/pts/0 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring 虚拟机配置文件如下： <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='1'> <name>Windows 11</name> <uuid>7e7f2a9d-1a65-ebca-748d-37cb81d8b382</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm" webui="" storage="default"/> </metadata> <memory unit='KiB'>33554432</memory> <currentMemory unit='KiB'>33554432</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>20</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='3'/> <vcpupin vcpu='4' cpuset='4'/> <vcpupin vcpu='5' cpuset='5'/> <vcpupin vcpu='6' cpuset='6'/> <vcpupin vcpu='7' cpuset='7'/> <vcpupin vcpu='8' cpuset='8'/> <vcpupin vcpu='9' cpuset='9'/> <vcpupin vcpu='10' cpuset='10'/> <vcpupin vcpu='11' cpuset='11'/> <vcpupin vcpu='12' cpuset='12'/> <vcpupin vcpu='13' cpuset='13'/> <vcpupin vcpu='14' cpuset='14'/> <vcpupin vcpu='15' cpuset='15'/> <vcpupin vcpu='16' cpuset='16'/> <vcpupin vcpu='17' cpuset='17'/> <vcpupin vcpu='18' cpuset='18'/> <vcpupin vcpu='19' cpuset='19'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-9.1'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader> <nvram>/etc/libvirt/qemu/nvram/7e7f2a9d-1a65-ebca-748d-37cb81d8b382_VARS-pure-efi-tpm.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv mode='custom'> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vpindex state='on'/> <synic state='on'/> <stimer state='on'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' clusters='1' cores='10' threads='2'/> <cache mode='passthrough'/> </cpu> <clock offset='localtime'> <timer name='hpet' present='no'/> <timer name='hypervclock' present='yes'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <alias name='pci.3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <alias name='pci.4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <alias name='pci.5'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:5e:38:f7'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio-net'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/0'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/run/libvirt/qemu/channel/1-Windows 11/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <alias name='input0'/> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'> <alias name='input1'/> </input> <input type='keyboard' bus='ps2'> <alias name='input2'/> </input> <tpm model='tpm-tis'> <backend type='emulator' version='2.0' persistent_state='yes'/> <alias name='tpm0'/> </tpm> <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' sharePolicy='ignore'> <listen type='address' address='0.0.0.0'/> </graphics> <audio id='1' type='none'/> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <alias name='video0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <boot order='1'/> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </hostdev> <watchdog model='itco' action='reset'> <alias name='watchdog0'/> </watchdog> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> </domain> 虚拟机无法启动时的界面如下图： 此时分配给虚拟机第一个核心一直接近满载

终端输入如下命令后重启有效： mkdir /boot/config/modprobe.d/mkdir /boot/config/modprobe.d/ echo -e 'blacklist btusb\nblacklist bluetooth' > /boot/config/modprobe.d/bluetooth.confecho -e 'blacklist btusb\nblacklist bluetooth' > /boot/config/modprobe.d/bluetooth.conf 参考：

以前没有更新Unraid 7之前也出现过同样的问题，后来莫名其妙自己好了，我猜测不一定是Unraid 7造成的。

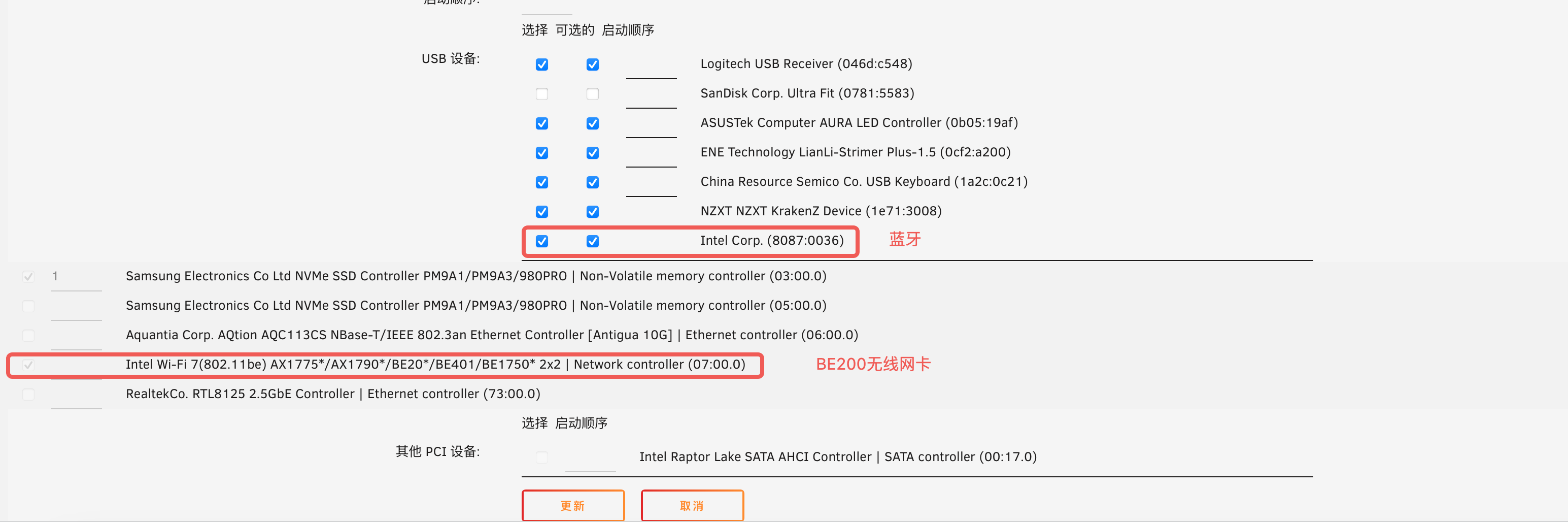

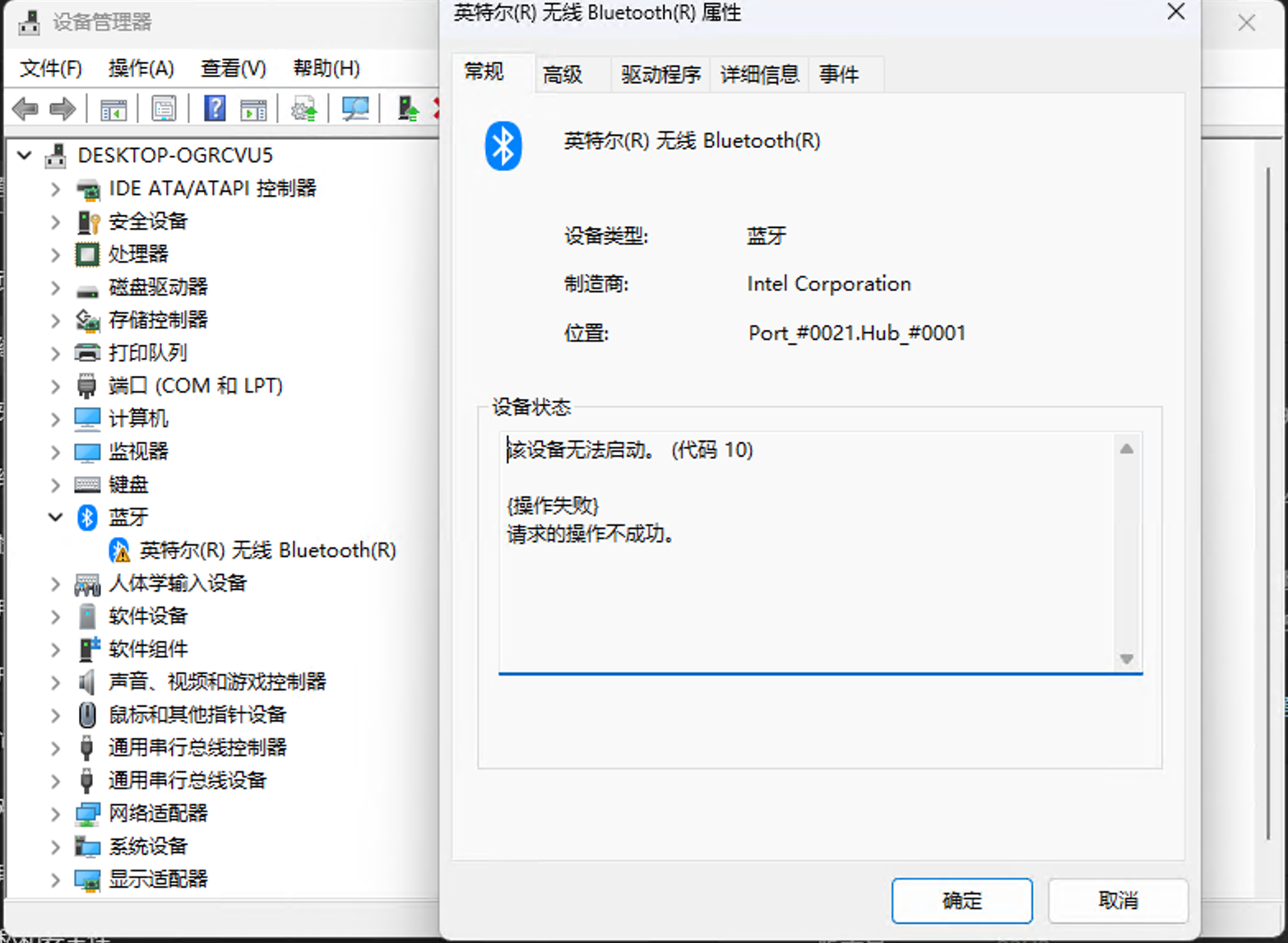

无线网卡型号：BE200 ,无线网卡和蓝牙都给了Win11虚拟机，原来是可以正常工作的，似乎是更新了UNRAID 7之后，开始报错代码10。 原来使用AX210的时候也报错过，不过后来似乎自己好了，更换了BE200之后也正常，最后不知道怎么回事蓝牙又崩了，尝试虚拟机内卸载驱动，重建虚拟机配置文件，均无效。 <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='4'> <name>Windows 11</name> <uuid>f91e98ce-dbe7-fe97-dc16-71963a140231</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 11" icon="windows11.png" os="windowstpm" webui="" storage="default"/> </metadata> <memory unit='KiB'>33554432</memory> <currentMemory unit='KiB'>33554432</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>20</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='1'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='3'/> <vcpupin vcpu='4' cpuset='4'/> <vcpupin vcpu='5' cpuset='5'/> <vcpupin vcpu='6' cpuset='6'/> <vcpupin vcpu='7' cpuset='7'/> <vcpupin vcpu='8' cpuset='8'/> <vcpupin vcpu='9' cpuset='9'/> <vcpupin vcpu='10' cpuset='10'/> <vcpupin vcpu='11' cpuset='11'/> <vcpupin vcpu='12' cpuset='12'/> <vcpupin vcpu='13' cpuset='13'/> <vcpupin vcpu='14' cpuset='14'/> <vcpupin vcpu='15' cpuset='15'/> <vcpupin vcpu='16' cpuset='16'/> <vcpupin vcpu='17' cpuset='17'/> <vcpupin vcpu='18' cpuset='18'/> <vcpupin vcpu='19' cpuset='19'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-7.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader> <nvram>/etc/libvirt/qemu/nvram/f91e98ce-dbe7-fe97-dc16-71963a140231_VARS-pure-efi-tpm.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv mode='custom'> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vpindex state='on'/> <synic state='on'/> <stimer state='on'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' clusters='1' cores='10' threads='2'/> <cache mode='passthrough'/> </cpu> <clock offset='localtime'> <timer name='hpet' present='no'/> <timer name='hypervclock' present='yes'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <alias name='pci.3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <alias name='pci.4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <alias name='pci.5'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0xd'/> <alias name='pci.6'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0xe'/> <alias name='pci.7'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xf'/> <alias name='pci.8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x7'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <serial type='pty'> <source path='/dev/pts/0'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/run/libvirt/qemu/channel/4-Windows 11/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <alias name='input0'/> <address type='usb' bus='0' port='7'/> </input> <input type='mouse' bus='ps2'> <alias name='input1'/> </input> <input type='keyboard' bus='ps2'> <alias name='input2'/> </input> <tpm model='tpm-tis'> <backend type='emulator' version='2.0' persistent_state='yes'/> <alias name='tpm0'/> </tpm> <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' sharePolicy='ignore'> <listen type='address' address='0.0.0.0'/> </graphics> <audio id='1' type='none'/> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <alias name='video0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </video> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </source> <alias name='hostdev0'/> <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </source> <boot order='1'/> <alias name='hostdev3'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </source> <alias name='hostdev4'/> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source startupPolicy='optional'> <vendor id='0x046d'/> <product id='0xc548'/> <address bus='1' device='8'/> </source> <alias name='hostdev5'/> <address type='usb' bus='0' port='1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source startupPolicy='optional'> <vendor id='0x0b05'/> <product id='0x19af'/> <address bus='1' device='4'/> </source> <alias name='hostdev6'/> <address type='usb' bus='0' port='2'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source startupPolicy='optional'> <vendor id='0x0cf2'/> <product id='0xa200'/> <address bus='1' device='7'/> </source> <alias name='hostdev7'/> <address type='usb' bus='0' port='3'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source startupPolicy='optional'> <vendor id='0x1a2c'/> <product id='0x0c21'/> <address bus='1' device='2'/> </source> <alias name='hostdev8'/> <address type='usb' bus='0' port='4'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source startupPolicy='optional'> <vendor id='0x1e71'/> <product id='0x3008'/> <address bus='1' device='5'/> </source> <alias name='hostdev9'/> <address type='usb' bus='0' port='5'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source startupPolicy='optional'> <vendor id='0x8087'/> <product id='0x0036'/> <address bus='1' device='6'/> </source> <alias name='hostdev10'/> <address type='usb' bus='0' port='6'/> </hostdev> <watchdog model='itco' action='reset'> <alias name='watchdog0'/> </watchdog> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> </domain>

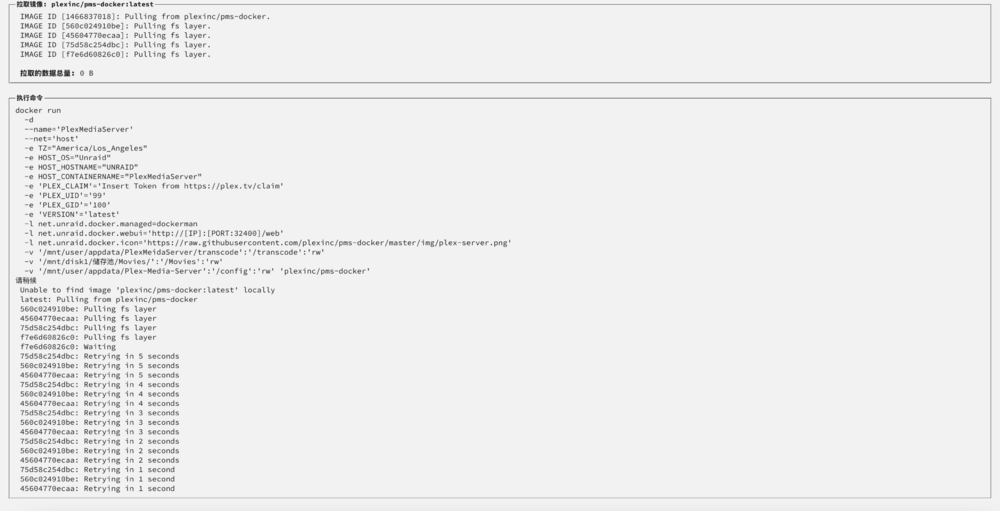

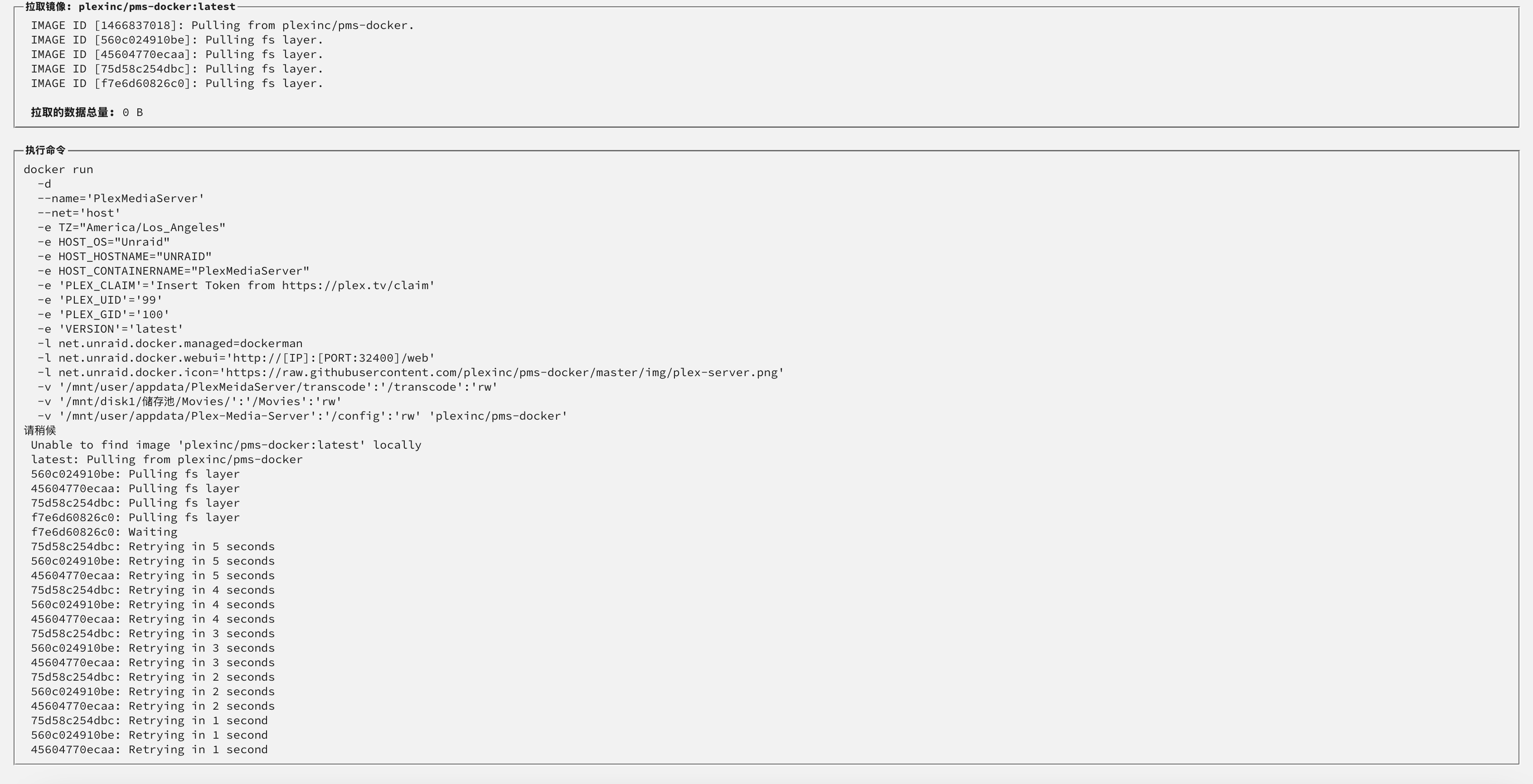

docker run -d --name='PlexMediaServer' --net='host' -e TZ="America/Los_Angeles" -e HOST_OS="Unraid" -e HOST_HOSTNAME="UNRAID" -e HOST_CONTAINERNAME="PlexMediaServer" -e 'PLEX_CLAIM'='Insert Token from https://plex.tv/claim' -e 'PLEX_UID'='99' -e 'PLEX_GID'='100' -e 'VERSION'='latest' -l net.unraid.docker.managed=dockerman -l net.unraid.docker.webui='http://[IP]:[PORT:32400]/web' -l net.unraid.docker.icon='https://raw.githubusercontent.com/plexinc/pms-docker/master/img/plex-server.png' -v '/mnt/user/appdata/PlexMeidaServer/transcode':'/transcode':'rw' -v '/mnt/disk1/储存池/Movies/':'/Movies':'rw' -v '/mnt/user/appdata/Plex-Media-Server':'/config':'rw' 'plexinc/pms-docker' Unable to find image 'plexinc/pms-docker:latest' locally latest: Pulling from plexinc/pms-docker 560c024910be: Pulling fs layer 45604770ecaa: Pulling fs layer 75d58c254dbc: Pulling fs layer f7e6d60826c0: Pulling fs layer f7e6d60826c0: Waiting 75d58c254dbc: Retrying in 5 seconds 560c024910be: Retrying in 5 seconds 45604770ecaa: Retrying in 5 seconds 75d58c254dbc: Retrying in 4 seconds 560c024910be: Retrying in 4 seconds 45604770ecaa: Retrying in 4 seconds 75d58c254dbc: Retrying in 3 seconds 560c024910be: Retrying in 3 seconds 45604770ecaa: Retrying in 3 seconds 75d58c254dbc: Retrying in 2 seconds 560c024910be: Retrying in 2 seconds 45604770ecaa: Retrying in 2 seconds 75d58c254dbc: Retrying in 1 second 560c024910be: Retrying in 1 second 45604770ecaa: Retrying in 1 second 75d58c254dbc: Retrying in 10 seconds 45604770ecaa: Retrying in 10 seconds 560c024910be: Retrying in 10 seconds 75d58c254dbc: Retrying in 9 seconds 45604770ecaa: Retrying in 9 seconds 560c024910be: Retrying in 9 seconds 75d58c254dbc: Retrying in 8 seconds 45604770ecaa: Retrying in 8 seconds 560c024910be: Retrying in 8 seconds 75d58c254dbc: Retrying in 7 seconds 45604770ecaa: Retrying in 7 seconds 560c024910be: Retrying in 7 seconds 75d58c254dbc: Retrying in 6 seconds 45604770ecaa: Retrying in 6 seconds 560c024910be: Retrying in 6 seconds 75d58c254dbc: Retrying in 5 seconds 45604770ecaa: Retrying in 5 seconds 560c024910be: Retrying in 5 seconds 75d58c254dbc: Retrying in 4 seconds 45604770ecaa: Retrying in 4 seconds 560c024910be: Retrying in 4 seconds 75d58c254dbc: Retrying in 3 seconds 45604770ecaa: Retrying in 3 seconds 560c024910be: Retrying in 3 seconds 75d58c254dbc: Retrying in 2 seconds 45604770ecaa: Retrying in 2 seconds 560c024910be: Retrying in 2 seconds 75d58c254dbc: Retrying in 1 second 45604770ecaa: Retrying in 1 second 560c024910be: Retrying in 1 second docker: error pulling image configuration: download failed after attempts=6: dial tcp 103.252.115.169:443: i/o timeout. See 'docker run --help'.

确定梯子没问题，应用商店可以打开和正常安装插件，只有Docker不行，今天重装了UNRAID还是不行。

相同问题参考下面的内容

你那是intel 8代的CPU,现在的12、13、14代应该都不行，我用的是13900K+ASUS PRO ART Z790装了就进不去系统了。

有什么办法分开么？

截止到24年1月31日，该问题仍没有被解决，13900K仍然无法在windows上运行嵌套虚拟化

应该不是Raptor Lake不支持嵌套虚拟化，我使用Ubuntu22.04安装并使用Docker DESKTOP是完全没有问题的

Windows只要安装Hyper-V或者WSL2，重启就会进入无限修复循环，据说是Linux内核有问题。
