  1. Thanks again ! Another question ๐Ÿ˜ฌ ... I have with this motherboard a Dual 10GB X722 + X557 network card, but I only see a 1000baeT/Full Unraid doesn't support the X722 + X557 ?? On my previous motherboard I had a X540-T2 Intel X540 Chipset and it was working well, unraid recognize de 10gb . Thanks !!!! Settings for eth0: Supported ports: [ TP ] Supported link modes: 1000baseT/Full Supported pause frame use: Symmetric Receive-only Supports auto-negotiation: Yes Supported FEC modes: Not reported Advertised link modes: 1000baseT/Full Advertised pause frame use: No Advertised auto-negotiation: Yes Advertised FEC modes: Not reported Speed: 1000Mb/s Duplex: Full Auto-negotiation: on Port: Twisted Pair PHYAD: 0 Transceiver: internal MDI-X: Unknown Supports Wake-on: g Wake-on: g Current message level: 0x00000007 (7) drv probe link Link detected: yes driver: i40e version: 6.1.64-Unraid firmware-version: 3.31 0x80000c92 1.1747.0 expansion-rom-version: bus-info: 0000:60:00.0 supports-statistics: yes supports-test: yes supports-eeprom-access: yes supports-register-dump: yes supports-priv-flags: yes -------------------------------- Settings for eth1: Supported ports: [ ] Supported link modes: 1000baseT/Full Supported pause frame use: Symmetric Receive-only Supports auto-negotiation: Yes Supported FEC modes: Not reported Advertised link modes: 1000baseT/Full Advertised pause frame use: No Advertised auto-negotiation: Yes Advertised FEC modes: Not reported Speed: Unknown! Duplex: Unknown! (255) Auto-negotiation: off Port: Other PHYAD: 0 Transceiver: internal Supports Wake-on: g Wake-on: g Current message level: 0x00000007 (7) drv probe link Link detected: no driver: i40e version: 6.1.64-Unraid firmware-version: 3.31 0x80000c92 1.1747.0 expansion-rom-version: bus-info: 0000:60:00.1 supports-statistics: yes supports-test: yes supports-eeprom-access: yes supports-register-dump: yes supports-priv-flags: yes --------------------------------
  2. Thanks for your answer :)) Do you know why Unraid shows only one one the main page of the webgui ? Is the GTX 1080 TI is detected? I can't find it ๐Ÿ˜… Thanks

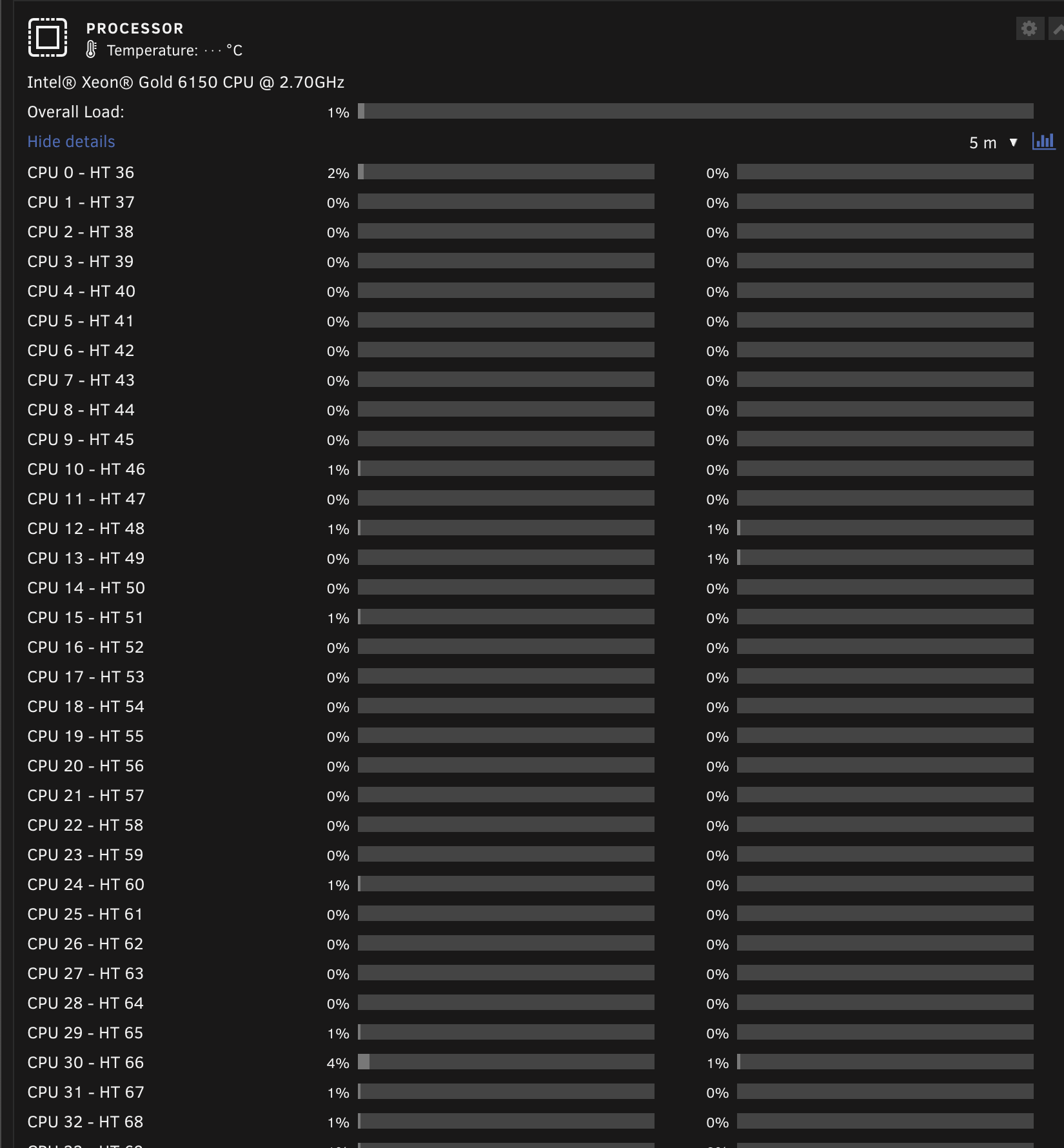

  3. Hello, I just change my motherboard and CPU SuperMicro x9DR3- to X11DPI-NT CPU: 2 x E5- 2697V2 24 CORE TREADING 48 to TO CPU 2 X Intelยฎ Xeonยฎ Gold 6150 24,75 Mo de cache, 2,70 GHz My problem is I only see one CPU on the MAIN page of unraid ๐Ÿ˜… I have 72 treads Is it normal ? Unraid really use both CPU ? I also have a nvidia gtx 1050 ti I can t see if it s reconize by unraid ๐Ÿ˜… someone could confirm me that both CPUs are ON and the GC also? Actually I feel my server less powerful than with the 2 X E5- 2697V2 24, weird no ? I use my server only for Plex Family and friends ... Thanks in advance ! tower-diagnostics-20240129-0111.zip

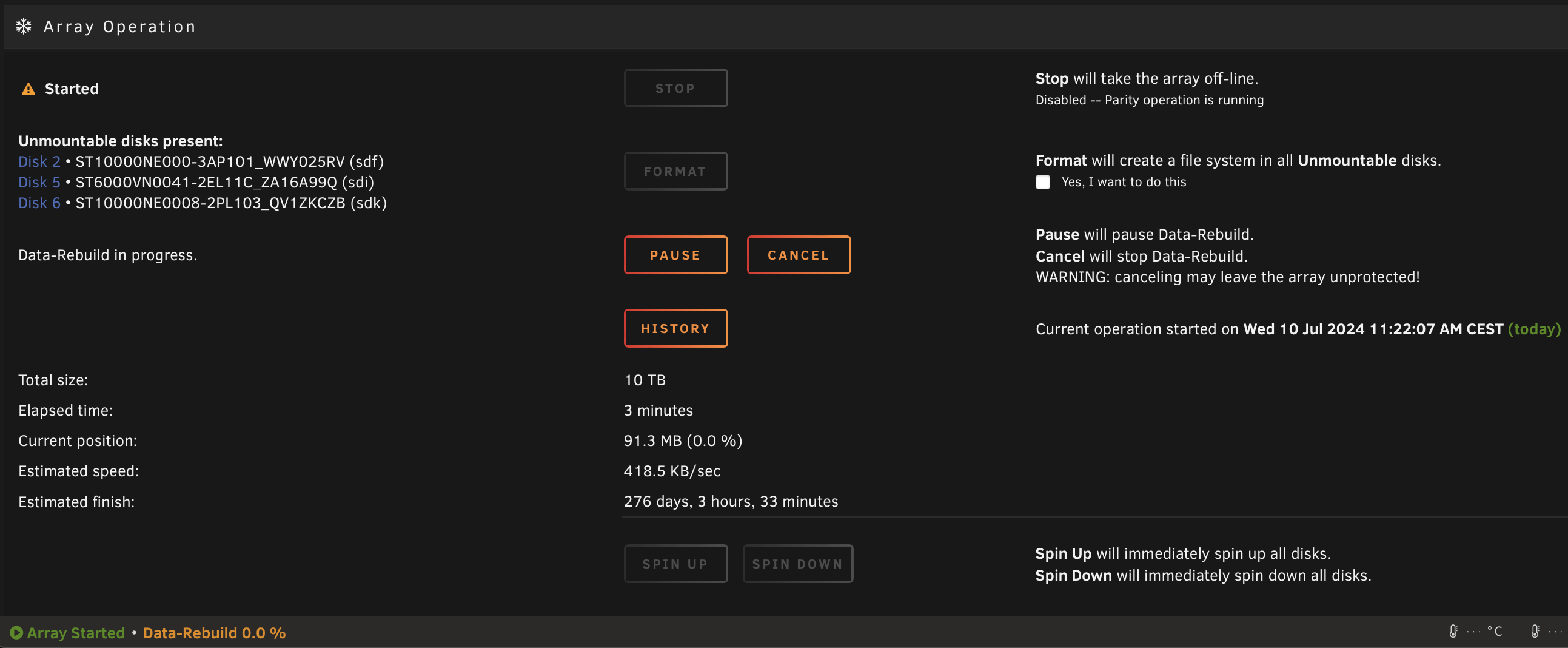

  4. Update: I remove the failed parity hard drive, I setup a new hard drive to replace the disk 2 Failed. I m doing a date building now ... ๐Ÿคž
  5. Hello and Happy New year ! My server start very well this new year ๐Ÿ˜… I have got a parity disk failed after the first parity check of the year ... I tried to rebuild the parity and another disk from the array shutdown ... I can t see the disk on the smart diag . I m doing a read check but it s full or error ... I don t know what can I do ? I ll receive tomorrow a new HD to replace de the failed one from the array... If someone could help me and suggest what can I do ๐Ÿ˜… Thanks in advance !!! tower-diagnostics-20240102-2130.zip
  6. Thanks for your answer ! You were right, 2.5 wasn't supported; I plug with to the 10 gbps port and I ve got 10000mbps now On my switch I ve got 4x 2.5 and 2 SPF+ 10 Gbps, that why I tried the 2.5 gbps; My internet router got only 1 x 2.5 gbps out ... and curious: why do you use 4 nics in a bond??? thats overkill and surely will get troubles) Actually I don t really know; I ve got on my mother board super micro 3 ethernet; I use one for service, and I disconnected the 2 other to plug the PCI 10 gbps card now. What do you suggest me ? To remove the bonding? To be honest I don t really know what for is it ๐Ÿ˜… Thanks again for your help !
  7. Hello today I upgrade my ethernet connection ... I just install a Dual 10 gbps PCI card on my unraid: X540-T2 Intel X540 Chipset PCIe x8 touristes Cuivre RJ45 10Gbps Port Unraid see the card, I connect the card to my 2.5 GPBS switch and I can see the unraid is connected on 1000 Mbps ... Is it because I connect to the 2.5 GB port on my Switch ? On the 10 GBPS NIC it doesn't work at all ... ( I use a SFP+ RJ45 adaptor) Did I miss something ? Any idea ? Thanks !!! tower-diagnostics-20231229-1300.zip
  8. Merci je pensais mettre un Intel Core i9-13900F il me semble pas mal au vu du nombre de pote qui utilise mon plexโ€ฆ est ce une bonne solution ? Oรน il vaut mieux un CPU moins puissant + une GPU ? quel GPU conseil tu ? merci !!
  9. Hello, J ai actuellement un serveur sur Unraid avec cette config: Carte mere: Supermicro X9DR3-F DUAL CPU: 2 x E5- 2697V2 RAM: 64gb DDR3 Mon utilisation principale est PLEX avec une 40 taines de potes dessus. Lors des week end je rencontre quelques lenteurs ... J aimerai changer de config, mais je ne sais pas sur quoi passer, intel ou AMD ? Je n ai pas vraiment de budget, mais je veux une config solide pour du transcoding 4K Light, lecture direct 4K avec une carte rรฉseau 10GB. Je souhaite changer: CPU + CARTE MERE + RAM Carte graphique inutile pour Plex non ? J ai des HDDs IRONWOLF 10TB PRO Si vous avez des conseils ... Je suis preneur ! Merci !!!!
  10. Thanks for your help !! So you suggest to stop array unasigne disk 3 then I should format the disk 3 and reduilt?
  11. I tried Running the Repair using the webGu method; but doesn't seem to work ๐Ÿ˜…
  12. My bad I put the wrong one, please kindly find attached the good one ! Thanks! tower-diagnostics-20230425-1310.zip
  13. Hello, I just restart my unread server and I got this error: next to my HD: xfs Unmountable: Unsupported partition layout What kind I do ? Thanks !!! tower-diagnostics-20230313-1538.zip
  14. Thanks a lot !!! It was easy It was super fast ! You solved my problem! Everything is ok now Thanks again for this wonderful support as always here ! Cheers!
  15. Thanks a lot for your answer I ll check the permission but I can t change them that my problem ๐Ÿ˜… Thanks !!

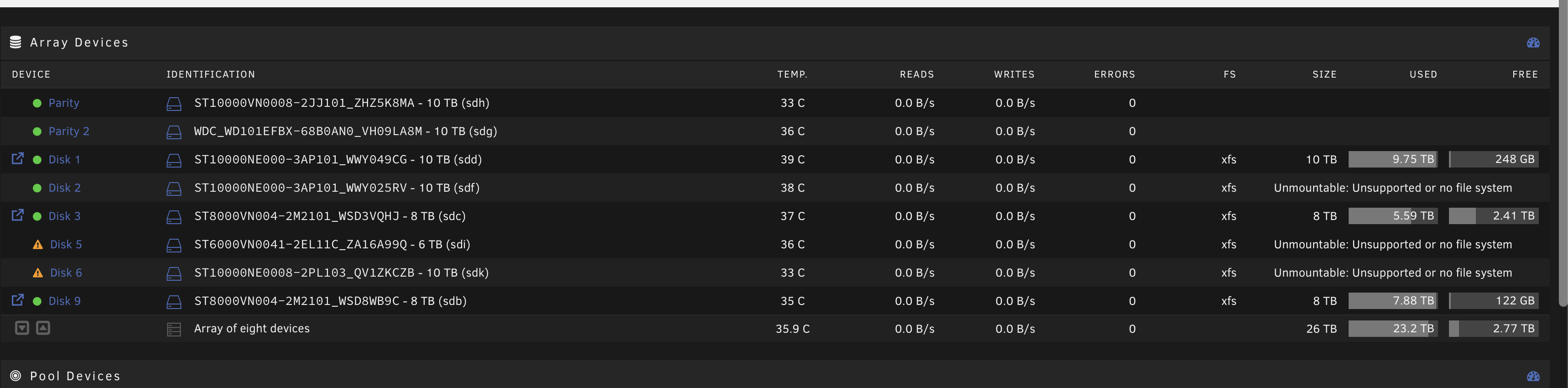

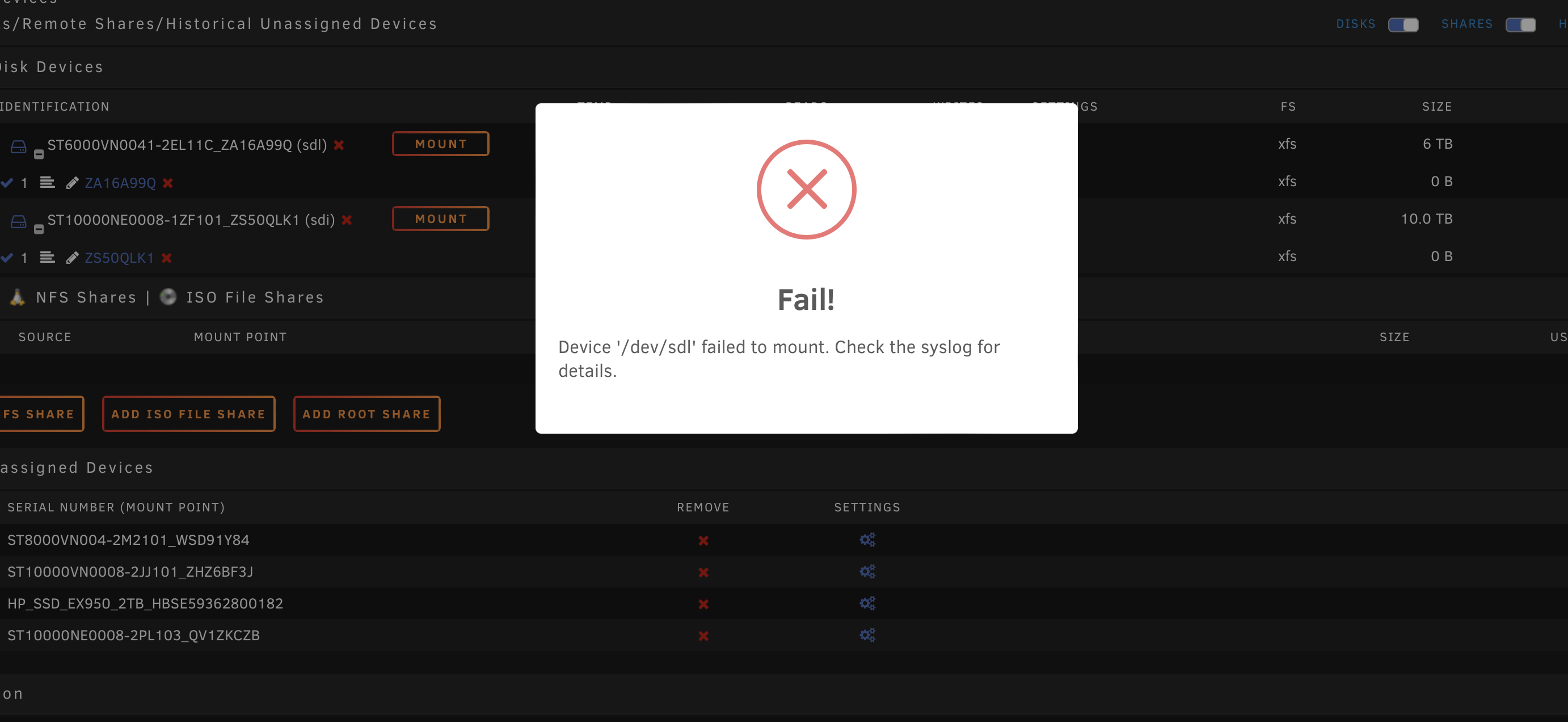

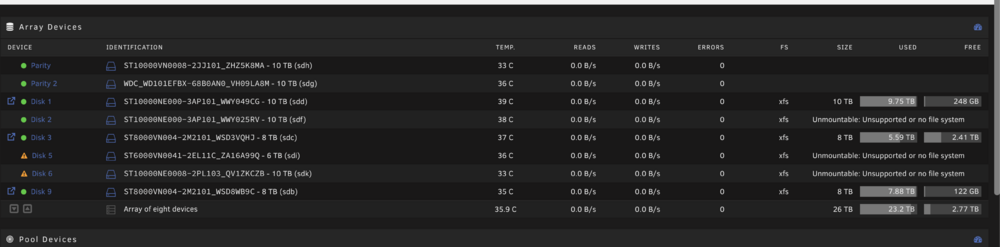

  16. Hello, since few weeks, after change hard drive on the pool I lost the access to few random folder. On Krusader when I m exploring my folder, I have few folder that I can t acces. Those folder are not visible on my PLEX server too. But When I go the my ''share file'' I can see and download the files. They are not corrupted. It s look like permission error, but I can t see where to fix it ๐Ÿ˜… Any Idea ?? Drag attached Thanks !! tower-diagnostics-20230313-1538.zip
  17. I just tried: ''Manually download Unraid from the LT website. Extract bzroot, bzroot-gui and bzimage and copy them to your flash drive.'' Still the same ๐Ÿ˜…
  18. Hello I juste restart my unraid server after it proposed me to update, I updated the system, then restart and since it can t start. I m stuck at the blue screen selection, with the message in loop Automatic boot in 5 4 3 2 1 ... I can select the others option but nothing happen when I press ENTER ... Any suggestion and ideas ? ๐Ÿ˜…๐Ÿ˜…๐Ÿ˜… Thanks !!!! IMG_5212 2.mov IMG_5211 2.mov
  19. Thanks a lot ! problem is solved ! cash was full ..
  20. Hello, I had few disk issue since 10 days ... The last issue I have is DOCKER impossible de start the docker, and I don't know why ๐Ÿ˜… have two diag, one from yesterday morning et one for today . I changed the disk setting today but nothing happen .... What can I do to fix it ? Thanks ! tower-diagnostics-20221115-1051.zip tower-diagnostics-20221115-1043.zip
  21. Yep Everything is back to normal the SSDs I used had a problem ERRORNOD of samsung pm863a I removed them rebuilt the parity and now all is working well ! Thanks again for all your precious help ! Cheers !
  22. Thanks for your help disk 8 Phase 1 - find and verify superblock... - block cache size set to 3057592 entries sb realtime bitmap inode value 18446744073709551615 (NULLFSINO) inconsistent with calculated value 129 would reset superblock realtime bitmap inode pointer to 129 sb realtime summary inode value 18446744073709551615 (NULLFSINO) inconsistent with calculated value 130 would reset superblock realtime summary inode pointer to 130 Phase 2 - using internal log - zero log... zero_log: head block 38204 tail block 38200 ALERT: The filesystem has valuable metadata changes in a log which is being ignored because the -n option was used. Expect spurious inconsistencies which may be resolved by first mounting the filesystem to replay the log. - scan filesystem freespace and inode maps... sb_icount 0, counted 6016 sb_ifree 0, counted 180 sb_fdblocks 976277431, counted 156280199 - found root inode chunk Phase 3 - for each AG... - scan (but don't clear) agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 3 - agno = 2 - agno = 1 No modify flag set, skipping phase 5 Phase 6 - check inode connectivity... - traversing filesystem ... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify link counts... No modify flag set, skipping filesystem flush and exiting. XFS_REPAIR Summary Sat Sep 10 19:10:43 2022 Phase Start End Duration Phase 1: 09/10 19:10:43 09/10 19:10:43 Phase 2: 09/10 19:10:43 09/10 19:10:43 Phase 3: 09/10 19:10:43 09/10 19:10:43 Phase 4: 09/10 19:10:43 09/10 19:10:43 Phase 5: Skipped Phase 6: 09/10 19:10:43 09/10 19:10:43 Phase 7: 09/10 19:10:43 09/10 19:10:43 Total run time: disk 10 Phase 1 - find and verify superblock... - block cache size set to 3073088 entries sb realtime bitmap inode value 18446744073709551615 (NULLFSINO) inconsistent with calculated value 129 would reset superblock realtime bitmap inode pointer to 129 sb realtime summary inode value 18446744073709551615 (NULLFSINO) inconsistent with calculated value 130 would reset superblock realtime summary inode pointer to 130 Phase 2 - using internal log - zero log... zero_log: head block 20168 tail block 20164 ALERT: The filesystem has valuable metadata changes in a log which is being ignored because the -n option was used. Expect spurious inconsistencies which may be resolved by first mounting the filesystem to replay the log. - scan filesystem freespace and inode maps... sb_icount 0, counted 64 sb_ifree 0, counted 59 sb_fdblocks 468614399, counted 468614391 - found root inode chunk Phase 3 - for each AG... - scan (but don't clear) agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 2 - agno = 1 - agno = 3 No modify flag set, skipping phase 5 Phase 6 - check inode connectivity... - traversing filesystem ... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify link counts... No modify flag set, skipping filesystem flush and exiting. XFS_REPAIR Summary Sat Sep 10 19:13:43 2022 Phase Start End Duration Phase 1: 09/10 19:13:43 09/10 19:13:43 Phase 2: 09/10 19:13:43 09/10 19:13:43 Phase 3: 09/10 19:13:43 09/10 19:13:43 Phase 4: 09/10 19:13:43 09/10 19:13:43 Phase 5: Skipped Phase 6: 09/10 19:13:43 09/10 19:13:43 Phase 7: 09/10 19:13:43 09/10 19:13:43 Total run time: There is a data rebuilding on the disks I can now see disk 8 and 10 datas which look ok to copy to another disk ๐Ÿ˜… First log is in maintenance mode seconde diag is aftter switch in normal mode tower-diagnostics-20220910-1911-2.zip tower-diagnostics-20220910-1916.zip
  23. Hello, I m just back in town, I check again de ssds, I have a new crash again from another disque, totally 4 disks crashed, I don t know what to do, I lost 4 TB of data I tried to repair the disk using the method: Checking and fixing drives in the webGui. Nothing happen, the drives are still ''Unmountable: not mounted'' I start to be desperate ! I can t access to the data on the failing drivers ... Is there any way to see what is on the disk and copy like an external hard drive on Mac ? I switched the data cable, nothing change ... Maybe the sata pci card? on DISK SPEED I ve got this error: DiskSpeed - Disk Diagnostics & Reporting tool Version: 2.9.4 Scanning Hardware 09:16:27 Spinning up hard drives 09:16:27 Scanning system storage 09:16:28 Scanning USB Bus 09:16:37 Scanning hard drives 09:16:40 Scanning storage controllers 09:16:41 Scanning USB hubs & devices 09:16:42 Scanning motherboard resources 09:16:42 Fetching known drive vendors from the Hard Drive Database 09:16:43 Found controller SAS2308 PCI-Express Fusion-MPT SAS-2 09:16:43 Found drive Micron Micron_5210_MTFDDAK7T6QDE Rev: D2MU805 Serial: 20212847847F (sdh), 1 partition 09:16:43 Found drive Micron Micron_5300_MTFDDAK1T9TDT Rev: D3MU001 Serial: 20292935A463 (sdi), 1 partition Lucee 5.2.9.31 Error (expression) Messageinvalid call of the function listGetAt, second Argument (posNumber) is invalid, invalid string list index [2] patternlistgetat(list:string, position:number, [delimiters:string, [includeEmptyFields:boolean]]):string StacktraceThe Error Occurred in /var/www/ScanControllers.cfm: line 1733 1731: <CFSET NR=i-2> 1732: <CFSET Part.Partitions[NR].PartNo=ListGetAt(CurrLine,1,":",true)> 1733: <CFSET Part.Partitions[NR].Start=Val(ListGetAt(CurrLine,2,":",true))> 1734: <CFSET Part.Partitions[NR].End=Val(ListGetAt(CurrLine,3,":",true))> 1735: <CFSET Part.Partitions[NR].Size=Val(ListGetAt(CurrLine,4,":",true))> called from /var/www/ScanControllers.cfm: line 1643 1641: </CFIF> 1642: </CFLOOP> 1643: </CFLOOP> 1644: 1645: <!--- Admin drive creation ---> Java Stacktracelucee.runtime.exp.FunctionException: invalid call of the function listGetAt, second Argument (posNumber) is invalid, invalid string list index [2] at lucee.runtime.functions.list.ListGetAt.call(ListGetAt.java:46) at scancontrollers_cfm$cf.call_000163(/ScanControllers.cfm:1733) at scancontrollers_cfm$cf.call(/ScanControllers.cfm:1643) at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:933) at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:823) at lucee.runtime.listener.ClassicAppListener._onRequest(ClassicAppListener.java:66) at lucee.runtime.listener.MixedAppListener.onRequest(MixedAppListener.java:45) at lucee.runtime.PageContextImpl.execute(PageContextImpl.java:2464) at lucee.runtime.PageContextImpl._execute(PageContextImpl.java:2454) at lucee.runtime.PageContextImpl.executeCFML(PageContextImpl.java:2427) at lucee.runtime.engine.Request.exe(Request.java:44) at lucee.runtime.engine.CFMLEngineImpl._service(CFMLEngineImpl.java:1090) at lucee.runtime.engine.CFMLEngineImpl.serviceCFML(CFMLEngineImpl.java:1038) at lucee.loader.engine.CFMLEngineWrapper.serviceCFML(CFMLEngineWrapper.java:102) at lucee.loader.servlet.CFMLServlet.service(CFMLServlet.java:51) at javax.servlet.http.HttpServlet.service(HttpServlet.java:729) at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:292) at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:207) at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52) at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:240) at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:207) at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:212) at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:94) at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:492) at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:141) at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:80) at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:620) at org.apache.catalina.valves.RemoteIpValve.invoke(RemoteIpValve.java:684) at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:88) at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:502) at org.apache.coyote.http11.AbstractHttp11Processor.process(AbstractHttp11Processor.java:1152) at org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:684) at org.apache.tomcat.util.net.AprEndpoint$SocketProcessor.doRun(AprEndpoint.java:2527) at org.apache.tomcat.util.net.AprEndpoint$SocketProcessor.run(AprEndpoint.java:2516) at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) at java.lang.Thread.run(Thread.java:748) Timestamp9/9/22 9:16:43 AM CEST Thanks !!!! Cheers! tower-diagnostics-20220909-0907.zip
  24. Thanks for your fast answer ! Here we go, I reboot and diag again tower-diagnostics-20220829-1150.zip
  25. thanks for your answer, I m just back in my home and have finally access to my Unraid. I disconnect the ssd and connect and now I ve got: Unmountable: not mounted Unraid propose me to format the drive ... Is it safe to format it ? My two parity disk look good. please kindly find attached the diag. Thank You ! tower-diagnostics-20220829-1048.zip
