halogen55

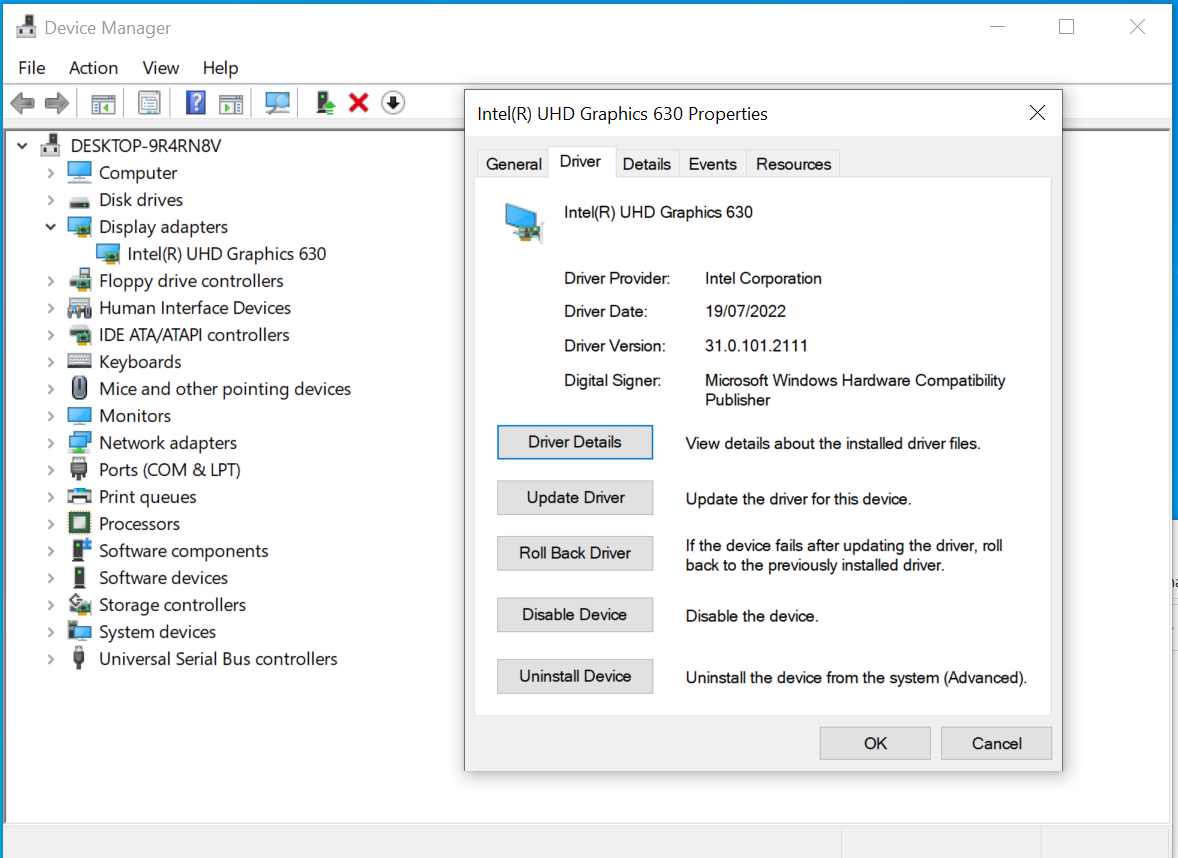

Ok for the reference of people finding this at a later date (me). I have managed to get this working reliably in Seabios with: - Video=efifb:off in me bzimage / syslinux config - Use the HP driver (not generic Intel one) for UHD630 and it stops bluescreening each day. The attached image is a working driver version. Fingers crossed everything continue to work. thx all for your help.

For future reference, here has been my findings. After trying every combination I could think of: Changing the bios settings "Configure option ROM Launch Policy", PCIe ACS override: Both & using seabios, 8gb of ram & io440x when configuring the VM got it to output. Now, however the VM is crashing every 24-48 hours which is not ideal. Looking into that now before giving up and just installing windows.

Thanks for the reply @ghost82. Unfortanately i've already tried this, both roms result in hard-rebooting rebooting my server. Can't see in the logs what happens, after I boot the VM it stop responding and has to be turned off and on. Do you have this gfx card? Have you managed to get it to work?

Yes nobara distro worked out of the box. Installed with vnc and then switched to igpu.

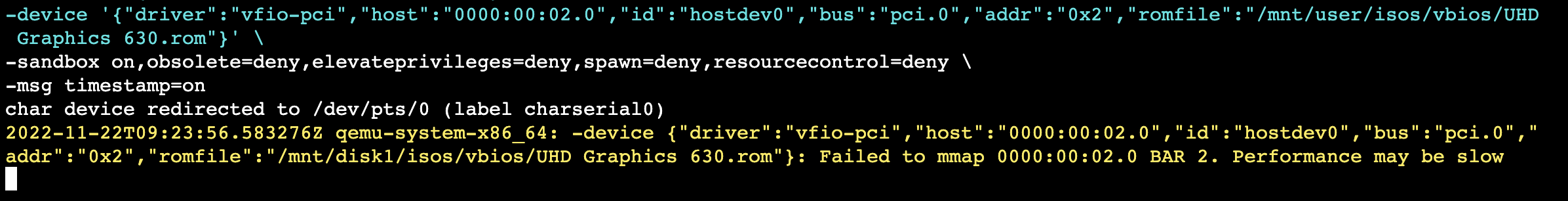

Small update, I was able to get the "failed to mmap" error to dissapear with appending "video=efifb:off" in my syslinux config. Still no change to video output however.

Hi Kilrah, thanks for the reply. Yes, it behaves the same with or without the bios rom. Detects in windows correctly, but no output. This is the only card in the machine (it's a mini 1 litre PC no other PCIe slots). Any idea would be much appreciated,

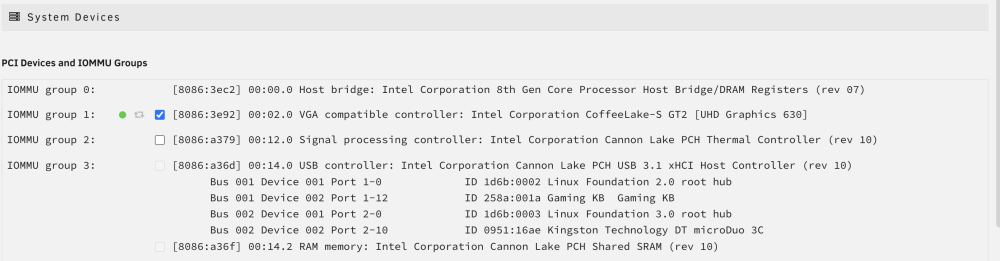

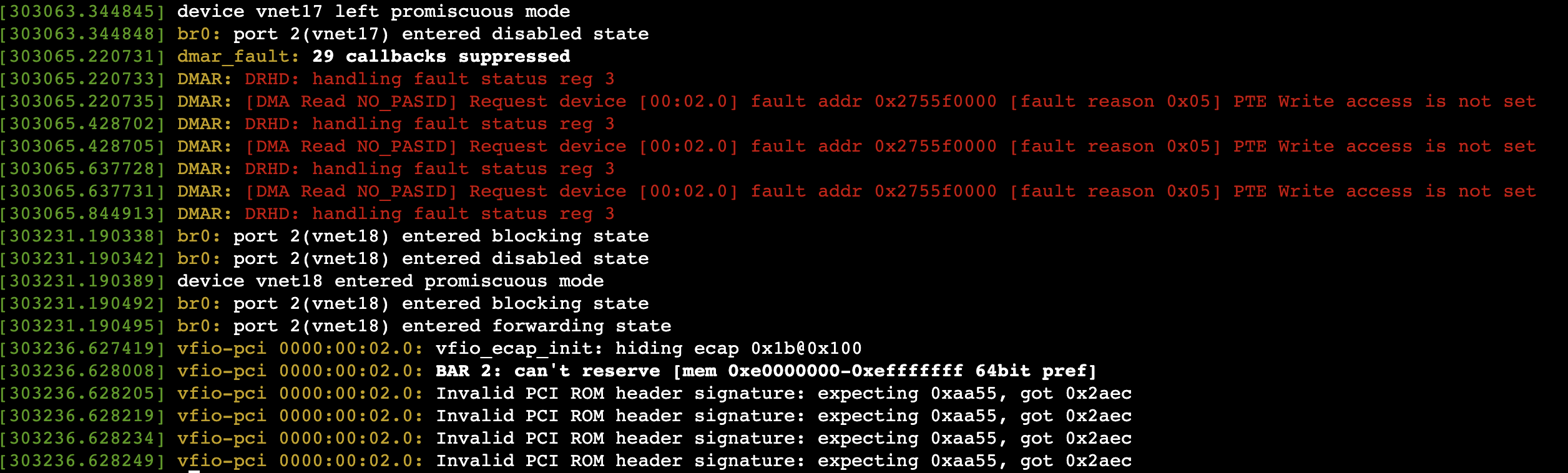

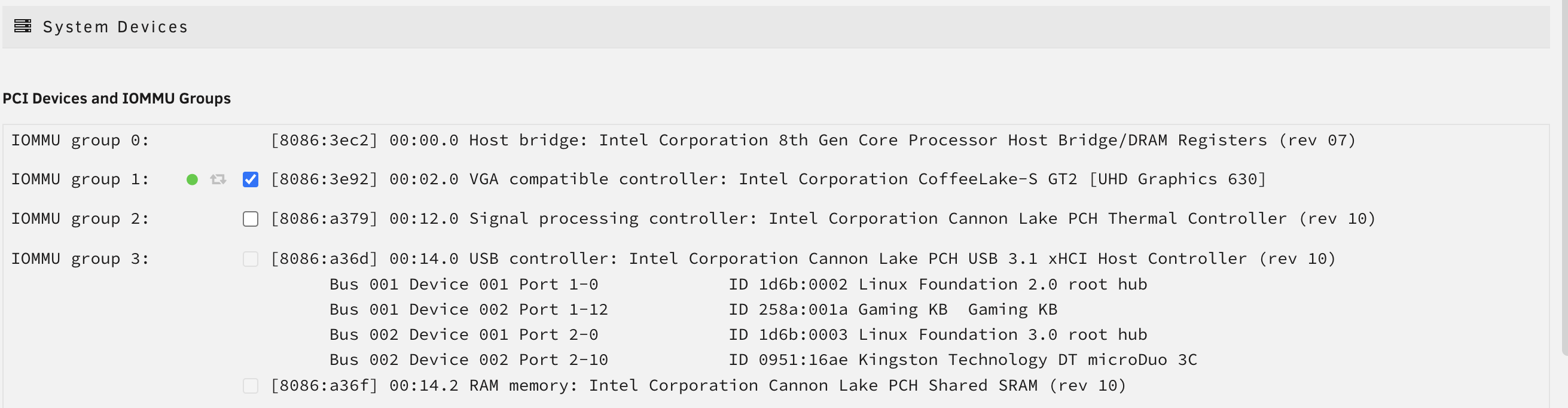

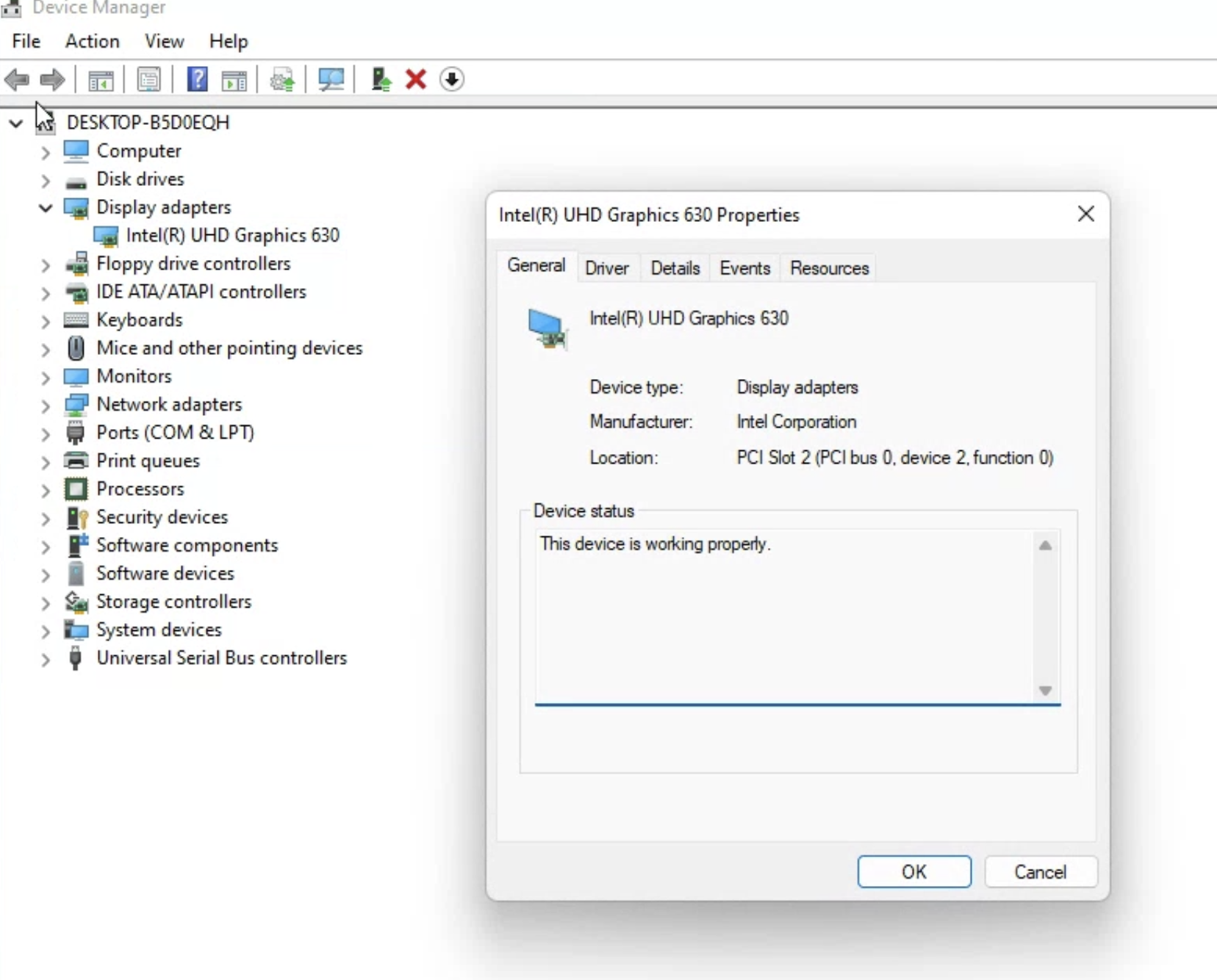

Hi fellow Unraiders, I have a HP Mini (Prodesk 600) with Intel 8500t and UHD 630 graphics. The strangest thing is going on with the intel UHD garphics, I cannot get it to output in a Windows 11 VM, but works in Linux VM's. When i use remote desktop on windows I see the UHD630 is working according to windows, just no output. The logs on the windows machine show the following: ^^^ This error is in all VM logs, even linux when it's working. dmesg shows me a whole lot of this: GPU is also bound at boot via System Devices: I have tried: - Q35 & i440fx types - Windows 10 with seabios - Extracting the Rom (using spaceinvaderone's script, doesn't seem to work for this igpu) All of which dont work with a windows VM. Installed nobara (Fedora) and it outputs at the desktop everytime, no issues using OVMF. One thing is i never see the bootloader, just the desktop. Attached are my XML's for working Nobara and the above win 11 VM. Does anyone have any experience with the 630 or ideas ? Really at a loss.... 🤷 WindowsVM-notworking.xml linux-workingVM.xml

Did you get a solution @EDV Dave?

Hi, I'm using the awesome VMbackup plugin (it's great!👍). I have a questions though, i'd like to compress the files (using the only option Zstandard which seems to give about 30% improvement). However, in testing I can't see a way to extract the .zst file directly on unraid. Tried command line, krusader & cloud commander to no avail. Any ideas?
