December 20, 20205 yr Then you maybe have another chip that manages the temps, fans,... Or it could even be that you have to install WMI ASUS but I even don't know what that is... @Bolagnaise does the plugin work on RC2 for you?

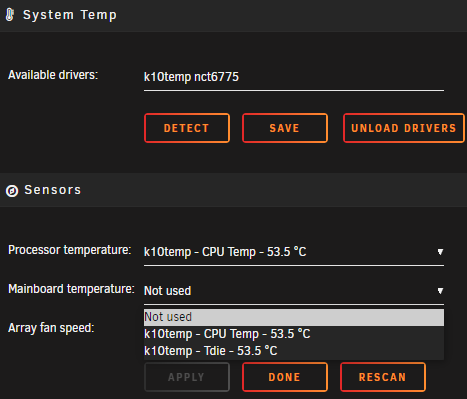

December 20, 20205 yr Apparently, my CPU temps come from k10temp (after upgrading to RC2 yesterday, haven't tried ich777's workaround before that since I missed it): Also running sensors-detect in unRAID terminal (with default answers to confirmations) outputs this (if it is of any use): Now follows a summary of the probes I have just done. Just press ENTER to continue: Driver `k10temp' (autoloaded): * Chip `AMD Family 17h thermal sensors' (confidence: 9) Driver `nct6775': * ISA bus, address 0x290 Chip `Nuvoton NCT6798D Super IO Sensors' (confidence: 9) Do you want to generate /etc/sysconfig/lm_sensors? (yes/NO): To load everything that is needed, add this to one of the system initialization scripts (e.g. /etc/rc.d/rc.local): #----cut here---- # Chip drivers modprobe nct6775 /usr/bin/sensors -s #----cut here---- You really should try these commands right now to make sure everything is working properly. Monitoring programs won't work until the needed modules are loaded. Unloading i2c-dev... OK Edited December 20, 20205 yr by UNOPARATOR changed quote to code for output
December 20, 20205 yr Also is this (Setting up CPU and board temperature sensing) still relevant or would help with my issue?
December 20, 20205 yr 1 minute ago, ich777 said: @UNOPARATOR can you link to the post that you quoted? Or what is this? Well I can see the link even after refreshing the page, but here you go. Maybe second times the charm: https://wiki.unraid.net/Setting_up_CPU_and_board_temperature_sensing
December 20, 20205 yr 3 minutes ago, UNOPARATOR said: Well I can see the link even after refreshing the page, but here you go. No I do mean what you quoted, but now I think this is the output from what you've done or am I wrong? Sorry I can't really help since I'm not having such a board...
December 20, 20205 yr Yes, that was the output that you've asked of me. For future reference should I have uploaded it as a file or use "Code" instead of "Quote"?
December 20, 20205 yr Author 23 minutes ago, ich777 said: Then you maybe have another chip that manages the temps, fans,... Or it could even be that you have to install WMI ASUS but I even don't know what that is... @Bolagnaise does the plugin work on RC2 for you? Yep, Works on RC2 as well. I’m not sure if you really need to do to much work because it will be supported in the kernel soon(tm) anyway. let me find the asus WMI plugin i’ve seen people work on.
December 20, 20205 yr Author @ich777 you may be able to convert this one https://github.com/electrified/asus-wmi-sensors EDIT: ASUS B550 boards dont use WMI, they need nct6775 Edited December 20, 20205 yr by Bolagnaise
December 20, 20205 yr 1 minute ago, Bolagnaise said: WMI plugin This github sys that B550 boards doesn't have that interface... https://github.com/electrified/asus-wmi-sensors
December 20, 20205 yr Author 2 minutes ago, ich777 said: This github sys that B550 boards doesn't have that interface... https://github.com/electrified/asus-wmi-sensors Yep i just saw, nct6775 is already in the kernel @UNOPARATOR run ‘’sensors-detect’’ from CLI and type yes at all the prompts. Copy paste the outputs
December 20, 20205 yr 3 minutes ago, Bolagnaise said: Yep i just saw, nct6775 is already in the kernel @UNOPARATOR run ‘’sensors-detect’’ from CLI and type yes at all the prompts. Copy paste the outputs I already did in my post from this page: If you want all the output above these lines, please say so. Edited December 20, 20205 yr by UNOPARATOR
December 20, 20205 yr Author 56 minutes ago, UNOPARATOR said: I already did in my post from this page: If you want all the output above these lines, please say so. Oh sorry i missed that, thats strange, 6775 is already supported in this kernel so it should be working.
December 20, 20205 yr 6 minutes ago, Bolagnaise said: @UNOPARATOR run modprobe nct6775 This outputs nothing, but doesn't give an error either. Edited December 20, 20205 yr by UNOPARATOR grammer
December 20, 20205 yr 25 minutes ago, UNOPARATOR said: This outputs nothing, but doesn't give an error either. Then it's loaded correctly, if you do 'lsmod' you should see that it's loaded.
December 20, 20205 yr root@UNONAS:~# lsmod Module Size Used by veth 24576 0 xt_nat 16384 34 xt_CHECKSUM 16384 1 macvlan 24576 0 ipt_REJECT 16384 2 ip6table_mangle 16384 1 ip6table_nat 16384 1 iptable_mangle 16384 1 ip6table_filter 16384 1 ip6_tables 28672 3 ip6table_filter,ip6table_nat,ip6table_mangle vhost_net 24576 0 tun 45056 4 vhost_net vhost 28672 1 vhost_net vhost_iotlb 16384 1 vhost tap 24576 1 vhost_net xt_MASQUERADE 16384 15 iptable_filter 16384 1 iptable_nat 16384 7 nf_nat 36864 4 ip6table_nat,xt_nat,iptable_nat,xt_MASQUERADE ip_tables 28672 3 iptable_filter,iptable_nat,iptable_mangle xfs 671744 8 md_mod 45056 7 nct6775 53248 0 hwmon_vid 16384 1 nct6775 bonding 114688 0 edac_mce_amd 32768 0 btusb 45056 0 kvm_amd 90112 10 btrtl 16384 1 btusb btbcm 16384 1 btusb btintel 24576 1 btusb kvm 421888 1 kvm_amd bluetooth 380928 5 btrtl,btintel,btbcm,btusb crct10dif_pclmul 16384 1 crc32_pclmul 16384 0 crc32c_intel 24576 2 ghash_clmulni_intel 16384 0 aesni_intel 364544 0 mvsas 53248 8 wmi_bmof 16384 0 crypto_simd 16384 1 aesni_intel cryptd 16384 2 crypto_simd,ghash_clmulni_intel ecdh_generic 16384 1 bluetooth libsas 69632 1 mvsas i2c_piix4 24576 0 i2c_core 45056 1 i2c_piix4 wmi 24576 1 wmi_bmof k10temp 16384 0 scsi_transport_sas 32768 2 mvsas,libsas glue_helper 16384 1 aesni_intel igc 86016 0 ecc 24576 1 ecdh_generic ahci 40960 1 ccp 69632 1 kvm_amd libahci 28672 1 ahci rapl 16384 0 acpi_cpufreq 16384 0 button 16384 0
December 20, 20205 yr 12 minutes ago, UNOPARATOR said: hwmon_vid 16384 1 nct6775 The module is loaded correctly as you can see now. Try to uninstall the temp plugin, restart, do the modprobe, install the temp plugin and then you should theoretically see the temps from the MB
December 20, 20205 yr Ok, I will try that and report back. Should I be using your package and modprobe nct6687 then use sensors command to see what can be read? Or use sensors-detect and use the output commands for modprobe then use sensors command to see what can be read?
December 20, 20205 yr Author 11 minutes ago, UNOPARATOR said: Ok, I will try that and report back. Should I be using your package and modprobe nct6687 then use sensors command to see what can be read? Or use sensors-detect and use the output commands for modprobe then use sensors command to see what can be read? You do not have the nct6687 chip, it will not read anything from it. try 2.
December 20, 20205 yr 3 minutes ago, Bolagnaise said: You do not have the nct6687 chip, it will not read anything from it. try 2. Alright just did #2. It is exactly the same as before. k10temp is auto loaded. If I run "sensors" command it shows: root@UNONAS:~# sensors k10temp-pci-00c3 Adapter: PCI adapter Tctl: +66.6°C Tdie: +66.6°C "sensor-detect" shows the same output: #----cut here---- # Chip drivers modprobe nct6775 /usr/bin/sensors -s #----cut here---- If I run the above lines, and then run "sensors" command, the same output is shown (only k10-temp, no values from nct6775). root@UNONAS:~# modprobe nct6775 root@UNONAS:~# /usr/bin/sensors -s root@UNONAS:~# sensors k10temp-pci-00c3 Adapter: PCI adapter Tctl: +33.1°C Tdie: +33.1°C I guess I'm out of luck for the time being. Any other ideas?
December 20, 20205 yr Author 9 hours ago, UNOPARATOR said: Any other ideas? try this modprobe nct6775 force_id=0x290 then run sensors and let us know if it detects. Edited December 20, 20205 yr by Bolagnaise
December 21, 20205 yr 7 hours ago, Bolagnaise said: try this modprobe nct6775 force_id=0x290 then run sensors and let us know if it detects. Sadly nothing new is detected. root@UNONAS:~# sensors k10temp-pci-00c3 Adapter: PCI adapter CPU Temp: +47.4°C Tdie: +47.4°C By the way, sorry that I hijacked your thread.

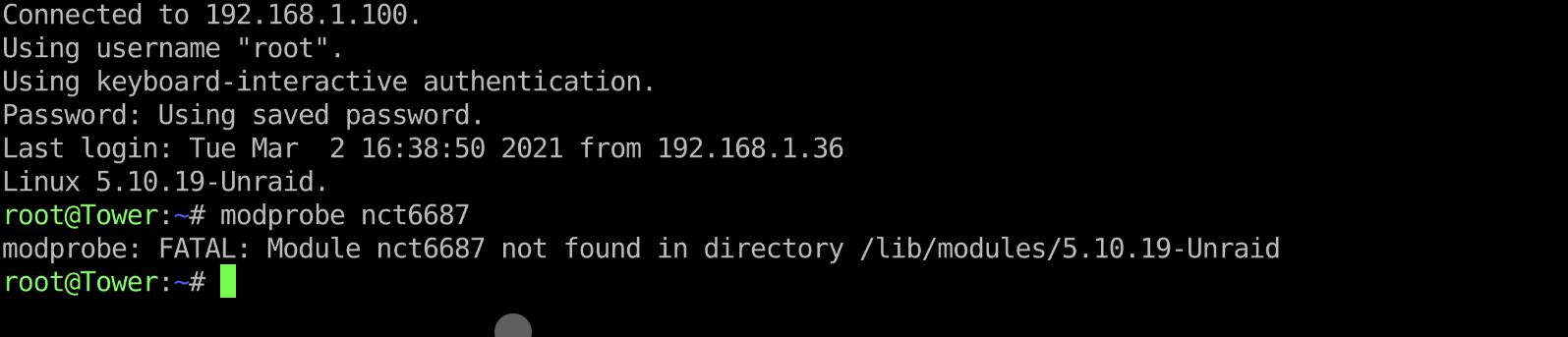

March 2, 20215 yr Author @ich777 No longer works in 6.9.0 stable Heres the output error when running modprobe
March 2, 20215 yr 1 minute ago, Bolagnaise said: @ich777 No longer works in 6.9.0 stable Yep, exactly you have to download the new version for this Kernel version (so to speak the link has changed): cd /tmp wget https://github.com/ich777/unraid-plugins-repo/releases/download/5.10.19-Unraid/nct6687d-1.txz installpkg nct6687d-1.txz depmod -a modprobe nct6687
