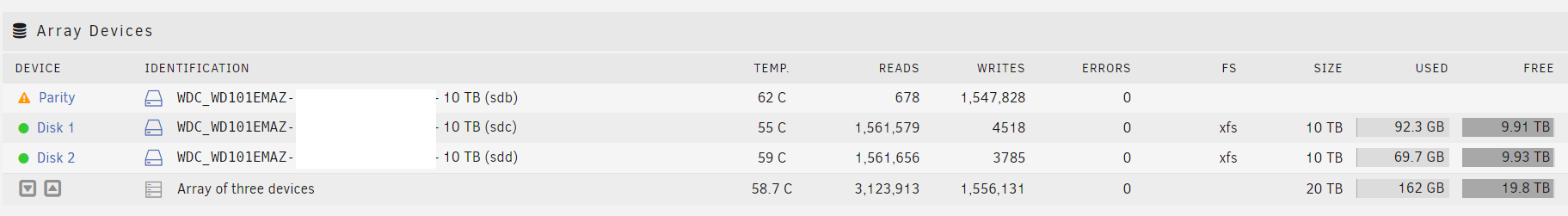

January 16, 20215 yr Hi i have just setup my unraid build and I am seeing very high disk temp. What level of temp. one should be generally seeing and what point should I be worried about
January 16, 20215 yr Community Expert Aim for 40C, 45C tops, those are definitely too hot, you need to improve cooling.
January 16, 20215 yr Author at the moment my case is open so ample of air flow ...any suggestions on what to do about cooling?
January 16, 20215 yr Community Expert Open case isn't good for disk cooling, you need good airflow and fans moving air over and around the disks.
January 16, 20215 yr 1 hour ago, unraid_2021 said: at the moment my case is open so ample of air flow ...any suggestions on what to do about cooling? Close the case and recheck temp. All airflow through the case must pass by the drives, if not, you need to seal up any openings that allow air get through without cooling the drives. If in doubt, post a picture of your case, lid on and off, with arrows showing fan flow direction.

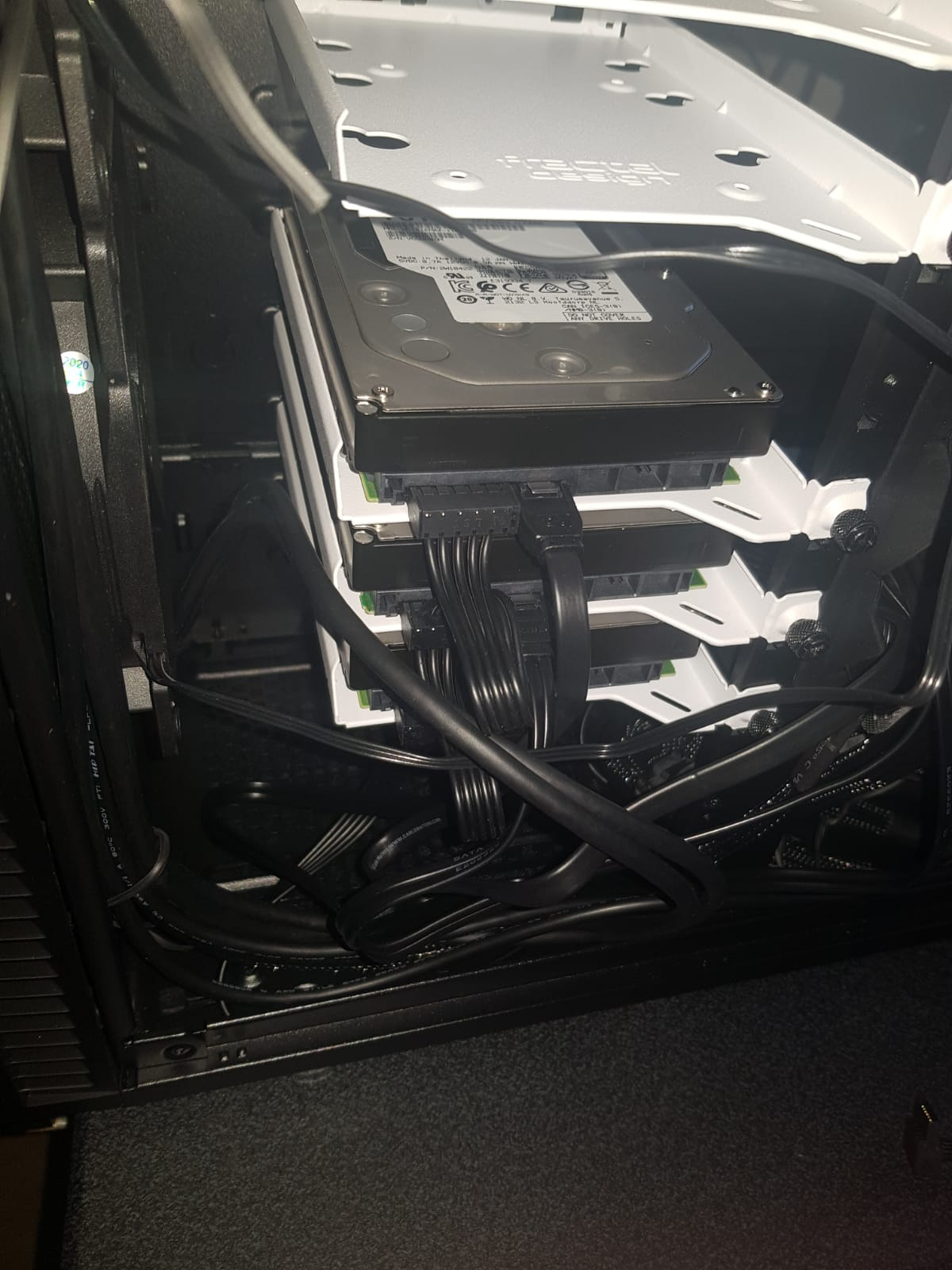

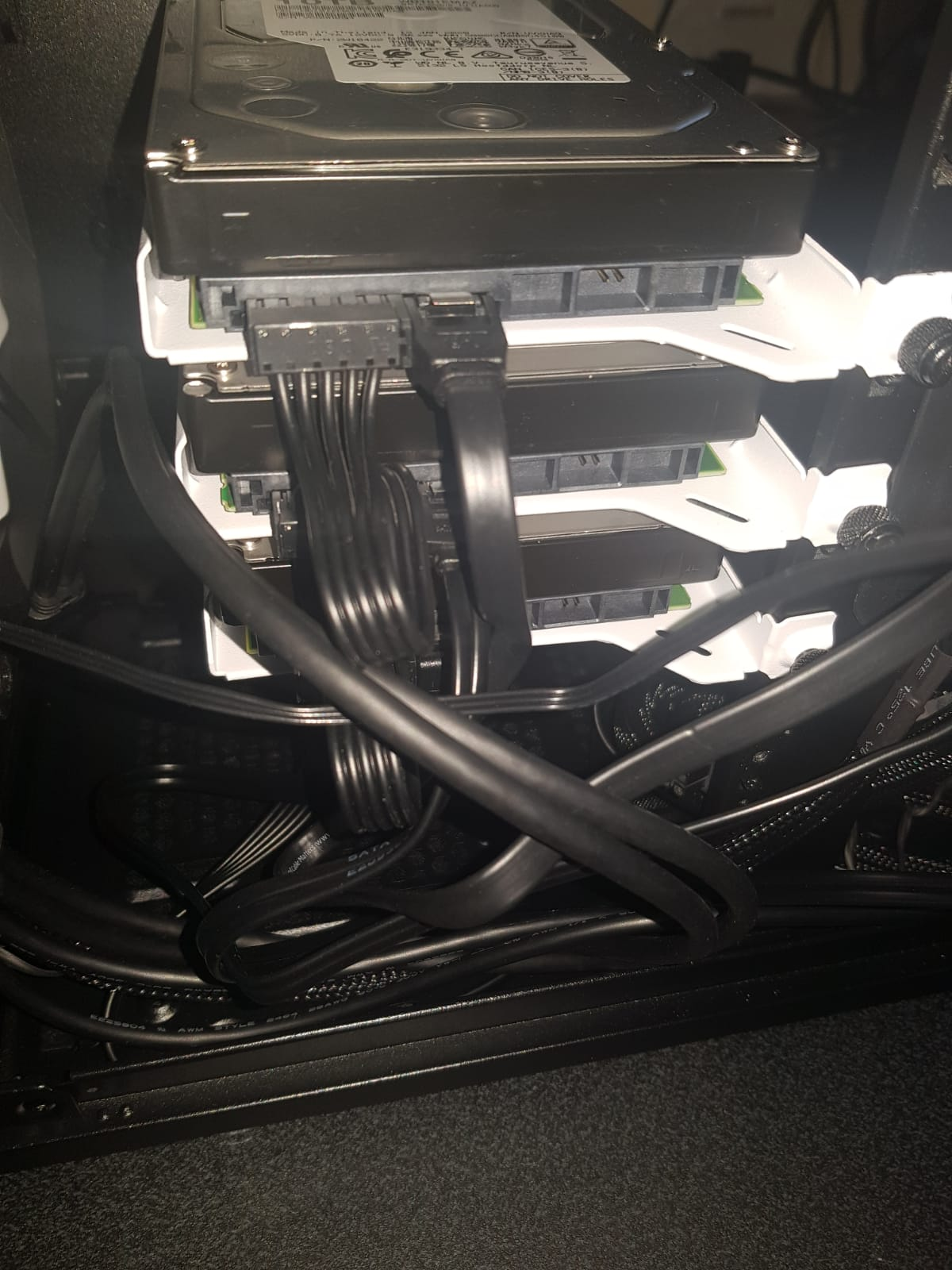

January 16, 20215 yr Author ok thanks this is how my current drives are in the bay , the case is R6 define, shall I have more spacing between them to improve air flow
January 16, 20215 yr 7 minutes ago, unraid_2021 said: shall I have more spacing between them to improve air flow Spacing not relevant. 14 minutes ago, jonathanm said: post a picture of your case, lid on and off, with arrows showing fan flow direction. We need to see the overall picture of how air moves through the case.
January 16, 20215 yr Community Expert Basic 'rule of thumb' for cooling servers. All air entering the case should first pass over the drives. All fans behind this(these) entry point(s) the drives should be blowing air out of the case. Any fans between the entry point of the air and the drives should be blowing air into the case. There should be one point of entry for air into the server. (although this might be the entire front panel of the server--- this is usually the norm for most computer cases.) Edited January 16, 20215 yr by Frank1940
January 16, 20215 yr One major isssue was the tray design problem, disk bottom side around motor was hottest area, but the tray just cover it. You can do some test without tray, just keep air flow at disk bottom side. Edited January 16, 20215 yr by Vr2Io

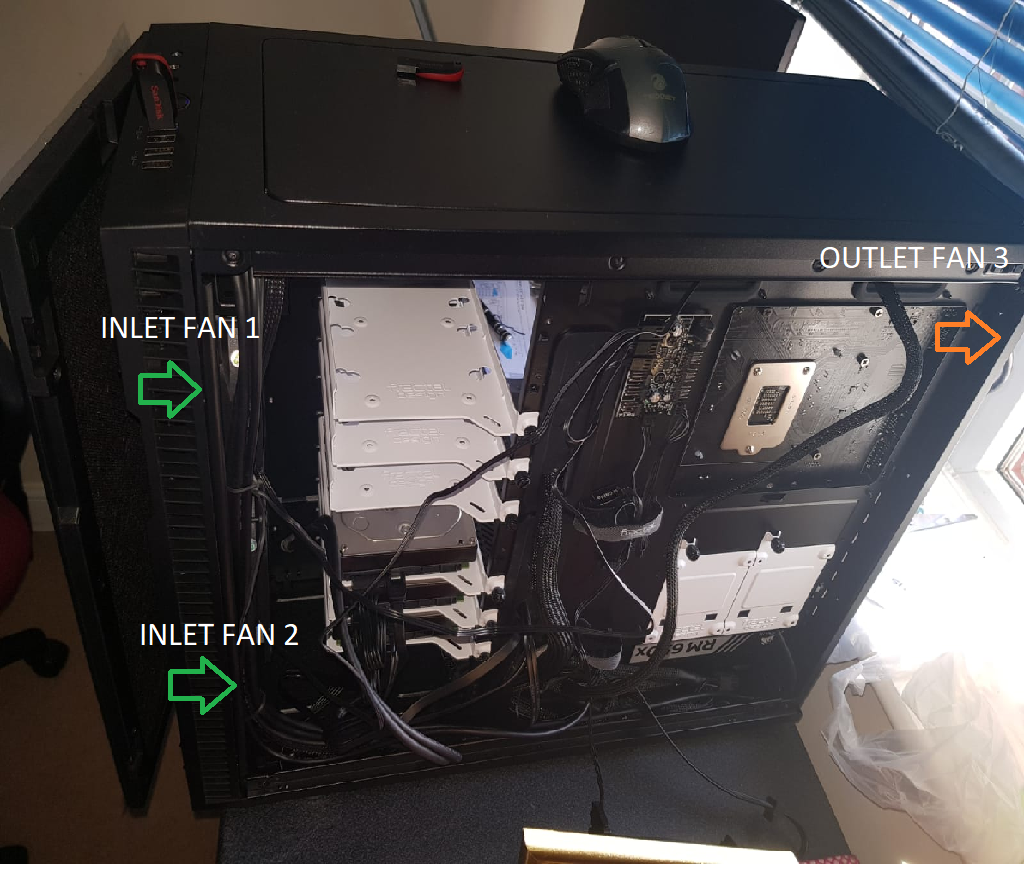

January 17, 20215 yr Author The airflow is as above. Currently temp. is at 40C (parity), 40C (Data), 36C (Data). Yesterday Parity build was running and now completed
January 17, 20215 yr 3 hours ago, unraid_2021 said: The airflow is as above. Currently temp. is at 40C (parity), 40C (Data), 36C (Data). Yesterday Parity build was running and now completed As long as you keep the case closed, you should be fine.
