Problems with RSS on ConnectX-3 VPI

[intel64gamer]

Hi,

I am currently using Mellanox ConnectX-3 VPI cards in 40 Gigabit Ethernet mode on Unraid 6.8.3 / 6.9.0-rc2. I have tested the cards by temporarily putting Windows Server 2019 on both ends. I am able to nearly max out the SSDs with RDMA working in that constellation.

Here are the speeds I am seeing on Windows to the drives I am using as Cache in Unraid.


With Unraid I am maxed out around 1.8 GB/s and typically dropping to 1.0 - 1.5 GB/s on the same hardware. This seems to be down to RSS and RDMA not working out of the box. I have followed this thread to try to at least get RSS working:

I am not having great success so far. My smb conf looks like this:


server multi channel support = yes
interfaces = "10.10.10.10;capability=RSS,capability=RDMA,speed=40000000000"
aio read size = 1
aio write size = 1
strict locking = No
use sendfile = Yes



However, there seem to be additional problems with RSS. I ran the following command as per the thread to check if RSS is supported.

egrep 'CPU|eth*' /proc/interrupts

            CPU0       CPU1       CPU2       CPU3       CPU4       CPU5       CPU6       CPU7
 RTR:          6          0          0          0          0          0          0          0   APIC ICR read retries

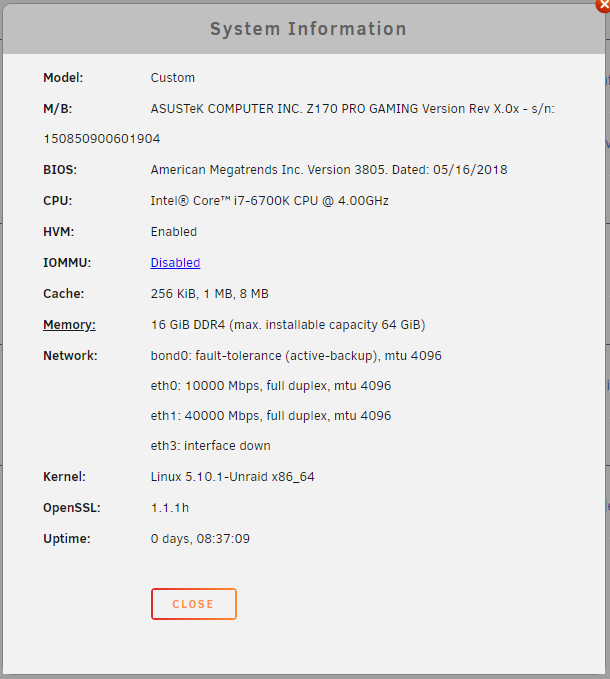

System Information:

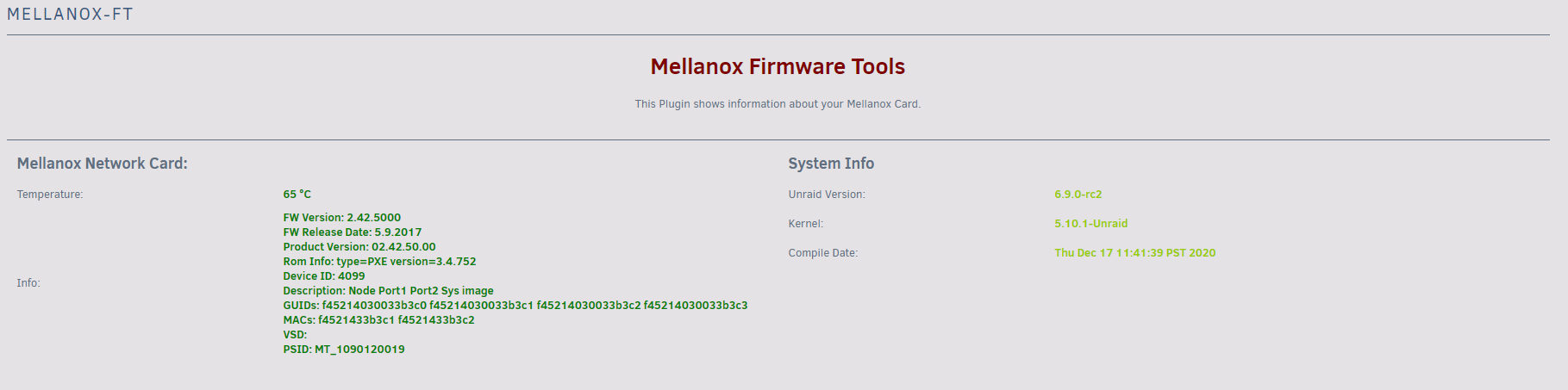

Mellanox Firmware Info:





On Windows:

PS C:\Windows\system32> Get-SmbClientNetworkInterface

Interface Index RSS Capable RDMA Capable Speed   IpAddresses                               Friendly Name
--------------- ----------- ------------ -----   -----------                               -------------
26              False       False        0  bps  {fe80::edcd:2f13:ae5a:8a31}               Ethernet 4
4               True        True         40 Gbps {fe80::bd00:9b94:dde:bd6d, 10.10.10.9}    Ethernet 14
17              True        True         10 Gbps {fe80::3045:74bf:a53d:a6d5, 10.0.101.202} Ethernet 15
55              True        False        10 Gbps {fe80::a9f3:43dc:fb3b:e2c8, 172.29.208.1} vEthernet (Default Switch)
22              False       False        1 Gbps  {fe80::d468:1d0:d904:b7a8}                Local Area Connection

Thanks for your help.

[kacper91]

I had exactly the same problem. Maybe the in kernel mlx4 module doesn't support RSS on the Connect-X 3? Try to install drivers from https://www.mellanox.com/products/ethernet-drivers/linux/mlnx_en (choose LTS Download, 4.9-2.2.4.0, the newer drivers do not support Connect-X 3). After installing the drivers I got:


egrep 'CPU|eth*' /proc/interrupts
           CPU0       CPU1       CPU2       CPU3
 48:          0        311          2          0   PCI-MSI 524289-edge      eth0-0
 49:        126          3          0        214   PCI-MSI 524290-edge      eth0-1
 50:         10          0        105        184   PCI-MSI 524291-edge      eth0-2
 51:          0         34        244          0   PCI-MSI 524292-edge      eth0-3
RTR:          0          0          0          0   APIC ICR read retries



[intel64gamer]

How did you install the driver? I didn't find any packages for Slackware or anything based on it. Did you compile and install from source?

[jj1987]

@intel64gamer: Could you solve this in the meantime? As i have the same problem with my Connectx-3



@kacper91: Would you mind to explain how you got these drivers working under Unraid/Slackware?



Thanks in advance

[intel64gamer]

@jj1987 Unfortunately not.
