Hard Drive Failed - Rebuild failed - 4 Drives showing no data

Featured Replies

  • Author
26 minutes ago, JorgeB said:

use -L



Cool got that done. Re-ran the UUIC change, gave an error :(



Apr 12 05:20:28 Tower unassigned.devices: Error: shell_exec(/usr/sbin/xfs_admin -U generate /dev/sdd1) took longer than 1s!
Apr 12 05:20:28 Tower unassigned.devices: Changing disk '/dev/sdd' UUID. Result: command timed out

  • Community Expert

Try manually:



xfs_admin -U generate /dev/sdd1



  • Author
12 minutes ago, JorgeB said:

Try manually:




xfs_admin -U generate /dev/sdd1





God dang you are a hero. That worked. Now, the hard part?



1. Start the Array

2. Mount the ZAD8EYTY drive

3. rsync between the two? Should I do that in the UNRAID terminal?

  • Community Expert
16 minutes ago, JasenHicks said:

Cool got that done. Re-ran the UUIC change, gave an error :(



Apr 12 05:20:28 Tower unassigned.devices: Error: shell_exec(/usr/sbin/xfs_admin -U generate /dev/sdd1) took longer than 1s!
Apr 12 05:20:28 Tower unassigned.devices: Changing disk '/dev/sdd' UUID. Result: command timed out

@dlandonLooks like you need to make the timeout for this longer.





2 minutes ago, JasenHicks said:

1. Start the Array

2. Mount the ZAD8EYTY drive

3. rsync between the two? Should I do that in the UNRAID terminal?

Yep, you can use for example:



rsync -av /mnt/disks/name_of_UD_disk/ /mnt/diskX/



Replace X with correct disk number.

  • Author

Is the name_of_UD_disk the stand alone disk we just did all the XFS repair on?

  • Community Expert
1 minute ago, JasenHicks said:

Is the name_of_UD_disk the stand alone disk we just did all the XFS repair on?

Nope, click the + sign, it's below that, e.g.:




Note that you can change name before mounting the disk by clicking on it.



  • Author

Sorry, I should have been more clear. Apologies...



Is the first mounted disk in the rsync command the disk I just ran the XFS repair on and the second disk is the disk on the array I want to sync it to (in my case disk 7)

  • Author

I'm sorry for the silly questions back and forth and am truly grateful for the assistance. I re-read the post and was like "DUH" UD = Unassigned device.



Ran the command: rsync -av /mnt/disks/oldSeagate/ /mnt/disk7/



Output (error) below:



Linux 4.19.107-Unraid.
Last login: Mon Apr 12 05:29:17 -0700 2021 on /dev/pts/0.
root@Zeus:~# rsync -av /mnt/disks/oldSeagate/ /mnt/disk7/
sending incremental file list
rsync: ERROR: cannot stat destination "/mnt/disk7/": Input/output error (5)
rsync error: errors selecting input/output files, dirs (code 3) at main.c(642) [Receiver=3.1.3]
root@Zeus:~#




  • Community Expert

Post current diags.

  • Community Expert

Fix filesystem on disk7, then try again, with the array in maintenance mode:



xfs_repair -v /dev/md7



If it asks for -L use it.

  • Author

Cool, just stopped the array, went into maintenance mode and ran the command. Once its done, Ill go back to non-maintenance mode and re-run the rsync.

  • Author

OMG.... rsync is doing something. @JorgeB - I could kiss you on the face right now! I'll refrain until this is done and actually works or something :)



Seriously, let me know how I can send you something as a token of my gratitude.

  • Author

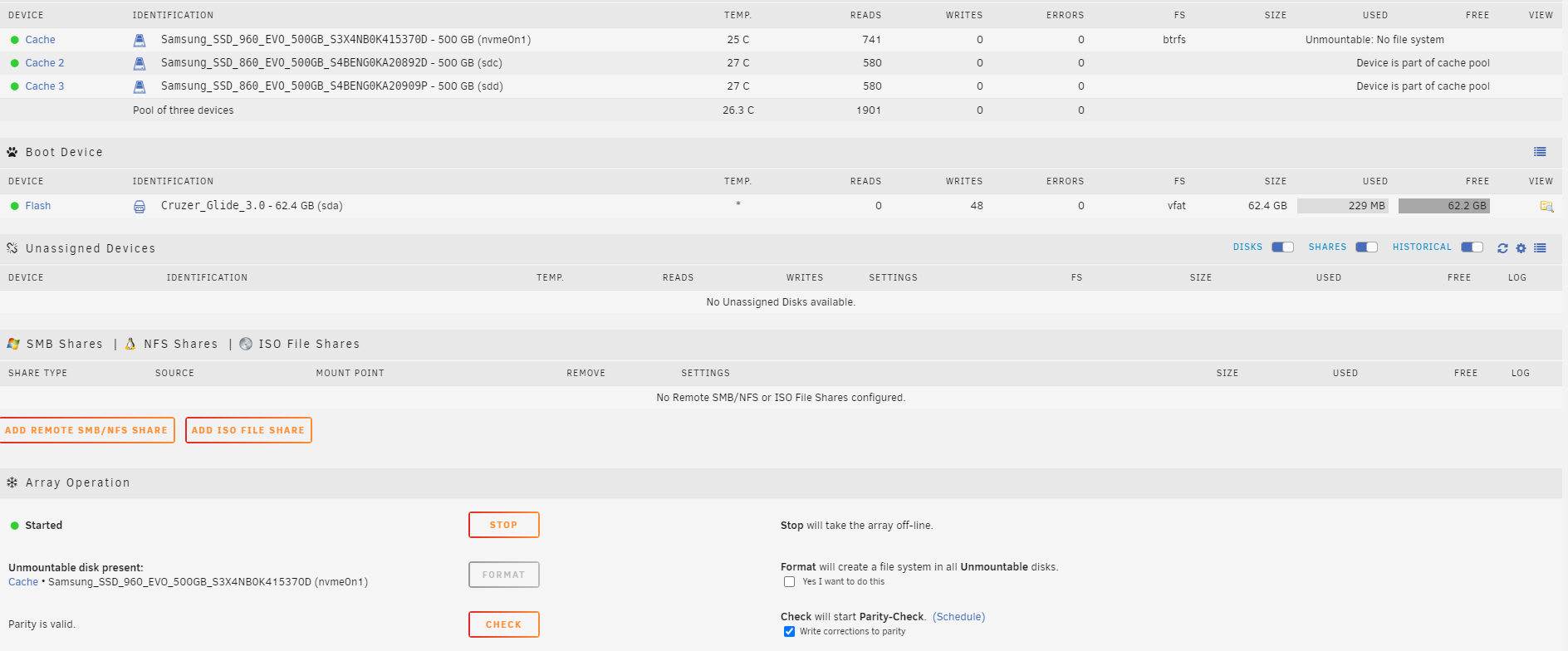

@JorgeB - you are the man. The only thing that seems to still need attention is my cache pool.




  • Community Expert

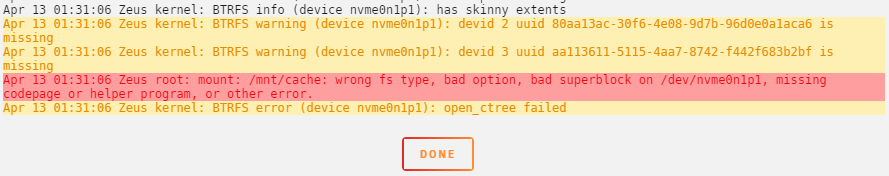

According to that there are two missing pool devices.

  • Author

Not sure why. They are all in the system. I bet I dorked something up when adding them back; just not sure what.














  • Community Expert

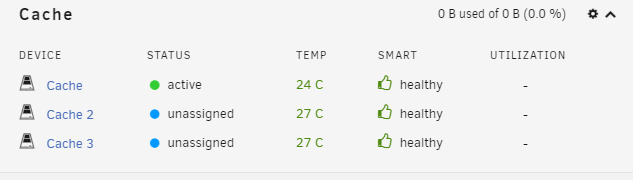

They should have a blue icon, try this:



Unassign all cache devices, start array to make Unraid "forget" current cache config, stop array, reassign all cache devices (there can't be an "All existing data on this device will be OVERWRITTEN when array is Started" warning for any cache device), start array.

  • Author

OK. Did the following.



1. Stopped the Array.

2. Unassigned all the cache drives. It wouldn't let me start the array though.

3. Reassigned the cache drives. Started up the array.

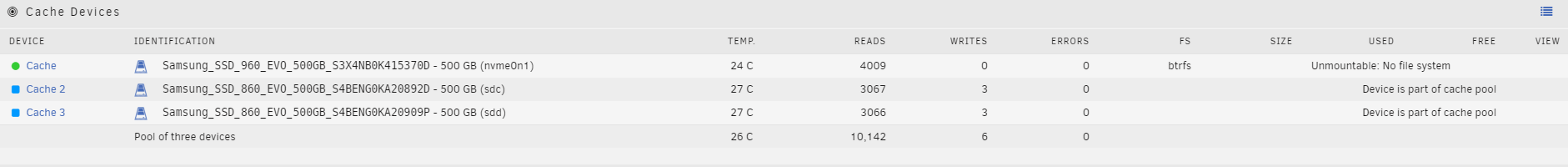

4. Now we have GREEN BUBBLES next to each cache drive but still have the "Unmountable: No File System" on the NVME drive.







  • Community Expert

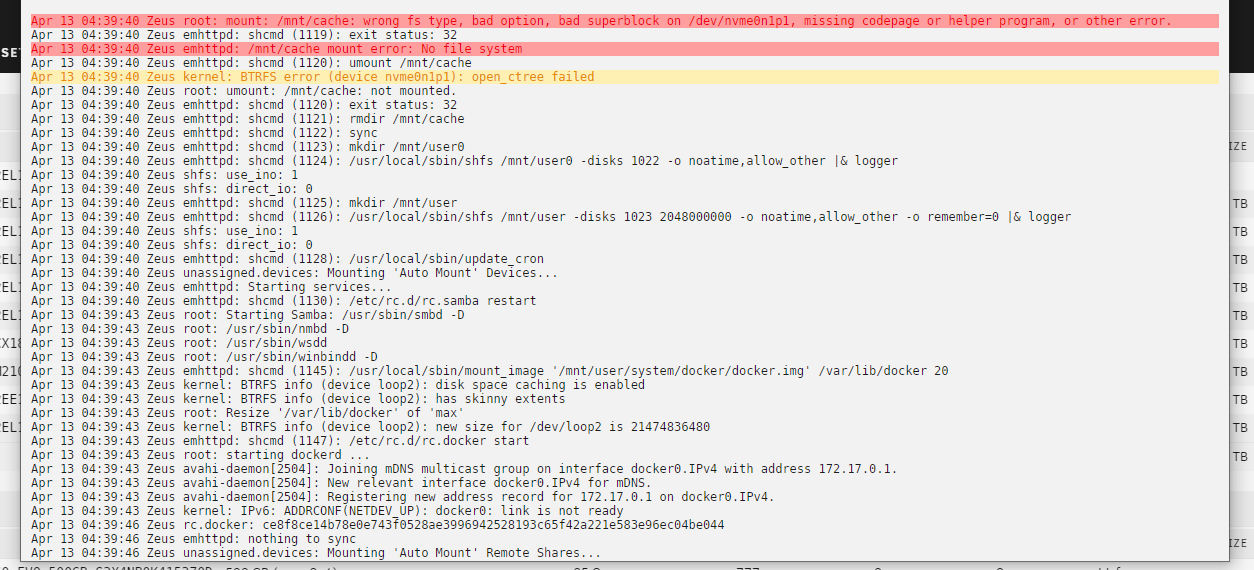

Grab current diags, reboot, grab new diags and post both here.

  • Community Expert

When you started the array before the first screenshot, i.e., when both additional cache devices had a blue icon they were wiped:



Apr 13 01:31:05 Zeus emhttpd: shcmd (453): /sbin/wipefs -a /dev/sdc1
Apr 13 01:31:05 Zeus root: /dev/sdc1: 8 bytes were erased at offset 0x00010040 (btrfs): 5f 42 48 52 66 53 5f 4d
Apr 13 01:31:05 Zeus emhttpd: shcmd (454): /sbin/wipefs -a /dev/sdd1
Apr 13 01:31:06 Zeus root: /dev/sdd1: 8 bytes were erased at offset 0x00010040 (btrfs): 5f 42 48 52 66 53 5f 4d
Apr 13 01:31:06 Zeus emhttpd: cache uuid: 9ac8c9e6-3103-4734-a27f-a043b30a7659



There should have been an "all data on this device will be deleted at array start" warning in red in front of both, now you can try this, with some luck it might work.



With the array stopped type on the console:



btrfs-select-super -s 1 /dev/sdc1



then



btrfs-select-super -s 1 /dev/sdd1



Now start the array.





  • Author
33 minutes ago, JorgeB said:

When you started the array before the first screenshot, i.e., when both additional cache devices had a blue icon they were wiped:




Apr 13 01:31:05 Zeus emhttpd: shcmd (453): /sbin/wipefs -a /dev/sdc1
Apr 13 01:31:05 Zeus root: /dev/sdc1: 8 bytes were erased at offset 0x00010040 (btrfs): 5f 42 48 52 66 53 5f 4d
Apr 13 01:31:05 Zeus emhttpd: shcmd (454): /sbin/wipefs -a /dev/sdd1
Apr 13 01:31:06 Zeus root: /dev/sdd1: 8 bytes were erased at offset 0x00010040 (btrfs): 5f 42 48 52 66 53 5f 4d
Apr 13 01:31:06 Zeus emhttpd: cache uuid: 9ac8c9e6-3103-4734-a27f-a043b30a7659



There should have been an "all data on this device will be deleted at array start" warning in red in front of both, now you can try this, with some luck it might work.



With the array stopped type on the console:




btrfs-select-super -s 1 /dev/sdc1



then




btrfs-select-super -s 1 /dev/sdd1



Now start the array.







You are a god damn hero. Thank you! I seem to be full up round again.
