January 2, 20251 yr this is far has i have got root@Media-Server:~# cd /etc/sensors.d root@Media-Server:/etc/sensors.d# wget https://github.com/petersulyok/asrock_z690_extreme/blob/main/Z690_Extreme.conf --2025-01-02 15:30:51-- https://github.com/petersulyok/asrock_z690_extreme/blob/main/Z690_Extreme.conf Resolving github.com (github.com)... 20.26.156.215 Connecting to github.com (github.com)|20.26.156.215|:443... connected. HTTP request sent, awaiting response... 200 OK Length: unspecified [text/html] Saving to: ‘Z690_Extreme.conf’ Z690_Extreme.conf [ <=> ] 265.66K --.-KB/s in 0.05s 2025-01-02 15:30:52 (5.10 MB/s) - ‘Z690_Extreme.conf’ saved [272039]
January 2, 20251 yr Author 3 minutes ago, recreational-regulation8230 said: Hi, i have got to the terminal commands posted above now trying this: systemctl restart lm_sensors.service displays command not found? try /etc/init.d/lm_sensors start or /etc/init.d/lm_sensors restart, or just reboot the system
January 2, 20251 yr Author 3 minutes ago, recreational-regulation8230 said: rebooted but nothing changed. Will not detect driver What happens if you open a terminal and just write sensors does it show anything? Afterwards can you run sensors-detect and run through it and then reboot?
January 2, 20251 yr i get this: Adapter: ISA adapter in0: 728.00 mV (min = +0.00 V, max = +1.74 V) in1: 1.67 V (min = +0.00 V, max = +0.00 V) ALARM in2: 3.44 V (min = +0.00 V, max = +0.00 V) ALARM in3: 3.34 V (min = +0.00 V, max = +0.00 V) ALARM in4: 1000.00 mV (min = +0.00 V, max = +0.00 V) ALARM in5: 896.00 mV (min = +0.00 V, max = +0.00 V) in6: 1.35 V (min = +0.00 V, max = +0.00 V) ALARM in7: 3.42 V (min = +0.00 V, max = +0.00 V) ALARM in8: 3.23 V (min = +0.00 V, max = +0.00 V) ALARM in9: 1.06 V (min = +0.00 V, max = +0.00 V) ALARM in10: 1.06 V (min = +0.00 V, max = +0.00 V) ALARM in11: 832.00 mV (min = +0.00 V, max = +0.00 V) ALARM in12: 1.02 V (min = +0.00 V, max = +0.00 V) ALARM in13: 488.00 mV (min = +0.00 V, max = +0.00 V) ALARM in14: 1.51 V (min = +0.00 V, max = +0.00 V) ALARM fan1: 0 RPM (min = 0 RPM) fan2: 396 RPM (min = 0 RPM) fan3: 0 RPM (min = 0 RPM) fan4: 0 RPM (min = 0 RPM) fan5: 0 RPM (min = 0 RPM) fan6: 0 RPM (min = 0 RPM) fan7: 0 RPM (min = 0 RPM) SYSTIN: +19.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor CPUTIN: +6.0°C (high = +127.0°C, hyst = +110.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN0: +8.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN1: +23.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN2: +35.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN3: -1.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor PECI Agent 0: +13.5°C (high = +80.0°C, hyst = +75.0°C) AUXTIN4: +32.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) PCH_CHIP_CPU_MAX_TEMP: +0.0°C PCH_CHIP_TEMP: +0.0°C PCH_CPU_TEMP: +0.0°C PCH_MCH_TEMP: +0.0°C intrusion0: ALARM intrusion1: ALARM beep_enable: disabled nvme-pci-0100 Adapter: PCI adapter Composite: +20.9°C (low = -0.1°C, high = +84.8°C) (crit = +94.8°C) Sensor 1: +20.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +30.9°C (low = -273.1°C, high = +65261.8°C) Sensor 8: +20.9°C (low = -273.1°C, high = +65261.8°C) nvme-pci-0200 Adapter: PCI adapter Composite: +23.9°C (low = -0.1°C, high = +84.8°C) (crit = +94.8°C) Sensor 1: +23.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +40.9°C (low = -273.1°C, high = +65261.8°C) Sensor 8: +23.9°C (low = -273.1°C, high = +65261.8°C)
January 2, 20251 yr now just unloaded drivers the click on detect,load drivers and the above vanished now

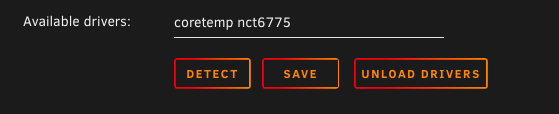

January 2, 20251 yr Author Actually you saw the driver name now and that means it did load and its working. Now you need to start to configure Dynamix. Downside with this is that a motherboard and cards have a lot of temp sensors so it takes time and fiddling to get it just right. In short: you did get it working!
January 2, 20251 yr not convinced because seen those drivers before i did all this, and which is the motherbaord? also my cpu is spiking alot not sure because of all this.
January 2, 20251 yr just done the sensors detect again: Driver `nct6775': * ISA bus, address 0x2a0 Chip `Nuvoton NCT6798D Super IO Sensors' (confidence: 9) Do you want to generate /etc/sysconfig/lm_sensors? (yes/NO): y Copy prog/init/lm_sensors.init to /etc/init.d/lm_sensors for initialization at boot time. You should now start the lm_sensors service to load the required kernel modules. Unloading i2c-dev... OK so how to start sensor or just a reboot do that.
January 2, 20251 yr Author 1 minute ago, recreational-regulation8230 said: just done the sensors detect again: Driver `nct6775': * ISA bus, address 0x2a0 Chip `Nuvoton NCT6798D Super IO Sensors' (confidence: 9) Do you want to generate /etc/sysconfig/lm_sensors? (yes/NO): y Copy prog/init/lm_sensors.init to /etc/init.d/lm_sensors for initialization at boot time. You should now start the lm_sensors service to load the required kernel modules. Unloading i2c-dev... OK so how to start sensor or just a reboot do that. Just reboot What do you mean by spiking? Did you try to run top in a terminal to see what processes are causing it
January 2, 20251 yr 4 minutes ago, recreational-regulation8230 said: Thank you for your help but how do you find which sensor to use? nearly every sensor is between 10-12c seems low to me ok not doing anything
January 2, 20251 yr googling comes up with: The nct6775 driver is associated with the Nuvoton NCT6798D Super IO Sensors chip, which is used on ASRock Z690 Extreme motherboards to control temperature sensors. The temp7 sensor is specifically mapped to the CPU temperature in the lm-sensors configuration. i have no sensor 7 on the drop down list

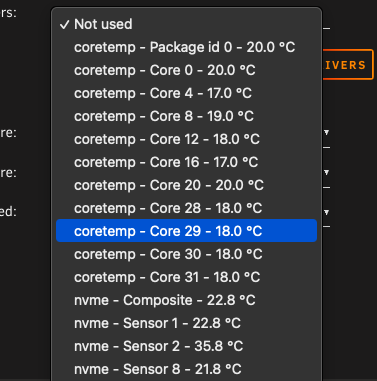

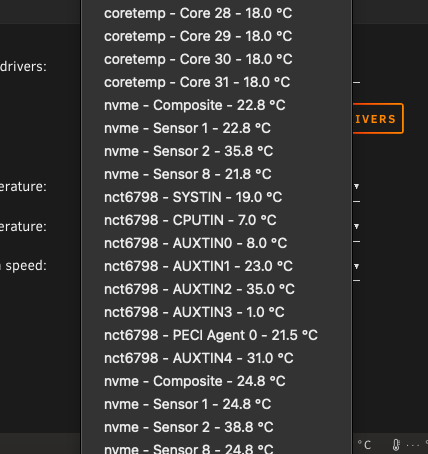

January 2, 20251 yr Author 4 hours ago, recreational-regulation8230 said: googling comes up with: The nct6775 driver is associated with the Nuvoton NCT6798D Super IO Sensors chip, which is used on ASRock Z690 Extreme motherboards to control temperature sensors. The temp7 sensor is specifically mapped to the CPU temperature in the lm-sensors configuration. i have no sensor 7 on the drop down list First some questions: - Which CPU do you have? - Can you run sensors and post here? - Can you grab a screenshot again from the System Temp settings page with all the options in the drop-down menu?

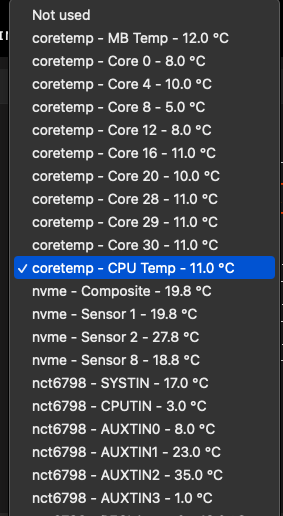

January 2, 20251 yr Intel Core i5 12600K coretemp-isa-0000 Adapter: ISA adapter MB Temp: +12.0°C (high = +80.0°C, crit = +100.0°C) Core 0: +8.0°C (high = +80.0°C, crit = +100.0°C) Core 4: +8.0°C (high = +80.0°C, crit = +100.0°C) Core 8: +5.0°C (high = +80.0°C, crit = +100.0°C) Core 12: +7.0°C (high = +80.0°C, crit = +100.0°C) Core 16: +8.0°C (high = +80.0°C, crit = +100.0°C) Core 20: +9.0°C (high = +80.0°C, crit = +100.0°C) Core 28: +11.0°C (high = +80.0°C, crit = +100.0°C) Core 29: +11.0°C (high = +80.0°C, crit = +100.0°C) Core 30: +11.0°C (high = +80.0°C, crit = +100.0°C) CPU Temp: +11.0°C (high = +80.0°C, crit = +100.0°C) nvme-pci-0100 Adapter: PCI adapter Composite: +18.9°C (low = -0.1°C, high = +84.8°C) (crit = +94.8°C) Sensor 1: +18.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +32.9°C (low = -273.1°C, high = +65261.8°C) Sensor 8: +18.9°C (low = -273.1°C, high = +65261.8°C) nct6798-isa-02a0 Adapter: ISA adapter in0: 736.00 mV (min = +0.00 V, max = +1.74 V) in1: 1.67 V (min = +0.00 V, max = +0.00 V) ALARM in2: 3.44 V (min = +0.00 V, max = +0.00 V) ALARM in3: 3.34 V (min = +0.00 V, max = +0.00 V) ALARM in4: 1000.00 mV (min = +0.00 V, max = +0.00 V) ALARM in5: 896.00 mV (min = +0.00 V, max = +0.00 V) in6: 1.34 V (min = +0.00 V, max = +0.00 V) ALARM in7: 3.44 V (min = +0.00 V, max = +0.00 V) ALARM in8: 3.23 V (min = +0.00 V, max = +0.00 V) ALARM in9: 1.06 V (min = +0.00 V, max = +0.00 V) ALARM in10: 1.06 V (min = +0.00 V, max = +0.00 V) ALARM in11: 832.00 mV (min = +0.00 V, max = +0.00 V) ALARM in12: 1.02 V (min = +0.00 V, max = +0.00 V) ALARM in13: 488.00 mV (min = +0.00 V, max = +0.00 V) ALARM in14: 1.52 V (min = +0.00 V, max = +0.00 V) ALARM Array Fan: 385 RPM (min = 0 RPM) SYSTIN: +17.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor CPUTIN: +3.0°C (high = +127.0°C, hyst = +110.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN0: +8.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN1: +23.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN2: +35.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN3: -1.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor PECI Agent 0: +12.5°C (high = +80.0°C, hyst = +75.0°C) AUXTIN4: +32.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) intrusion0: ALARM intrusion1: ALARM beep_enable: disabled nvme-pci-0200 Adapter: PCI adapter Composite: +21.9°C (low = -0.1°C, high = +84.8°C) (crit = +94.8°C) Sensor 1: +21.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +33.9°C (low = -273.1°C, high = +65261.8°C) Sensor 8: +21.9°C (low = -273.1°C, high = +65261.8°C)
January 3, 20251 yr As an update, i watched awhile ago a spaceinvaderone on youtube, he used the same motherboard i have, just a different cpu above mine. Be interested to know if he got it working, no idea how to get in touch.
January 4, 20251 yr Author On 1/3/2025 at 12:26 PM, recreational-regulation8230 said: As an update, i watched awhile ago a spaceinvaderone on youtube, he used the same motherboard i have, just a different cpu above mine. Be interested to know if he got it working, no idea how to get in touch. First had time to check this now. However, looking through the https://github.com/petersulyok/asrock_z690_extreme/blob/main/Z690_Extreme.conf and the names you get from sensors command, it looks like the configuration file didn't get loaded because the command I gave didn't download the file, but the html page. So what you need to do now is the following: Open a Terminal Type and run cd /etc/sensors.d/ Type and run rm Z690_Extreme.conf Type ls to check that only the file sensors.conf is there Type and run wget https://github.com/petersulyok/asrock_z690_extreme/raw/refs/heads/main/Z690_Extreme.conf Reboot Open a Terminal again and run sensors and check if the names of the sensors have updated, as they the temps should also be showing correctly.
January 5, 20251 yr Hi again, done the above and did the sensors detect also: coretemp-isa-0000 Adapter: ISA adapter MB Temp: +21.0°C (high = +80.0°C, crit = +100.0°C) Core 0: +20.0°C (high = +80.0°C, crit = +100.0°C) Core 4: +14.0°C (high = +80.0°C, crit = +100.0°C) Core 8: +19.0°C (high = +80.0°C, crit = +100.0°C) Core 12: +16.0°C (high = +80.0°C, crit = +100.0°C) Core 16: +17.0°C (high = +80.0°C, crit = +100.0°C) Core 20: +21.0°C (high = +80.0°C, crit = +100.0°C) Core 28: +17.0°C (high = +80.0°C, crit = +100.0°C) CPU Temp: +17.0°C (high = +80.0°C, crit = +100.0°C) Core 30: +17.0°C (high = +80.0°C, crit = +100.0°C) Core 31: +17.0°C (high = +80.0°C, crit = +100.0°C) nvme-pci-0100 Adapter: PCI adapter Composite: +20.9°C (low = -0.1°C, high = +84.8°C) (crit = +94.8°C) Sensor 1: +20.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +31.9°C (low = -273.1°C, high = +65261.8°C) Sensor 8: +20.9°C (low = -273.1°C, high = +65261.8°C) nct6798-isa-02a0 Adapter: ISA adapter in0: 1.17 V (min = +0.00 V, max = +1.74 V) in1: 1.67 V (min = +0.00 V, max = +0.00 V) ALARM in2: 3.44 V (min = +0.00 V, max = +0.00 V) ALARM in3: 3.33 V (min = +0.00 V, max = +0.00 V) ALARM in4: 1000.00 mV (min = +0.00 V, max = +0.00 V) ALARM in5: 896.00 mV (min = +0.00 V, max = +0.00 V) in6: 1.34 V (min = +0.00 V, max = +0.00 V) ALARM in7: 3.44 V (min = +0.00 V, max = +0.00 V) ALARM in8: 3.23 V (min = +0.00 V, max = +0.00 V) ALARM in9: 1.06 V (min = +0.00 V, max = +0.00 V) ALARM in10: 1.06 V (min = +0.00 V, max = +0.00 V) ALARM in11: 832.00 mV (min = +0.00 V, max = +0.00 V) ALARM in12: 1.02 V (min = +0.00 V, max = +0.00 V) ALARM in13: 488.00 mV (min = +0.00 V, max = +0.00 V) ALARM in14: 1.51 V (min = +0.00 V, max = +0.00 V) ALARM Array Fan: 477 RPM (min = 0 RPM) SYSTIN: +18.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor CPUTIN: +6.0°C (high = +127.0°C, hyst = +110.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN0: +8.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN1: +23.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN2: +35.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor AUXTIN3: -1.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) sensor = thermistor PECI Agent 0: +18.0°C (high = +80.0°C, hyst = +75.0°C) AUXTIN4: +31.0°C (high = +80.0°C, hyst = +75.0°C) (crit = +100.0°C) intrusion0: ALARM intrusion1: ALARM beep_enable: disabled nvme-pci-0200 Adapter: PCI adapter Composite: +23.9°C (low = -0.1°C, high = +84.8°C) (crit = +94.8°C) Sensor 1: +23.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +34.9°C (low = -273.1°C, high = +65261.8°C) Sensor 8: +23.9°C (low = -273.1°C, high = +65261.8°C) The drop down in system temp settings seems to be no different.
January 5, 20251 yr Author Yeah, then I think you need to maybe contact the GitHub maintainer, as a new/fixed conf file would be needed. Only last thing I can think of is maybe rights on the file. You could copy the rights from the existing sensors file to the GitHub file using chmod --reference=sensors.conf Z690_Extreme.conf
