January 5, 20251 yr sorry not understand, i entered the above in terminal and go the below chmod --reference=sensors.conf Z690_Extreme.conf chmod: failed to get attributes of 'sensors.conf': No such file or directory
January 5, 20251 yr Just tried to start again but when i enter this command i get the following: rm Z690_Extreme.conf rm: cannot remove 'Z690_Extreme.conf': No such file or directory
January 5, 20251 yr Author 10 minutes ago, recreational-regulation8230 said: sorry not understand, i entered the above in terminal and go the below chmod --reference=sensors.conf Z690_Extreme.conf chmod: failed to get attributes of 'sensors.conf': No such file or directory You need to change to the folder first using the previous command cd /etc/sensors.d/
January 5, 20251 yr Author 10 hours ago, recreational-regulation8230 said: chmod: cannot access 'Z690_Extreme.conf': No such file or directory when you open the Terminal type and run cd /etc/sensors.d/, then type and run ls and grab me a screenshot of what you see, because now it kinda sounds like you never even downloaded the file.

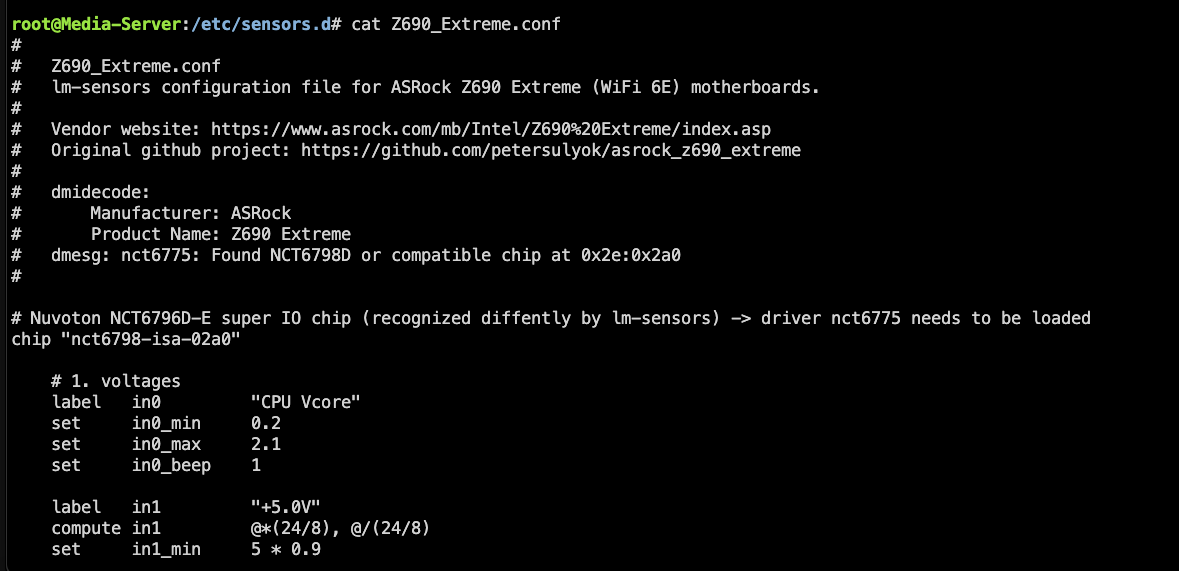

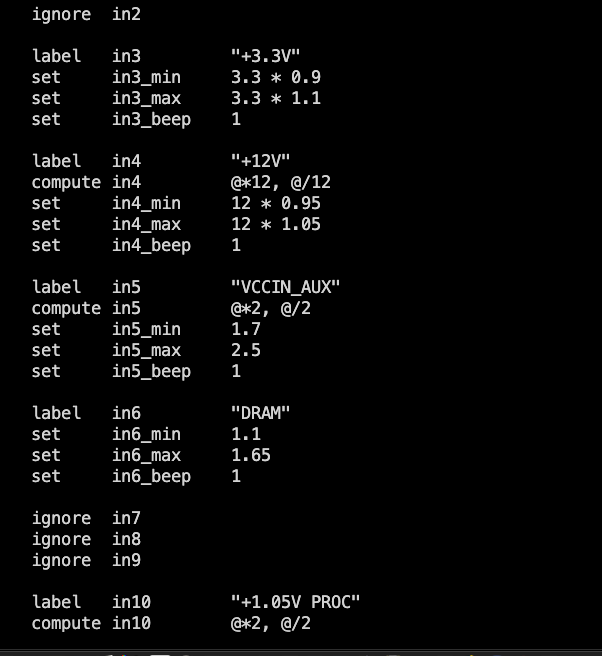

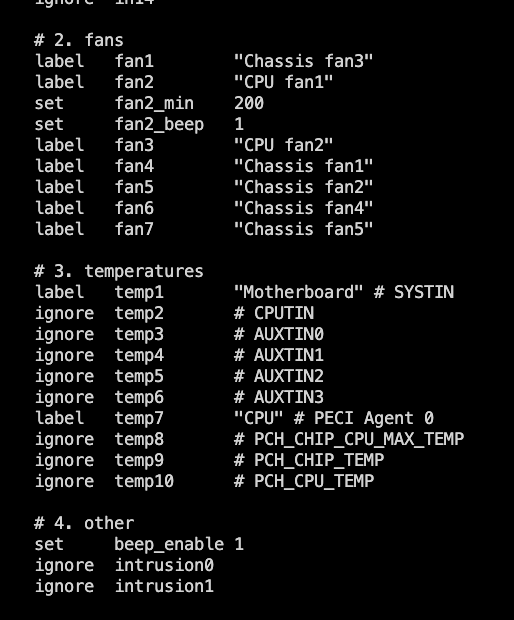

January 5, 20251 yr Author 1 minute ago, recreational-regulation8230 said: Thank you for all your time with this, i appreciate it. Okay, so it never go downloaded either. Open a Terminal Type and run cd /etc/sensors.d/ Type and run rm Z690_Extreme.conf Type ls to check that only the file sensors.conf is there Type and run wget https://github.com/petersulyok/asrock_z690_extreme/raw/refs/heads/main/Z690_Extreme.conf Type ls to check that only the file sensors.conf and Z690_Extreme.conf are there and grab a screenshot too After type cat Z690_Extreme.conf and grab a screenshot again. IF you see both files and if the cat command shows something like below, you should be okay and you can reboot, and test again.

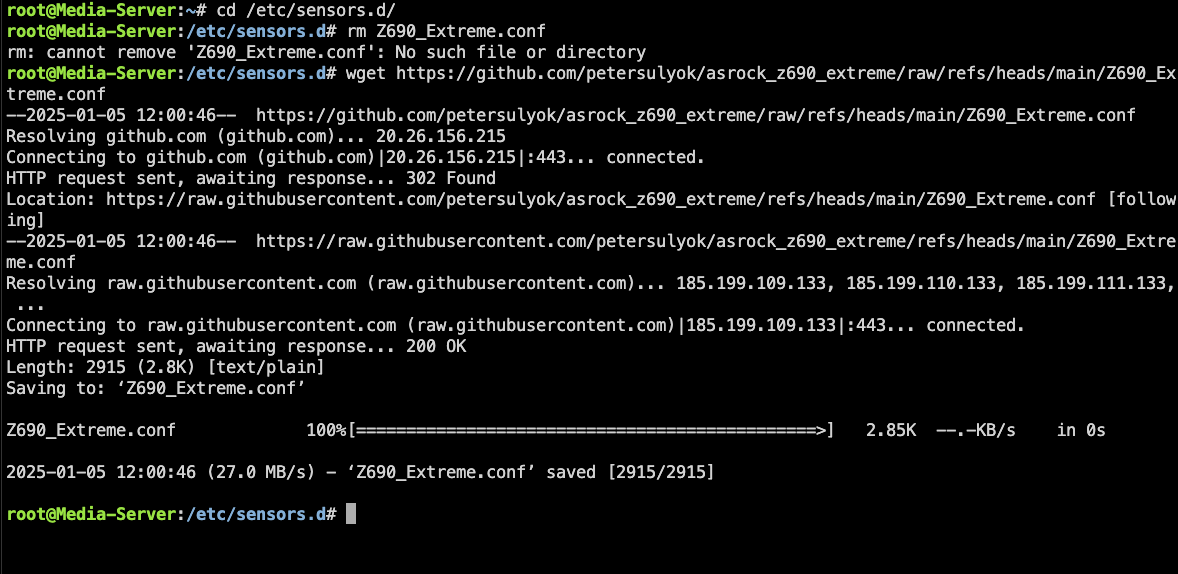

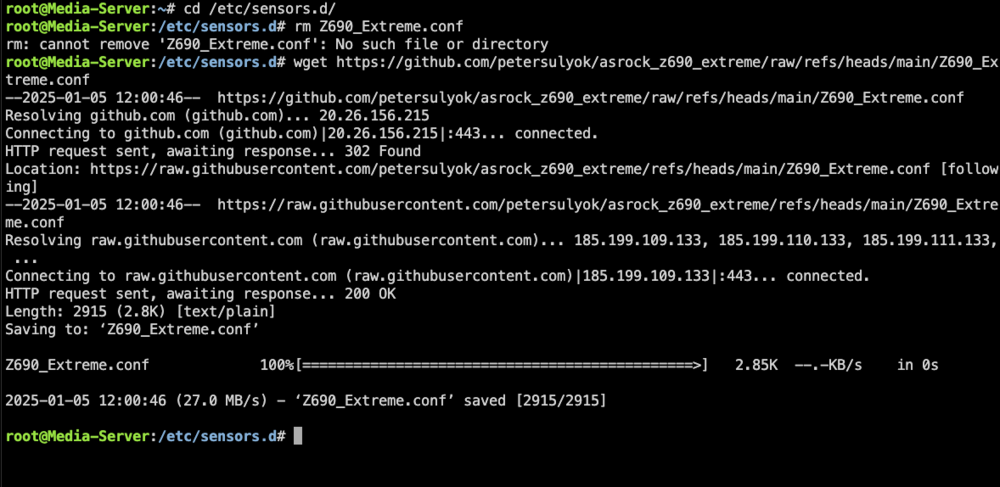

January 5, 20251 yr Author 2 minutes ago, recreational-regulation8230 said: looks like it downloaded the file. now run the ls and cat commands to validate everything is there.
January 5, 20251 yr Author 3 minutes ago, recreational-regulation8230 said: ok this is the screenshot looks like everything is downloaded Now for good measure before you reboot or if you already have, run sensors-detect and let it write the config file, then reboot. If you already rebooted, do the same. FYI: I'm having similar issues as you with a new build (reusing old hardware) using a Gigabyte B560m motherboard and the IT87 drivers. Turns out it's also now well supported for all motherboards. I'm honestly myself a few steps away from ordering a dedicated fan controllers that works. What I'm looking at is https://github.com/aleksamagicka/aquacomputer_d5next-hwmon specificallly the Octo model and then using the Aquacomputer Unraid plugin to make it work. This is the "joy" of running any Linux OS, you need to fiddle/have fun/suffer (pick one)
January 5, 20251 yr I am new to unraid having come from synology, so still learning. So far i am impressed just seems to be a-lot of fiddling about like this :). The forums are very good with people like yourself who are available to help. rebooting now but i dont have high hopes this will work.
January 5, 20251 yr Author 4 minutes ago, recreational-regulation8230 said: is this correct it looks like you are doing everything right, but I'm at my limit to answer why 1. it's not picking up the configuration file and 2. why the temps are so low. Unfortunately, I'm at the limit of where I can help, and you might/will need to seek help from other Linux forums/communities, as there must have been others with the same issue (unless you reallly have that low temps in your system because you are extreme cooling or live in the arctic circle with that computer) FYI: I've also myself thrown in the towel getting the fan controls to work for myself. The maintainer of the this driver also helped with the one I'm battling with, and he even writes himself that Gigabyte motherboards have fans speeds you can measure, but not change. Edited January 5, 20251 yr by PeterDB
January 5, 20251 yr Yea temp should be in 20s when i look at the bios. Thanks for all your help but will just forget about this, will keep an eye on this thread in case someone comes up with another idea. Bye
February 12, 20251 yr after nerdpack has been deprecated i seem to have lost the ability to control array fan on my Gigabyte a520i AC motherboard. i installed phython3 plugin. but i seem to have lost the ability to control the fan speed. can anybody help? --------------------------------------------------------------- sensors-detect : # sensors-detect version 3.6.0 # System: Gigabyte Technology Co., Ltd. A520I AC [-CF] # Kernel: 6.6.68-Unraid x86_64 # Processor: AMD Ryzen 5 5500GT with Radeon Graphics (25/80/0) This program will help you determine which kernel modules you need to load to use lm_sensors most effectively. It is generally safe and recommended to accept the default answers to all questions, unless you know what you're doing. Some south bridges, CPUs or memory controllers contain embedded sensors. Do you want to scan for them? This is totally safe. (YES/no): YES Silicon Integrated Systems SIS5595... No VIA VT82C686 Integrated Sensors... No VIA VT8231 Integrated Sensors... No AMD K8 thermal sensors... No AMD Family 10h thermal sensors... No AMD Family 11h thermal sensors... No AMD Family 12h and 14h thermal sensors... No AMD Family 15h thermal sensors... No AMD Family 16h thermal sensors... No AMD Family 17h thermal sensors... No AMD Family 15h power sensors... No AMD Family 16h power sensors... No Hygon Family 18h thermal sensors... No Intel digital thermal sensor... No Intel AMB FB-DIMM thermal sensor... No Intel 5500/5520/X58 thermal sensor... No VIA C7 thermal sensor... No VIA Nano thermal sensor... No Some Super I/O chips contain embedded sensors. We have to write to standard I/O ports to probe them. This is usually safe. Do you want to scan for Super I/O sensors? (YES/no): YES Probing for Super-I/O at 0x2e/0x2f Trying family `National Semiconductor/ITE'... No Trying family `SMSC'... No Trying family `VIA/Winbond/Nuvoton/Fintek'... No Trying family `ITE'... Yes Found unknown chip with ID 0x8689 Probing for Super-I/O at 0x4e/0x4f Trying family `National Semiconductor/ITE'... No Trying family `SMSC'... No Trying family `VIA/Winbond/Nuvoton/Fintek'... No Trying family `ITE'... No Some systems (mainly servers) implement IPMI, a set of common interfaces through which system health data may be retrieved, amongst other things. We first try to get the information from SMBIOS. If we don't find it there, we have to read from arbitrary I/O ports to probe for such interfaces. This is normally safe. Do you want to scan for IPMI interfaces? (YES/no): YES Probing for `IPMI BMC KCS' at 0xca0... No Probing for `IPMI BMC SMIC' at 0xca8... No Some hardware monitoring chips are accessible through the ISA I/O ports. We have to write to arbitrary I/O ports to probe them. This is usually safe though. Yes, you do have ISA I/O ports even if you do not have any ISA slots! Do you want to scan the ISA I/O ports? (YES/no): YES Probing for `National Semiconductor LM78' at 0x290... No Probing for `National Semiconductor LM79' at 0x290... No Probing for `Winbond W83781D' at 0x290... No Probing for `Winbond W83782D' at 0x290... No Lastly, we can probe the I2C/SMBus adapters for connected hardware monitoring devices. This is the most risky part, and while it works reasonably well on most systems, it has been reported to cause trouble on some systems. Do you want to probe the I2C/SMBus adapters now? (YES/no): YES Using driver `i2c-piix4' for device 0000:00:14.0: AMD KERNCZ SMBus Next adapter: AMDGPU DM i2c hw bus 0 (i2c-0) Do you want to scan it? (yes/NO/selectively): YES Next adapter: AMDGPU DM i2c hw bus 1 (i2c-1) Do you want to scan it? (yes/NO/selectively): YES Next adapter: AMDGPU DM i2c hw bus 2 (i2c-2) Do you want to scan it? (yes/NO/selectively): YES Next adapter: AMDGPU DM aux hw bus 1 (i2c-3) Do you want to scan it? (yes/NO/selectively): YES Sorry, no sensors were detected. Either your system has no sensors, or they are not supported, or they are connected to an I2C or SMBus adapter that is not supported. If you find out what chips are on your board, check https://hwmon.wiki.kernel.org/device_support_status for driver status. root@UNRAID:~# sensors it8689-isa-0a40 Adapter: ISA adapter in0: 1.18 V (min = +0.00 V, max = +3.06 V) in1: 2.02 V (min = +0.00 V, max = +3.06 V) in2: 2.00 V (min = +0.00 V, max = +3.06 V) in3: 2.00 V (min = +0.00 V, max = +3.06 V) in4: 996.00 mV (min = +0.00 V, max = +3.06 V) in5: 900.00 mV (min = +0.00 V, max = +3.06 V) in6: 1.37 V (min = +0.00 V, max = +3.06 V) 3VSB: 3.31 V (min = +0.00 V, max = +6.12 V) Vbat: 3.22 V fan1: 1630 RPM (min = 0 RPM) Array Fan: 530 RPM (min = 0 RPM) temp1: +36.0°C (low = +127.0°C, high = +127.0°C) sensor = thermistor temp2: +38.0°C (low = +127.0°C, high = +127.0°C) sensor = thermistor temp3: +44.0°C (low = +127.0°C, high = +127.0°C) sensor = AMD AMDSI temp4: +20.0°C (low = +0.0°C, high = +127.0°C) sensor = thermistor temp5: +38.0°C (low = +0.0°C, high = -124.0°C) sensor = thermistor MB Temp: +42.0°C (low = +127.0°C, high = +127.0°C) sensor = thermistor intrusion0: ALARM gigabyte_wmi-virtual-0 Adapter: Virtual device temp1: +36.0°C temp2: +38.0°C temp3: +44.0°C temp4: +20.0°C temp5: +38.0°C temp6: +42.0°C k10temp-pci-00c3 Adapter: PCI adapter CPU Temp: +44.9°C amdgpu-pci-0600 Adapter: PCI adapter vddgfx: 1.24 V vddnb: 999.00 mV edge: +35.0°C PPT: 13.00 W acpitz-acpi-0 Adapter: ACPI interface temp1: +16.8°C temp2: +16.8°C nvme-pci-0500 Adapter: PCI adapter Composite: +41.9°C (low = -40.1°C, high = +83.8°C) (crit = +87.8°C) Sensor 1: +62.9°C (low = -273.1°C, high = +65261.8°C) Sensor 2: +36.9°C (low = -273.1°C, high = +65261.8°C)
May 6, 20251 yr Anyone know of a fan controller that I could buy that this plugin would support natively. I am looking to control five fans. I may not be able to use my built in motherboard fan controller so I am looking for a different solution.
May 6, 20251 yr Author 13 minutes ago, K1ng0011 said: Anyone know of a fan controller that I could buy that this plugin would support natively. I am looking to control five fans. I may not be able to use my built in motherboard fan controller so I am looking for a different solution. I ultimately ran into the same issue myself with a new build. I've tried loads of AliExpress and A brand controllers, none work good. Best option you have, but still requires some hands-on to configure is OpenFan https://github.com/SasaKaranovic/OpenFanController i have one now myself Edited May 6, 20251 yr by PeterDB
May 6, 20251 yr Yah I saw that as an option also. Unfortunately I live in the US and due to reasons (tariffs) the creator of the open fan is currently not selling to US customers. So this is not an option currently for me.
