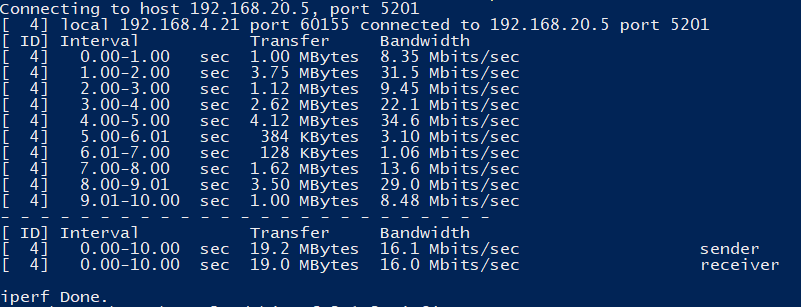

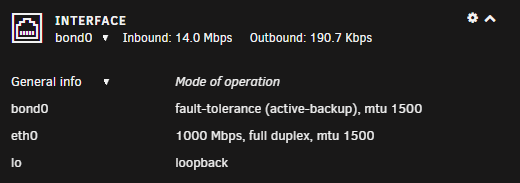

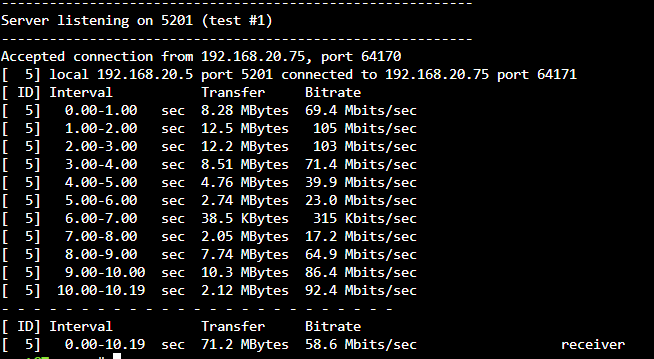

LaurenceYe Posted October 18, 2022 Share Posted October 18, 2022 Hi all, Completely new to Unraid and just set up my server yesterday. Sort of have 2 issues that are related to the same thing. Specs: CPU: Intel 12100 MB: MSI B660 Tomahawk DDR4 (which has a 2.5Gbps port) Ram: 16gb DDR4 HyperX Cache: 500gb Samsung 970 EVO NVME Array: 1x 12gb Ironwolf Pro NAS Drive Parity: 1x 12gb Ironwolf Pro NAS Drive Modem/Router: NF18Mesh The issue is that transfer speeds using Windows click and drag from my main PC are horrendously slow. In the attached picture you can see eth0 reports a gigabit connection, but I currently have a movie transferring, with Windows reporting 2mbytes/sec and that being reflected in Inbound: 14.0 Mbps. This is the iperf3 results from my machine (after the transfer was completed): I do have a second machine that gets roughly 14mbytes/sec transfer speeds using Windows click and drag (still not the reported gigabit) but a lot better. Here are the iperf3 results: Both PC's are connected via WiFi via an Eero due to apartment living limitations, the device should have at least a 500mbits/s link. The server log is here: towerlog.txt The diagnostics are here: tower-diagnostics-20221019-0130.zip Changes I made to the system that weren't default: * added i915.force_probe=4680 to Global Configuration in Flash memory settings * ran echo "blacklist i915" > /boot/config/modprobe.d/i915.conf Things I've tried for this issue: * Turned on reconstruct write. * Tried Fix Common Problems * Changed CAT5e cable to CAT6 * Restarted all devices * Turned off VT-D I have also since installed a few apps and plugins, but this issue was present before that. I've browsed a tonne of unraid forum posts, reddit posts, other forum posts, but it doesn't seem like many have my issue, and their fixes doesn't seem to fix my issue. Currently at my wits end debugging this, TrueNAS is looking very appealing but I do like the functionality and community of Unraid so I'd like to stick it out and fix this if possible. Thanks in advance guys. Let me know if there's anything I should add. Quote Link to comment
JorgeB Posted October 18, 2022 Share Posted October 18, 2022 6 minutes ago, LaurenceYe said: This is the iperf3 results from my machine (after the transfer was completed): This shows the network is the problem, iperf only tests network bandwidth, results are not device/share related. Quote Link to comment
LaurenceYe Posted October 18, 2022 Author Share Posted October 18, 2022 It sounds like it's time for a new modem/router? Quote Link to comment
Solution MAM59 Posted October 18, 2022 Solution Share Posted October 18, 2022 First of all you should ask yourself why both machines are not within the same LAN (subnet) and WHO is transfering packets between both LANs. I have strong doubts that this is a single router, maybe your packets are forwarded to mars and return through a different gateway? Check your routing, you may get a surprise. Quote Link to comment
LaurenceYe Posted October 18, 2022 Author Share Posted October 18, 2022 (edited) The routing is as such: Unraid Server ---(via Ethernet)---> NF18Mesh <---(via Ethernet)--- eero mesh <---(via Wireless)--- eero mesh as extender <---(via Wireless)--- PC So my suspicion after confirmation by you guys is that it's definitely something in the chain causing the issue. And after I typed the above I thought to check the network speed and lo and behold: Limited by wireless signal strength. Don't trust the network speed reported on the box for wireless because signal strength will mess with it. The 2kbyte/sec transfer speed sorted itself out after disconnecting the network drive and reconnecting, so we'll chalk that one up to Windows being the best operating system of all time. /s Network issue. I'm stupid. Thanks everyone. Edited October 18, 2022 by LaurenceYe Quote Link to comment
