emersonicus Posted January 8, 2023 Share Posted January 8, 2023 Hi guys, I tried guides here and tried to search for a solution, but all are not working. When I try to bind only the Mellanox card it auto selects the Realtek NIC also. I tried to edit the vfio-pci.cfg manually and delete the Realtek NIC but when unraid boots, no NIC available only loopback using 'ifconfig'. I also tried ACS settings but still the same cant passthrough the Mellanox card. Do i miss something or does it not work mit my setup? MOBO: MAG B460M MORTAR CPU: i5-10400 Thanks! tower-diagnostics-20230108-1836.zip Quote Link to comment

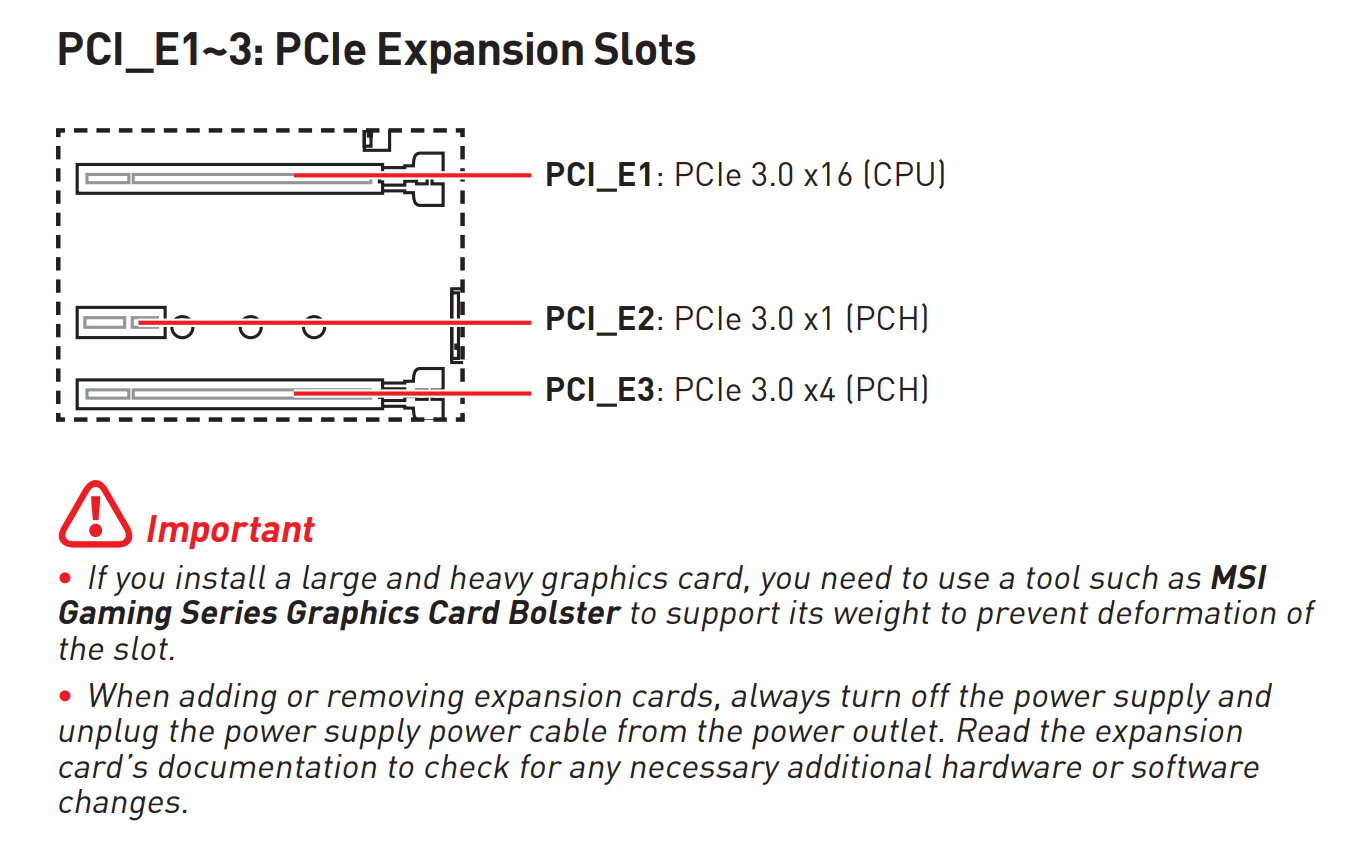

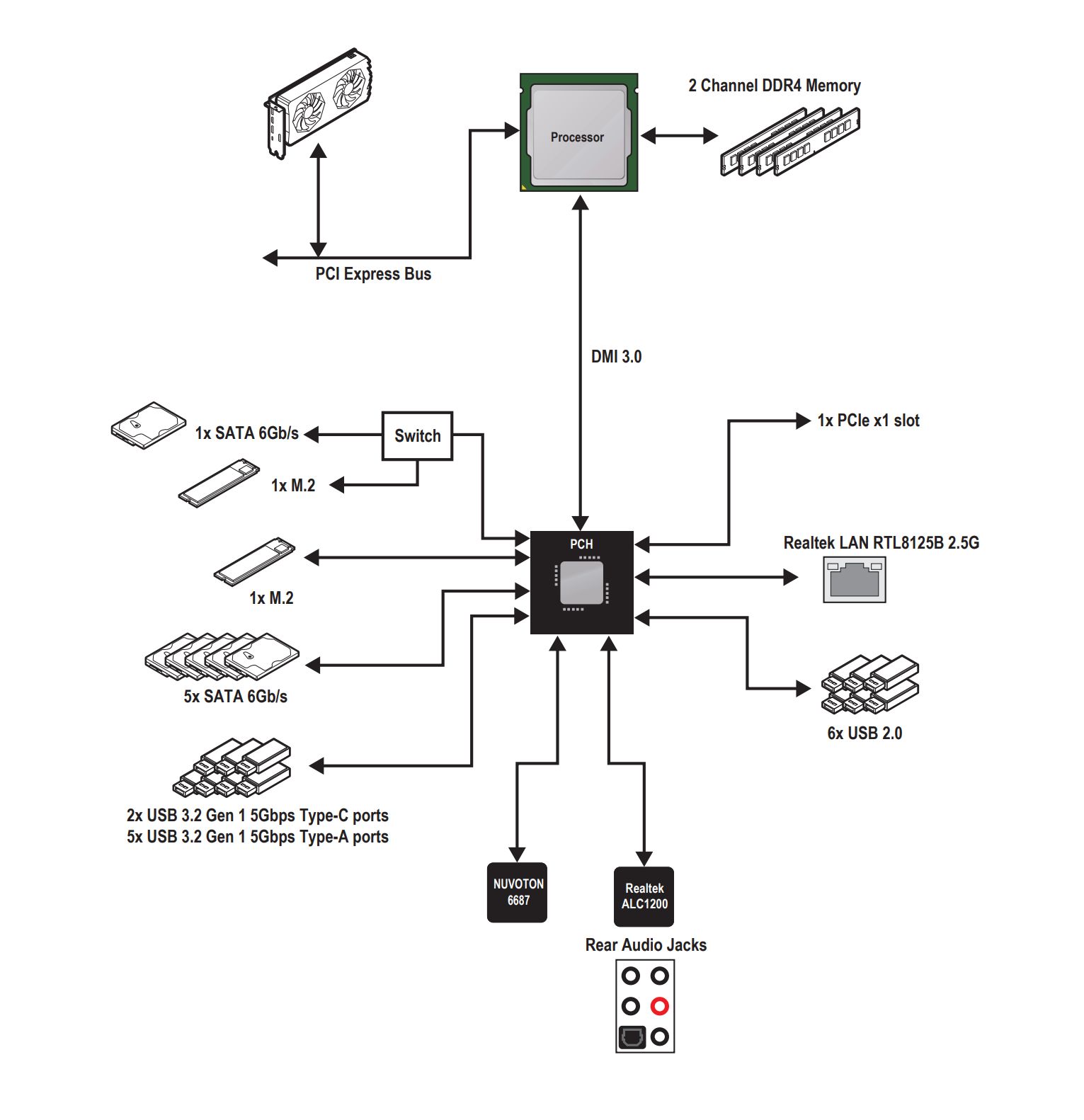

SimonF Posted January 8, 2023 Share Posted January 8, 2023 (edited) 43 minutes ago, emersonicus said: Hi guys, I tried guides here and tried to search for a solution, but all are not working. When I try to bind only the Mellanox card it auto selects the Realtek NIC also. I tried to edit the vfio-pci.cfg manually and delete the Realtek NIC but when unraid boots, no NIC available only loopback using 'ifconfig'. I also tried ACS settings but still the same cant passthrough the Mellanox card. Do i miss something or does it not work mit my setup? MOBO: MAG B460M MORTAR CPU: i5-10400 Thanks! tower-diagnostics-20230108-1836.zip 128.5 kB · 0 downloads I think the issue you are going to have is that only one PCI slot is connected to CPU other two are via the PCH which also include the NIC and even with acs override is cannot break up the connections enough. Is the Mellanox is PCI_E3? So likely to be a motherboard hardware constraint. Edited January 8, 2023 by SimonF Quote Link to comment
emersonicus Posted January 8, 2023 Author Share Posted January 8, 2023 (edited) Hi, Indeed, it was on PCI_E3. I switched it now to PCI_E1 and now im getting error when trying to start the VM with the card. Quote internal error: qemu unexpectedly closed the monitor: qxl_send_events: spice-server bug: guest stopped, ignoring 2023-01-08T14:39:06.860794Z qemu-system-x86_64: -device {"driver":"vfio-pci","host":"0000:01:00.0","id":"hostdev0","bus":"pci.4","addr":"0x0"}: vfio 0000:01:00.0: Failed to set up TRIGGER eventfd signaling for interrupt INTX-0: VFIO_DEVICE_SET_IRQS failure: Device or resource busy Thanks! Edited January 8, 2023 by emersonicus Quote Link to comment
SimonF Posted January 8, 2023 Share Posted January 8, 2023 1 hour ago, emersonicus said: Hi, Indeed, it was on PCI_E3. I switched it now to PCI_E1 and now im getting error when trying to start the VM with the card. Thanks! Is that card bound to VFIO and what is in 1:00.0 Quote Link to comment
emersonicus Posted January 8, 2023 Author Share Posted January 8, 2023 Yes, according to the logs it’s bound successfully and the 01:00.0 is the Mellanox dual nic card which I want to passthrough. Quote Link to comment
SimonF Posted January 8, 2023 Share Posted January 8, 2023 2 minutes ago, emersonicus said: Yes, according to the logs it’s bound successfully and the 01:00.0 is the Mellanox dual nic card which I want to passthrough. and to confirm you have rebooted since binding to vfio as likely unraid will have loaded driver for the card. What does lspci -vs 1:00.0 show for driver. root@computenode:/mnt/user/domains/UbuntuServer/snap# lspci -vs 9:00.0 09:00.0 Ethernet controller: Mellanox Technologies MT27500 Family [ConnectX-3] Subsystem: Mellanox Technologies MT27500 Family [ConnectX-3] Flags: bus master, fast devsel, latency 0, IRQ 17, IOMMU group 24 Memory at 51a00000 (64-bit, non-prefetchable) Memory at 6110800000 (64-bit, prefetchable) Expansion ROM at 51900000 [disabled] Capabilities: [40] Power Management version 3 Capabilities: [48] Vital Product Data Capabilities: [9c] MSI-X: Enable+ Count=128 Masked- Capabilities: [60] Express Endpoint, MSI 00 Capabilities: [c0] Vendor Specific Information: Len=18 <?> Capabilities: [100] Alternative Routing-ID Interpretation (ARI) Capabilities: [148] Device Serial Number f4-52-14-03-00-0e-b5-c0 Capabilities: [154] Advanced Error Reporting Capabilities: [18c] Secondary PCI Express Kernel driver in use: mlx4_core Kernel modules: mlx4_core Quote Link to comment
emersonicus Posted January 8, 2023 Author Share Posted January 8, 2023 Output: root@NAS:~# lspci -vs 1:00.0 01:00.0 Ethernet controller: Mellanox Technologies MT27520 Family [ConnectX-3 Pro] Subsystem: Mellanox Technologies MT27520 Family [ConnectX-3 Pro] Flags: fast devsel, IRQ 16, IOMMU group 10 Memory at 81200000 (64-bit, non-prefetchable) [disabled] Memory at 6016800000 (64-bit, prefetchable) [disabled] Expansion ROM at 81100000 [disabled] Capabilities: [40] Power Management version 3 Capabilities: [48] Vital Product Data Capabilities: [9c] MSI-X: Enable- Count=128 Masked- Capabilities: [60] Express Endpoint, MSI 00 Capabilities: [c0] Vendor Specific Information: Len=18 <?> Capabilities: [100] Alternative Routing-ID Interpretation (ARI) Capabilities: [148] Device Serial Number e4-1d-53-03-00-37-b6-bf Capabilities: [108] Single Root I/O Virtualization (SR-IOV) Capabilities: [154] Advanced Error Reporting Capabilities: [18c] Secondary PCI Express Kernel driver in use: vfio-pci Kernel modules: mlx4_core Quote Link to comment
SimonF Posted January 8, 2023 Share Posted January 8, 2023 5 minutes ago, emersonicus said: Output: root@NAS:~# lspci -vs 1:00.0 01:00.0 Ethernet controller: Mellanox Technologies MT27520 Family [ConnectX-3 Pro] Subsystem: Mellanox Technologies MT27520 Family [ConnectX-3 Pro] Flags: fast devsel, IRQ 16, IOMMU group 10 Memory at 81200000 (64-bit, non-prefetchable) [disabled] Memory at 6016800000 (64-bit, prefetchable) [disabled] Expansion ROM at 81100000 [disabled] Capabilities: [40] Power Management version 3 Capabilities: [48] Vital Product Data Capabilities: [9c] MSI-X: Enable- Count=128 Masked- Capabilities: [60] Express Endpoint, MSI 00 Capabilities: [c0] Vendor Specific Information: Len=18 <?> Capabilities: [100] Alternative Routing-ID Interpretation (ARI) Capabilities: [148] Device Serial Number e4-1d-53-03-00-37-b6-bf Capabilities: [108] Single Root I/O Virtualization (SR-IOV) Capabilities: [154] Advanced Error Reporting Capabilities: [18c] Secondary PCI Express Kernel driver in use: vfio-pci Kernel modules: mlx4_core Looks ok. Quote Link to comment
emersonicus Posted January 9, 2023 Author Share Posted January 9, 2023 I tried to update the FW and still the same problem prevails. Can i just use the NICs without passthrough? will there be any major differences? Quote Link to comment
Solution emersonicus Posted February 5, 2023 Author Solution Share Posted February 5, 2023 (edited) Apparently is has something to do with i801_smbus si there a possible to fix this by deactivating i801_smbus? root@NAS:/mnt/user/Downloads# dmesg | grep 'Flags mismatch' [ 153.614390] genirq: Flags mismatch irq 16. 00000000 (vfio-intx(0000:01:00.0)) vs. 00000080 (i801_smbus) EDIT: I added this to Syslinux cfg intel_iommu=on modprobe.blacklist=i2c_i801,i2c_smbus nows its working. Edited February 5, 2023 by emersonicus Quote Link to comment
