Unraid 6.12.0-rc5 - Dashboard no cpu/ram/network/ups/...

Featured Replies

Hello Everyone,

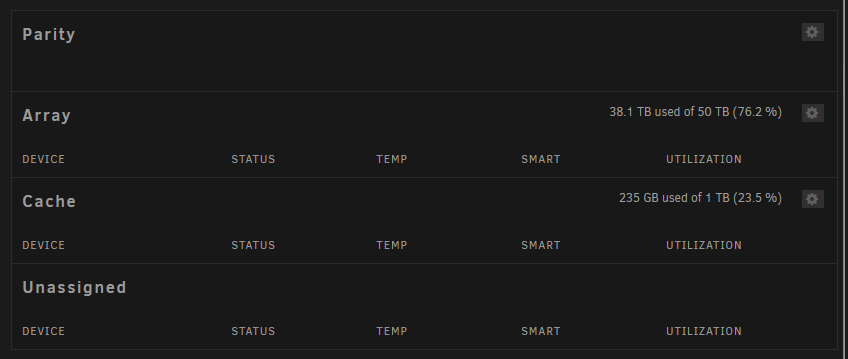

Since two days (before was running just fine) the dashboard doesn't fetch the data for:

CPU

RAM

NETWORK

UPS

PARITY

ARRAY

CACHE

UNASSIGNED







Does somebody know what / where the problem could be?



How about if boot to safe mode.

  • Community Expert

I've seen that kind of behaviour in the past from usb key disconnects, reboot will fix it up in that case.

  • Author
20 hours ago, Vr2Io said:

How about if boot to safe mode.

How to do it from the GUI?

18 hours ago, tjb_altf4 said:

I've seen that kind of behaviour in the past from usb key disconnects, reboot will fix it up in that case.

Already done that - multiple times. Just updated to RC6...same thing

Try closing all open sessions to the server (especially Android phones)  You should also post your diagnostics.



There is an option when you reboot to reboot into safe mode in the GUI if necessary

4 hours ago, TDA said:

How to do it from the GUI?

In main page -> boot device -> click flash -> safe mode -> apply then reboot.




  • Author
On 5/20/2023 at 3:23 AM, Vr2Io said:

In main page -> boot device -> click flash -> safe mode -> apply then reboot.




Hello,



In safe boot it seems to work.

How could I find the plugin which is causing the issue?

  • Author
17 minutes ago, TDA said:

Hello,



In safe boot it seems to work.

How could I find the plugin which is causing the issue?

my Bad - hadn't saved the "safe mode", and it just started the normal way.

I checked (before starting the array) - and cpu etc were working.



It seems to be related to VM Manager.

I've tried to stop the service - and now it's working again.



I've tried to delete the libvirt.img, and to recreate it again.
As soon as the VM Manager is enabled, the dashboard stops to work.



EDIT: So, I tried to create an empty VM (not started), and a couple of empty groups made with Plugin: DockerFolder.

I deleted the empty groups, and then deleted the created VM.

Dashboards stops to work.



Then I readded the VM (not started) - and the dashboard works again.


Now - I'm really really confused.

Edited by TDA

With the same symptoms (but I have no VM's) I stopped VM Manager and the Dashboard works again.



I am running 6.12 rc6

  • Author

So maybe it's a bug of the 6.12 rc6?

  • 1 month later...
On 5/25/2023 at 7:03 PM, TDA said:

So maybe it's a bug of the 6.12 rc6?

I upgraded to Unraid 6.12.3 recently and found this exact issue.



If I disable the VM manager the graphs are fine but when started I lose a lot of the info from the main page.

On 7/17/2023 at 9:32 AM, DeekB said:

I upgraded to Unraid 6.12.3 recently and found this exact issue.



If I disable the VM manager the graphs are fine but when started I lose a lot of the info from the main page.



Please post the diagnostics.zip (from Tools -> Diagnostics). It would be ideal if you could do this after making the problem happen, and then after making it go away so everything is captured in the logs.  Thanks!

  • 1 month later...
On 7/19/2023 at 12:35 AM, ljm42 said:



Please post the diagnostics.zip (from Tools -> Diagnostics). It would be ideal if you could do this after making the problem happen, and then after making it go away so everything is captured in the logs.  Thanks!

Hi,



I upgraded to 6.12.4, had some more issues which look to be network related.

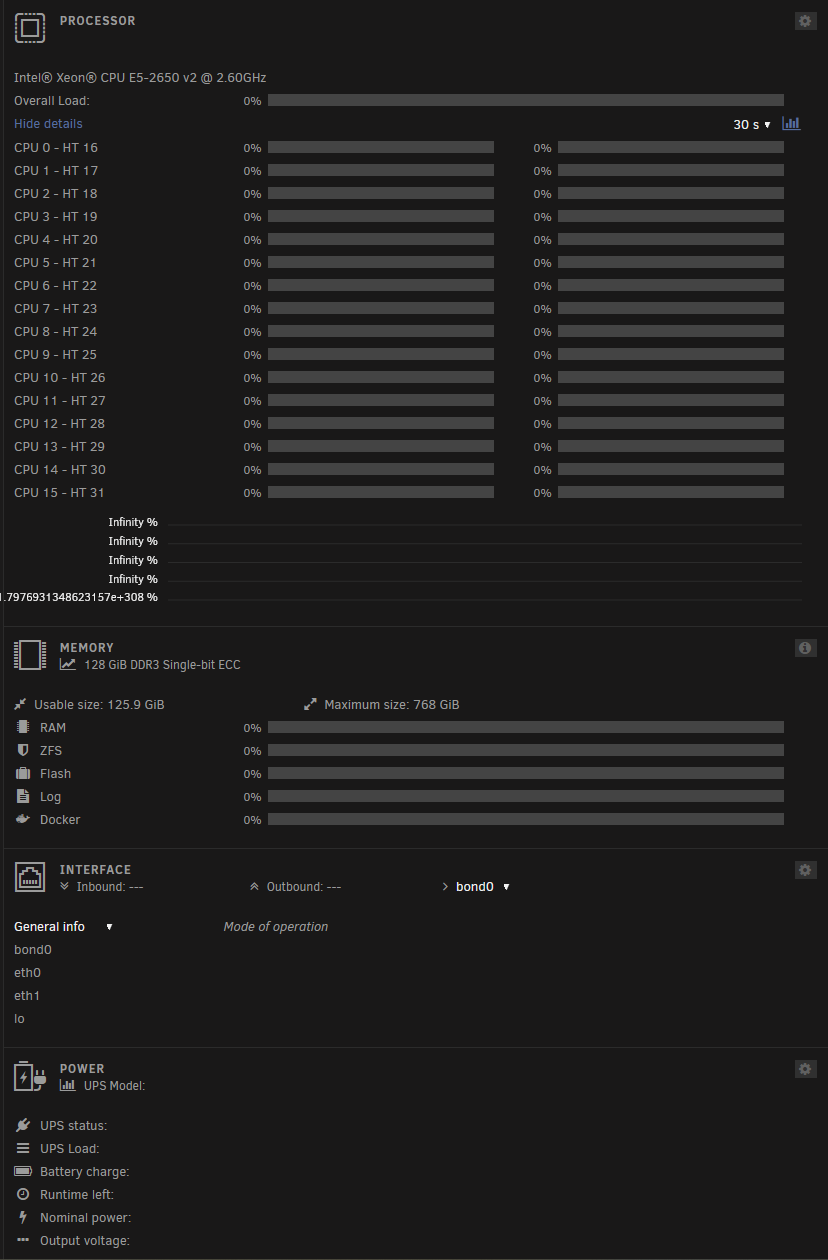

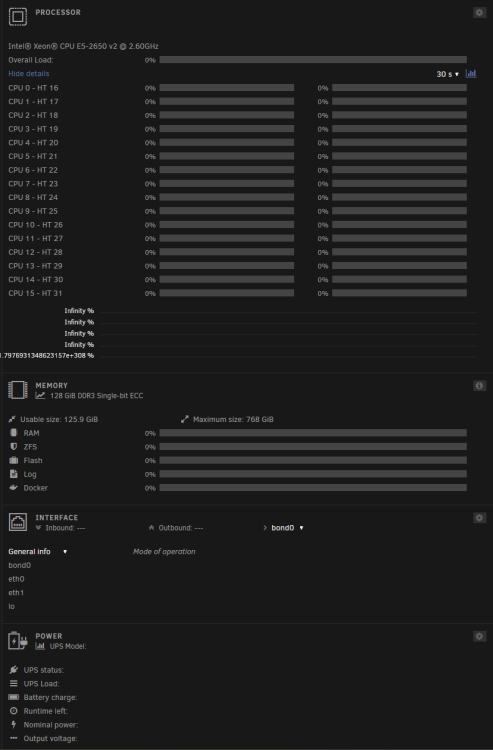

anyway I enabled VM manager just now and the CPU Graph isnt working, see screenshot.


I then re-enabled, confirmed the CPU graph was working then generated a diag as requested.



Sorry for the delay I didnt get any notification that I had a a post waiting and I am not using the forum often, only noticed it now when I had issues after 6.12.4


us1-diagnostics-20230904-2035.zip
