Adding drives to native Z pool.

[luminus]

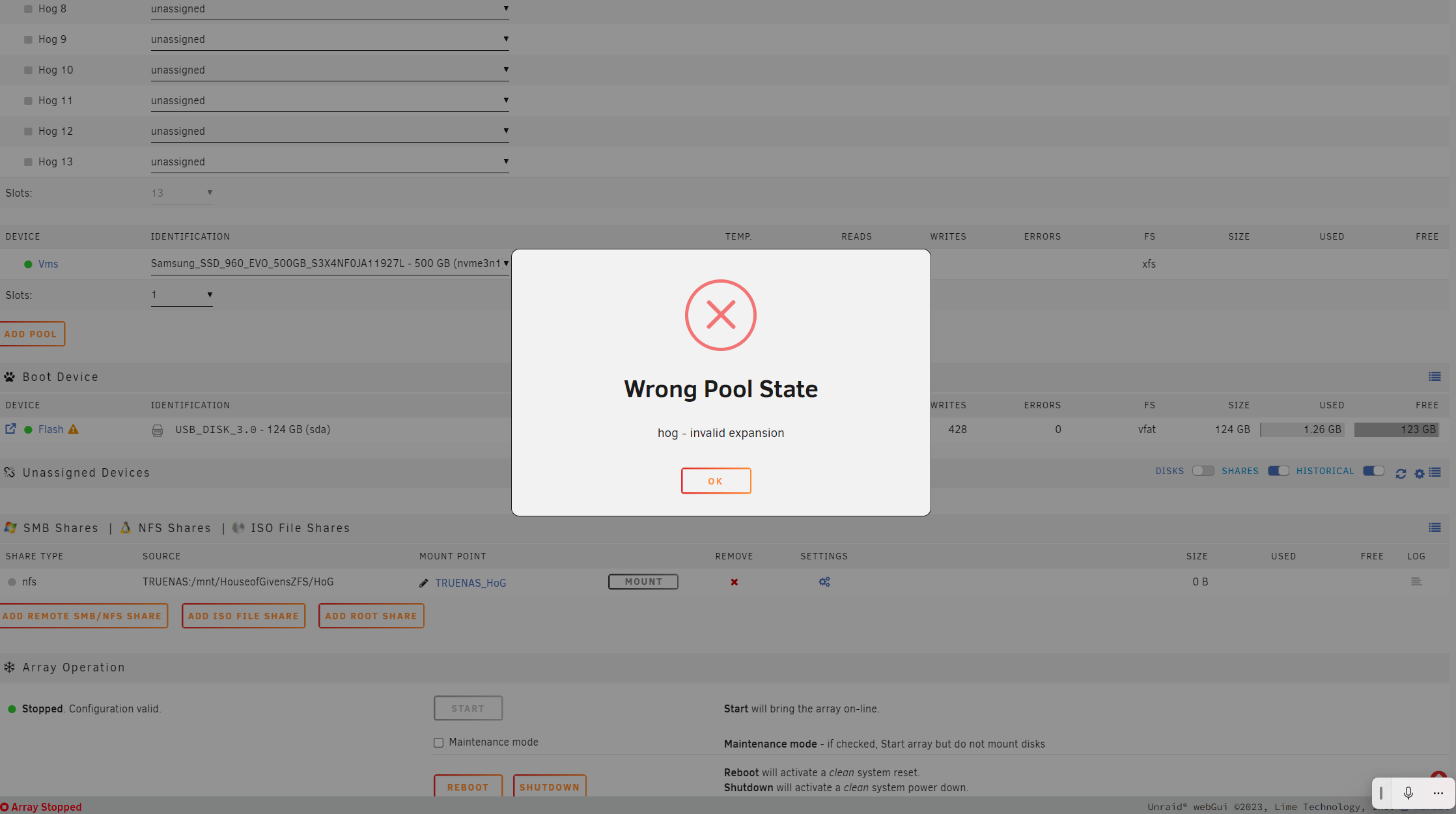

I recently upgraded to the most recent version of Unraid. I was running a separate z pool on unread, but now since the feature was added I created a native Z pool with extra drives then transferred the data from my old Z pool to the new one. I was trying to figure out how I could integrate those drives into the new Z pool. Total there are 6 14 terabyte drives (native Z pool) and 8 12 terabyte drives. When I try to use the native feature to add them it spit out an error saying the drives were not of the same size. Is there a way around this without losing the data that I have on the 14 terabyte drives? I was hoping not to have to lose another drive for parody.

[JorgeB]

There's currently an issue where the GUI doesn't let you add a vdev with smaller capacity drives, but you can do it manually and then re-import the pool, note that the new vdev needs to be the same width as the existing one, so if you have 6 x 14TB you can add only another 6 x 12TB.

[luminus]

I swapped the 14TB for the 12s. How do you add them as a vdev"?

[JorgeB]

If you mean adding the 14TB drives to the pool you can use the GUI, don't forget new vdev needs to be of the same width.

[luminus]

I tried to add them via the GUI...no joy. Does same width mean since I have 8 12TB drives I wound Need to add 8 14TB drives? Currently only have six. Is there a different way to add them? Or would I need to delete pool and reestablish it with all the drive at once instead of adding to it?

Edited June 5, 2023 by luminus

[JorgeB]

1 hour ago, luminus said:

Does same width mean since I have 8 12TB drives I wound Need to add 8 14TB drives? Currently only have six.

Correct, you cannot add just six, it won't work.
