parity drive detected as New device

[Guybrush]

Hello,

I wanted to replace the current parity 10Tb parity drive by a 12Tb in order to later replace drives in, the array by bigger ones.
After replacing the parity drive, I booted the NAS, but disk one in the array appears as disabled.
So I put back the original parity drive, but it's now detected as new, and I therefore can't rebuild the array with a brand-new drive

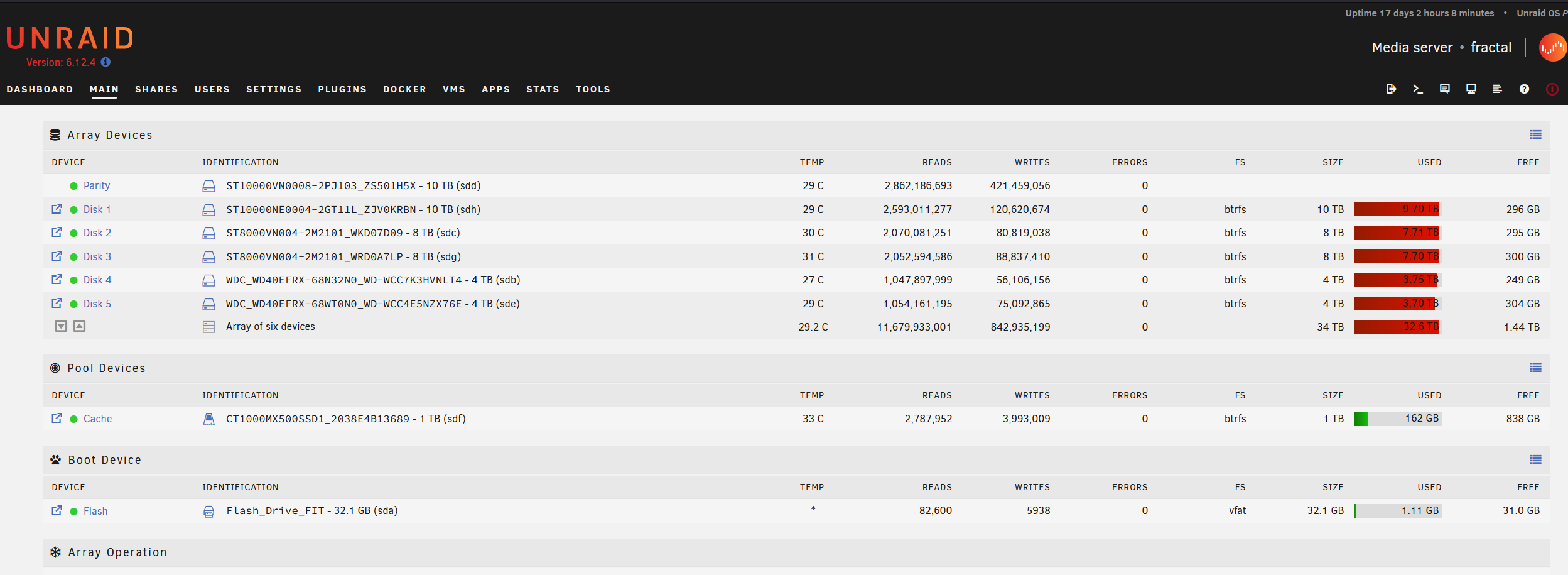

Original configuration

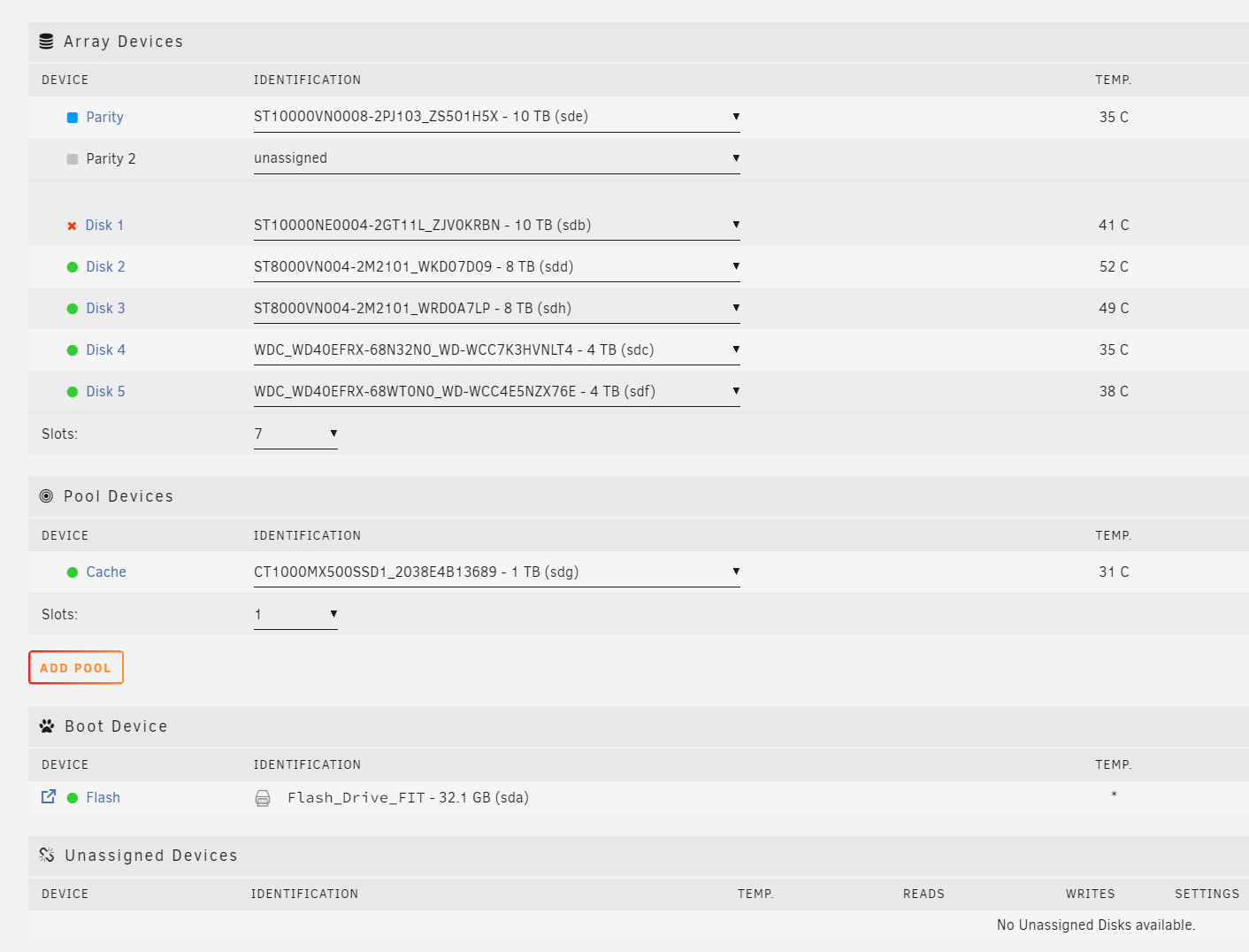

current status





Any help would be appreciated.





fractal-diagnostics-20231014-1133.zip

[JorgeB]

Disk was already disabled at boot so we can't see what happened, but the disk looks healthy, check/replace cables to rule that out, then and since there's no valid parity do a new config (don't assign parity for now) and start the array, if all disks mount normally re-sync parity.

[Guybrush]

I switched both sata and power cable on the faulty drive but still no luck after a reboot



Should i preserve all assignements for the new config ?



[itimpi]

It is up to you although it is normally easiest and least error prone to start with preserve all and then make changes from that position.



for reference the New Config tool is covered here in the online documentation accessible via the ‘Manual’ link at the bottom of the GUI or the DOCS link at the top of each forum page. The Unraid OS->Manual section in particular covers most features of the current Unraid release.

[Guybrush]

fractal-diagnostics-20231014-1658.zipI did the reset but the Parity-Sync  seems to be stucked at at 0,1%.

[JorgeB]

There are issues with multiple disks, check all cables and/or try different PSU.
