Unmountable: Unsupported or no file system

[mkrekeler]

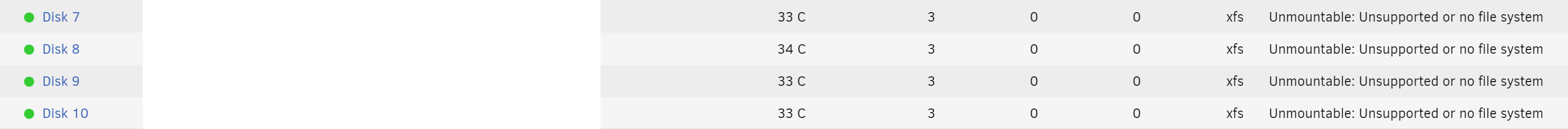

I am in the process of replacing old drives/upgrading drives.  I was able to replace and rebuild my parity drive clear and remove 3 other drives.  However when i went to turn my old parity drive into a data drive and add 3 other drives i get the following error.

tower-diagnostics-20231015-1746.zip

[Frank1940]

Look carefully at the Main tab of the GUI.  Is there an option to format those drives?  (In order to mount a drive, it must have a valid, working file system that is recognized by Unraid on the drive.)  If so, you can format the disk and it should then be mounted.



Just make sure that you don't format any drive that might have data on it that you want to save.  When Unraid formats a disk, any data on it will be lost!

[mkrekeler]

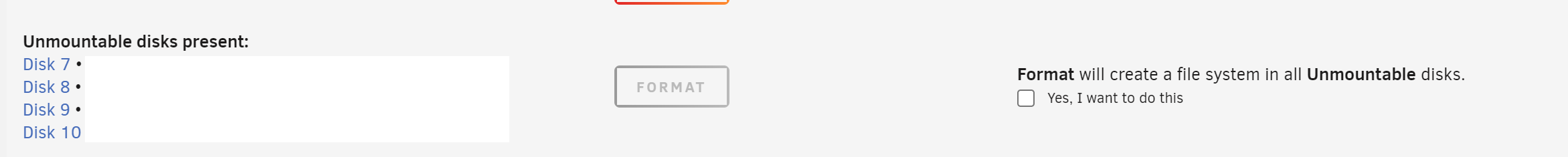

At the bottom of the main page there is a format option and that you have to click yes i want to do this.  The unmountable drives are also listed there.  I have done that multiple times with the same result.  Dont know if it helps but i did mount the drives last night and it was completing some process for approx 20 hours to add these drives to the array.



[itimpi]

Are you replacing or adding drives? Are you expecting to keep any data on those drives?   The process you seem to be going through is to add new drives?   If so then Unraid has to Clear them (write all zeroes) to the drives to avoid invalidating parity and then they need to be formatted to create empty file systems on the drives.

[mkrekeler]

I going thru the process of adding drives.  Drive are already formatted.  I am assuming the clearing process is what they did after i mounted them to the array that took about 20 hours.  After this process is when unmountable disks list at the bottom of the main page with the option to format.  I have attempted to format these drives multiple times with no success.



[Frank1940]

14 minutes ago, mkrekeler said:

going thru the process of adding drives.

Here is the section in the manual:



    https://docs.unraid.net/unraid-os/manual/storage-management/#adding-disks

[mkrekeler]

59 minutes ago, Frank1940 said:

Here is the section in the manual:



    https://docs.unraid.net/unraid-os/manual/storage-management/#adding-disks

i followed that process everything went correctly until step 11.  The system says it is formatting the drives at the bottom of the screen.  The screen then flashes to refresh i assume then i still have the same messages that i posted screen shots of above.

[itimpi]

Strange - I can see the format attempts in the syslog in the diagnostics.



Only thing I can think of is (once all array activity has stopped) have you tried rebooting and then trying the format again in case that is needed?  New diagnostics taken after that might show something useful if that does not work.

[JorgeB]

Oct 15 15:33:13 Tower emhttpd: shcmd (3704): /sbin/wipefs -a /dev/sdb
Oct 15 15:33:13 Tower root: wipefs: error: /dev/sdb: probing initialization failed: Device or resource busy



Reboot and try again, if it still fails you should be able to manually force the wipe with:

wipefs -af



[mkrekeler]

Thank you everyone for your help.  Rebooting ended up fixing the problem and after rebooting disks formatted correctly
