December 3, 20232 yr So I moved my unraid box over to the define7XL but even though I bough an new Seasonic PSU (needed more sata power anyway and it was one of the few PSU I could find specs on how long the cables are) I still have problems reaching the top and still be able to use all ports. I looked into extensions like CableMod but fast found out they dont make power extensions. All I could find was like 1 to 1 sata extension cables, that sounds a bit messy.

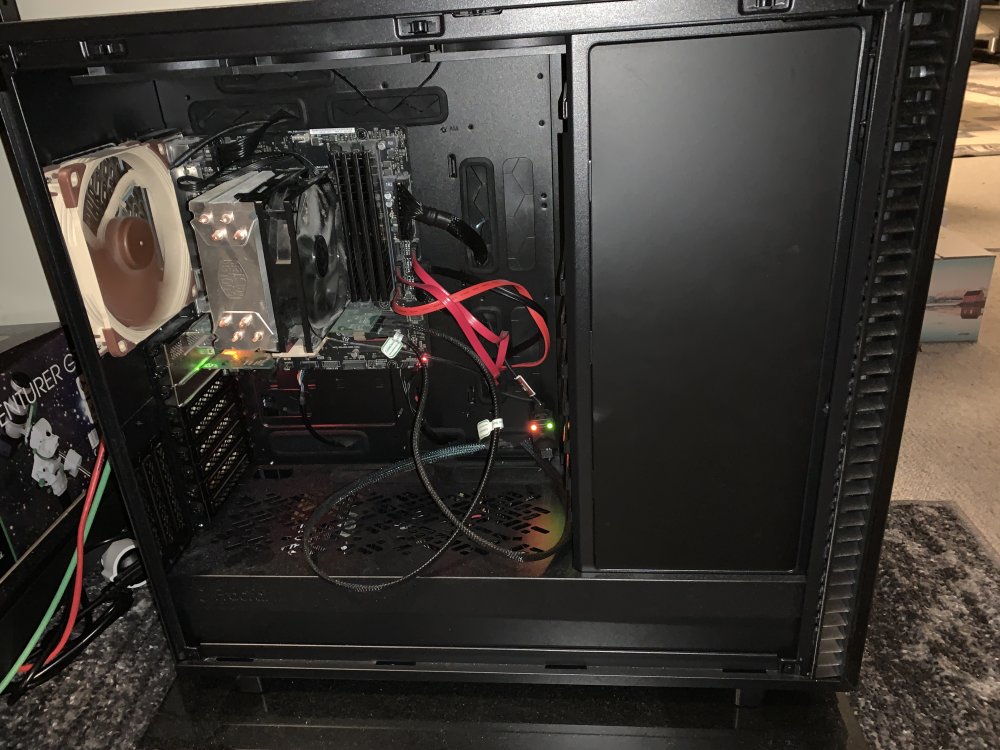

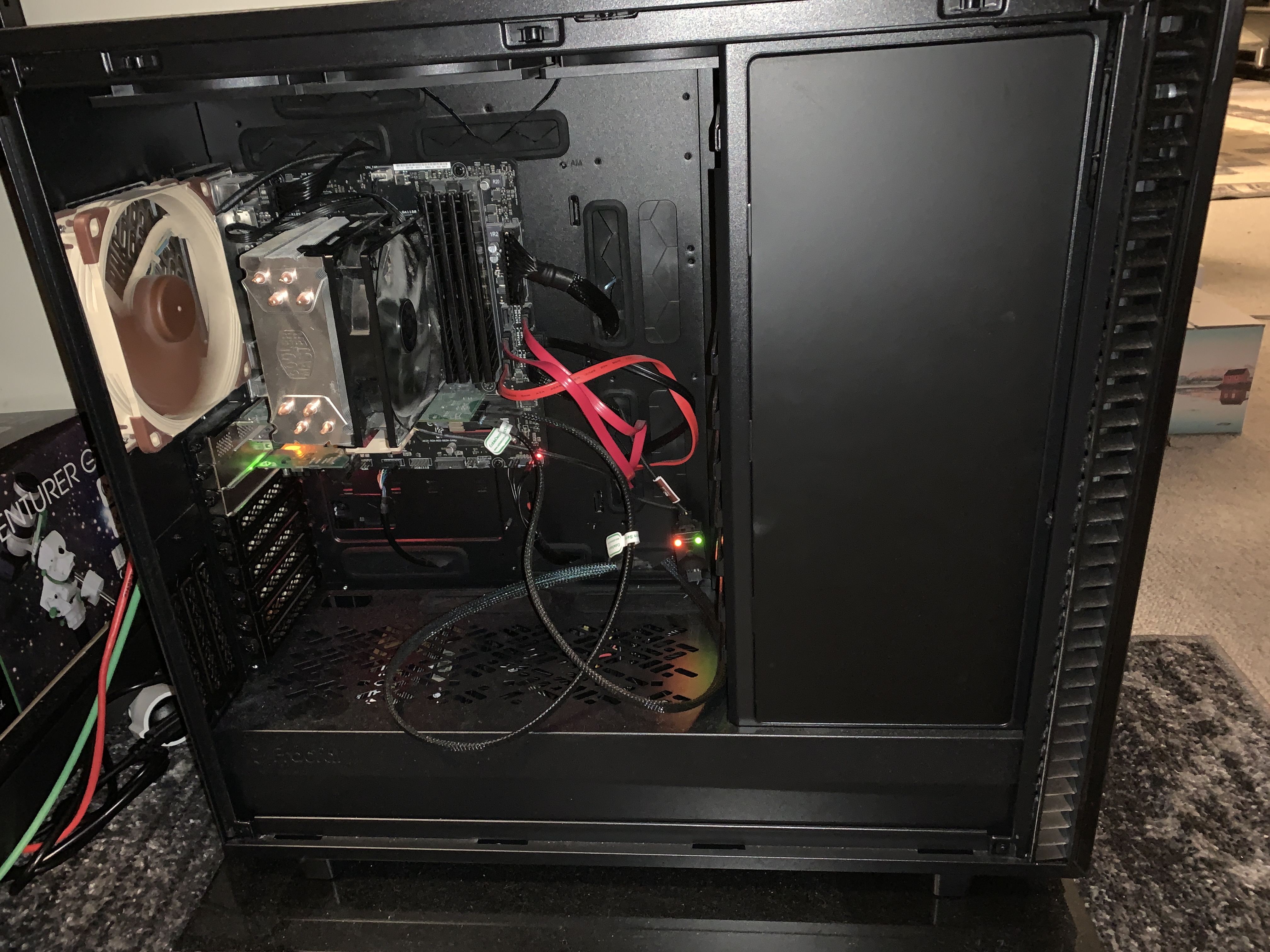

December 3, 20232 yr You can find extra long power and sata cables on Amazon. You can also find sata and/or power extenders on Amazon. You can also find 6 pin cables for your PSU that end in 4 pin molex connectors (old school power supply plugs) and you can then use long 4 pin to sata power cables. The schematics are not that difficult so you could also roll your own. You can see the case I use (for now) in my sig. Edited December 3, 20232 yr by whipdancer
December 6, 20232 yr On 12/3/2023 at 5:36 PM, isvein said: I still have problems reaching the top Given the extremely poor design of SATA power and data connections, you need to make sure there is no stress on the cables when plugged in to the drive. Ideally, if you remove the drive, the cable ends should appear to be floating where the drive was, meaning no tension pulling the cables away from the drive. If you use any sort of extension for power, make sure the PSU end is the 4 pin style, never use a SATA power connection as an input to anything other than a drive.
December 6, 20232 yr Author On 12/4/2023 at 12:28 AM, whipdancer said: You can find extra long power and sata cables on Amazon. You can also find sata and/or power extenders on Amazon. You can also find 6 pin cables for your PSU that end in 4 pin molex connectors (old school power supply plugs) and you can then use long 4 pin to sata power cables. The schematics are not that difficult so you could also roll your own. You can see the case I use (for now) in my sig. We sadly dont have Amazon here in Norway (or are we lucky?) but i have found some Sata 5pin splitter (1in 4out). So far its going good but if I need I plan to get one or two of them, just not sure how many dives its safe to run on one cable

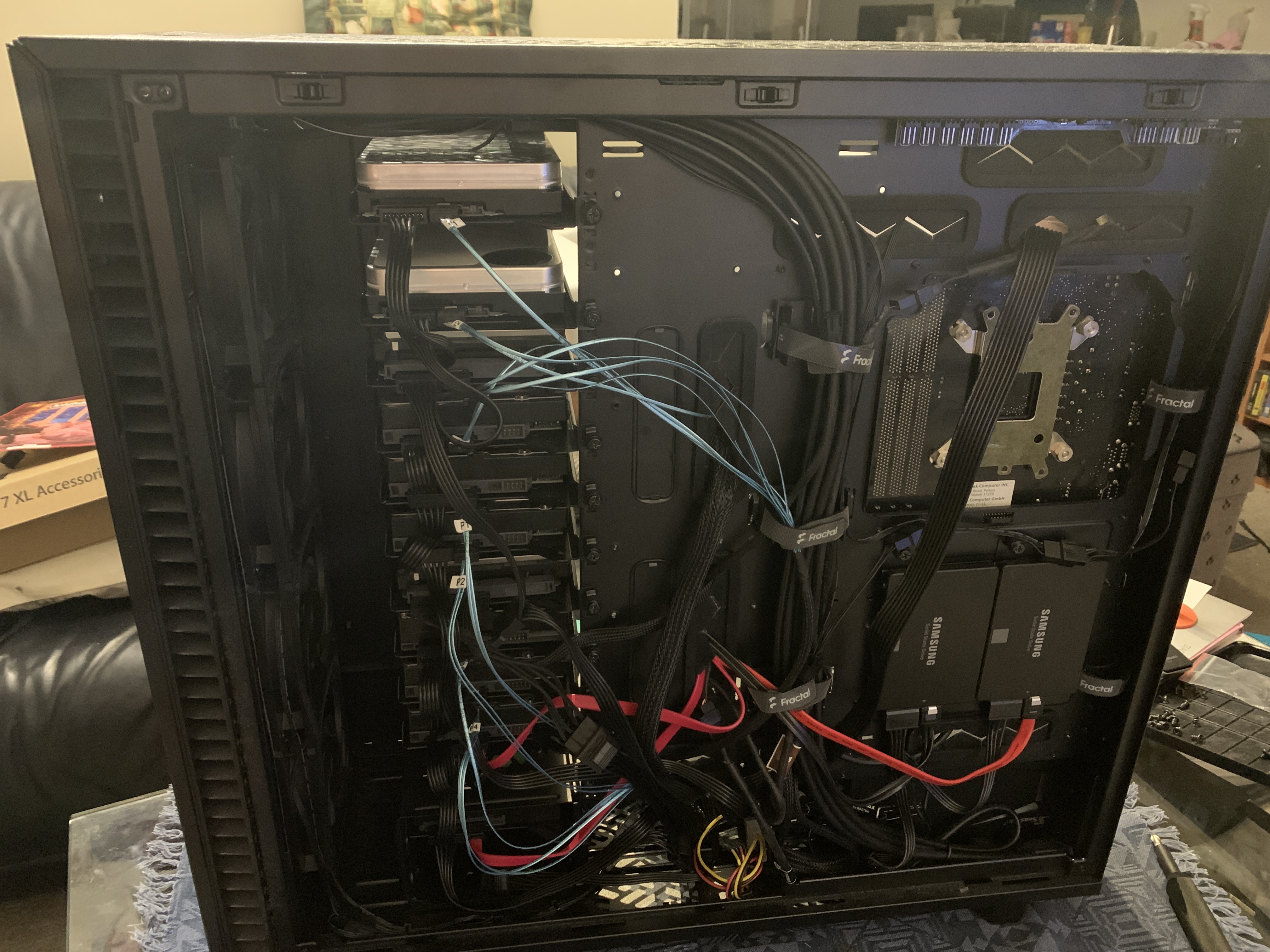

December 7, 20232 yr I estimate ~9w per mechanical drive, with room for about 10 drives per plug on my PSU. I use a relatively high quality 700w power supply to power 18 drives currently, including 15 mechanical, 2 SSD and 1 optical.
December 13, 20232 yr I have this exact same case and I maxed out the number of drives that you could place in it... I ended up going with a 1200 Watt Corsair PSU only difference being that I had a GPU in it... Mine might have been overkill though, but I am building a new system with it. 2x Epyc CPUs 6900xt GPU and water cooling... The cables that came with it were long enough
March 11, 20242 yr I know this is a bit of a necro but I just dealt with this myself in this EXACT case. Seasonic PSU cables are too short to reach the upper drives when you have 12-15 drives installed. My fix for this was to use a 6-pin PCI-E power extension. I bought a cheap sleeved kit on amazon that included a few. One issue is that the PCI-E 6-pin power connector is not the same as the one on the PSU. My guess is they are purposefully different. What I did was de-pin the PSU cable connector, swap that onto the extension, then put the PCI-E 6-pin connector on the psu Cable. The psu cable can now plug into the extension, and the extension can now plug into the PSU. I moved pin's over between connectors one at a time to not get them confused. Edited March 11, 20242 yr by TheProfosist
September 5, 20241 yr About to transfer my build into this case & am thinking of running 12ish spinners (currently have 8), & at least 2, maybe 4 SSD for cache (not counting NVME). I've read that the be Quiet Dark Power Pro 11 series would be fine for getting all the power cords to their designated places with no problem. Anyone got a build running, say, 16 spinners with a PSU recommendation for the reach of SATA power? I read about Kareon Kables, but if I can have something stock (or close to it) without going the custom cable route, that would be the best case scenario for me.
March 10Mar 10 On 9/5/2024 at 3:03 AM, TheDesignated1 said:About to transfer my build into this case & am thinking of running 12ish spinners (currently have 8), & at least 2, maybe 4 SSD for cache (not counting NVME). I've read that the be Quiet Dark Power Pro 11 series would be fine for getting all the power cords to their designated places with no problem. Anyone got a build running, say, 16 spinners with a PSU recommendation for the reach of SATA power? I read about Kareon Kables, but if I can have something stock (or close to it) without going the custom cable route, that would be the best case scenario for me.What did you choose to do in the end? I have the custom Define 7 XL cables coming in from Kareon Kables this week (based in the UK, spent a small fortune!) and have been reading some older posts online where people have had mixed things to say about them. Owner is adamant over email that the cables are rated highly enough to power up to 15 drives off a single 6-pin connector, but downrates them to 108W or something. Each cable he's sent me has 8x SATA power connectors on it. Would love to get some actual tangible feedback from someone else using these that they're all good and not had any issues.
