ZFS share sending to array.

Featured Replies

Hell, I notice that my zfs pool storage was not going down when i was moving large files onto it. 1TB of date.

when i looked at the dir all the files i copied where there but the storage was the same.  I cont to move data to it and I saw that

the unraid array was being used by the write display under the pool.  I am sending data over samba from linux file system zfs backup pool to my unraid with zfs.  I looked under shar and i have 3 option now for shares, array which it was set to. cache and zfs-pool, i think by the name.  I tried setting it to the zfs pool name in the option. but when sending small files or large files I get out of space error.

1) how can i send my files to the zfs pool, like i did before ? I would just browser the network and find the zfs pool folder and move the files, but doing it this way now send it to the unraid array but i'm seeing the file in the zfs pool folder

So any help me would be great cause i'm confused about what's going on.

  • Author
30 minutes ago, JorgeB said:

What is the share that you're using?

I was using the movie share but it look like it was putting it on the unraid array and not on the zfs pool with the same share name.  plus some files are not showing up on the zfs pool share and i dont know why

There are a lot of shares in the diags, and the names are anonymized, but don't see any that could be movie, maybe movies? Post a screenshot from the Shares settings page for that share.

  • Author
1 hour ago, JorgeB said:

There are a lot of shares in the diags, and the names are anonymized, but don't see any that could be movie, maybe movies? Post a screenshot from the Shares settings page for that share.

yeah it's movies not movie.

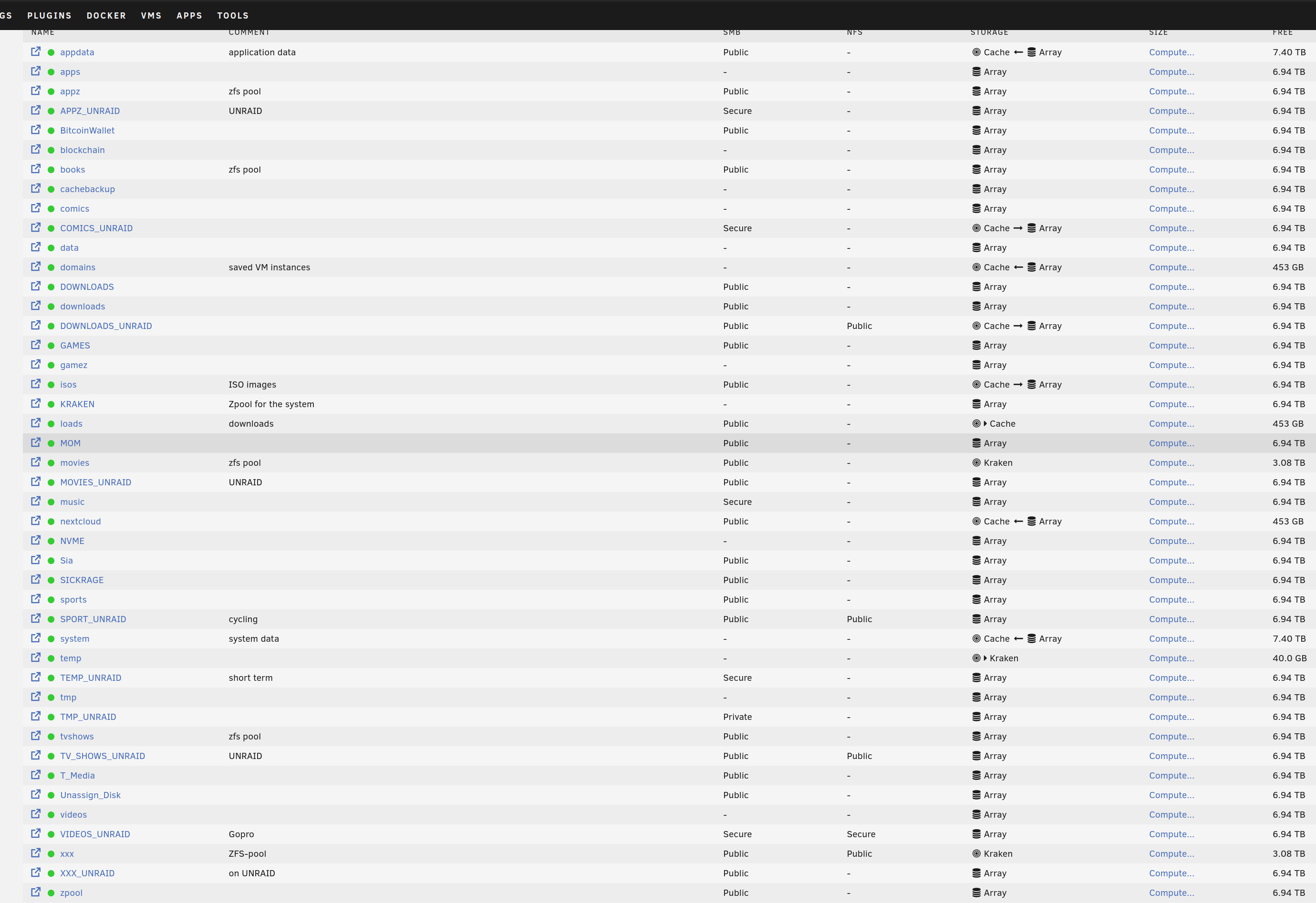

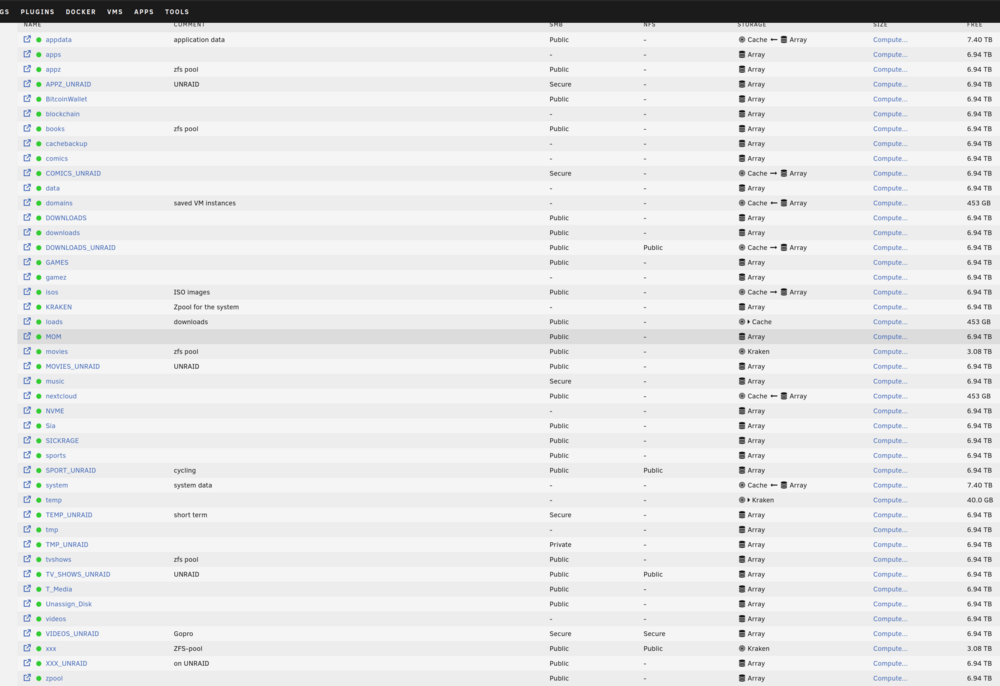

Screenshot from 2024-12-19 05-56-04.png

Click the Movies share and post a screenshot from the settings.

  • Author
8 hours ago, JorgeB said:

Click the Movies share and post a screenshot from the settings.

what are you looking for?

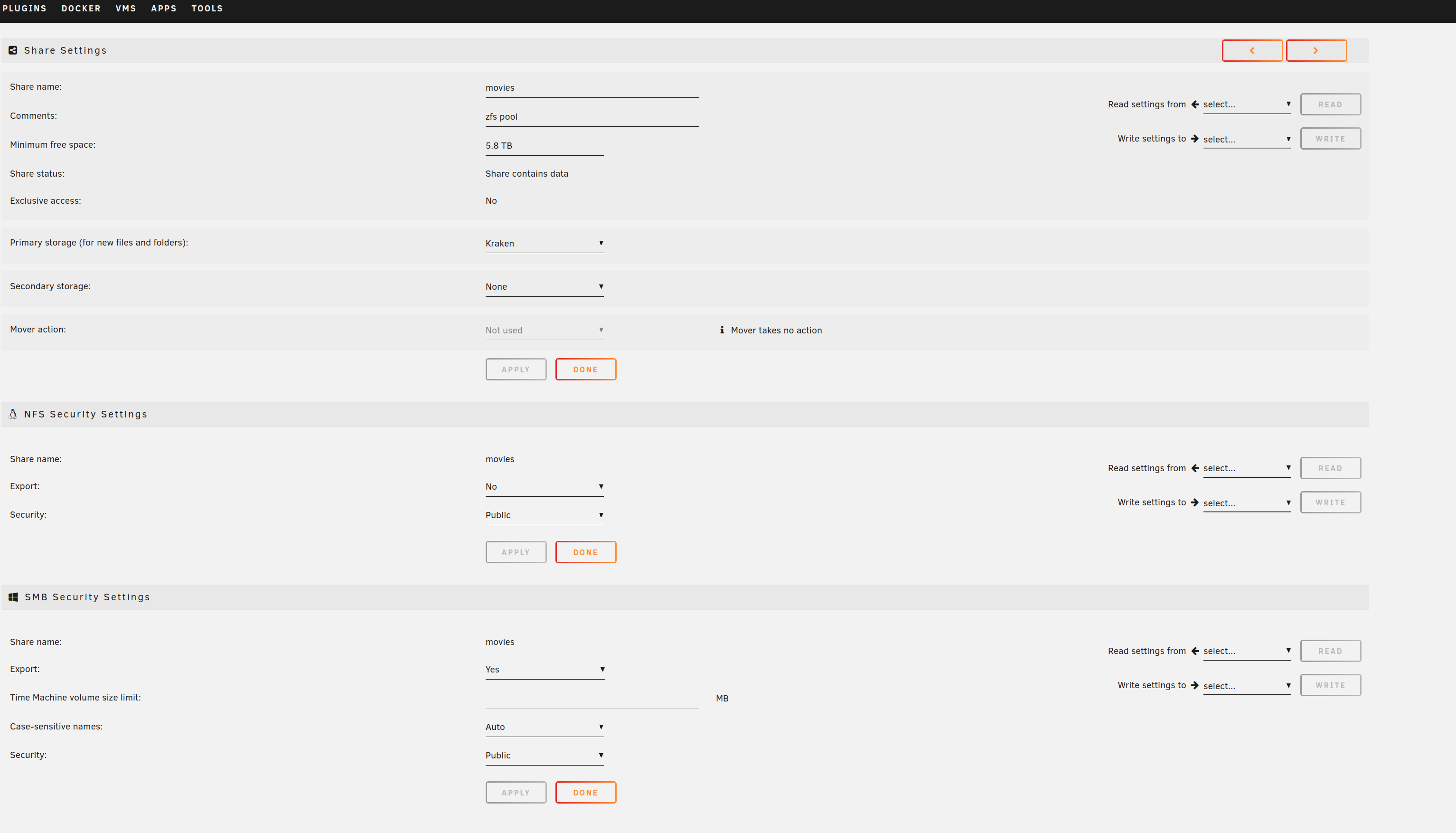

Screenshot from 2024-12-19 15-35-23.png

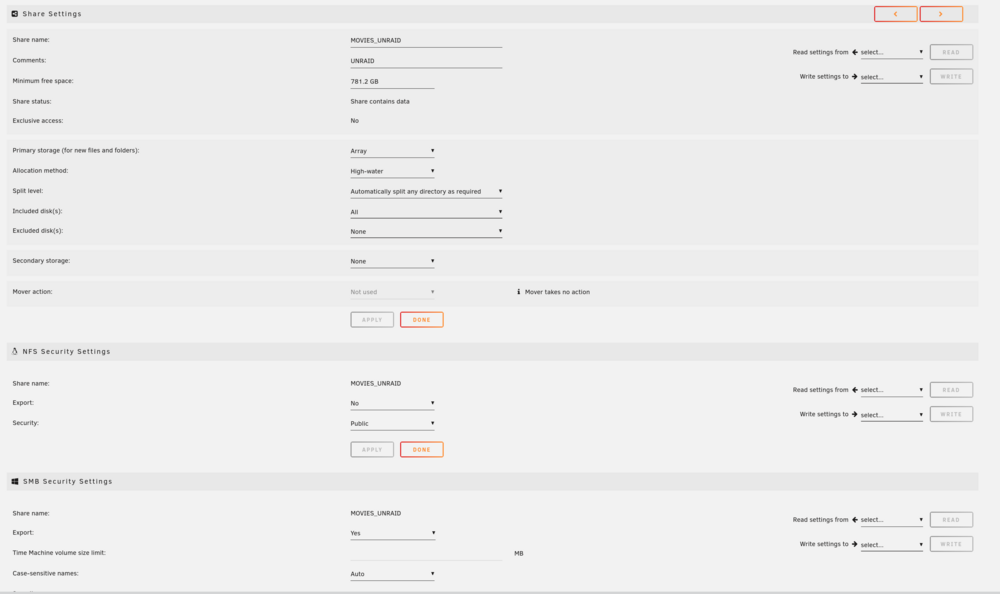

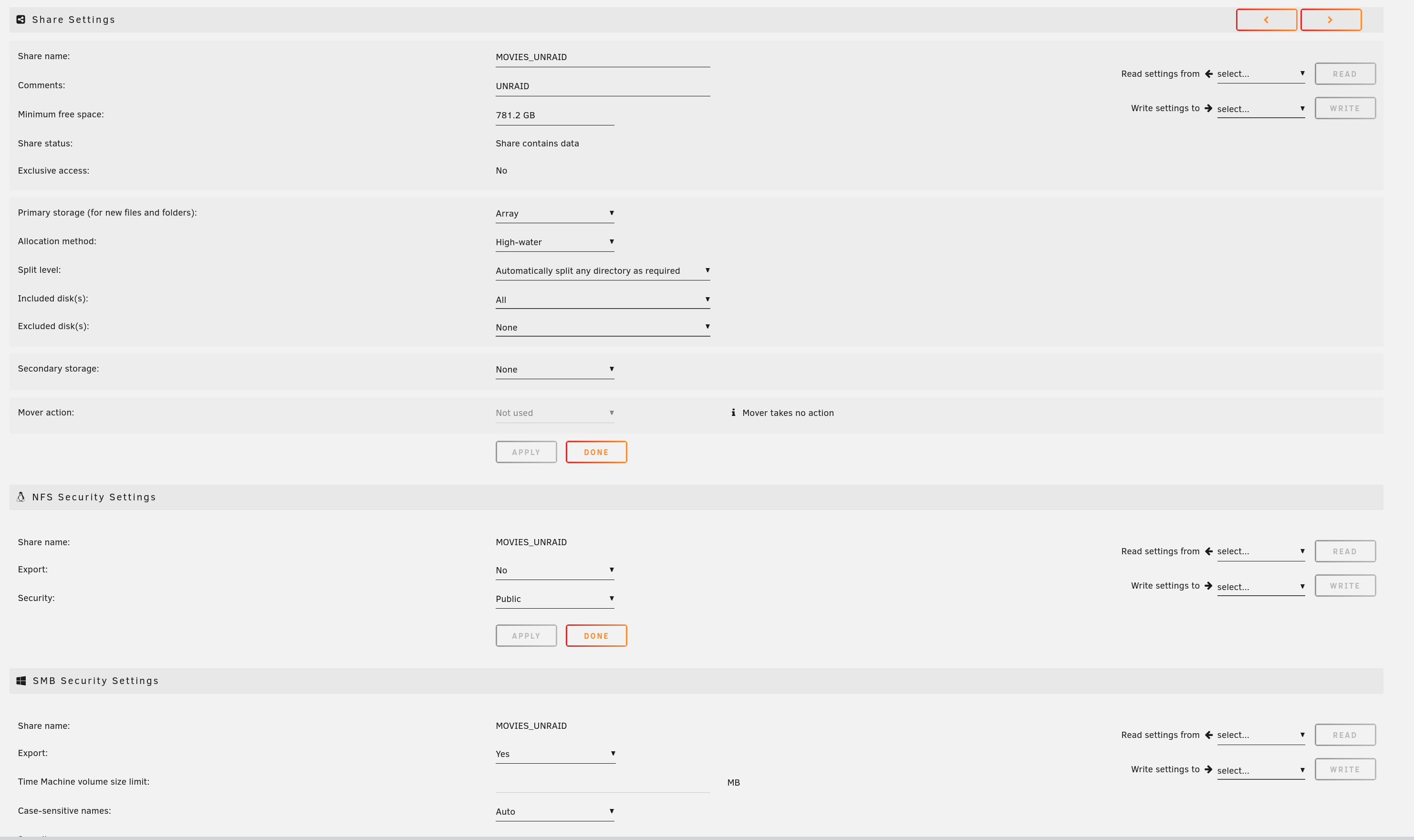

Screenshot from 2024-12-19 15-35-41.png

Yes, floor setting is 5TB, since that's over the pool capacity, it will go to the array

6 hours ago, JorgeB said:

Yes, floor setting is 5TB, since that's over the pool capacity, it will go to the array

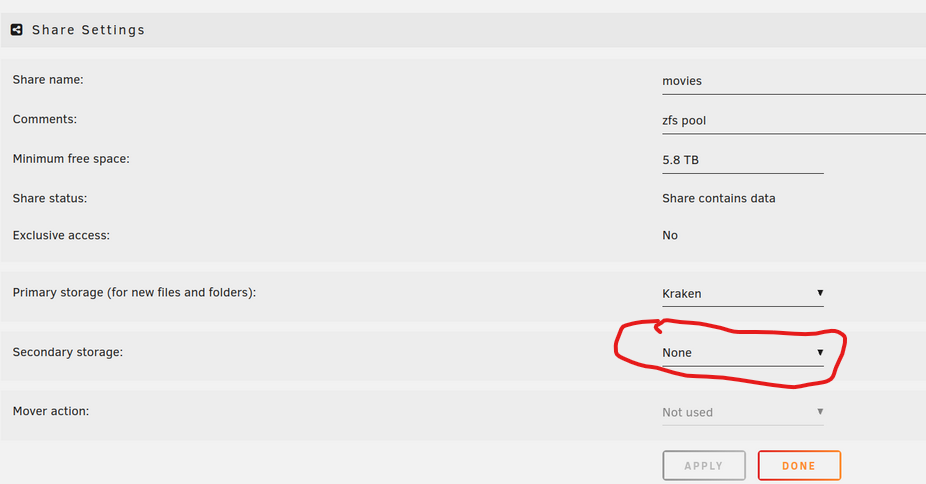

BUT as I see it, there is no secondary storage set up.




I assume he changed that after, since files already exists in the array for that share

  • Author
On 12/20/2024 at 10:06 AM, JorgeB said:

I assume he changed that after, since files already exists in the array for that share

that option wasnt there when i created the zfs pool.  I changed it when i saw the files going to the unraid arroy and not the zfs pool.

I no longer want to use the unraid array but for just backup, I want to just use the zfs pool.  I'm just having some problems with the network, hard drive speed and storage location.

what is with the slow speed over my 10Gig network with 6 drives mirror. even went sending to nvme or zfs pool.  what kind of speeds should i be getting.

these are the speed i'm getting and i'm not sure why so slow?

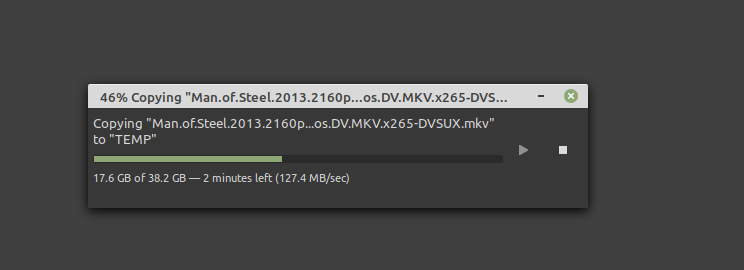

local zfs to network nvme.png

local zfs to localnvme.png

zfs to zfs.png

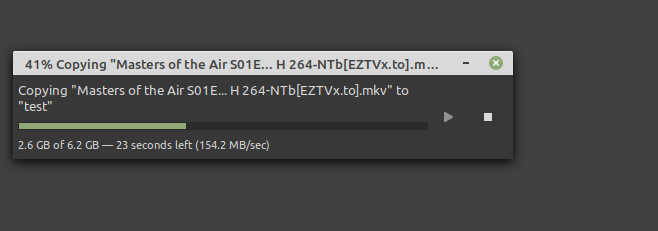

zfs to network nvme.png

Start by running a single stream iperf test in both directions to rule out any network issues.

  • Author
10 hours ago, JorgeB said:

Start by running a single stream iperf test in both directions to rule out any network issues.

I have heard about that but dont know how to run those test.  Is there s link I can read up on it?

  • Author
11 hours ago, JorgeB said:

Start by running a single stream iperf test in both directions to rule out any network issues.

ok, I think I got the test run and it says that its running at top speed or am i missing something.

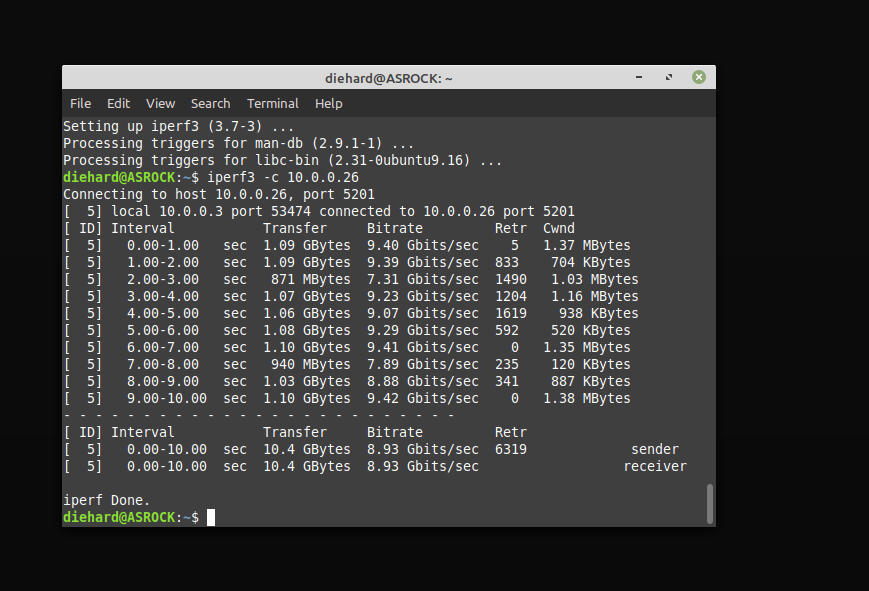

Screenshot from 2024-12-22 15-36-38.png

  • Author

here is a longer test

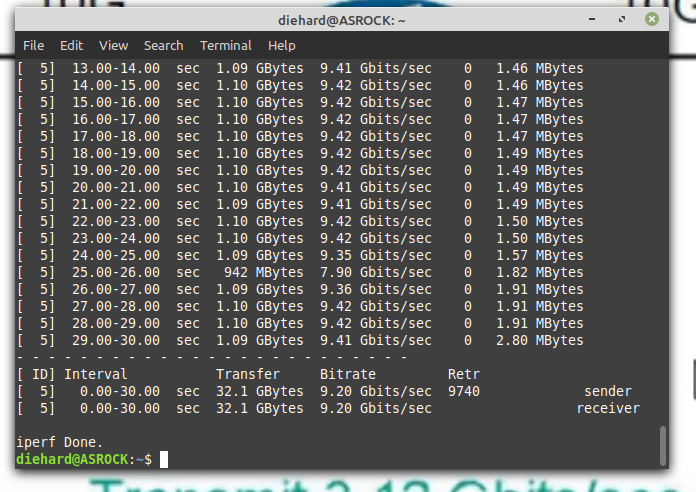

Screenshot from 2024-12-22 15-47-24.png

  • Author
11 hours ago, JorgeB said:

Start by running a single stream iperf test in both directions to rule out any network issues.

I ran two more test and when 60 sec is run it's slow and then i run a 90 sec and it's fast.

Not sure why the 60 sec keep running slow

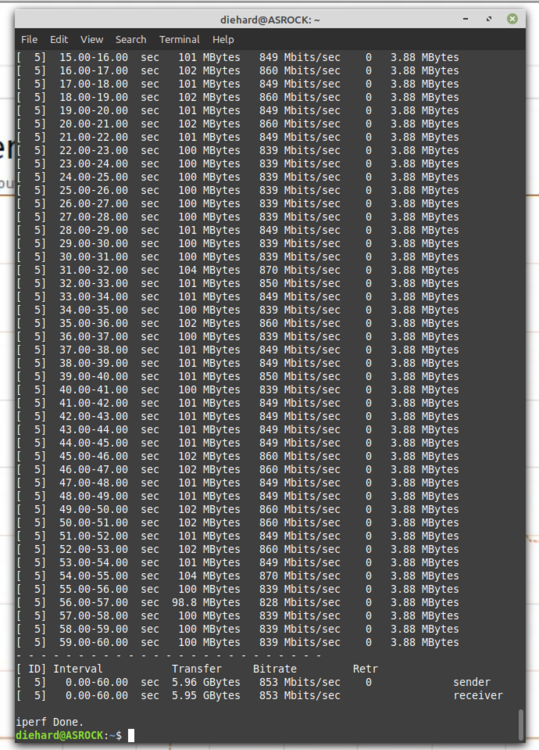

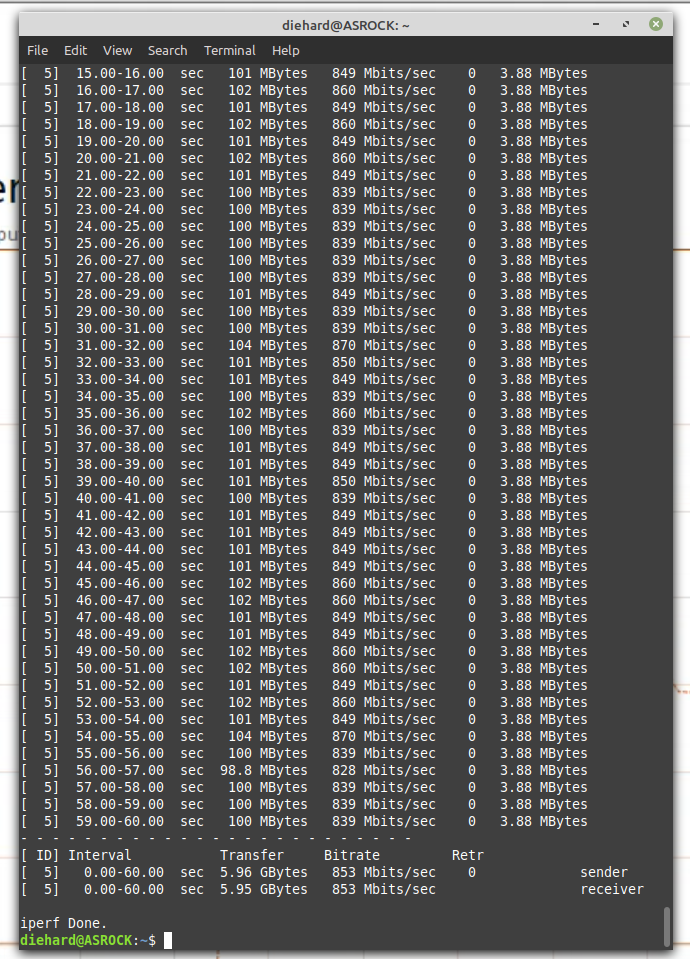

Screenshot from 2024-12-22 16-06-32.png

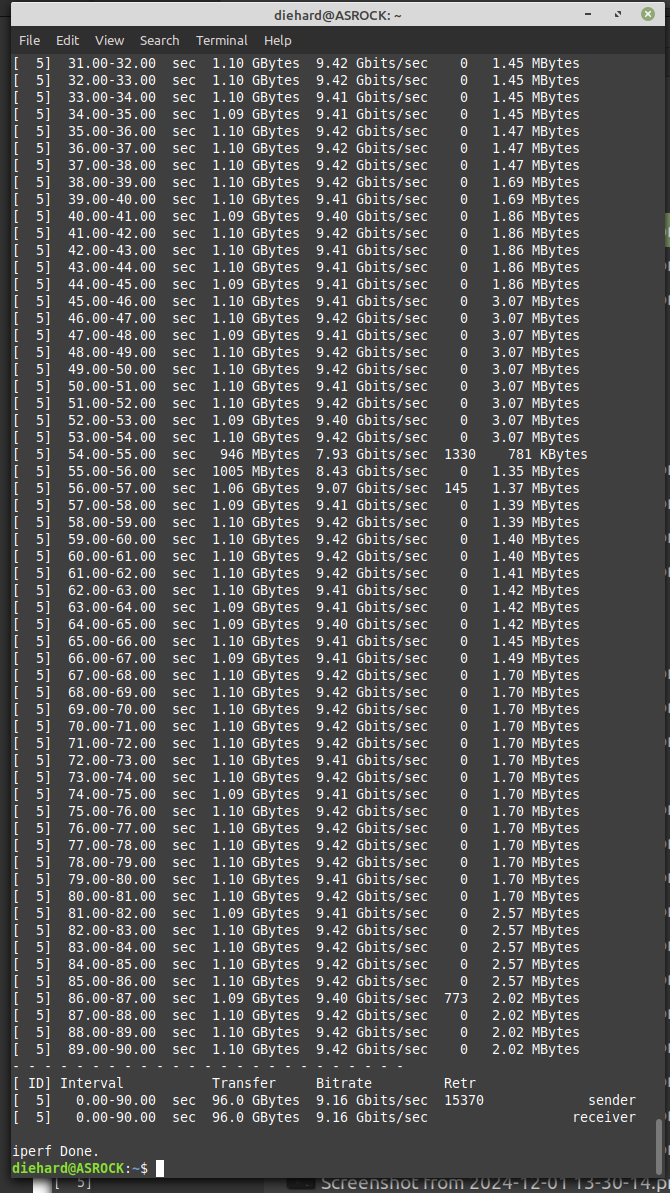

Screenshot from 2024-12-22 16-09-31.png

Post the commands used for both, that's not normal.

  • Author
7 hours ago, JorgeB said:

Post the commands used for both, that's not normal.

 iperf3 -c 10.0.0.26 -t 30

 iperf3 -c 10.0.0.26 -t 60

iperf3 -c 10.0.0.26 -t 90



I'm not sure why doing the  test for different sec would give a much slower speed.

So what it says the speed is slow what do i need to do to get it to run a full speed?

That's very strange, and it's always repeatable?

  • Author
41 minutes ago, JorgeB said:

That's very strange, and it's always repeatable?

yeah I tested it again and 30 and 90 sec test fast but 60 secs slow.

when it's slow what do i have to do to fix the speed?

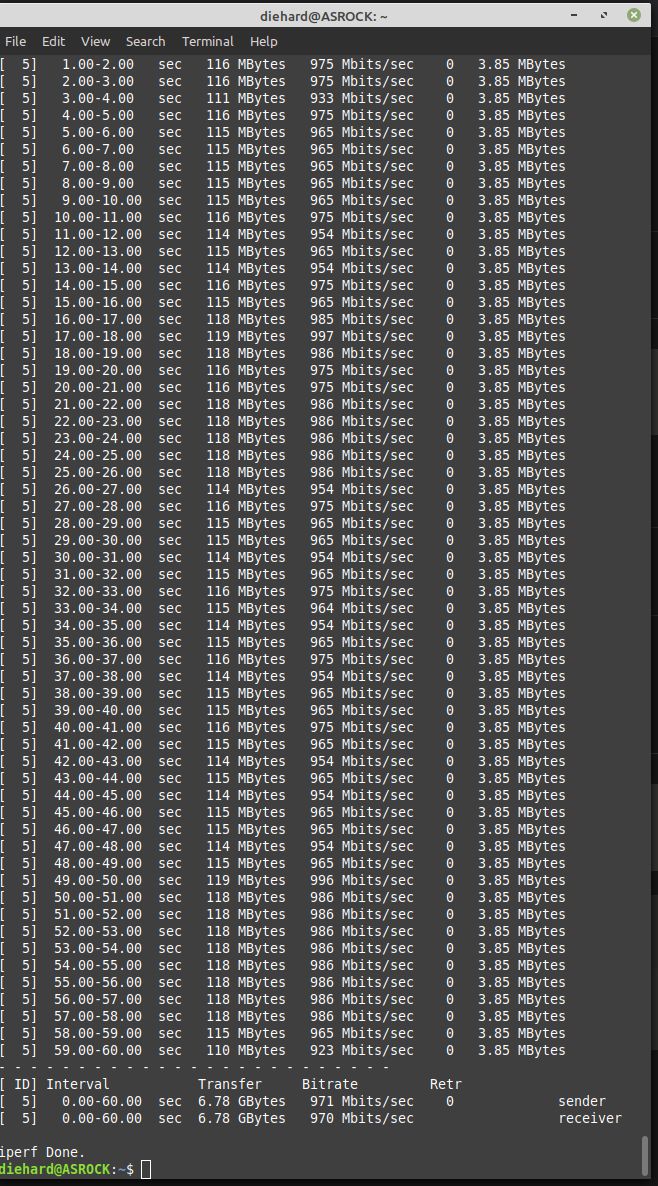

Screenshot from 2024-12-23 12-28-08.png

And if you do the regular test without specifying any time, and run it multiple times, do you always get good speeds?

  • Author
2 minutes ago, JorgeB said:

And if you do the regular test without specifying any time, and run it multiple times, do you always get good speeds?

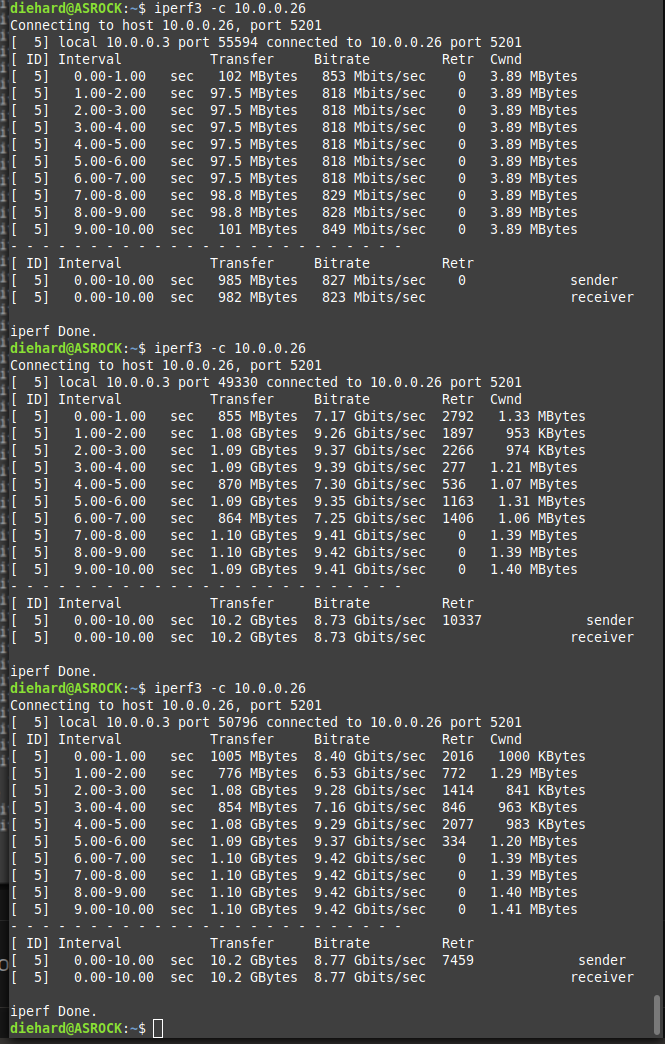

run the test 3 times and the first round was bad but the other 2 were good

what can i do for the ones with the bad test speed? something must be ccauseing that.

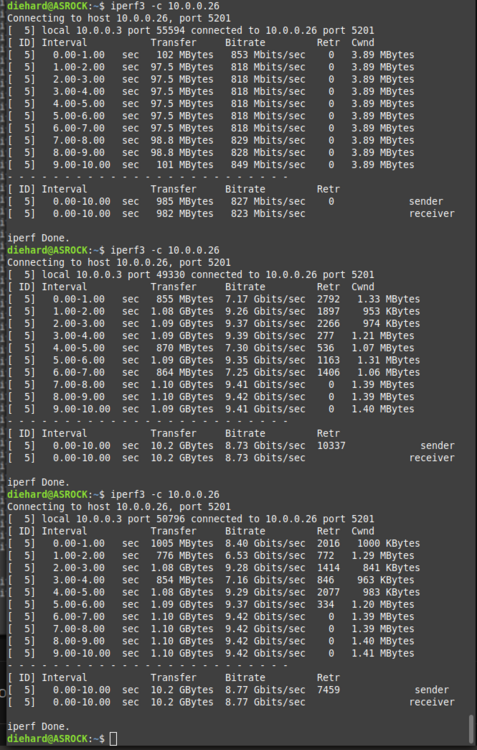

Screenshot from 2024-12-23 13-33-40.png

I see that you have a bond, try retesting without it.
