March 26, 20188 yr Author the cpu layout for the mounting is a rectangle. not square. 75F (24c) to 78F (26c)
March 26, 20188 yr yes, your ambient temp is a bit high, but very close to mine - i have my server in small cabinet with very poor ventilation. if i run stress tests on both CPUs at full speed, then temp are very close to 80 on both cpu, but never throttles.. see my server details on my sig.. and my cpu's have narrow bracket's, so it's not a square too, but i can place it direction from server top to bottom..
March 26, 20188 yr Author 8 minutes ago, uldise said: yes, your ambient temp is a bit high, but very close to mine - i have my server in small cabinet with very poor ventilation. if i run stress tests on both CPUs at full speed, then temp are very close to 80 on both cpu, but never throttles.. see my server details on my sig.. and my cpu's have narrow bracket's, so it's not a square too, but i can place it direction from server top to bottom.. maybe it has to do something with the noctua coolers. I looked trying to figure out how to move it to a front to back setup when I had changed the drive cages out. Maybe I should see if I can stuff the 3 fan rail thing back into the case. But I would think that would block the fans off of the drive cages.. Side note I cannot see anyone's signatures. (Never mind. It was a setting in the forum settings.) Edited March 26, 20188 yr by demonmaestro
March 26, 20188 yr i just hope your 3x120 front vent direction is right, can't see them in your picture
March 26, 20188 yr Author 2 minutes ago, uldise said: i just hope your 3x120 front vent direction is right, can't see them in your picture Well they are built onto the drive cages. https://www.newegg.com/Product/Product.aspx?Item=N82E16816132037 I sure hope they are pointed the correct way.
March 26, 20188 yr you can just test it with open case - air need to be moved inside a case from the front. according open case - i tested this some time ago on my server - CPU temps was lower than with closed case - i know, this is because ambient temp and my small cabinet with very bad ventilation..

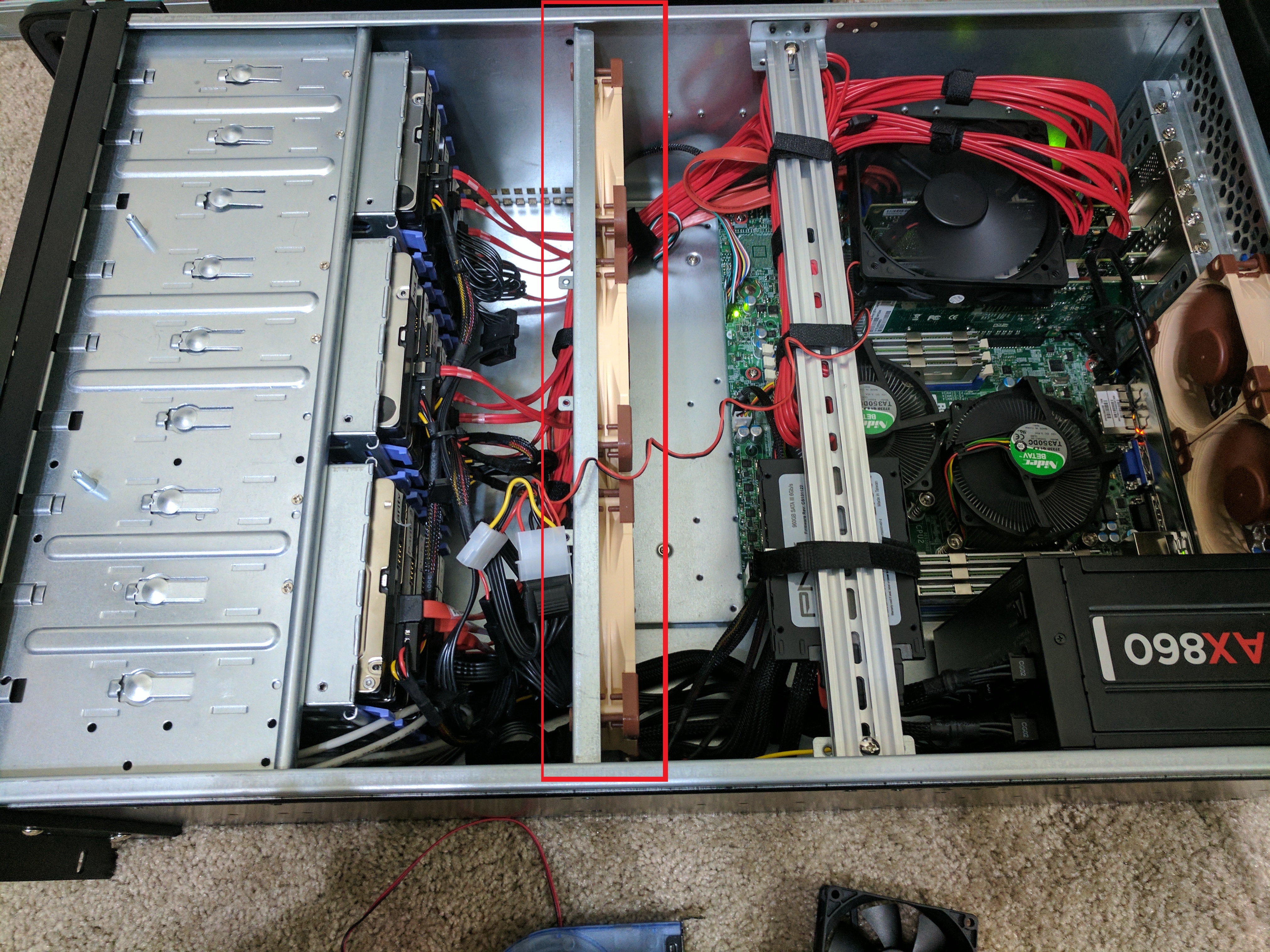

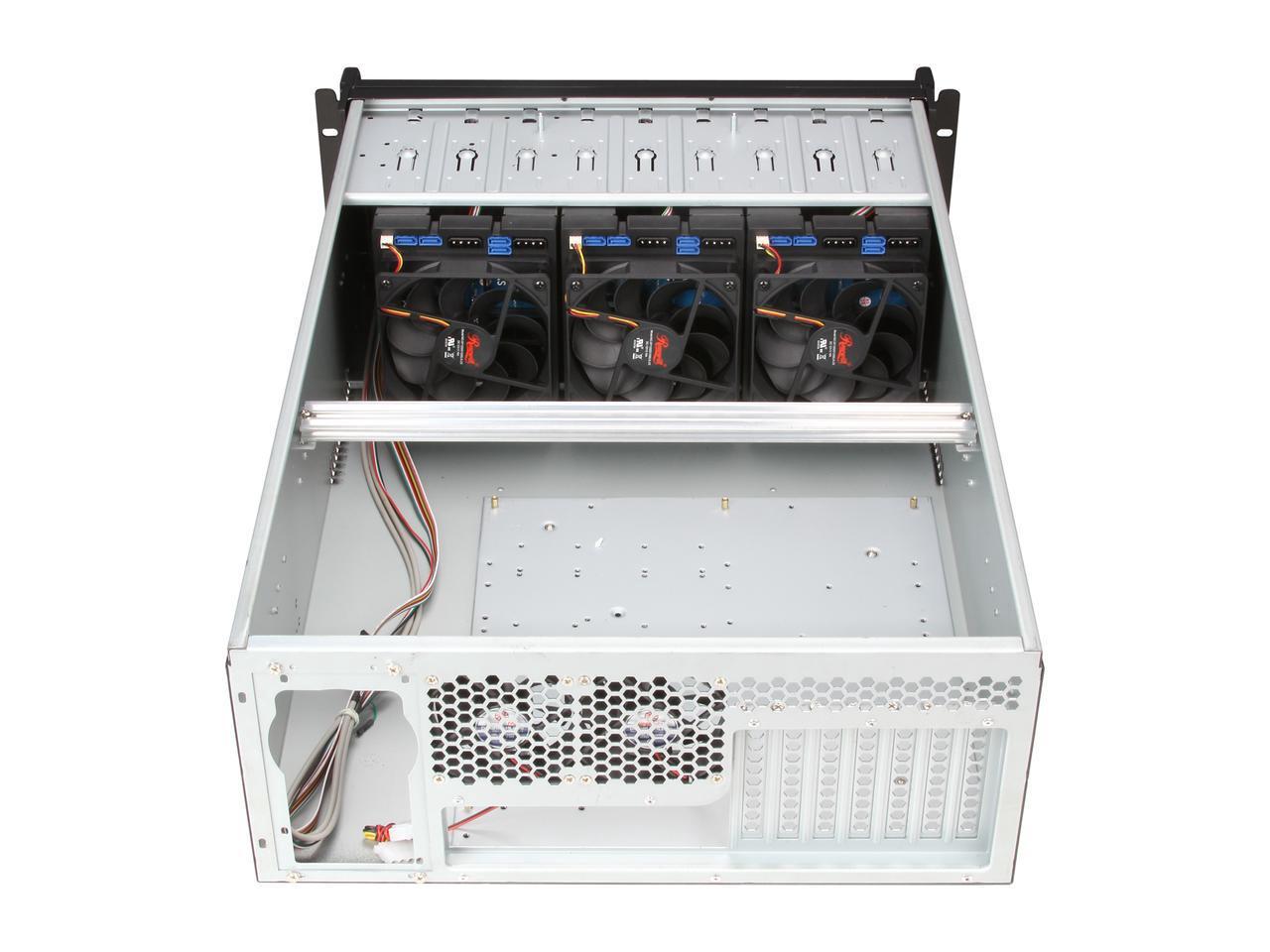

March 26, 20188 yr Author Well heres what I will do unless @garycase or someone else would recommend a different case all together for my issue. Just keep in mind its a E-ATX mobo. I will add back in the middle row of fans and max out the CPUs to see what happens. I know that the original version of this case does not have the mid row of fans .(Rosewill RSV-L4412) I have the mid row of fans setup because I have converted the case from a Rosewill RSV-L4500 to a Rosewill RSV-L4412. Or should I just get the Supermicro heatsinks designed for this board and the bigger Noctua fans?? https://www.newegg.com/Product/Product.aspx?Item=N82E16816101683 - heatsink https://www.newegg.com/Product/Product.aspx?Item=N82E16835608052 - fans Please keep ind mind that the picture of the mobo is not the current motherboard setup. Edited March 26, 20188 yr by demonmaestro
March 27, 20188 yr are you stress tested your CPUs with open Case? if this test will pass, then you will know - problem is with intake flow from your HDD cages...
March 27, 20188 yr I would really think your current heatsinks should be okay -- but it IS true that the larger fans you referenced have a LOT more airflow than the ones on your current heatsink -- 110CFM vs 38CFM. Moving that much more air would certainly provide better cooling. But I really think re-mounting the heatsinks might be all you need to do [or course if you switch heatsinks you'll be doing that for sure ] Adding the middle row of fans may also provide a big improvement -- clearly it will add a lot more airflow. As I noted earlier, be sure to check the CFM rating for all of your fans and see just how much air they should be moving -- if you're using low-rpm fans that only move ~40CFM that may be the primary issue.
March 28, 20188 yr Author Well I got the bigger noctua fans on order and a couple of the 40mm fans to put on the nic heat sink to try to cool it. I am going to see how that goes before I change the CPU heatsinks. *Thinks to self. Why did I have to get an E-ATX Motherboard???*
March 28, 20188 yr 11 minutes ago, demonmaestro said: Thinks to self. Why did I have to get an E-ATX Motherboard??? E-ATX is ok, Supermicro have bigger boards too. while E-ATX us supported by various Case manufacturers, it' ok. i'm on Norco 4224 with E-ATX on main server, and on basic Chieftec tower case with E-ATX on backup server..
March 28, 20188 yr 4 hours ago, demonmaestro said: *Thinks to self. Why did I have to get an E-ATX Motherboard???* I've looked at a few E-ATX boards over the years; but have always shied away when actually buying simply because of the limits it places on what cases I could use. But if you're building a dual-CPU system you really need to go with E-ATX simply because of the extra space you need to accommodate the CPU's and the other "stuff" you'll want on the board (plenty of memory slots; expansion slots; etc.). I'm not sure just what your issue is, but I don't think it's because the board is E-ATX

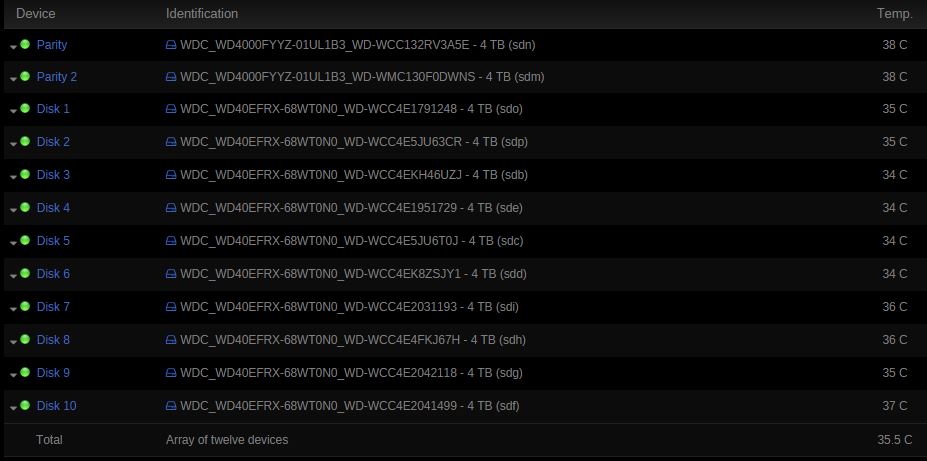

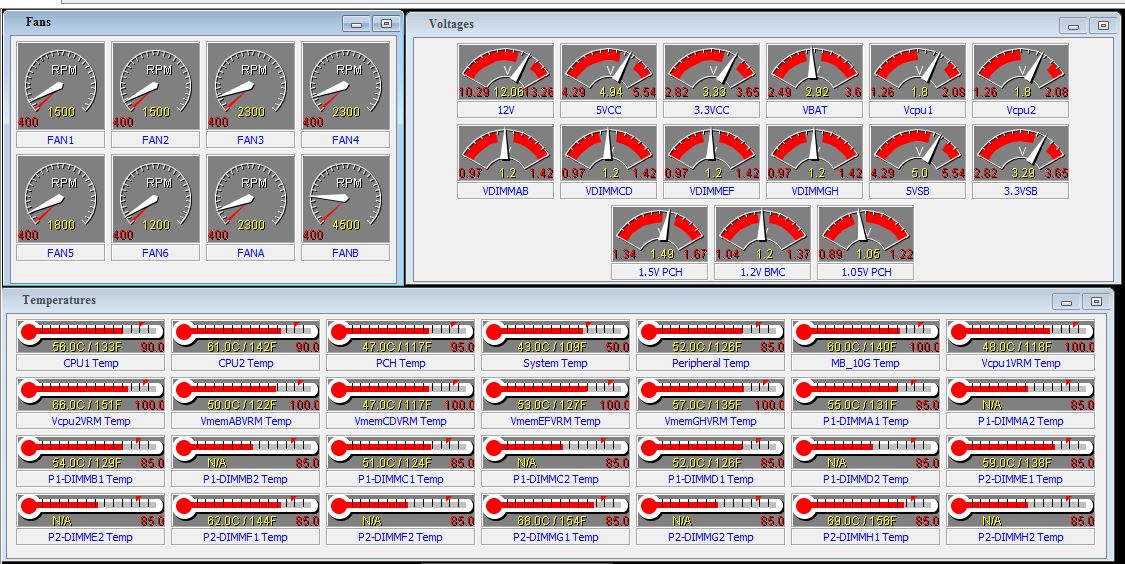

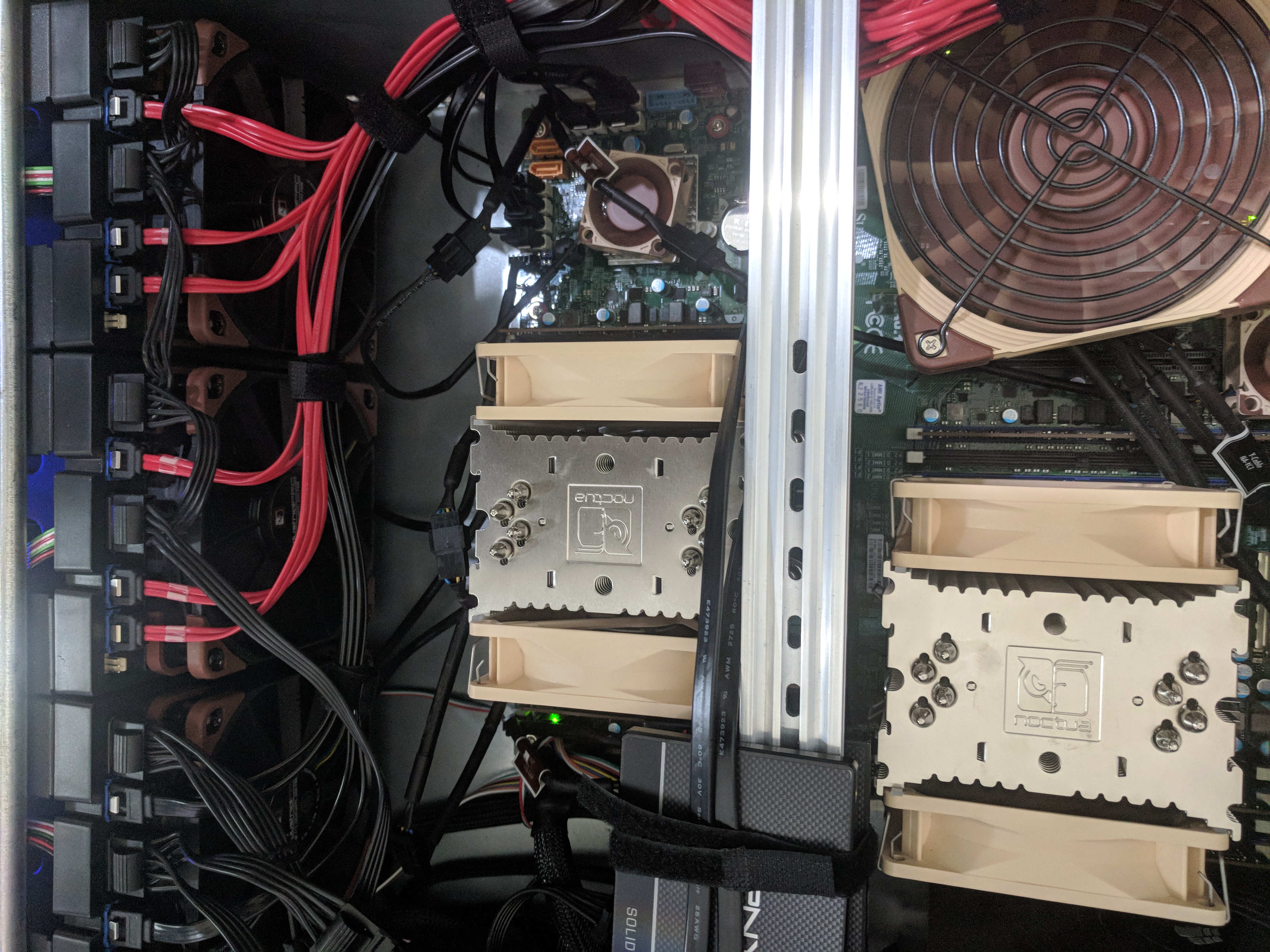

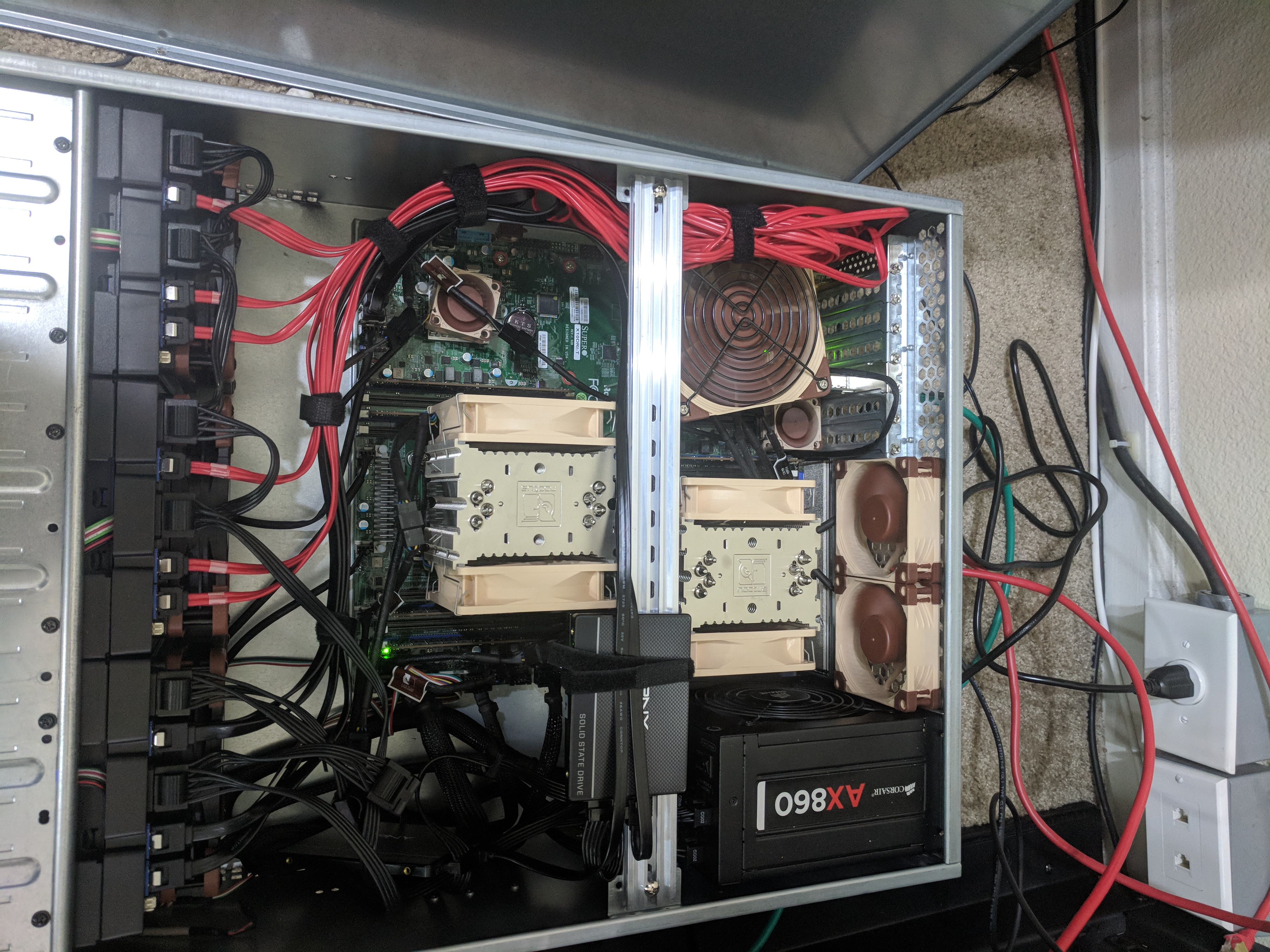

March 30, 20188 yr Author Sooo I had ran the CPUs at 100% with the lid closed but with the new faster noctua fans on the drive cages. Had left the "fan curve" on the supermicro mobo to standard. The fans never spun up to 100% but kept at a cool 58C on the CPUs. I had the test run the CPUs at 100% and did a Parity check for 4 hours. Below was after 4 hours of being ran at full tilt. Thoughts?
March 30, 20188 yr Looking good => amazing what nearly tripling your airflow (38CFM -> 110CFM = 2.89) does for keeping things cool
March 31, 20188 yr @demonmaestro how you attach these small vents to radiators? and according fans - which three are attached to drive cages - FANA, FAN3 and FAN4?
March 31, 20188 yr Author 50 minutes ago, uldise said: @demonmaestro how you attach these small vents to radiators? and according fans - which three are attached to drive cages - FANA, FAN3 and FAN4? What do you mean "how you attach these small vents to radiators?" The following: FAN 1 - CPU2 FAN 2 - CPU1 FAN 3 - Drive cage FAN 4 - Drive cage FAN 5 - Case exhaust FAN 6 - PCI cards FAN A - Drive cage FAN B - LAN CTRL & Intel PCH
March 31, 20188 yr 2 minutes ago, demonmaestro said: What do you mean "how you attach these small vents to radiators?" it's small fan on Intel PCH - how you attach it? with screws or something else?
March 31, 20188 yr Author 23 minutes ago, uldise said: it's small fan on Intel PCH - how you attach it? with screws or something else? It's just sitting on top. Not attached.
March 31, 20188 yr @demonmaestro one more question when your system is idle, what are speeds of drive cages fans?
March 31, 20188 yr Author 39 minutes ago, uldise said: @demonmaestro one more question when your system is idle, what are speeds of drive cages fans? 1400rpm. at idle. and room at 75F (24c) I keep the Fan speed mode at Standard. The fan curve for that is 50%-100% of rated fan speeds. Edit: Its still quiet as well! But at 100% it starts to sound like a server... But like @garycase had said. It is moving over double the amount of air now. Edited March 31, 20188 yr by demonmaestro
