Joe L. Posted March 19, 2010 Share Posted March 19, 2010 SO... I feel your pain, but you can probably put a few lines in your /boot/config/smb-extra.conf file like these and see if your BSOD stop: [global] security = USER Joe L. Thanks, I'll give this a try. But will this affect unRAID (free version) shares? It is a samba option. It has nothing to do with unraid specifically. I do not know if it will work in isolation, but that specific file, if it exists, is designed for you to add options for your samba configuration. Google "samba configuration" for all kinds of options. Some will work some will not. If nothing else, try a different version of unRAID as I think the samba version was updated in the last version or so. Are you on 4.5.3? Joe L. Quote Link to comment
queeg Posted March 19, 2010 Author Share Posted March 19, 2010 SO... I feel your pain, but you can probably put a few lines in your /boot/config/smb-extra.conf file like these and see if your BSOD stop: [global] security = USER Joe L. Thanks, I'll give this a try. But will this affect unRAID (free version) shares? It is a samba option. It has nothing to do with unraid specifically. I do not know if it will work in isolation, but that specific file, if it exists, is designed for you to add options for your samba configuration. Google "samba configuration" for all kinds of options. Some will work some will not. If nothing else, try a different version of unRAID as I think the samba version was updated in the last version or so. Are you on 4.5.3? Joe L. Yes, I'm on 4.5.3. With the bug being somewhat random and occasional it's difficult to just try things and get a sense of the outcome. I'm looking for a more determinate answer. I know this sounds pushy but I'm not trying to be that way. I understand it's a Win7 bug, but it's also an incompatibility with unRAID (free version at least). I'd like to get a pretty strong opinion from someone here (you're the experts after all) how to avoid the problem either by a concrete "use the Plus or Pro" version or some code workaround that very likely is a fix. And if unRAID free version is incompatible with Win7, then potential users should be warned in the Wiki such that they can't download the free version without having seeing the warning. This doesn't just affect Win7. It affects the reputation of unRAID. All you need is for casual "unRAID causes Win7 to BSOD" to jump onto a few forums and it's really difficult to pull that back. And about the MS bashing. In my opinion, half of ALL forum postings everywhere tend to be garbage snipings about linux, MS, Mac, etc that's all negative and don't provide any value and just serve to clog up threads. Noone wants to dig though that stuff to find the valuable information. One reason I was encouraged to try unRAID is the forum here isn't full of that crap and people here are very helpful. Pet peeves are for the lounge. Quote Link to comment
Joe L. Posted March 19, 2010 Share Posted March 19, 2010 SO... I feel your pain, but you can probably put a few lines in your /boot/config/smb-extra.conf file like these and see if your BSOD stop: [global] security = USER Joe L. See if this hotfix from Microsoft applies... It addresses BSOD when accessing SMB shares on Win7 http://support.microsoft.com/kb/967891 Joe L Quote Link to comment
queeg Posted March 19, 2010 Author Share Posted March 19, 2010 Yeah I do get it. But, look, I want to use unRAID safely with my Win7 clients. I don't want my thread to descend into no solution because it gets lost in the bash pile-on. Quote Link to comment
purko Posted March 19, 2010 Share Posted March 19, 2010 Did you write down any of the information that was displayed on that blue screen? Are you able to reproduce the problem? Quote Link to comment
queeg Posted March 19, 2010 Author Share Posted March 19, 2010 Did you write down any of the information that was displayed on that blue screen? Are you able to reproduce the problem? I didn't write any of it down. I'm not going to try to reproduce it Unfortunately you jumped to take my comment out of context before I was finished with that posting. Please re-read my posting. Quote Link to comment
queeg Posted March 19, 2010 Author Share Posted March 19, 2010 Did you write down any of the information that was displayed on that blue screen? Are you able to reproduce the problem? I didn't write any of it down. I'm not going to try to reproduce it without some planning. BSOD's aren't good for the client machine and mine isn't some test machine that I don't care about. It took two reboots for my client to boot normally again. At the time I was testing some mount and share commands for a script I was writing. The conditions were 1. I manually mounted a drive and added the mount point to my /boot/config/smb-extra.conf file. 2. Using explorer on Win7, I browsed the share - files/folders appeared as expected 3. I manually removed the smb-extra mv smb-extra.conf smb-extra.conf.save 4. rebooted unRAID machine. 5. Using explorer on Win7, I browsed the share again - just to be sure it was gone 6 BSOD So, just thinking about the possible combination of events it might be useful to test out these possible scenarios for the free version and the Plus version with security set to user. Possible scenarios to test: A. Maybe Win7 still had a memory of that share location. Maybe if I had rebooted Win7 before step 5 the BSOD might not happen. B. Maybe the same issue will arise if someone removes a share in unRAID that had been browsed in Win7 and then browse again in Win7. C. Repeating my original steps with unRAID free version and Plus version with security set to user. Anybody feel like testing this with me? Quote Link to comment
BRiT Posted March 19, 2010 Share Posted March 19, 2010 When/If you get a BSOD write down or better yet take a picture of the information displayed. It is vital in searching for a fix to the problem. Quote Link to comment

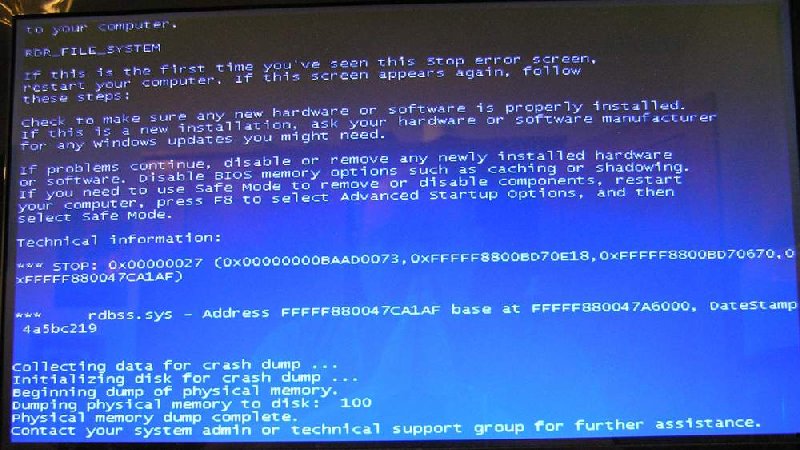

queeg Posted March 19, 2010 Author Share Posted March 19, 2010 Ok, I followed my steps 3 times and got 3 BSOD's. I have attached a picture. Amazingly here is a google search discussing this very stop code regarding Samba shares and the security = share. http://social.answers.microsoft.com/Forums/en-US/w7repair/thread/fac35fde-7e6e-4a75-b60b-82048ca0c78f Since I don't have the Plus version I can't test if it actually will resolve this issue. So, again, does anyone with the Plus or Pro version want to volunteer to test this? Quote Link to comment
Joe L. Posted March 19, 2010 Share Posted March 19, 2010 Ok, I followed my steps 3 times and got 3 BSOD's. I have attached a picture. Amazingly here is a google search discussing this very stop code regarding Samba shares and the security = share. http://social.answers.microsoft.com/Forums/en-US/w7repair/thread/fac35fde-7e6e-4a75-b60b-82048ca0c78f Since I don't have the Plus version I can't test if it actually will resolve this issue. So, again, does anyone with the Plus or Pro version want to volunteer to test this? I can't try it, because I don't have windows-7. But did you try creating the config/smb-extra.conf file and putting in it the line to change security to "user" as I described in this post: http://lime-technology.com/forum/index.php?topic=5695.msg53563#msg53563 You can then run the testparm command to verify it is recognized correctly. Joe L. Quote Link to comment
Rajahal Posted March 19, 2010 Share Posted March 19, 2010 I have both Win7 and an unRAID Pro license, but I'm hesitant to test this as I don't want to break my currently working system... What would testing this involve? Quote Link to comment
queeg Posted March 19, 2010 Author Share Posted March 19, 2010 I have both Win7 and an unRAID Pro license, but I'm hesitant to test this as I don't want to break my currently working system... What would testing this involve? Awesome. Hang on a bit and I'll try to recap all the details. I'm trying something Joe suggested first. Quote Link to comment
queeg Posted March 19, 2010 Author Share Posted March 19, 2010 Ok, I followed my steps 3 times and got 3 BSOD's. I have attached a picture. Amazingly here is a google search discussing this very stop code regarding Samba shares and the security = share. http://social.answers.microsoft.com/Forums/en-US/w7repair/thread/fac35fde-7e6e-4a75-b60b-82048ca0c78f Since I don't have the Plus version I can't test if it actually will resolve this issue. So, again, does anyone with the Plus or Pro version want to volunteer to test this? I can't try it, because I don't have windows-7. But did you try creating the config/smb-extra.conf file and putting in it the line to change security to "user" as I described in this post: http://lime-technology.com/forum/index.php?topic=5695.msg53563#msg53563 You can then run the testparm command to verify it is recognized correctly. Joe L. I added the global setting to my smb-extra.conf file. 1. When I try to browse the the new share or my existing array shares it wants a user/password. Where/how do I set that? I'm using the free version. root@Queeg:/boot/config# testparm Load smb config files from /etc/samba/smb.conf rlimit_max: rlimit_max (1024) below minimum Windows limit (16384) Processing section "[3LJ2TV1A]" Processing section "" Processing section "[disk1]" Processing section "[disk2]" Processing section "[backup]" Processing section "[Cloister]" Processing section "[Crashplan]" Processing section "[Movies]" Processing section "[Public]" Processing section "[Queeg]" Processing section "[scutter]" Processing section "[Video]" Processing section "[ftproot]" Processing section "[lost+found]" Loaded services file OK. Server role: ROLE_STANDALONE Press enter to see a dump of your service definitions [global] workgroup = RED_DWARF server string = Media server null passwords = Yes passdb backend = smbpasswd guest account = root syslog = 0 syslog only = Yes unix extensions = No load printers = No printcap name = /dev/null disable spoolss = Yes show add printer wizard = No local master = No force user = root create mask = 0711 directory mask = 0711 guest only = Yes guest ok = Yes use sendfile = Yes map hidden = Yes map system = Yes msdfs root = Yes [3LJ2TV1A] path = /mnt/disk/3LJ2TV1A path = /boot create mask = 0777 directory mask = 0777 map archive = No map hidden = No map system = No browseable = No browsable = No [disk1] path = /mnt/disk1 read only = No browseable = No browsable = No [disk2] path = /mnt/disk2 read only = No browseable = No browsable = No [backup] path = /mnt/user/Backup read only = No [Cloister] path = /mnt/user/Cloister read only = No browseable = No browsable = No [Crashplan] path = /mnt/user/Crashplan read only = No browseable = No browsable = No [Movies] path = /mnt/user/Movies read only = No [Public] path = /mnt/user/Public read only = No [Queeg] path = /mnt/user/Queeg read only = No browseable = No browsable = No [scutter] path = /mnt/user/Scutter read only = No browseable = No browsable = No [Video] path = /mnt/user/Video read only = No browseable = No browsable = No [ftproot] path = /mnt/user/ftproot read only = No browseable = No browsable = No [lost+found] path = /mnt/user/lost+found read only = No Quote Link to comment
queeg Posted March 19, 2010 Author Share Posted March 19, 2010 I have both Win7 and an unRAID Pro license, but I'm hesitant to test this as I don't want to break my currently working system... What would testing this involve? The back story: My original intentions were to write a script to automatically mount and share non-array drives at boot time. I have some archive drives (mostly ntfs) that I will want to make available periodically. Mostly I'll do that by plugging in a usb drive but for this particular drive I installed it in unRAID on the IDE port. I don't want to convert those drives to reiser. But when I plug one in, I'd like to be able to browse it on the same share every time (for sanity sake). It would be easy to automatically make the share name from the drives serial number so that is my plan for now. Recreating the BSOD: I manually run a short script I made that mounts my drive. Then I add the samba share to the smb-extra.conf file (which doesn't exist prior to that). I open file explorer on Win7 and browse the share - all is well. I close the Win7 explorer window. Then I simulate removing the drive by deleting the smb-extra.conf file and rebooting unRAID. I open the explorer on Win7 again and enter the samba share - Win7 BSOD. Why the Plus or Pro test is needed: The reported BSOD is said to occur only when Samba security = SHARE. The free version uses security=SHARE. Plus and Pro can be configured to use security=USER. The mounting script: ### Setting up the out-of-array disk serialnumber="3LJ2TV1A" partnum="1" diskX="/dev/disk/by-id/*_$serialnumber" partitionX="$diskX-part$partnum" mountName=$serialnumber # set its read-ahead to 1024... blockdev --setra 1024 $diskX # set its spin-down timer to 30 min of idle... hdparm -S241 $diskX # enable its IRQ unmasking (can improve performance)... hdparm -u1 $diskX # create a mount point for it... mkdir -p /mnt/disk/$mountName # mount the partition ... #mount $diskX /tmp/mnt/$serialnumber mount -r -o umask=111,dmask=000 -t ntfs $partitionX /mnt/disk/$mountName 2>&1 ### Done. The smb-extra.conf entry: [3LJ2TV1A] path = /mnt/disk/3LJ2TV1A read only = Yes Quote Link to comment
BRiT Posted March 19, 2010 Share Posted March 19, 2010 Hmm... Do you have open file explorer in separate process enabled? If not, it might help to keep the crash to only the new process and not the entire system. To enable it, navigate to the following location: Windows Explorer, Alt - Tools, Folder Options, View tab, Advanced Settings, "Launch folder windows in a separate process" checked Quote Link to comment
queeg Posted March 20, 2010 Author Share Posted March 20, 2010 Hmm... Do you have open file explorer in separate process enabled? If not, it might help to keep the crash to only the new process and not the entire system. To enable it, navigate to the following location: Windows Explorer, Alt - Tools, Folder Options, View tab, Advanced Settings, "Launch folder windows in a separate process" checked Not sure if I'm doing this correctly. But in Win7 there is an explorer icon on the tray. If I click on it a menu pops up and Windows Explorer is one of them. When I highlight that and choose properties then I see an Advanced button. Clicking that I see two checkboxes. One says Run as Administrator - unchecked. The other is grayed out but says "Run in separate memory space" and is checked. Quote Link to comment
BRiT Posted March 20, 2010 Share Posted March 20, 2010 That navigation path is from once you have a file explorer window up and running. Quote Link to comment
queeg Posted March 20, 2010 Author Share Posted March 20, 2010 That navigation path is from once you have a file explorer window up and running. There aren't any menu's on file explorer. Are you thinking about Internet explorer? Quote Link to comment
BRiT Posted March 20, 2010 Share Posted March 20, 2010 That is why I said to hit the ALT key. That will display the hidden menu. Quote Link to comment
queeg Posted March 20, 2010 Author Share Posted March 20, 2010 That navigation path is from once you have a file explorer window up and running. Ok, so pressing the Alt key by itself makes the hidden menu show itself. Thanks for explaining that one. Quote Link to comment
Joe L. Posted March 20, 2010 Share Posted March 20, 2010 Ok, I followed my steps 3 times and got 3 BSOD's. I have attached a picture. Amazingly here is a google search discussing this very stop code regarding Samba shares and the security = share. http://social.answers.microsoft.com/Forums/en-US/w7repair/thread/fac35fde-7e6e-4a75-b60b-82048ca0c78f Since I don't have the Plus version I can't test if it actually will resolve this issue. So, again, does anyone with the Plus or Pro version want to volunteer to test this? I can't try it, because I don't have windows-7. But did you try creating the config/smb-extra.conf file and putting in it the line to change security to "user" as I described in this post: http://lime-technology.com/forum/index.php?topic=5695.msg53563#msg53563 You can then run the testparm command to verify it is recognized correctly. Joe L. I added the global setting to my smb-extra.conf file. 1. When I try to browse the the new share or my existing array shares it wants a user/password. Where/how do I set that? I'm using the free version. root@Queeg:/boot/config# testparm Load smb config files from /etc/samba/smb.conf rlimit_max: rlimit_max (1024) below minimum Windows limit (16384) Processing section "[3LJ2TV1A]" Processing section "" Processing section "[disk1]" Processing section "[disk2]" Processing section "[backup]" Processing section "[Cloister]" Processing section "[Crashplan]" Processing section "[Movies]" Processing section "[Public]" Processing section "[Queeg]" Processing section "[scutter]" Processing section "[Video]" Processing section "[ftproot]" Processing section "[lost+found]" Loaded services file OK. Server role: ROLE_STANDALONE Press enter to see a dump of your service definitions [global] workgroup = RED_DWARF server string = Media server null passwords = Yes passdb backend = smbpasswd guest account = root syslog = 0 syslog only = Yes unix extensions = No load printers = No printcap name = /dev/null disable spoolss = Yes show add printer wizard = No local master = No force user = root create mask = 0711 directory mask = 0711 guest only = Yes guest ok = Yes use sendfile = Yes map hidden = Yes map system = Yes msdfs root = Yes [3LJ2TV1A] path = /mnt/disk/3LJ2TV1A path = /boot create mask = 0777 directory mask = 0777 map archive = No map hidden = No map system = No browseable = No browsable = No [disk1] path = /mnt/disk1 read only = No browseable = No browsable = No [disk2] path = /mnt/disk2 read only = No browseable = No browsable = No [backup] path = /mnt/user/Backup read only = No [Cloister] path = /mnt/user/Cloister read only = No browseable = No browsable = No [Crashplan] path = /mnt/user/Crashplan read only = No browseable = No browsable = No [Movies] path = /mnt/user/Movies read only = No [Public] path = /mnt/user/Public read only = No [Queeg] path = /mnt/user/Queeg read only = No browseable = No browsable = No [scutter] path = /mnt/user/Scutter read only = No browseable = No browsable = No [Video] path = /mnt/user/Video read only = No browseable = No browsable = No [ftproot] path = /mnt/user/ftproot read only = No browseable = No browsable = No [lost+found] path = /mnt/user/lost+found read only = No I would try logging in as "guest" Quote Link to comment
queeg Posted March 20, 2010 Author Share Posted March 20, 2010 Hmm... Do you have open file explorer in separate process enabled? If not, it might help to keep the crash to only the new process and not the entire system. To enable it, navigate to the following location: Windows Explorer, Alt - Tools, Folder Options, View tab, Advanced Settings, "Launch folder windows in a separate process" checked I set it as you indicated - still BSOD's the machine. Quote Link to comment

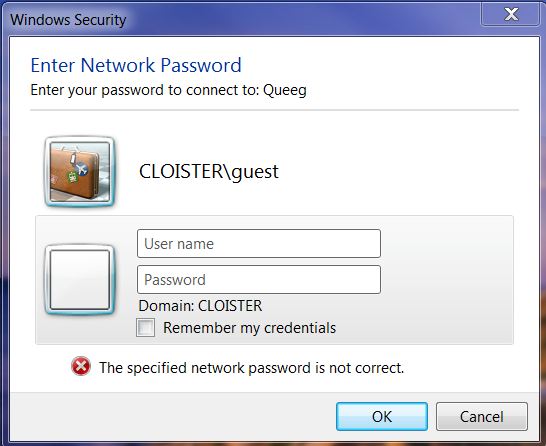

queeg Posted March 20, 2010 Author Share Posted March 20, 2010 I would try logging in as "guest" Logging in as guest doesn't work. Quote Link to comment
queeg Posted March 22, 2010 Author Share Posted March 22, 2010 I believe I got the BSOD worked around thanks to Joe's suggestion with the smb-extra.conf global entry. I read up on it and found a way to choose security = user but still have all the shares work like security = share, meaning public access with no login required to connect. And I got the whole process into a handful of shell scripts that will mount drives at boot time from a list by running them from the go script. Ugh, learning curve hurts. Currently, the scripts mount the drive by it's serial id which is a little obtuse. I'd like to extend the scripts to add a friendly name for the share and also would like to either have the scripts auto-determine the filesystem if possible. In any case, it's on it's way for now. I'll attach my work here in case anyone wants it. Edit: 3/22/2010 - updated the zip file with some changes, added a readme.txt with install instructions. try1.0.zip Quote Link to comment
queeg Posted March 23, 2010 Author Share Posted March 23, 2010 Say Joe, how do I query to find out what filesystem is on the hard drive partition? Quote Link to comment
