May 6, 20179 yr Hi guys, I'm setting up a new machine for my dad, but I've got a few Problems 1. All Windows 10 Pro VMs hang when they reboot - after the BIOS Screen (and before windows logo) it only shows a black screen with text cursor. I've tried creating new VMs with different settings (hyper-v on/off, gpu/vnc, bios) but it doesnt seem to work. All VMs hang when Windows 10 tries to restart (even while installing) 2. When I try to PT Audio of the NVIDIA GT710 it hangs on Boot (at logo, loading animation hides and Host CPU Cores are at 100%) Ideas anyone? Thanks very much! aussenbecken-diagnostics-20170506-0922 2.zip
May 6, 20179 yr 6 hours ago, me.so.bad said: Ideas anyone? Thanks very much! Make sure you only have one CPU core checked in the VM until everything is stable.
May 6, 20179 yr Author 7 hours ago, NAStyBox said: Is your cache drive full? You may need to run mover. nope 5 hours ago, jonathanm said: Make sure you only have one CPU core checked in the VM until everything is stable. tried that, but even with only one Core assigned it hangs
May 6, 20179 yr Author hm, dont think so. everything else works perfectly. is there a way to check it? mount says its rw (/dev/sdc1 on /mnt/cache type btrfs (rw,noatime,nodiratime))
May 6, 20179 yr Author Quote scrub status for 8ee9a968-0c19-46b8-96b6-eca3f0a23f11 scrub started at Sat May 6 21:18:25 2017 and finished after 00:03:37 total bytes scrubbed: 218.68GiB with 0 errors &
May 7, 20179 yr Author Nope, also tried that already. no matter which settings I chose, restart never works.
May 8, 20179 yr Author I doubt its the SSD. But is it possible that kvm isnt fully compatible with kaby lake and/or Intel H270 chipsets yet? Or any other Idea where I can search for the problem? On my own machine (i7-6700k @ z170) everything works fine. never had problems with that one edit: unRAID 6.3.3. runs qemu 2.7.1 but latest stable is 2.9.0 ... does anyone know if LT will update it in 6.3.4 or 6.4? Edited May 8, 20179 yr by me.so.bad
May 8, 20179 yr On 5/6/2017 at 3:30 AM, me.so.bad said: Hi guys, I'm setting up a new machine for my dad, but I've got a few Problems 1. All Windows 10 Pro VMs hang when they reboot - after the BIOS Screen (and before windows logo) it only shows a black screen with text cursor. I've tried creating new VMs with different settings (hyper-v on/off, gpu/vnc, bios) but it doesnt seem to work. All VMs hang when Windows 10 tries to restart (even while installing) 2. When I try to PT Audio of the NVIDIA GT710 it hangs on Boot (at logo, loading animation hides and Host CPU Cores are at 100%) Ideas anyone? Thanks very much! aussenbecken-diagnostics-20170506-0922 2.zip 1. What guide did you follow in making the vm? If you just went at it on you own, that's probably your problem. 2. deal with problem 1 first.
May 9, 20179 yr Author This time I did it on my own, but I've created multiple VMs on my own unRAID machine before. so personally I dont think its something that easy. Also I have tried multiple configurations (including seaBios/OMVF, different VNC/GPU, different Cores, different Hyper-V Settings... basicly different everything) and not a single VM restarted during Windows 10 installation... some of them didnt even start at all. But if your pass me over a guide I'm more then happy to try it out, maybe there is something I dont know yet.
May 9, 20179 yr 3 hours ago, me.so.bad said: This time I did it on my own, but I've created multiple VMs on my own unRAID machine before. so personally I dont think its something that easy. Also I have tried multiple configurations (including seaBios/OMVF, different VNC/GPU, different Cores, different Hyper-V Settings... basicly different everything) and not a single VM restarted during Windows 10 installation... some of them didnt even start at all. But if your pass me over a guide I'm more then happy to try it out, maybe there is something I dont know yet. I always follow along with the guide, even though I've made dozens of win10 vm's. Plus, if you follow the guide and still have problems, this lets us all know it was setup correctly, and we can eliminate some variables and isolate your problem better. Edited May 9, 20179 yr by 1812

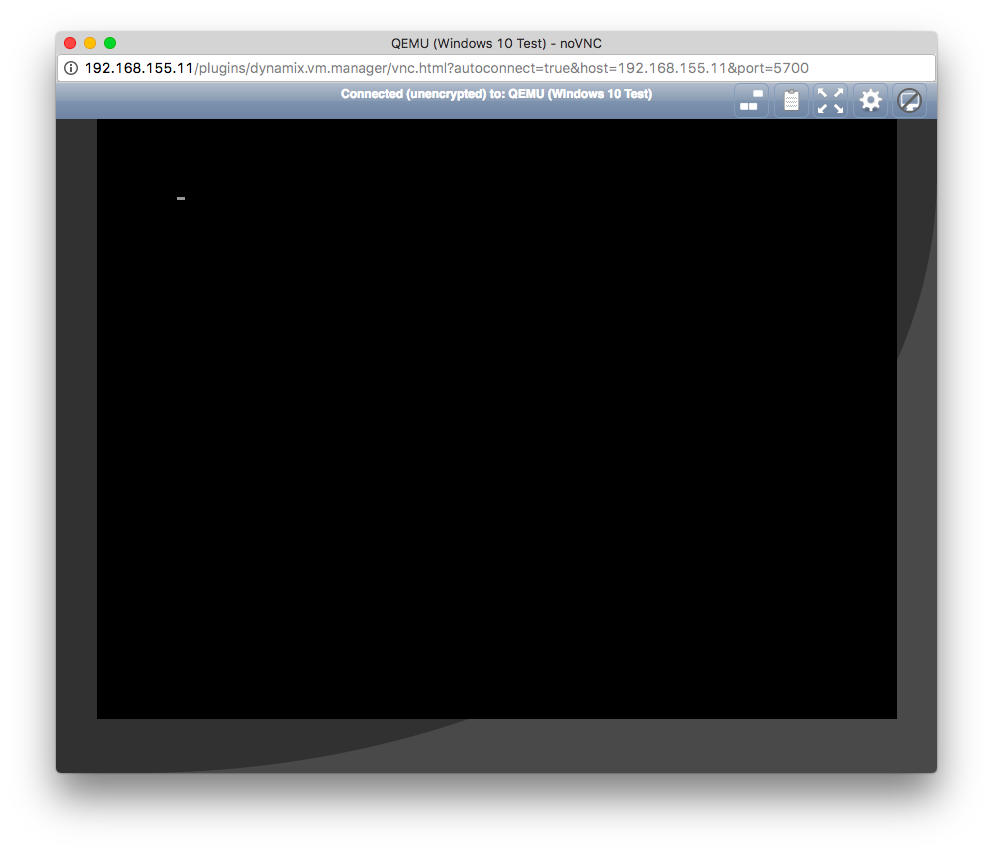

May 9, 20179 yr Author Ok, heres an XML generated with the video above ("minimal setup") - it boots into windows setup - I select E:\viostor\w10\amd64 drivers - it copies windows pro - it restarts ... and hangs - force stop from unRAID webUI, start again. - setup completes (express - no cortana), I'm in Windows. - installing all needed drivers (network, balloon, pice "simple device") - disable fast boot (shouldnt affect reboot at all) - restarting... and it hangs again Screenshot of hanging VM is attached <domain type='kvm'> <name>Windows 10 Test</name> <uuid>c74f8c77-0c9b-a13b-a4e1-ee1c2ad62e6e</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>2097152</memory> <currentMemory unit='KiB'>2097152</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>1</vcpu> <cputune> <vcpupin vcpu='0' cpuset='2'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-2.7'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/c74f8c77-0c9b-a13b-a4e1-ee1c2ad62e6e_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='1'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Windows 10 Test/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/de_windows_10_multiple_editions_version_1607_updated_jul_2016_x64_dvd_9053906.iso'/> <target dev='hda' bus='ide'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.126-2.iso'/> <target dev='hdb' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:94:d3:c4'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </memballoon> </devices> </domain>
May 9, 20179 yr Author 3 minutes ago, NAStyBox said: I still don't know what that "loader" thing is in yours, or where it comes from. Can anyone explain? Maybe because I have copied the XML before starting the VM the first time. You XML is copied while the VM is running, right? but it looks more or less the same as mine..
May 10, 20179 yr Lots of "errors" in libvirt. The tainted domain is nothing to worry about and not causing the problem. 2017-05-09 14:08:15.630+0000: 4706: error : qemuStorageLimitsRefresh:11550 : cannot stat file '/mnt/user/domains/Workstation/vdisk2.img': Bad file descriptor 2017-05-09 14:08:18.362+0000: 4706: error : qemuOpenFileAs:3033 : Failed to open file '/mnt/user/domains/Workstation/vdisk1.img': No such file or directory 2017-05-09 14:08:18.362+0000: 4706: error : qemuStorageLimitsRefresh:11550 : cannot stat file '/mnt/user/domains/Workstation/vdisk1.img': Bad file descriptor 2017-05-09 14:08:18.362+0000: 4704: error : qemuOpenFileAs:3033 : Failed to open file '/mnt/user/domains/Workstation/vdisk2.img': No such file or directory 2017-05-09 14:08:18.362+0000: 4704: error : qemuStorageLimitsRefresh:11550 : cannot stat file '/mnt/user/domains/Workstation/vdisk2.img': Bad file descriptor 2017-05-09 17:33:53.661+0000: 4702: warning : qemuDomainObjTaint:3885 : Domain id=8 name='Windows 10 Test' uuid=c74f8c77-0c9b-a13b-a4e1-ee1c2ad62e6e is tainted: high-privileges 2017-05-09 17:33:53.661+0000: 4702: warning : qemuDomainObjTaint:3885 : Domain id=8 name='Windows 10 Test' uuid=c74f8c77-0c9b-a13b-a4e1-ee1c2ad62e6e is tainted: host-cpu 2017-05-09 17:33:53.743+0000: 4702: error : x86FeatureInData:780 : internal error: unknown CPU feature __kvm_hv_spinlocks 2017-05-09 17:33:53.743+0000: 4702: error : x86FeatureInData:780 : internal error: unknown CPU feature __kvm_hv_vendor_id 2017-05-09 17:40:55.669+0000: 4706: warning : qemuDomainObjTaint:3885 : Domain id=9 name='Windows 10 Test' uuid=c74f8c77-0c9b-a13b-a4e1-ee1c2ad62e6e is tainted: high-privileges 2017-05-09 17:40:55.669+0000: 4706: warning : qemuDomainObjTaint:3885 : Domain id=9 name='Windows 10 Test' uuid=c74f8c77-0c9b-a13b-a4e1-ee1c2ad62e6e is tainted: host-cpu 2017-05-09 17:40:55.750+0000: 4706: error : x86FeatureInData:780 : internal error: unknown CPU feature __kvm_hv_spinlocks 2017-05-09 17:40:55.750+0000: 4706: error : x86FeatureInData:780 : internal error: unknown CPU feature __kvm_hv_vendor_id save a copy of your xml to a second location, then try changing the following changes: change machine to Q35-2.7 if that doesn't work, then try <hyperv> <relaxed state='off'/> <vapic state='off'/> <spinlocks state='off'/> </hyperv> Was doing some reading this am. no guarantee this will work, but seem to solve some similar issues. Edited May 10, 20179 yr by 1812
May 10, 20179 yr Author 1. switched machine type to Q35-2.7 -> nope 2. turned off hyper-v through UI -> nope 3. switched back to i440fx-2.7 (hyper-v still off) -> nope
May 13, 20179 yr have you tried installing a linux vm to see if the problem is windows or kvm/hardware? Ubuntu is very easy/lite.
May 13, 20179 yr 59 minutes ago, me.so.bad said: Ubuntu works without any Problems. no sure if thats a good or a bad thing.. That makes me think it is a windows problem. Download a fresh copy of the os. Perhaps the one you're using is corrupted.
May 14, 20179 yr Author 9 hours ago, 1812 said: That makes me think it is a windows problem. Download a fresh copy of the os. Perhaps the one you're using is corrupted. already did it. 1607 & 1703 both have the same issue.
May 14, 20179 yr Author I'm pretty sure its an issue with OVMF + Win10 + my CPU/Chipset... Dang! is there any chance to upgrade something on unRAID?
May 14, 20179 yr 1 hour ago, me.so.bad said: I'm pretty sure its an issue with OVMF + Win10 + my CPU/Chipset... Dang! is there any chance to upgrade something on unRAID? If you think it's an ovmf issue, then make a win 10 vm with seabios, no gpu, and only use 1 core. Also, if you're on unRaid 6.3.3, then you'e on the latest.
May 15, 20179 yr Author 7 hours ago, 1812 said: If you think it's an ovmf issue, then make a win 10 vm with seabios, no gpu, and only use 1 core. Also, if you're on unRaid 6.3.3, then you'e on the latest. Hm, right.. same with SeaBios, so OMVF isnt the problem
June 13, 20179 yr Author hm, after testing more and more configs I was able to get it running relatively stable with seabios. but after adding my pcie-usb3-card the VM crashed and now it doesnt recognize the vdisk anymore... something is completly broken in this machine, but what? diags attached… aussenbecken-diagnostics-20170613-1504.zip Edited June 13, 20179 yr by me.so.bad
