Should this work if you have an additional VLAN tagged? I see Br0 and Br0.10 in a ifconfig, have re-started docker services thru the GUI and I don't get the custom option.

Edited June 7, 20179 yr by smdion

2 hours ago, smdion said:

Should this work if you have an additional VLAN tagged? I see Br0 and Br0.10 in a ifconfig, have re-started docker services thru the GUI and I don't get the custom option.



When br0 and br0.10 both have an IP address assigned, they should appear in the list of custom networks for Docker.

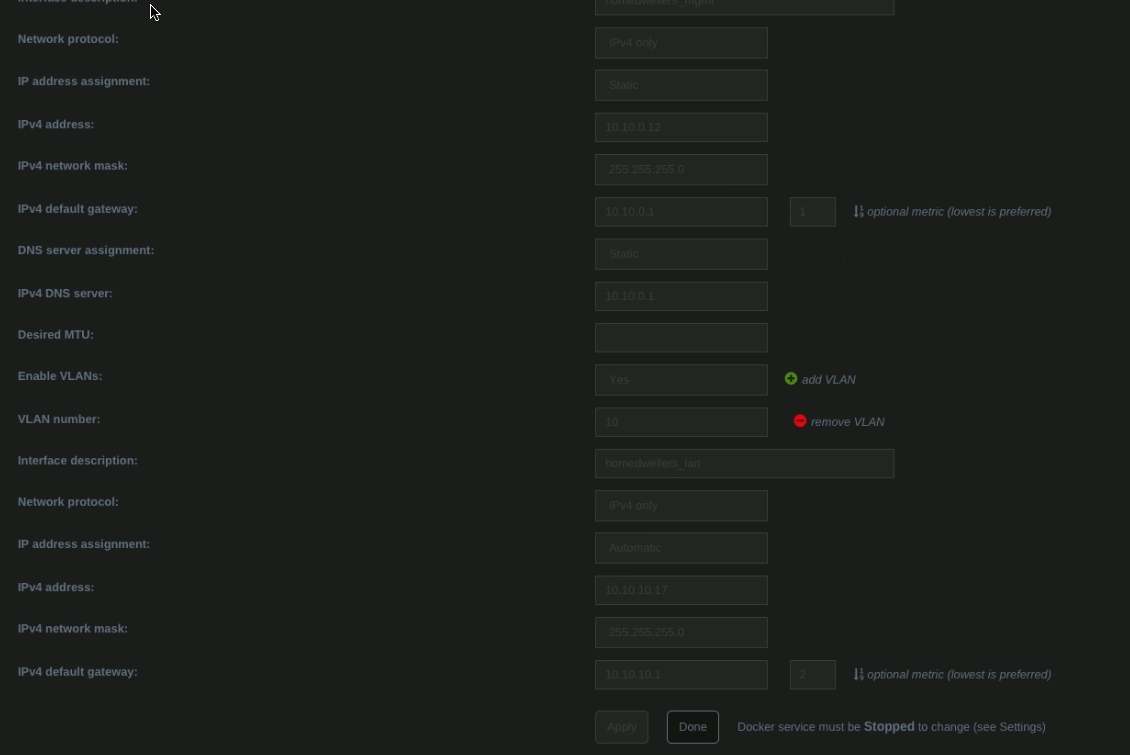

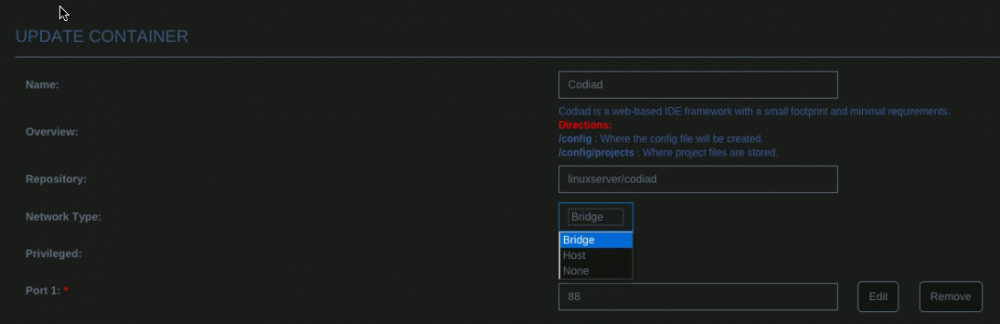

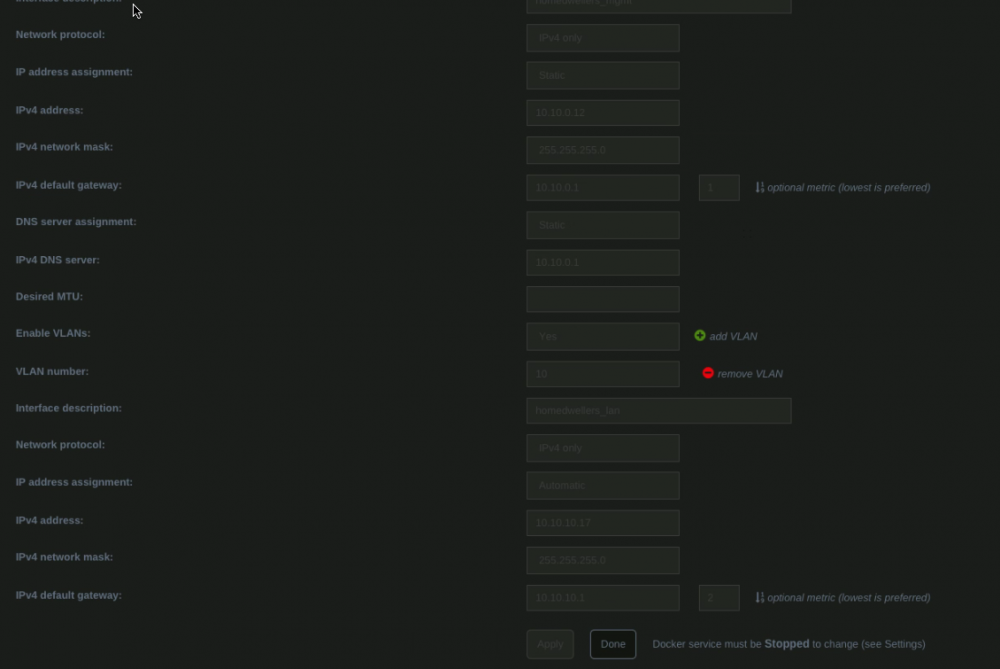

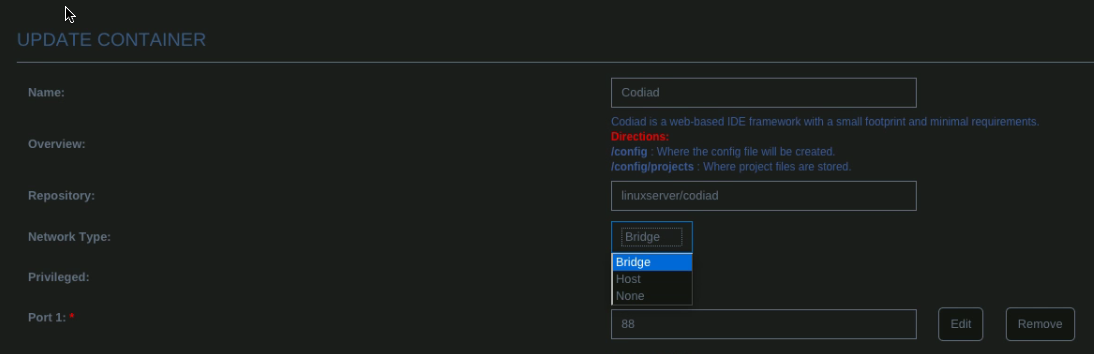

@bonienl  See screenshots

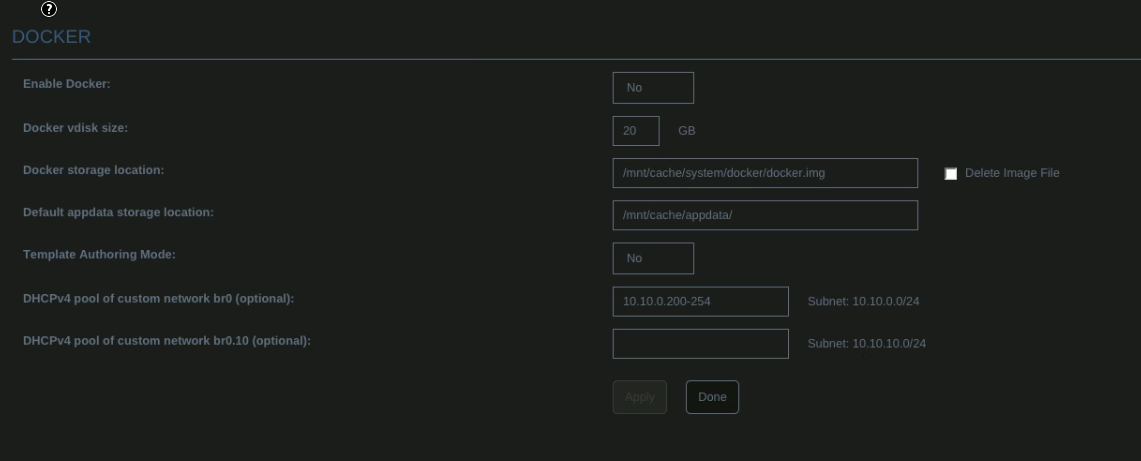

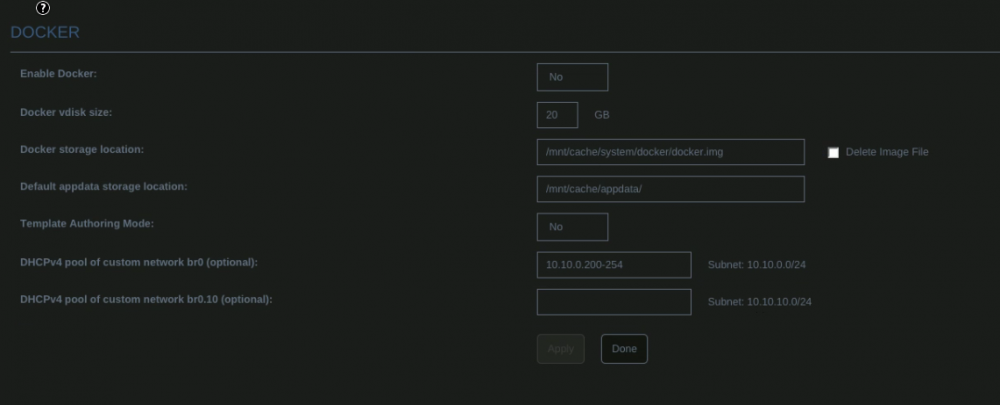

In your third screenshot, I believe the pool needs to be in CIDR format, not a range of ips



Sent from my ONEPLUS A3000 using Tapatalk









4 minutes ago, ljm42 said:

In your third screenshot, the pool needs to be in CIDR format, not a range of ips

Sent from my ONEPLUS A3000 using Tapatalk


Very sharp observation



Correct syntax is: 10.10.0.192/26



The above reserves 10.10.0.192 to 10.10.0.254



Ps. Maybe I should add some syntax checking?

Edited June 7, 20179 yr by bonienl

maybe also adding the keyword CIDR to the interface or help text to give a jump-start on what to Google for

Sent from my ONEPLUS A3000 using Tapatalk

6 minutes ago, bonienl said:

Very sharp observation



Correct syntax is: 10.10.0.192/26



The above reserves 10.10.0.192 to 10.10.0.254



Ps. Maybe I should add some syntax checking?

Ah, that makes sense. Syntax checking is probably a good idea. It makes sense with your example to the right, I just didn't add 1 + 1.



Sadly, still no custom option.

44 minutes ago, smdion said:

Ah, that makes sense. Syntax checking is probably a good idea. It makes sense with your example to the right, I just didn't add 1 + 1.



Sadly, still no custom option.

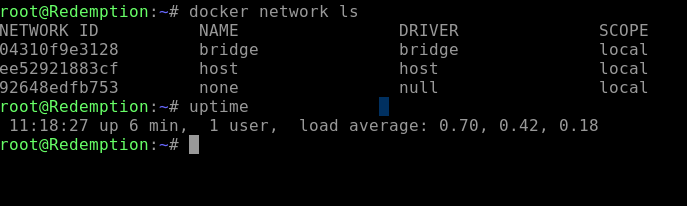

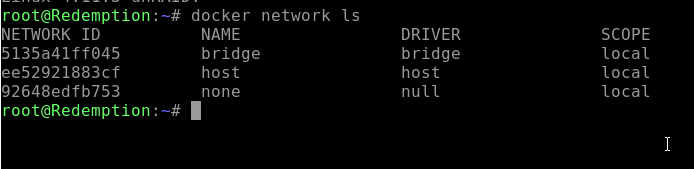

What is the output of

docker network ls



Hmm, it didn't create the custom networks.



Can you reboot your server and check again?

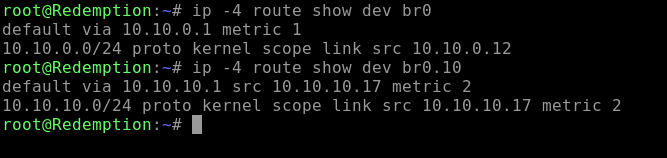

What is the output of

ip -4 route show dev br0

and

ip -4 route show dev br0.10



docker network create -d macvlan --subnet=10.10.0.0/24 --gateway=10.10.0.1 --aux-address=server=10.10.0.12 --ip-range=10.10.0.192/26 -o parent=br0 br0

Ok, lets try to add manually the custom network...







root@Redemption:~# docker network create -d macvlan --subnet=10.10.0.0/24 --gateway=10.10.0.1 --aux-address=server=10.10.0.12 --ip-range=10.10.0.192/26 -o parent=br0 br0
Error response from daemon: network dm-b1dc44cc930f is already using parent interface br0



Edited June 7, 20179 yr by smdion

It can not create the custom network "br0" because internally docker has it already assigned to something else.



Did you change your network settings somewhere in the process, e.g. added bridging later or removed bonding?



There is no possibility to tell docker to remove the old assignment (at least I couldn't find it). The workaround is to completely delete the docker image and recreate it, plus re-installing the containers

It happened when I added the VLAN to an existing bridge. I'll see if I can recreate it. Rebuilding isn't that bad.

4 minutes ago, smdion said:

It happened when I added the VLAN to an existing bridge. I'll see if I can recreate it. Rebuilding isn't that bad.



Perhaps you want to test this in two steps.



First create br0 only and check if it works

Second add the VLAN interface and check again



Ps. While developing I did test VLANs and it was working, but this has been some time ago.

Edited June 7, 20179 yr by bonienl

Test 1 (no changes to vlans)

1. recreated docker image
2. added container
3. able to chose br0
   1. br0.10 does not show in dropdown
   2. when attempting to add DHCP pool, able to type in information, but hitting apply clears out field

Test 2 (deleting and recreating vlans)

1. Delete docker image
2. removed all vlans
3. recreated docker image
4. able to chose br0
5. added vlan on br0.10
6. able to chose br0
   1. br0.10 does not show in dropdown
   2. when attempting to add DHCP pool, able to type in information, but hitting apply clears out field

Edited June 7, 20179 yr by smdion

After Test 2:



docker network ls

NETWORK ID          NAME                DRIVER              SCOPE
bf9cb0b23d8e        br0                 macvlan             local
a6ce9d49136e        bridge              bridge              local
dfcda7660adb        host                host                local
95ce9e830426        none                null                local

note (br0.10 exists in unRAID ifconfig)

root@Redemption:/mnt/cache/system/docker# ip -4 route show dev br0
default via 10.10.0.1 metric 1
10.10.0.0/24 proto kernel scope link src 10.10.0.12
root@Redemption:/mnt/cache/system/docker# ip -4 route show dev br0.10
default via 10.10.10.1 metric 2
10.10.10.0/24 proto kernel scope link src 10.10.10.191

(IP addy changed on br0.10 due to DHCP scope change on subnet)

Edited June 7, 20179 yr by smdion

Did a quick test and added VLAN 10. Have the same result as you. The network "none" is added. VLAN is not added. Obviously a bug

Edited June 7, 20179 yr by bonienl

Thanks for your help @bonienl  Happy to find bugs

2 minutes ago, smdion said:

Thanks for your help @bonienl  Happy to find bugs



Yeah, back to the drawing boards

I'm going to try to break mine again tonight, probably not a bad idea to add an error in the GUI when it can't create the network?

The addition of the VLAN caused a code error in the script which does the creation of the custom networks and is called upon starting the docker service. That part is now corrected.



Will add syntax checking too.
