paultn

Temperature Monitoring

21 posts in this topic Last Reply

Recommended Posts

Hello,   Sorry if this is not the correct place to post this.



I have an old OCZ Agility 3 SSD running as my download drive through unassigned devices plugin.   The drive does not have a temperature sensor on it and always reports 128.   This is triggering temperature warnings constantly from the server.   Is there any way to disable these warnings?   I would prefer to just disable them for this drive but if needed all temperature warnings could be disabled.

Share this post


Link to post

Go to the Main page and click on the name of the device, e.g. 'cache'.



Under Cache Settings set both Warning disk temperature threshold and Critical disk temperature threshold to zero. This will disable monitoring for this device only.



Share this post


Link to post

It's a UD mounted drive.  I don't think there is an option to set temperature thresholds to zero.

Share this post


Link to post
3 minutes ago, bonienl said:

I guess what will be the next feature request for UD :D

Not sure how to handle that one.  Is there a way for me to display that dialog so I can allow the entry for UD devices?  Maybe we should take this to PMs.

Share this post


Link to post
55 minutes ago, paultn said:

Hello,   Sorry if this is not the correct place to post this.



I have an old OCZ Agility 3 SSD running as my download drive through unassigned devices plugin.   The drive does not have a temperature sensor on it and always reports 128.   This is triggering temperature warnings constantly from the server.   Is there any way to disable these warnings?   I would prefer to just disable them for this drive but if needed all temperature warnings could be disabled.

Can you show me the output of this command?

/usr/sbin/smartctl -A /dev/sdX

Where X is the device designator.

Share this post


Link to post

Some generic code to read the temperature. Here $port is the name of the device you want read (e.g. sdn or nvme0)

smartctl -A /dev/$port | awk 'BEGIN{t="*"} $1==190||$1==194{t=$10;exit};$1=="Temperature:"{t=$2;exit} END{print t}'



Share this post


Link to post
29 minutes ago, dlandon said:

Can you show me the output of this command?


/usr/sbin/smartctl -A /dev/sdX

Where X is the device designator.

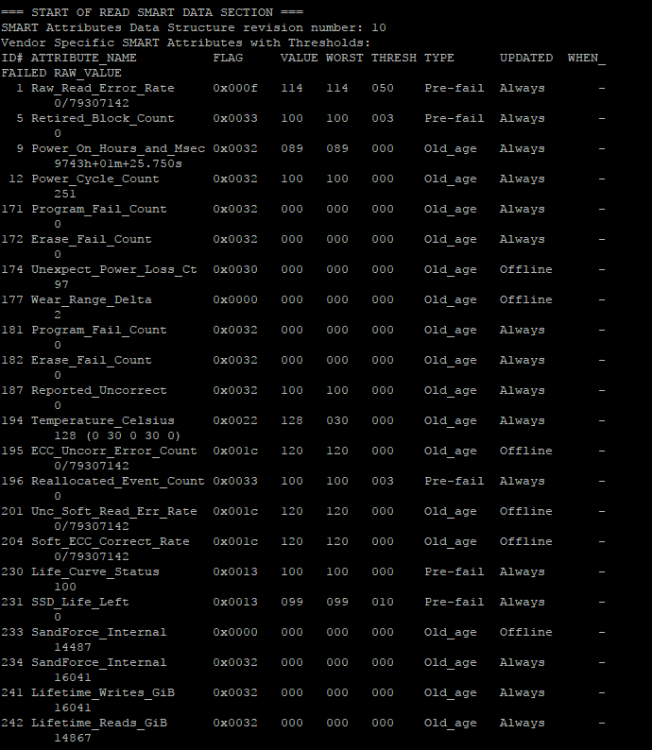

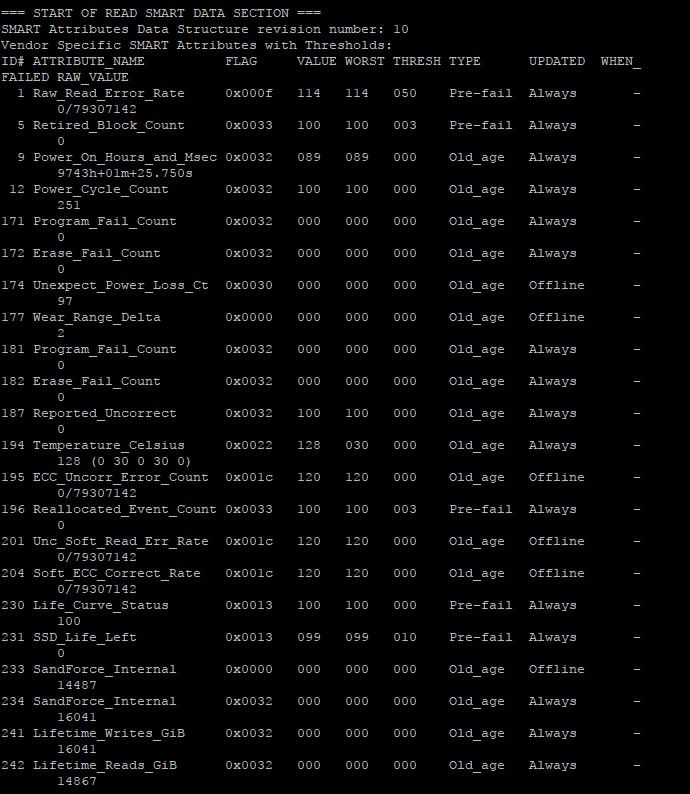

As you can see it always says the temp is 128.   I can assure you its not :)  I have no problem ignoring this however the alerts that get generated become irritating after awhile lol.

Edited by paultn

Share this post


Link to post

Default temperature thresholds are set under Settings -> Disk Settings.



Setting these to zero will disabled monitoring of all devices (not recommended). Perhaps UD uses these default thresholds?



Share this post


Link to post
3 minutes ago, bonienl said:

Default temperature thresholds are set under Settings -> Disk Settings.



Setting these to zero will disabled monitoring of all devices (not recommended). Perhaps UD uses these default thresholds?



Thanks I tried setting the Critical temp alert to 129.  This way it won't alert.   However I left the warning as 45.  This way I should still get a warning if something is going wrong but hopefully won't keep getting critical alerts.



Would be nice to be able to disable it on a per drive basis though.

Edited by paultn
Changed temp to correct temp

Share this post


Link to post
20 minutes ago, paultn said:

Thanks I tried setting the Critical temp alert to 129.  This way it won't alert.   However I left the warning as 45.  This way I should still get a warning if something is going wrong but hopefully won't keep getting critical alerts.



Would be nice to be able to disable it on a per drive basis though.

Nevermind it now triggering the warning instead of the critical :(

Share this post


Link to post
15 minutes ago, paultn said:

Nevermind it now triggering the warning instead of the critical :(



Ok so I found a work around.



Settings>Disk settings will set the warning and critical for all disks including those in UD.   So set these to 0 for both Critical and Warning (This disables it).  Now nothing alerts.

Go back to Main Dashboard screen and click the Thumb up icon and can set all the disks to their own threshold.  (UD device won't allow setting so it will use the one set in settings)

I tested this by setting all the disks to a very low temp threshold to test and they all triggered except the UD device.



This seems to be a good workaround but an easier more intuitive way of doing it would be nice.  (like being able to set the temp threshold just for the UD disk)

Edited by paultn
Spelling

Share this post


Link to post

Nice work around, but let me suggest a longer term answer.

- I'll not show a temperature of 128 in UD.  I'll show it as something other than a '*'.  The '*' indicates that the disk is spun down.  Maybe just '-' to show an invalid or unknown temperature?

- I have no control over the disk monitoring giving the alarms.  I would suggest that LT change the background disk temperature monitoring routine to not use a temperature of 128 and ignore checking this out of bounds temperature for alarms.



It may be that this is in @bonienl's wheel house to handle the disk temperature monitoring.

Share this post


Link to post

Currently there is no upper ceiling present. Can consider this to exclude any absurd high values.



Share this post


Link to post
33 minutes ago, bonienl said:

Currently there is no upper ceiling present. Can consider this to exclude any absurd high values.



Yes.  128 C is obviously not realistic.

Share this post


Link to post
4 hours ago, bonienl said:

Some generic code to read the temperature. Here $port is the name of the device you want read (e.g. sdn or nvme0)


smartctl -A /dev/$port | awk 'BEGIN{t="*"} $1==190||$1==194{t=$10;exit};$1=="Temperature:"{t=$2;exit} END{print t}'



Thank you.  Very handy.

Share this post


Link to post
8 hours ago, paultn said:

Hello,   Sorry if this is not the correct place to post this.



I have an old OCZ Agility 3 SSD running as my download drive through unassigned devices plugin.   The drive does not have a temperature sensor on it and always reports 128.   This is triggering temperature warnings constantly from the server.   Is there any way to disable these warnings?   I would prefer to just disable them for this drive but if needed all temperature warnings could be disabled.

Update UD and the temperatures should not show as 128 C.  This doesn't solve the monitor alarms, but at least the display is not unrealistic.

Share this post


Link to post

I don't know how common it is for the drives today to not have temperature sensors so not sure how much effort is really needed on this.

 My work around is working well for now.   Thank you for the update!!



I find it odd that Unraid is able to count the UD drives towards the license but is not able to adjust monitoring thresholds for them.  Perhaps a later version will address this.   However with such a great piece of software it really is a minor complaint.



Thanks to both of you on your hard work making Unraid the great OS it is.

Share this post


Link to post
On 7/8/2020 at 11:38 PM, rojarrolla said:

It is now 2020, has a way to monitor temperature for UD drives ?



Cheers!

I don't think so.



I just ran into a similar issue with my NVMe drive setting off warnings.  Couldn't find a way to disable the warnings so the work around would probably have done it.  However, I was planning to use this drive just for VM's so I stubbed it and now unRAID doesn't see the drive anymore and there are no errors to report.



craigr

Share this post


Link to post



On 8/2/2020 at 1:30 AM, craigr said:

I don't think so.



I just ran into a similar issue with my NVMe drive setting off warnings.  Couldn't find a way to disable the warnings so the work around would probably have done it.  However, I was planning to use this drive just for VM's so I stubbed it and now unRAID doesn't see the drive anymore and there are no errors to report.



craigr



Check this video on minute 3:00, the dashboard shows some Unassigned Devices with temperature:




Share this post


Link to post
