Ryzen Freezes


Recommended Posts

On 10/30/2017 at 7:48 PM, Reckless Maker said:

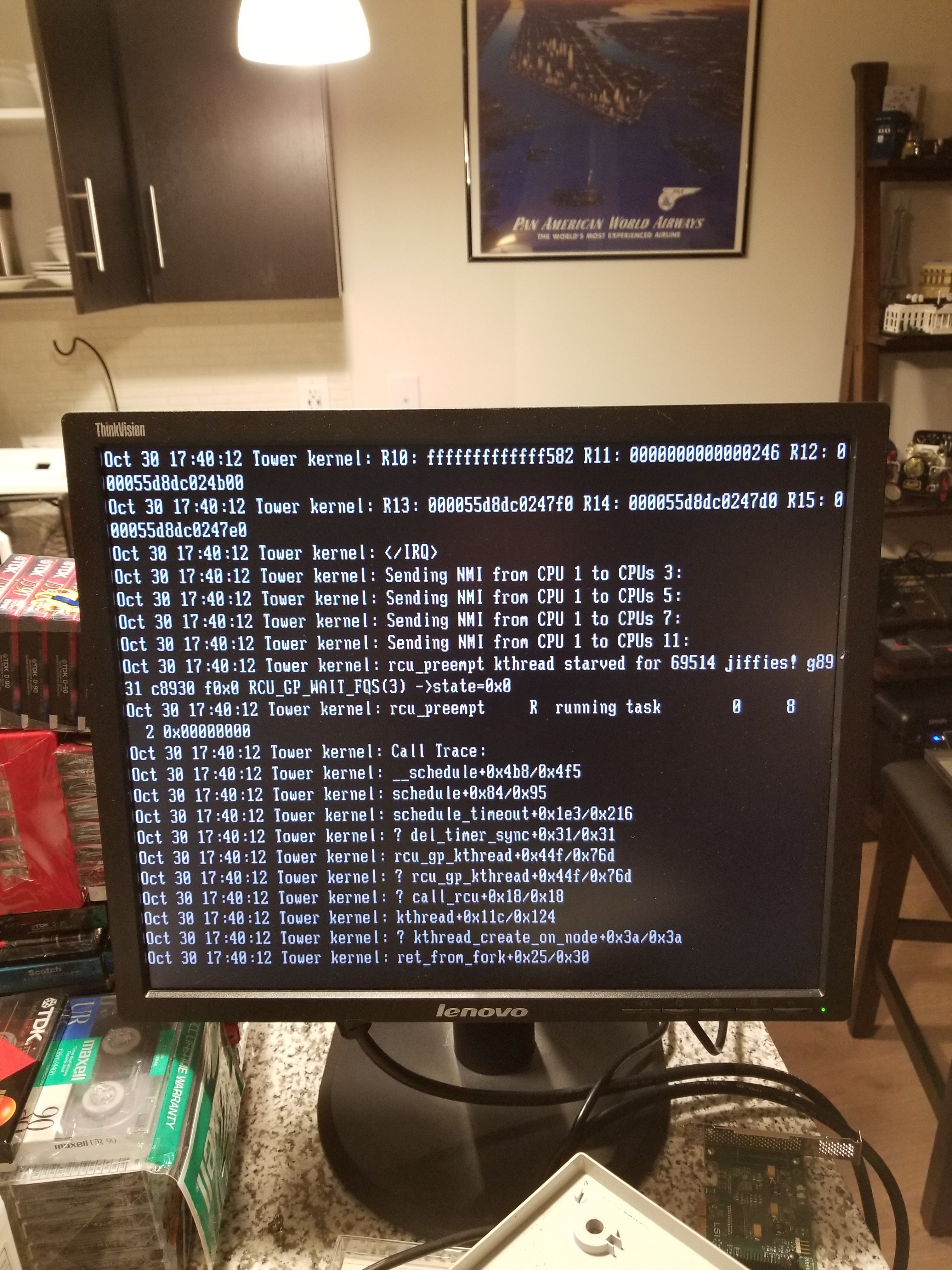

I just started with unRAID and for some reason my system won't stay up for more than an hour. This is what posts to the screen:

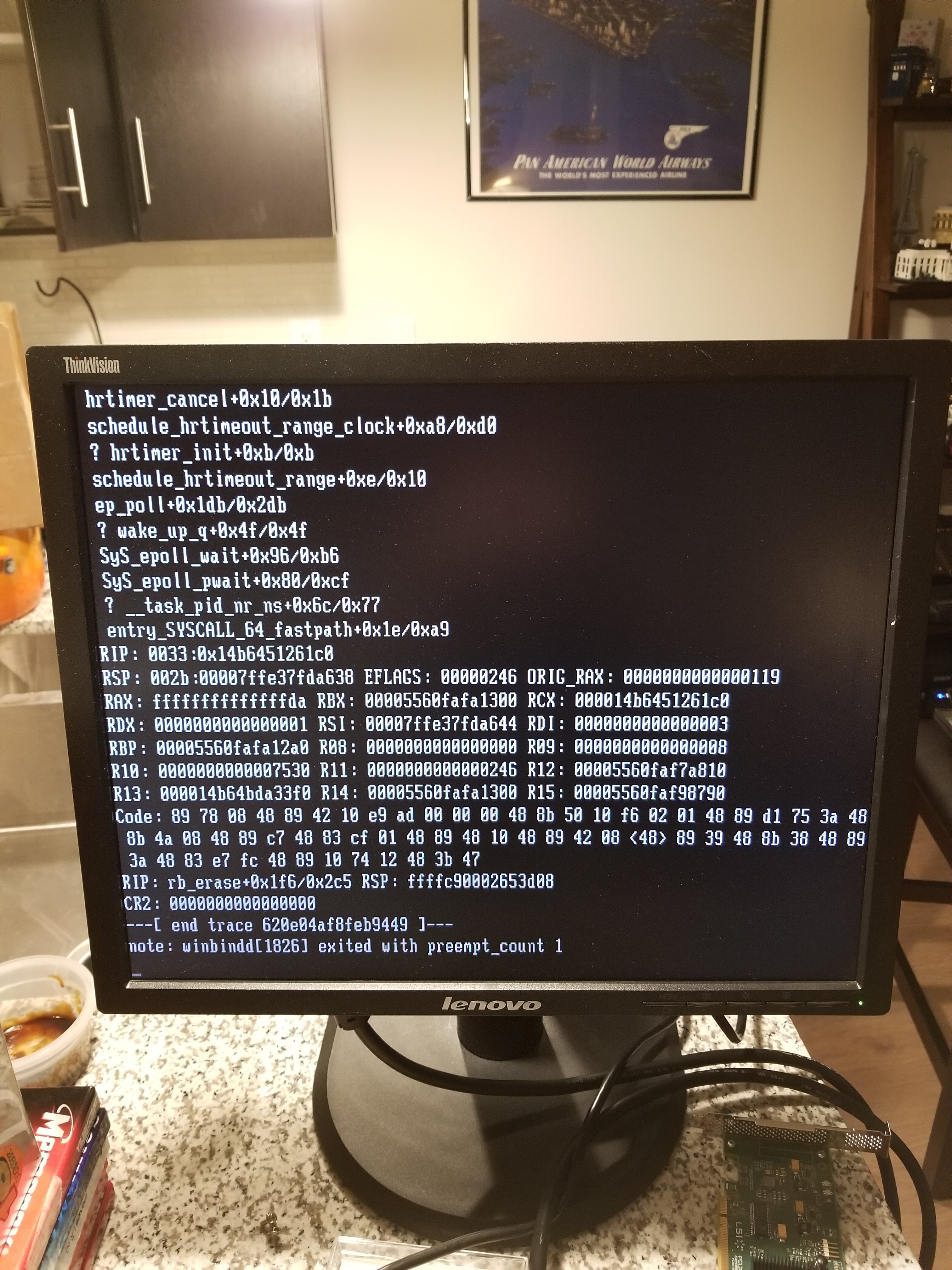

And this is what posts in safe mode:


This is on a Ryzen 1600X with nothing attached but the ram and an AMD RX 550 graphics card.

tower-diagnostics-20171030-1937.zip



We are following very closely a linux kernel bug report re: Ryzen Freezes:

https://bugzilla.kernel.org/show_bug.cgi?id=196683



I didn't notice this until today but the kernel config RCU_NOCB_CPU_ALL was removed in kernel 4.13.  It was one of the important options I found to prevent Ryzen cpus from locking up.



I'm looking at patching support back in to the kernel but in the meantime, if you have Ryzen, you can add this to your Syslinux configuration's 'append' lines,



For 16-threads Ryzen (1800X, 1700X, 1700):

rcu_nocbs=0-15



For 12-threads Ryzen (1600X, 1600):

rcu_nocbs=0-11



For 8-threads Ryzen (1500X, 1500, 1400):

rcu_nocbs=0-7



For 4-threads Ryzen (1300X, 1200):

rcu_nocbs=0-3



Edited by limetech
Add link to kernel bug report
  • Like 2
Link to comment
19 hours ago, eschultz said:

I'm looking at patching support back in to the kernel but in the meantime, if you have Ryzen, you can add this to your Syslinux configuration's 'append' lines,



For 12-threads Ryzen (1600X, 1600):

rcu_nocbs=0-11



I'm not sure how to do this. I searched for syslinux config and found several files named like that in the /boot directory, should I edit one of those?

Link to comment
30 minutes ago, RonUSMC said:



I'm not sure how to do this. I searched for syslinux config and found several files named like that in the /boot directory, should I edit one of those?



On the main page click on your flash drive and then scroll down to Syslinux Configuration

Link to comment
4 hours ago, johnnie.black said:



On the main page click on your flash drive and then scroll down to Syslinux Configuration



thanks Johnnie.



I see this, should I just add a line at the end "APPEND rcu_nocbs=0-11"





default menu.c32
menu title Lime Technology, Inc.
prompt 0
timeout 50
label unRAID OS
  menu default
  kernel /bzimage
  append initrd=/bzroot
label unRAID OS GUI Mode
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui
label unRAID OS Safe Mode (no plugins, no GUI)
  kernel /bzimage
  append initrd=/bzroot unraidsafemode
label unRAID OS GUI Safe Mode (no plugins)
  kernel /bzimage
  append initrd=/bzroot,/bzroot-gui unraidsafemode
label Memtest86+
  kernel /memtest

or should it go here?



label unRAID OS
  menu default
  kernel /bzimage
  append initrd=/bzroot rcu_nocbs=0-11

like that?

Edited by RonUSMC
Link to comment
9 minutes ago, RonUSMC said:

label unRAID OS
  menu default
  kernel /bzimage
  append initrd=/bzroot rcu_nocbs=0-11

like that?



This should be OK but since I'm not sure it can go in the end, do it like so:



label unRAID OS
  menu default
  kernel /bzimage
  append rcu_nocbs=0-11 initrd=/bzroot

Also note that if you plan to use other boot mode, e.g. GUI mode, you'll need to add it there also.



  • Like 1
Link to comment
  • 3 months later...
2 hours ago, ffhelllskjdje said:

Is this fix still needed for Ryzen systems? I had this in my syslinux at one point but just looked and it's not longer there. Not sure if the upgrade wiped it out but I haven't had any freezes so I'm not sure if I need to add it back?

Yes, but make sure you're using it correctly:





Link to comment
  • 4 weeks later...
On 12.2.2018 at 11:54 PM, johnnie.black said:

Yes, but make sure you're using it correctly:





So you mean in 6.4.1 its still needed generally or only for a problem to solve?

Because i dont really get, what it does and which problem it tries to fix, could you please explain more in detail?

i dont have any "rcu_" message in my syslog, dmesg or messages logs.

Im using a Ryzen 5 1600x with 24G on a ASUS PRIME X370 Pro

Edited by jammsen
Link to comment
6 hours ago, jammsen said:

So you mean in 6.4.1 its still needed generally or only for a problem to solve?

Because i dont really get, what it does and which problem it tries to fix, could you please explain more in detail?

i dont have any "rcu_" message in my syslog, dmesg or messages logs.

Im using a Ryzen 5 1600x with 24G on a ASUS PRIME X370 Pro

You need to use if your Ryzen based system crashes.

Link to comment
